Key specification for this water heater: 12kW(16.09hp), model number JSD-W2. Everything below is reproduced from the factory data sheet. Made by Yonyan Electric Gas Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Model Number: JSD-W2
- Power (W): 12kW(16.09hp)
- Power Source: Gas, Battery
- Housing Material: Metal
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Gas Type | LPG, Propane, Natural Gas |
|---|---|
| Storage / Tankless | Instant / Tankless |
| Application | Household, Outdoor, Garage, Hotel |
| Volume (Litre) | 6L(1.59gal) |
| Smoke Extraction Method | Open Flue Type |
| Power (W) | 12kW(16.09hp) |
| Heat Exchanger | Copper |
| Method Ignition | Automatic Ignition |
| Installation | Wall-mounted |
| Housing Material | Metal |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English, German, French, Dutch, Spanish |
| Display Type | LED Display Screen |
| App-Controlled | No |
| Power Source | Gas, Battery |
| Logo/Graphic Design | Silk Screen Printing |
| Packaging Types | Corrugated Box, Color Box, Gift Box |
| Place Of Origin | Guangdong, China |
| Model Number | JSD-W2 |
| Product Name | Open Flue Instant Tankless Wall Mounted Gas Water Heater |
| Energy Saving | ≥85% |
| Water Pressure | 0.02~0.8Mpa |
| Advantage | Instant Water Heating |
| Safety Device | Yes (Over heating protection, 20 minutes timer protection device) |
| Usage | Camping, Bathroom |
| Other Optional Size | 6L/7L/8L/10L/12L |
| Other Safety Protection | Over heat protection, Flame failure protection |
| Sample | Free Sample After Details Confirmed |
| Selling Units | Single item |
| Single Package Size | 610X45X30 cm |
| Single Gross Weight | 7.0 kg |
Product Details
Product Information

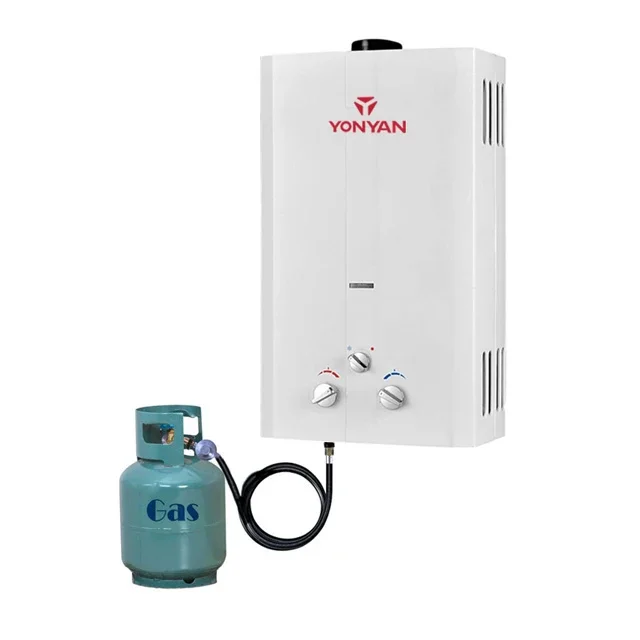

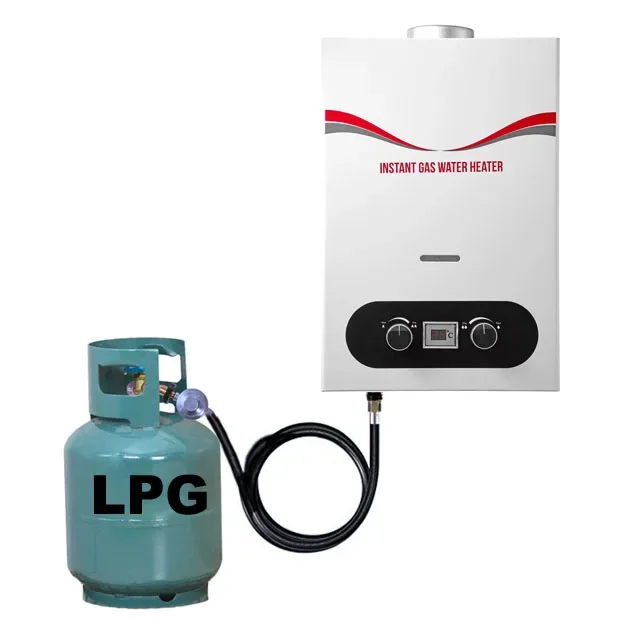

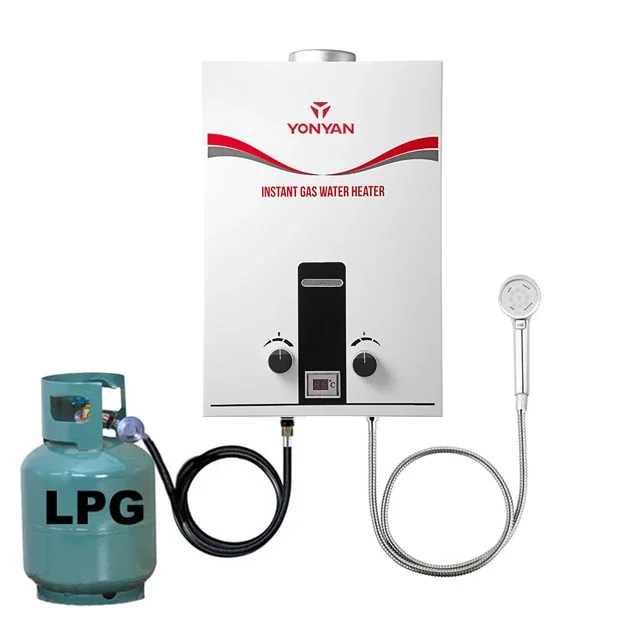

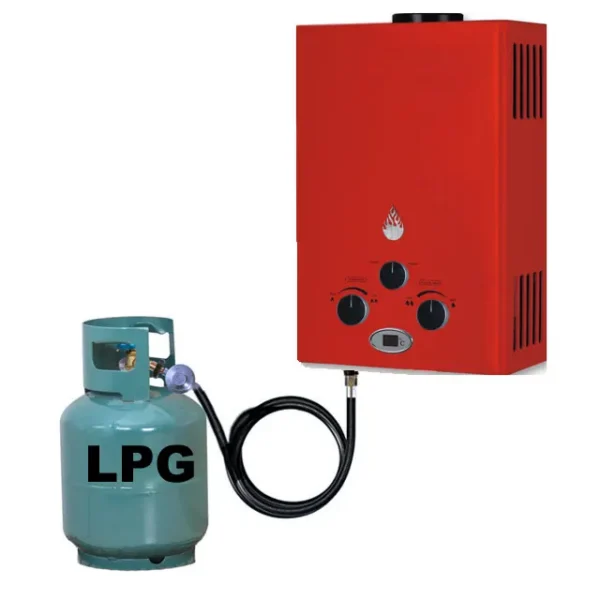

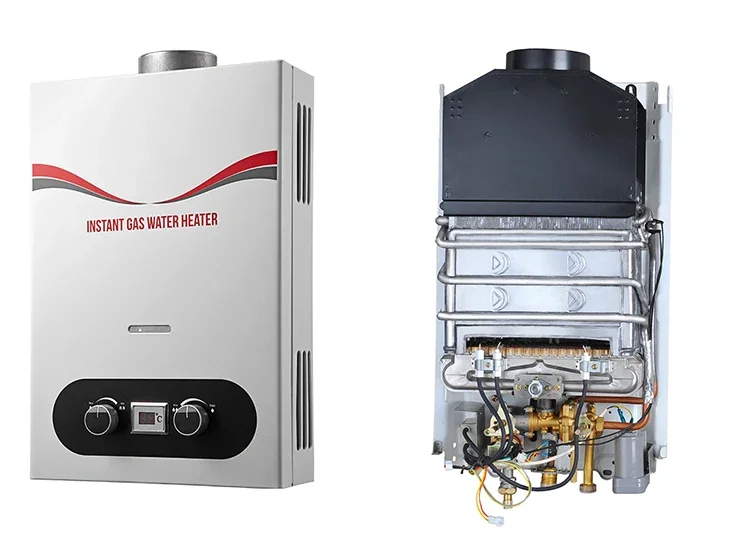

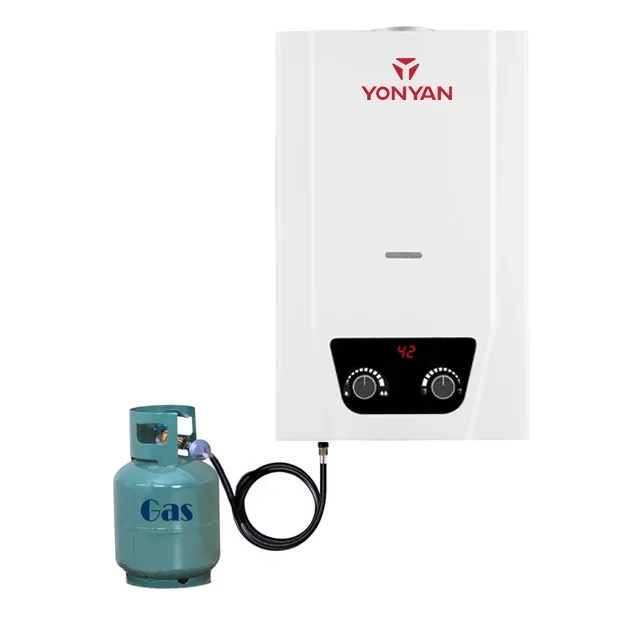

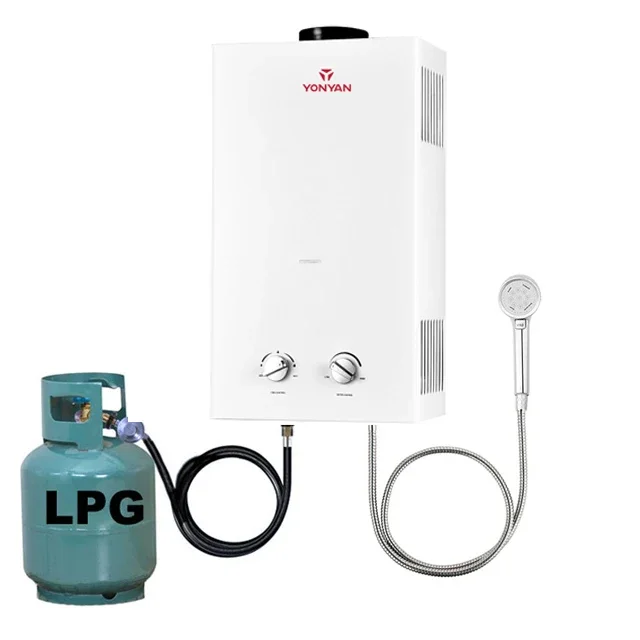

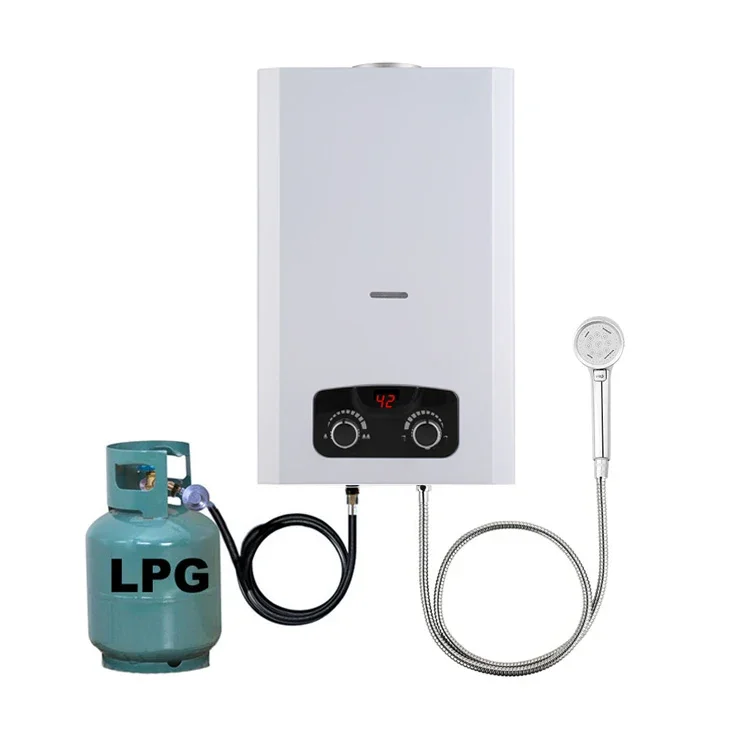

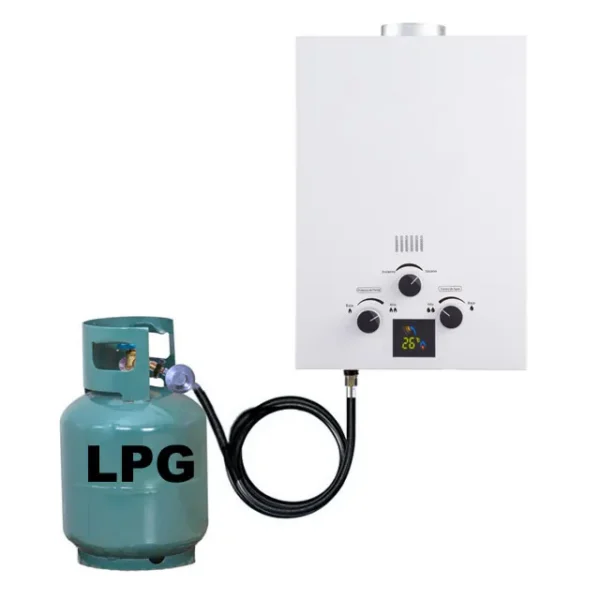

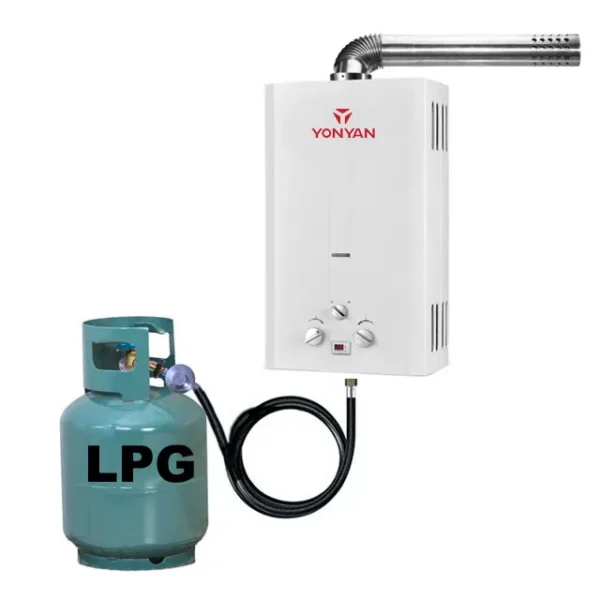

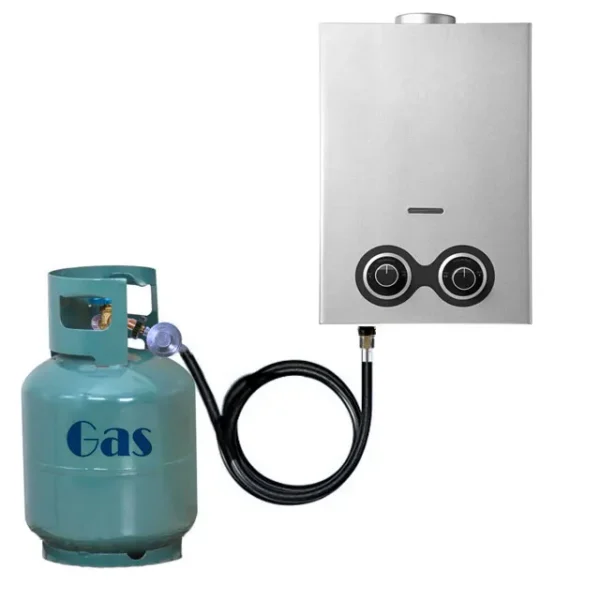

6L Tankless Wall Mounted Gas Water Heaters
Feature List

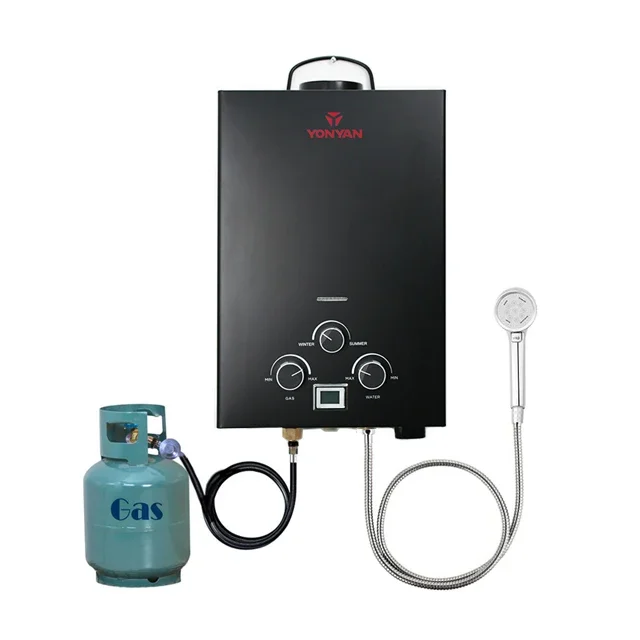

1. Incorporates a low water pressure startup capability. 2. Delivers immediate hot water, achieving it in just 3 – 5 seconds. 3. It contains two ignition pins, and the automatic impulse ignition is managed by a water-gas interlock valve. 4. Offers flame-out failure protection and anti-dry combustion features. 5. Ensures overheating protection and comes with a 20-minute timer protection system. 6. Presents a newly designed and attractive panel, with options including coated metal, glass, or stainless steel. 7. Equipped with a winter-summer switch to enhance gas efficiency. （Optional） 8. Delivers a high-quality pulse ignitor to maintain battery function 9. The exceptional heat exchanger enables more efficient heat absorption.
Product specification
Exhaust Type | Flue Exhaust Type | Connection Size | G1/2" (Gas/Inlet/Outlet) |
Capacity | 6L/Min | Gas Type | LPG / NG (Optional) |

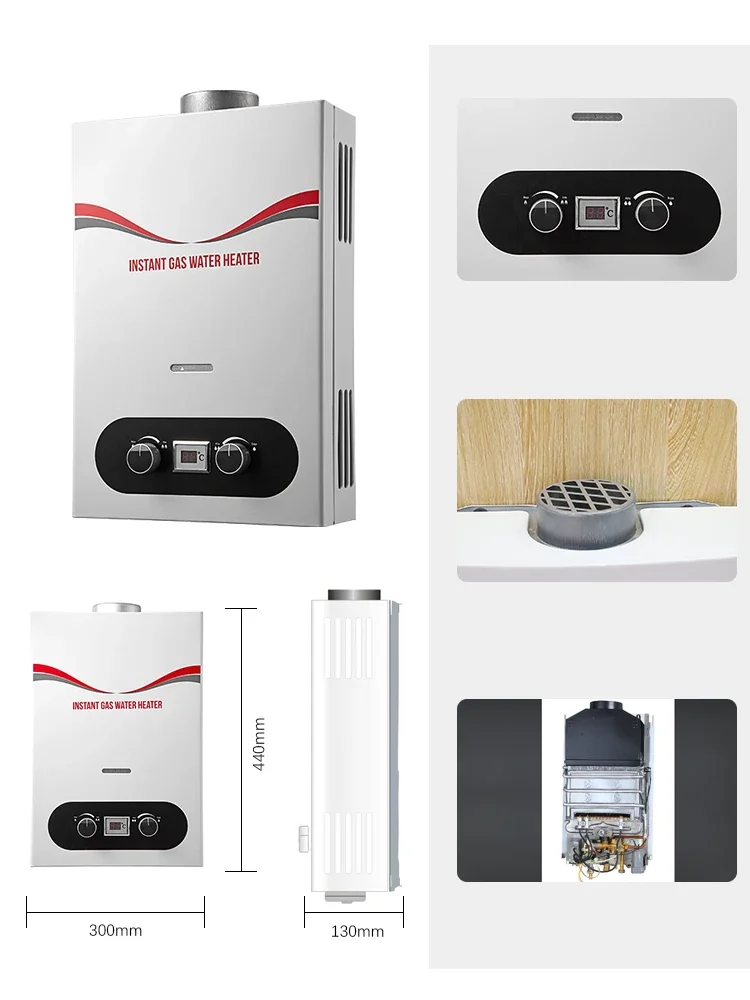

Product Size | 440*300*120 MM | Packing Size | 520*335*180 MM |
Efficency | Over 85% | CKD / SKD | Available, Talk with us |
Rated Heat Input | 12KW | ||
Working Water Pressure | 0.025-0.8 Mpa | ||
Display | LED/LCD Temperature Display Optional | ||
Other Optional Size | 7L, 8L, 10L, 12L, 14L, 16L, 18L, 20L | ||
Gas Pressure | LPG(2750-2800Pa), or NG(1740-2000Pa) | ||
Protection | 1)Over water pressure protection 2)Anti-dry burning protection 3)Over heat protection 4)Flame failure protection |
Product Loading Quantity
L/Min | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
6 L | 440*300*130 | 520*350*180 | 860 / 1760 / 2070 |
8 L | 520*320*160 | 635*370*210 | 560 / 1145 / 1350 |
10 L | 550*340*180 | 670*390*235 | 450 / 930 /1090 |
12 L | 590*340*180 | 685*390*235 | 440 / 910 /1070 |
16 L | 650*420*185 | 750*465*235 | 335 / 695 / 820 |
18 L | 650*420*185 | 750*465*235 | 335 / 695 / 820 |
20 L | 730*430*180 | 880*470*250 | 265 / 545 / 645 |
Customization Service

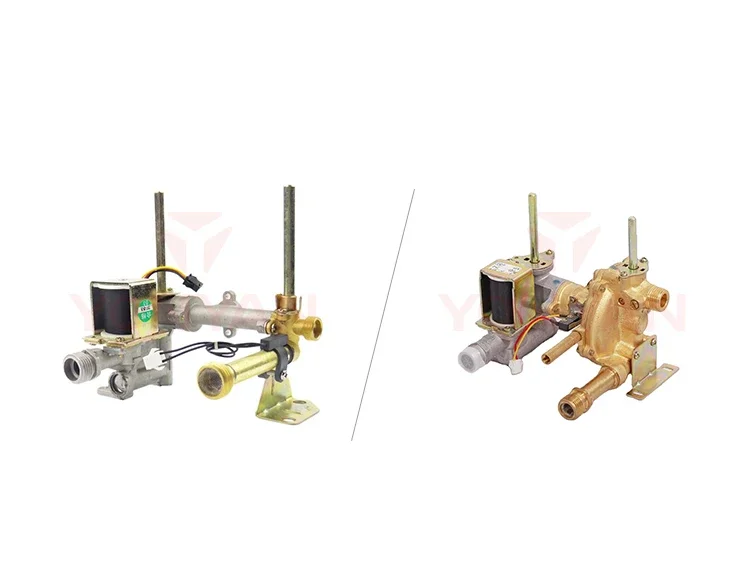

Valve
Optional Water Pressure Valves
In areas with inconsistent water pressure due to different altitudes, we offer two solutions for gas water heaters: zero water pressure valves and other specialized water pressure valves.

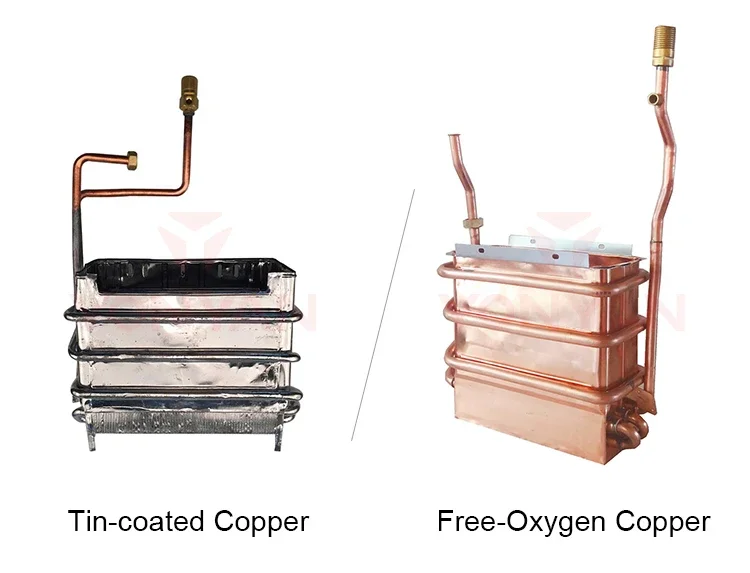

Heat Exchanger
Free oxygen copper offers high thermal conductivity and good corrosion resistance, making it ideal for general use. Tin-coated copper adds a tin layer for extra protection against oxidation and harsh conditions, extending lifespan. The choice depends on your specific needs and water and conditions.
Heat Exchanger Weight : 0.9 -3.6kgs

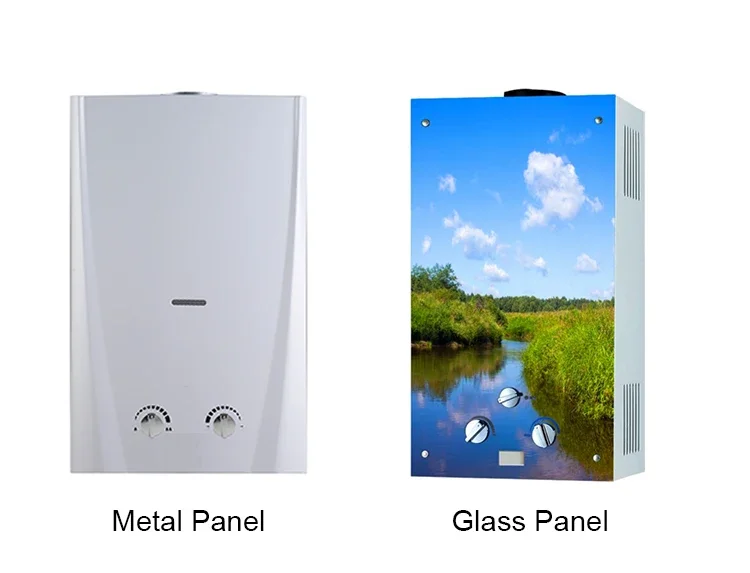

Panel Material
The metal casing is lightweight and suited to consumers’ economic demands. The glass panel is easy to clean and won’t deform, making it a wise choice for middle-to-high-end consumers.

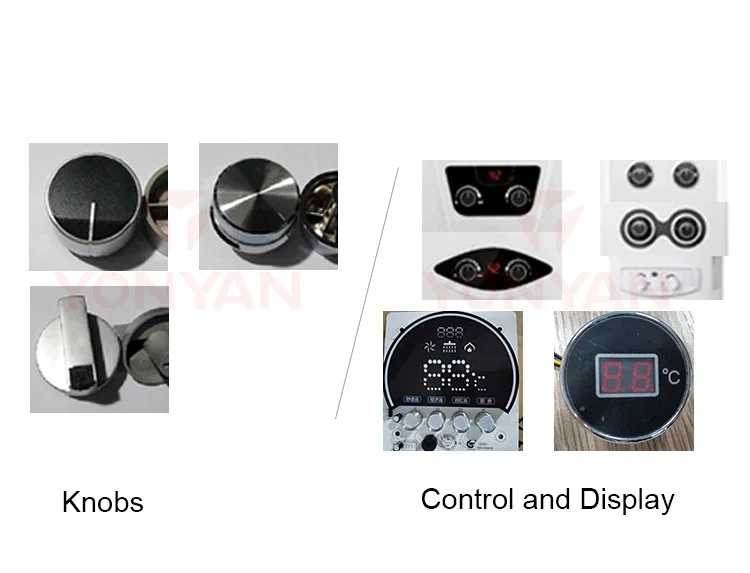

Knobs and Displays: Personalized Options
We offer a range of customizable options for your gas water heater, including specially designed knobs, LED displays, and LCDs. Match them with different panels to craft a unique gas water heater that embodies your brand.
Customization Service
Why choose us?
FAQ
Q1: Are you Factory?
Yes, we 100% is a factory since 2000. We could pick you up if you want to visit our factory.
Q2: What's MOQ?
MOQ is 100pcs
Q3: How long does it takes for the sample?
7-10 working days.
Q4: Can I put my LOGO?
Yes of course! Not just for the product, but also on the carton, manuals, and nameplate.
Q5: How long does it takes for the mass order?
30-35 working days after the artworks confirmed.
Q6: Which shipping port?
Nansha, Shunde,Yantian,Shekou and etc.
Ordering and Pricing
- Minimum order quantity: 200 unit
- Volume pricing:
- 200–849 unit: US $32 / unit
- 850–2049 unit: US $31.6 / unit
- 2050+ unit: US $31 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 200 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yonyan Electric Gas Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yonyan Electric Gas Technology Co., Ltd. range on HVACR Nexus.
