This water heater is published with the manufacturer’s full specification — 10 kW, power source Electric, Solar. Made by Jiangsu Imposol New Energy Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Heater
- Model Number: WHP010
- Power Source: Electric, Solar
- Heating Capacity: 10 kW
- Housing Material: Metal
- Refrigerant: R410A
- Warranty: 1 Year
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 10 kW |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R410A |
| Storage / Tankless | Storage |
| Compressor | Screw Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal |
| Feature | Energy-Saving |
| Power Source | Electric, Solar |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Jiangsu, China |
| Brand | imposol |
| Model Number | WHP010 |
| Product Name | Air Source Heat Pump Inverter |
| Keyword | Air Source Heat Pump Hot Water Heater |
| Function | Heating+cooling+domestic Hot Water |
| Heat Exchanger | High Efficient Titanium Heat Exchanger |
| Heat Source | Air Source 75%+electricity25% |
| Certification | CE/RoHS/TUV/EN14511/CCC/ISO |
| Selling Units | Single item |
| Single Package Size | 86X82.5X111.5 cm |
| Single Gross Weight | 130.0 kg |
Product Details
Products Description

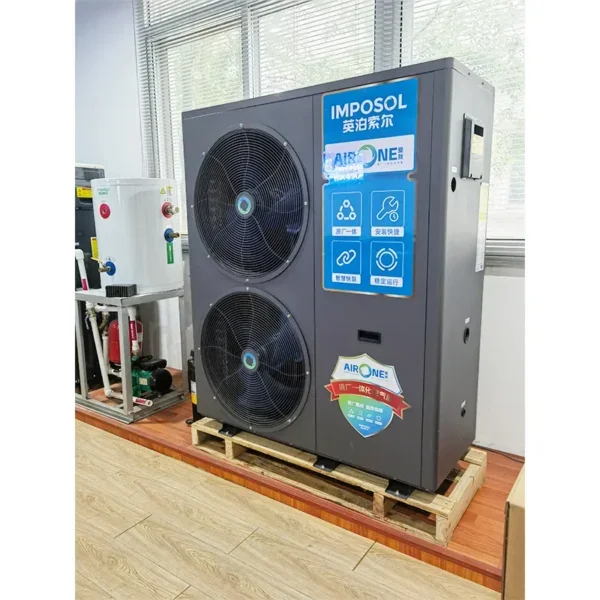

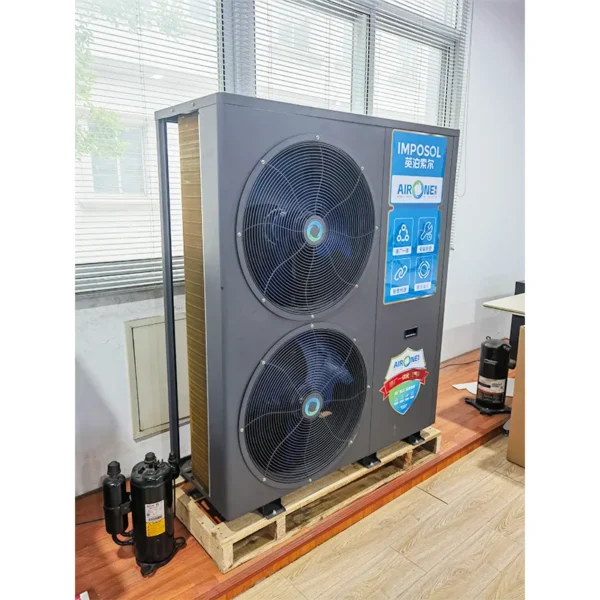

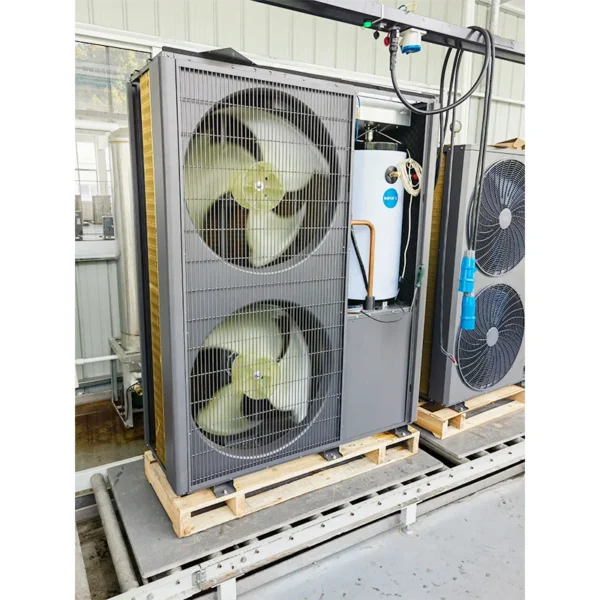

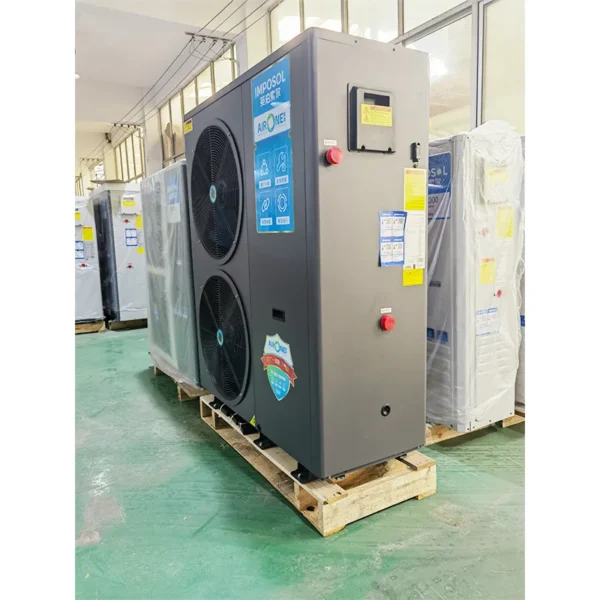

IMPOSOL 18-25kw Original Factory Integrated Heat Pump Water Heater R410/R32/R290 Built-in Water Tank Air Source Cooling Heating
Model | RF16IIDADC | RF18IIDADC | RF20IIDADC | ||||
Power Supply | 380V/3PH/50HZ | ||||||
(7/6℃) | Heating Capacity | 19KW | 21.0KW | 25.0KW | |||
Rated Input Power | 5.27KW | 5.9KW | 7.14KW | ||||
Rated Input Current | 7.8A | 8.9A | 12A | ||||
COP | 3.6 | 3.56 | 3.5 | ||||
(-12/-14°℃) | Heating Capacity | 12.8KW | 15.0KW | 17KW | |||
Rated Input Power | 5.0KW | 5.86KW | 7.0KW | ||||
Rated Input Current | 7.6A | 8.9A | 11.8A | ||||
COP | 2.56 | 2.56 | 2.42 | ||||
(35/24°℃) | Heating Capacity | 15.5KW | 18.0KW | 21.6KW | |||
Rated Input Power | 5.03KW | 6.1KW | 7.8KW | ||||
Rated Input Current | 8A | 9A | 13A | ||||
EER | 3.08 | 3.05 | 2.9 | ||||
IPLV(H) | 3.21 | 3.23 | 3.23 | ||||
Max.Input Power | 6.6KW | 8.0KW | 9.0KW | ||||
Max.Input Current | 10.0A | 12.0A | 14.0A | ||||
Low Temperature Heating Capacity/Input Power | 10.8kw/4.9kW | 11.7kw/5.1kW | 15kw/6.7kW | ||||
Rated water flow | >2.7m3/h | >3.1m3/h | >3.5m3/h | ||||
WaterSide Pressure Drop | 41.0Kpa | 55.Kpa | 59.5Kpa | ||||
Inlet/Outlet Pipe Size | Dn25，Brass internal thread | Dn32 | |||||
Noise | <60.0dB | <61.0dB | <67.0dB | ||||
Unit Dimension | 1180*480*1380mm | 1180*480*1380mm | 1180*480*1380mm | ||||
Weight | 150kg/157kg | 155kg/163kg | 162kg/170kg | ||||
Heating Water Temp | 20C~60℃ | ||||||
Cooling Water Temp | 5℃~20℃ | ||||||
Operating Ambient Temp | -35C~45C | ||||||
Water tank | 50L | ||||||
Water pump | 370W | ||||||
Principle of Operation
Installation layout for IMPOSOL R32 DC inverter pool heat pumps
Valves 1,2 and 3:Bypass valves Valves 4 and 5: Regulating valves (Recommended forfaciitating adjustments close to the machine)
Feature： | ||||||||
（1） Base frame and external panels made of galvanized powder coate steel | ||||||||
（2）Compact structure and good demountability | ||||||||
（3）Reliable compressor with R410A refrigerant | ||||||||
（4）Galvanomagnetic reverse valve | ||||||||
（5） Intelligent controller and adjustment by quick-mind microprocessor with possibility of remote control ( Carel controller for standard ) | ||||||||
（6）Stable water flow switch | ||||||||
（7） Careful protection functions such as:high pressure,low pressure,overheating,overload,anti-freezing,phase monitor for three phases model etc. | ||||||||
（8）Thermostatic or electrical expansion valve | ||||||||
（9）General and operational test carried out for every unit before package in the factory | ||||||||

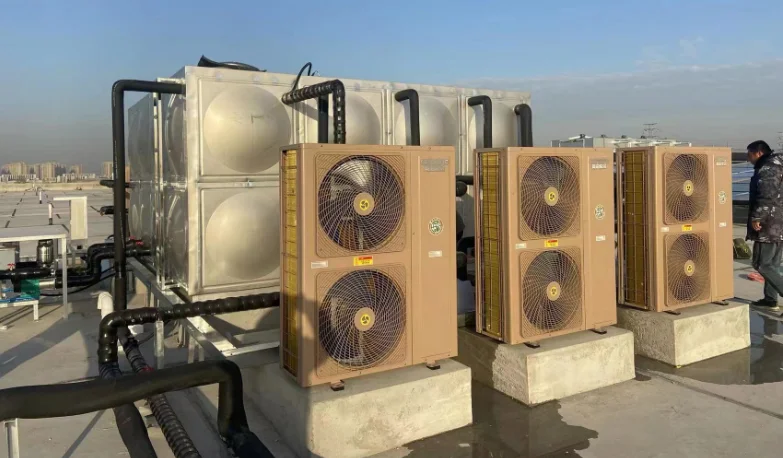

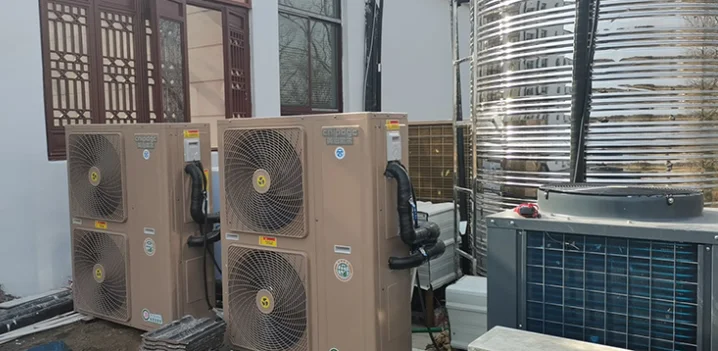

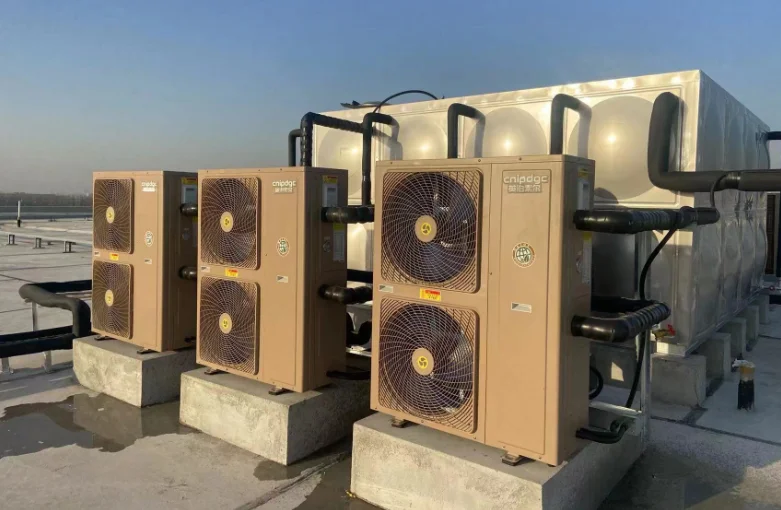

Customer Photos
Why choose us ?
We focus on developing high-quality products for diversified markets. Our products are in line with international standards. They are mainly exported to clients in such countries and regions as Europe, the Middle East, Africa, South America, Southeast Asia, South Asia, South America, and Australia.
We are only 200 kilometers away from the Shanghai Port, it is very convenient and efficient to ship goods to any other country.
We are only 200 kilometers away from the Shanghai Port, it is very convenient and efficient to ship goods to any other country.
Company Profile
Jiangsu Imposol New Energy Co., Ltd. Established in 2007, is a professional engaged in the research, development, sale and service of space heating&cooling heat pumps and hot water heat pumps and swimming pool heat pumps. we have obtained ISO ,CB,CE,CQC, Keymark certificates.
Certifications

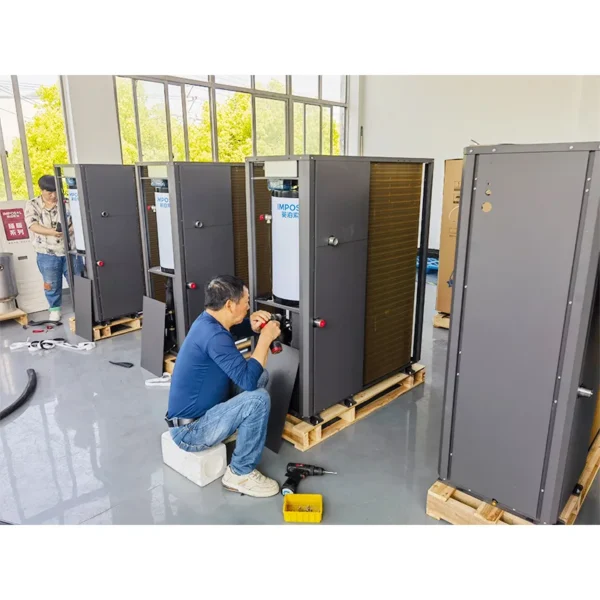

Manufacturing Technique
Exhibition
2024/03 The 14th HPE China Heat Pump Exhibition.
2023/05 Beijing International Heating Exhibition.
2022/07 Shenyang Northern Exhibition……
Customers paid a field visit to our factory.
The cooperation with [IMPOSOL] has provided customers with a perfect experience. Kudos to our employees and productsuD83DuDC4DuD83CuDFFBuD83DuDC4DuD83CuDFFB
FAQ
1. Who is IMPOSOL?
We are a professional manufacturing enterprise that is engaged in the technical development and research of air energy and solar energy, as well as the production and sales of products.
2.What products can you offer?
We mainly produce space-heating refrigeration heat pumps, heat pump water heaters, and swimming pool heat pumps.
3.Can you make customized products?
Yes, we can provide customized products, we develop and produce products according to the requirements provided by customers.
4.How are the goods shipped to customers?
Usually we ship by sea, if the customer's cargo is urgent, we can also air freight.
5.What is the payment method?
When quoting, we will confirm with you the trading method, FOB , CIF , CNF , T/T , L/C or other methods.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $2200 / set
- 20–29 set: US $1900 / set
- 30+ set: US $1650 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
