Air Source Heat Pump, 5HP, 4.3KW-17KW

The air source heat pump listed here carries voltage 3PH-380V/50HZ, 77 kw, documented exactly as the manufacturer publishes it. Made by Guangdong Xiecheng Intelligent Equipment Co.,Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Air Source Heat Pump

• Model Number: XC-HPU20, Accessories
• Compressor Iuput Power: 15 kw
• Compressor Rated Power: 20 HP
• Voltage: 3PH-380V/50HZ
• Air Cooling Capacity: 77 kw
• Material: Stainless Steel

Technical Specifications

Product Details

Product Description

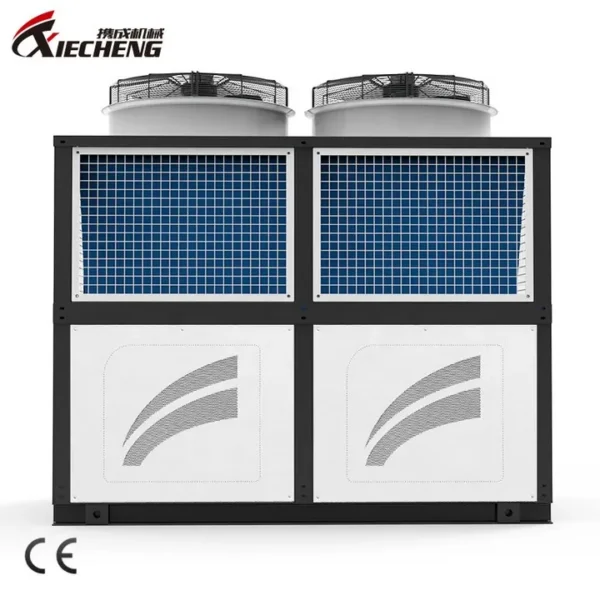

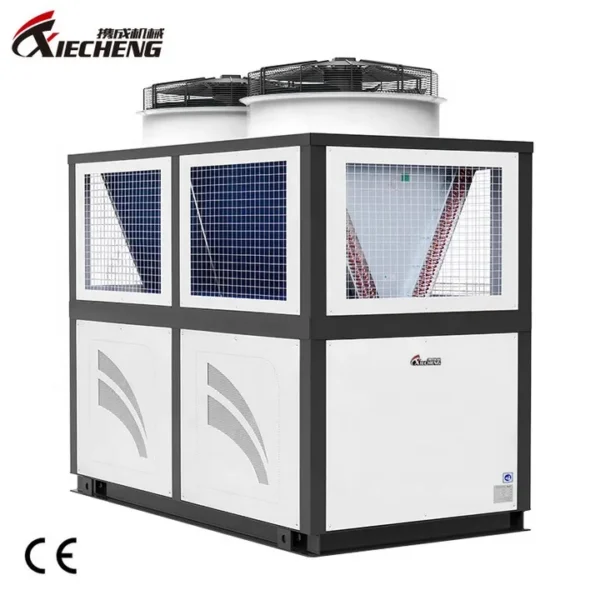

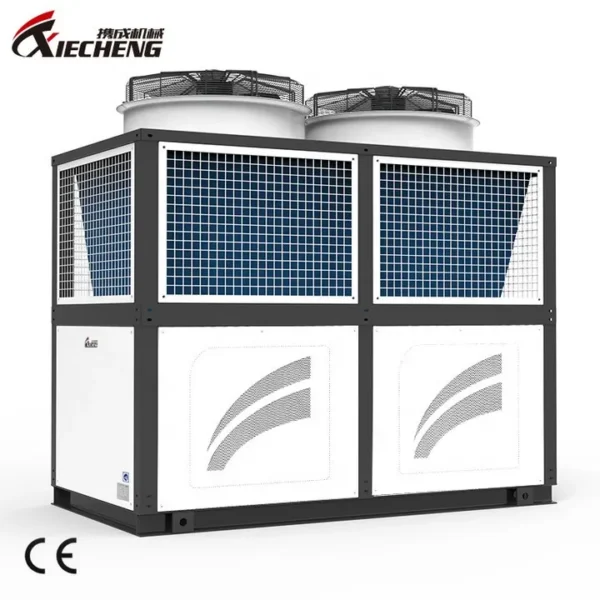

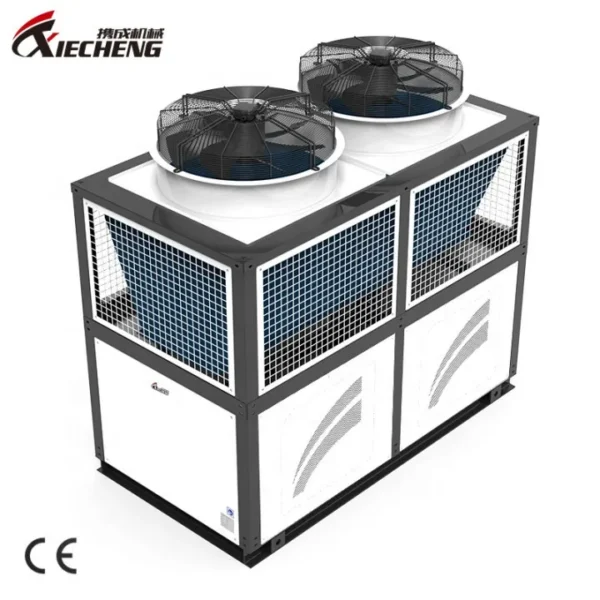

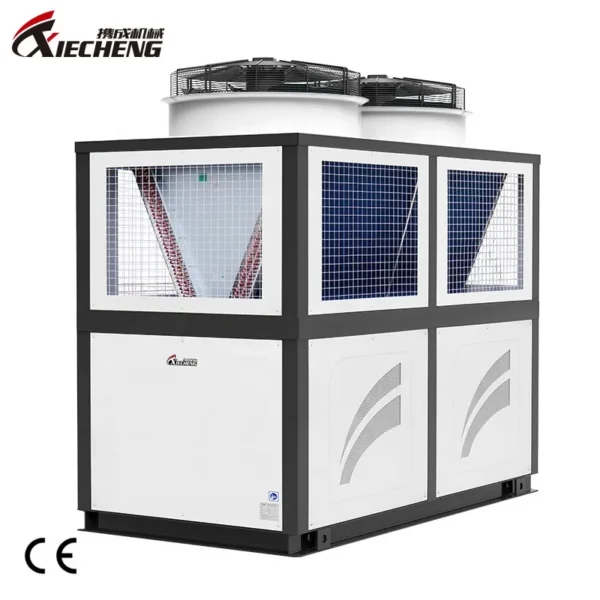

Scroll Type Air Cooled Heat Pump Unit

The scroll-type air-cooled heat pump unit adopts a high-efficiency fully enclosed scroll compressor, a high-efficiency shell-and-tube heat exchanger, and a coil heat exchanger, using R22, R134a, or R407c refrigerants. The energy efficiency rating can reach Level 2, with hot water outlet temperatures up to 75°C. The cooling capacity ranges from 25kW to 118.8kW, and the heating capacity ranges from 25kW to 127.2kW. It is widely used in various small and medium-sized commercial and industrial sites that require hot water for industrial production.

FEATURE:

1. The scroll-type air-cooled heat pump unit uses a world-renowned fully enclosed scroll compressor, ensuring stable operation, low noise, and durability. 2. It employs independently developed high-efficiency evaporators and finned condensers, achieving a whole machine energy efficiency rating of Level 2. 3. The inner-threaded shell-and-tube evaporator offers highly efficient heat transfer. 4. The flow device uses a well-known brand thermal expansion valve. 5. The scroll-type air-cooled heat pump unit can be controlled via microcomputer or PLC control, with optional network capabilities for remote monitoring and after-sales service. 6. It uses an external rotor for smooth operation, low noise, and high efficiency.

Product Specifications

Model			XC-HPU20	XC-HPU25	XC-HPU30	XC-HPU40
Air Cooling Capacity(KW)			77	93	115	152
Compressor	Input Power(KW)	15	19	22	30
		Rated Power(HP)	20	25	30	40
Power			3PH (380V/220V/415V/440V/480V/575V)50/60HZ
Evaporator			Finned copper tube +Low noise outer rotor fan
Refrigerant	Type	R22/R134a
		Quantity(KG)	12	15	18	24
Condenser	Type	Shell condenser
		Pipe Diameter	2″	2″	2.5″	2.5″
Safety Protection			high and low pressure protection,overload protection,overtemperature protection,phase sequence protection,etc.
Dimensions(LxWxH)			2250x1200x2150					3060x1350x2100
Operating weight			750	850	1000	1200

Model			XC-HPU50	XC-HPU60	XC-HPU80	XC-HPU100
Air Cooling Capacity(KW)			184	221	297	405
Compressor	Input Power(KW)	37	45	60	75
		Rated Power(HP)	50	60	80	100
Power			3PH (380V/220V/415V/440V/480V/575V)50/60HZ
Evaporator			Finned copper tube +Low noise outer rotor fan
Refrigerant	Type	R22/R134a
		Quantity(KG)	30	36	48	60
Condenser	Type	Shell condenser
		Pipe Diameter	3”	4”	4”	4”
Safety Protection			high and low pressure protection,overload protection,overtemperature protection,phase sequence protection,etc.
Dimensions(LxWxH)			3300x1500x2300	3900x1500x2300	2600x2300x1980	4620x2200x2200
Operating weight			1250	1500	2000	2500

About Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air source heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the air source heat pump be supplied for my local voltage?

The standard configuration is 3PH-380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
