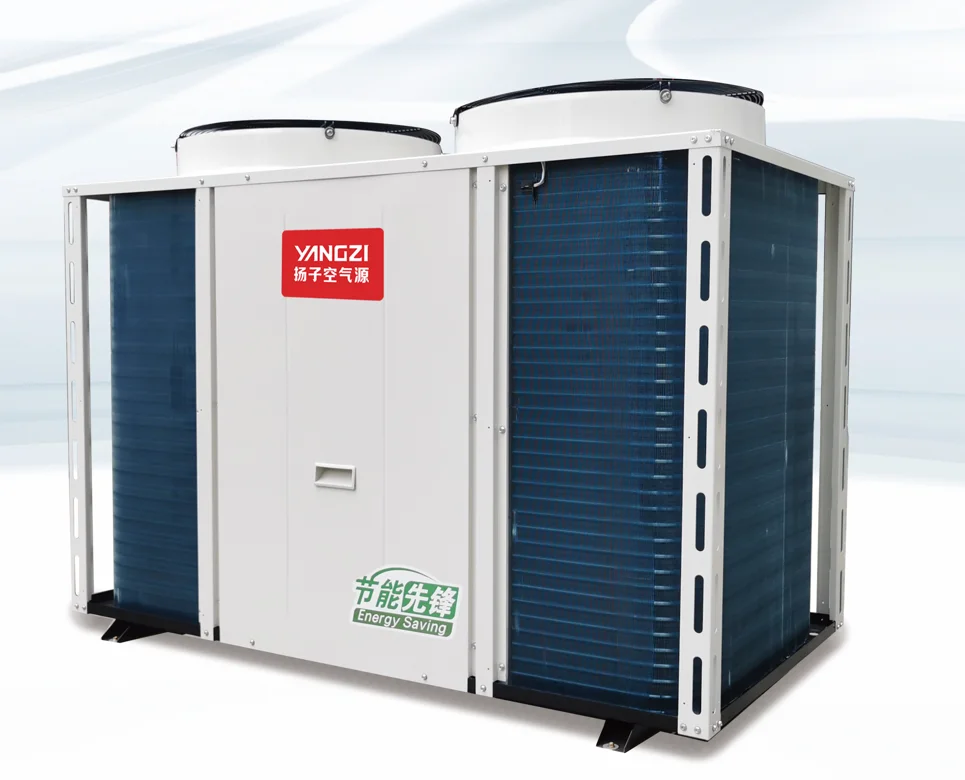

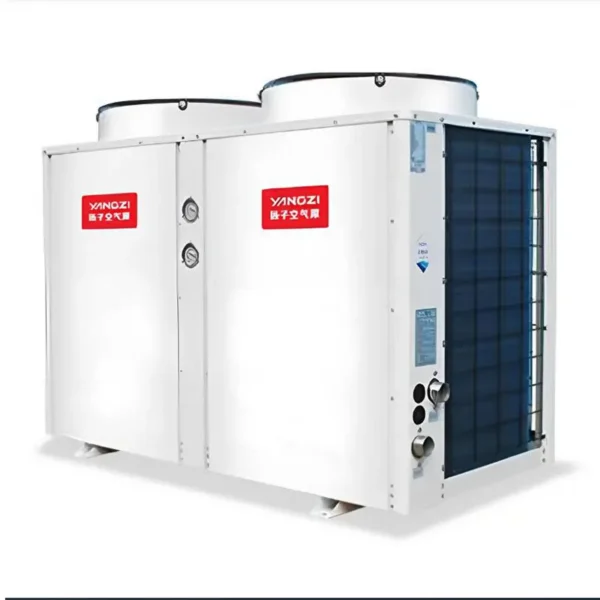

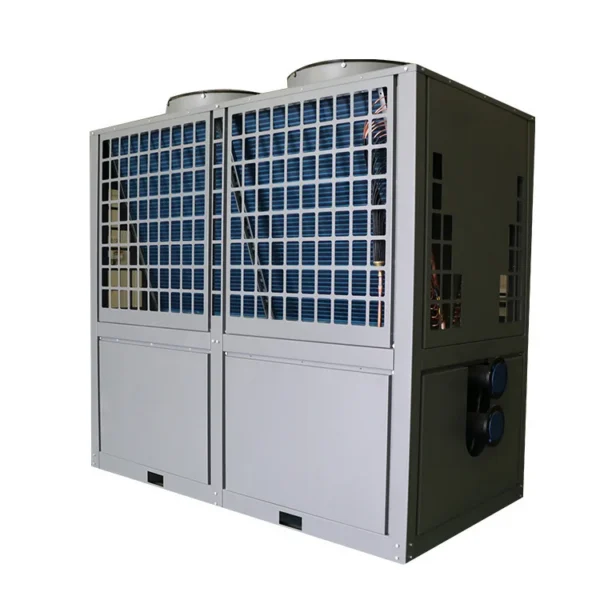

Water heater — 90kw, power source Electric. The complete factory specification follows. Made by Guangxi Yangzi Energy saving Technology Co., Ltd. (2 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Heater
- Model Number: YZRS-3GS
- Power Source: Electric
- Input Power (KW): 20.3
- Maximum Input Power (KW): 34.5
- Heating Capacity: 90kw
- Housing Material: Stainless Steel
Technical Specifications

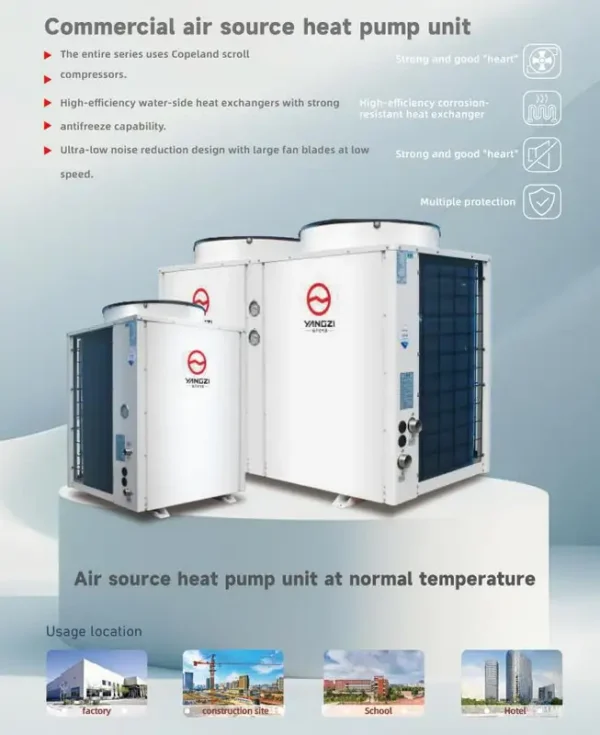

| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 90kw |
| Energy Efficiency Rating | Class A+ |
| Application | Commercial |
| Refrigerant | R410A |
| Storage / Tankless | Instant / Tankless |

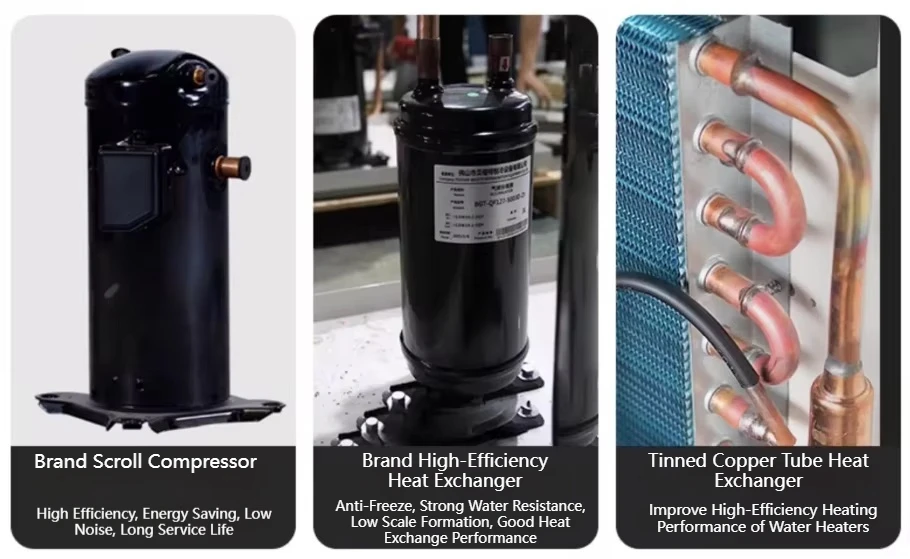

| Compressor | other |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangxi, China |
| Brand | Yangzi |
| Model Number | YZRS-3GS |
| Rated Heat Production (KW) | 10.5 |
| Input Power (KW) | 20.3 |
| Rated Current (A) | 37 |
| Water Yield (L/H) | 1935 |
| Maximum Input Power (KW) | 34.5 |
| Maximum Input Current (A) | 61.5 |
| Main Machine Net Weight (Kg) | 760 |
| Running Noise DB(A) | 72 |
| Overall Dimensions (Mm) | 2000*1100*1870 |
| Water Circulation Flow | 18 |
| Selling Units | Single item |
| Single Package Size | 70X50X50 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Product model | YZRS-10G3S |
Rated heat production (kW) | 36 |
Input power (kW) | 9.21 |
Rated current (A) | 17 |
Water yield (L) | 775 |
Rated water temperature (℃) | 55 |
Maximum water temperature (℃) | 60 |
Maximum input power/current (KW/A) | 13.8 /25 |
Exhaust side working pressure (MPa) | ≤4.2 |
Suction side working pressure (MPa) | ≤1.5 |
Refrigerant name | R410A |
Electric shock protection category/waterproof class | Class I /IPX4 |
Main engine nozzle size | DN40 |
Main machine net weight (Kg) | 190 |
Running Noise dB(A) | ≤65 |
Main machine Dimensions (mm) | 1508*758*1123 |
Water circulation flow (m/h) | >7.5 |
Use the ambient temperature zone | -7C-43℃ |
Exhaust mode | ejection air |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $5799 / piece
- 20–99 piece: US $5299 / piece
- 100+ piece: US $4799 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangxi Yangzi Energy saving Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangxi Yangzi Energy saving Technology Co., Ltd. range on HVACR Nexus.
