The water heater listed here carries voltage 220-240, capacity 30L/ 50L /80L /100L, documented exactly as the manufacturer publishes it. Made by Guangdong Usaton Electric Co., Ltd. (8 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Heater
- Model Number: DV-FD
- Power (W): 1500/2000
- Power Source: Electric
- Voltage (V): 220-240

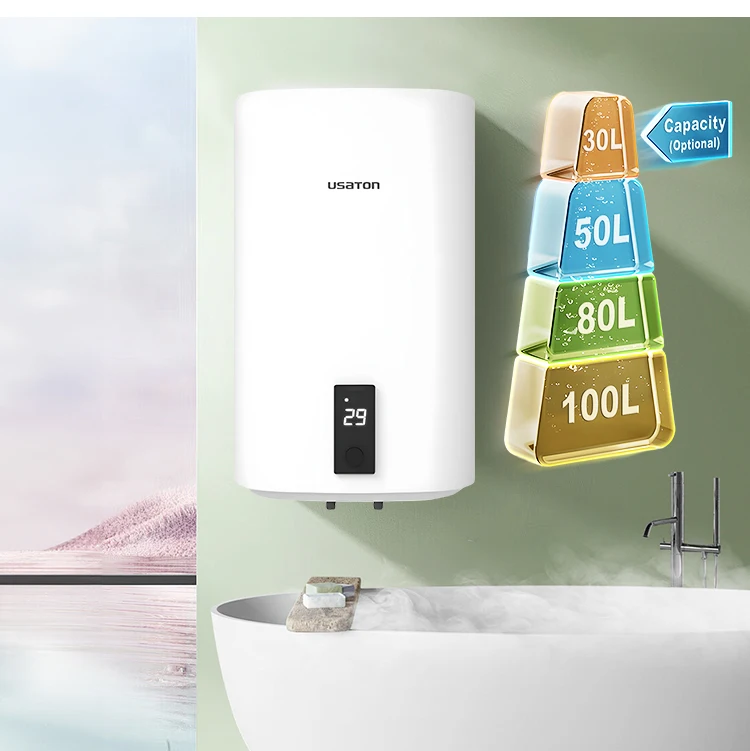

- Capacity: 30L/ 50L /80L /100L
- Material Of Inner Tank: Enamel Tank
Technical Specifications
| Capacity | 30L/ 50L /80L /100L |
|---|---|
| Power (W) | 1500/2000 |
| Installation | Wall-mounted |
| Application | Hotel, Household |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| App-Controlled | No |
| Private Mold | Yes |
| Power Source | Electric |
| Operating Language | Chinese |
| Logo/Graphic Design | Laser Printing |
| Place Of Origin | Guangdong, China |
| Voltage (V) | 220-240 |
| Brand Name | USATON, OEM |
| Model Number | DV-FD |

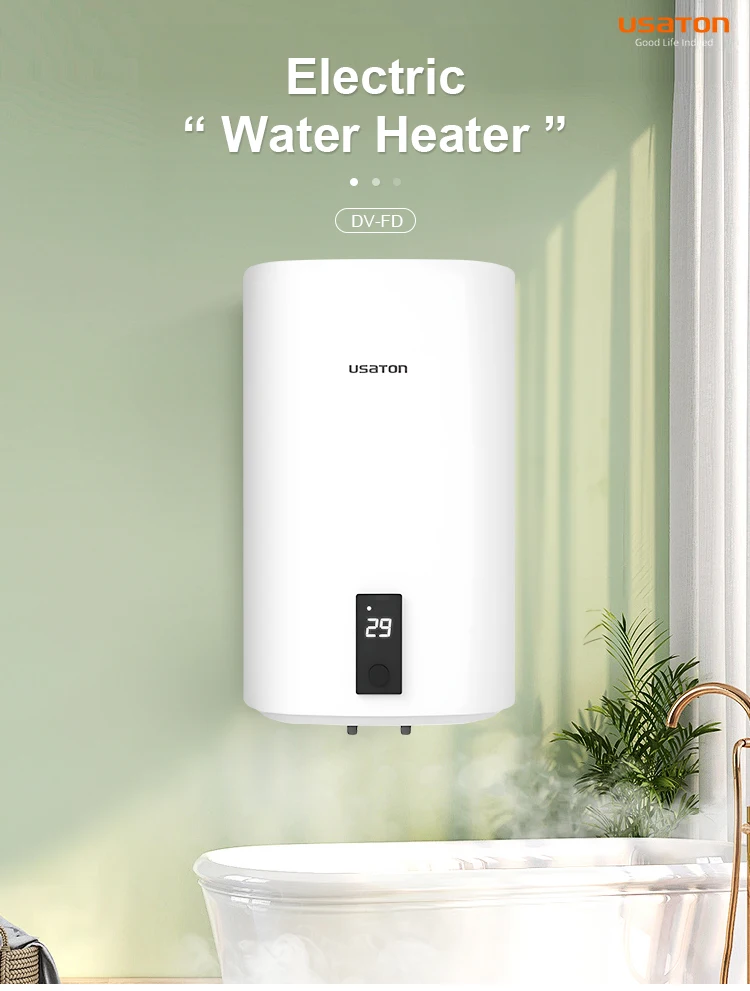

| Product Name | 30L-100L Vertical Electric Water Heater |
| Color | White, Custom |
| Material Of Inner Tank | Enamel Tank |

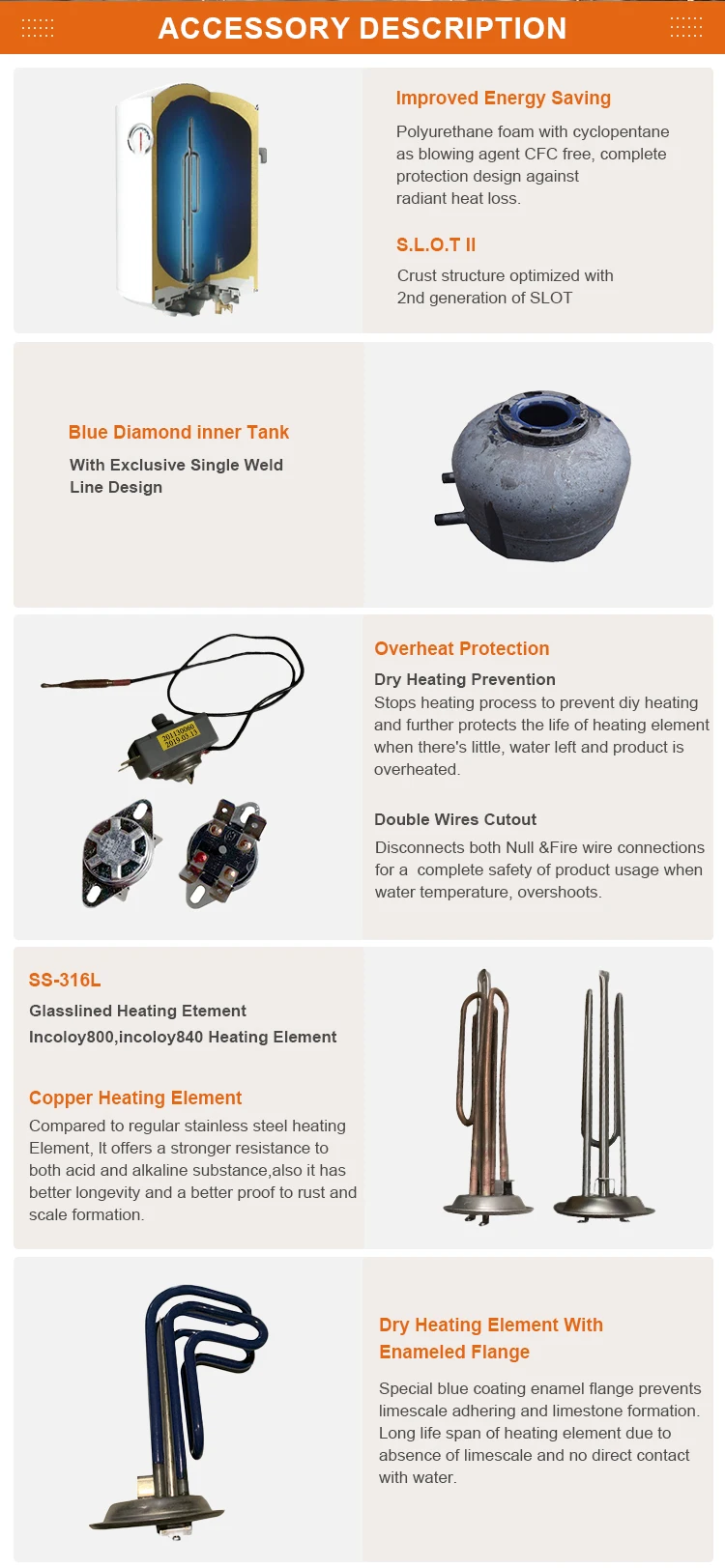

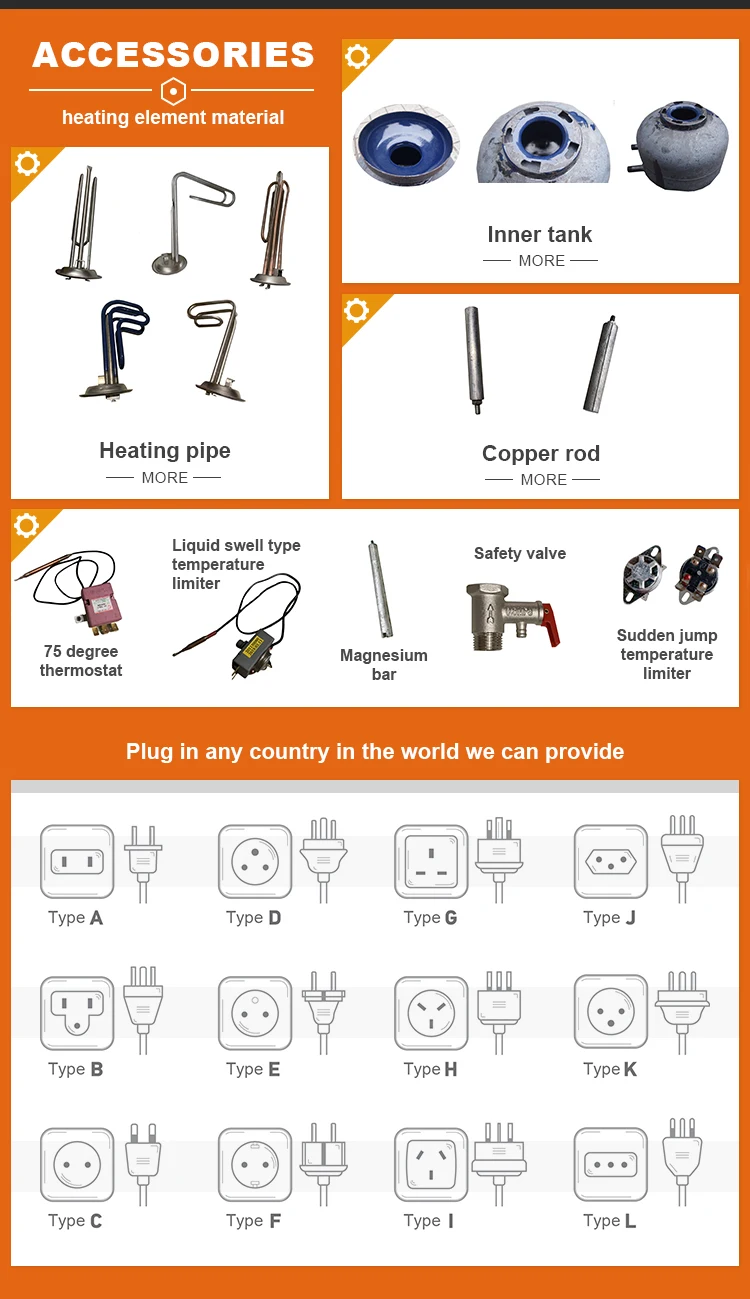

| Heating Element | SS-316L, Copper, Enameled |

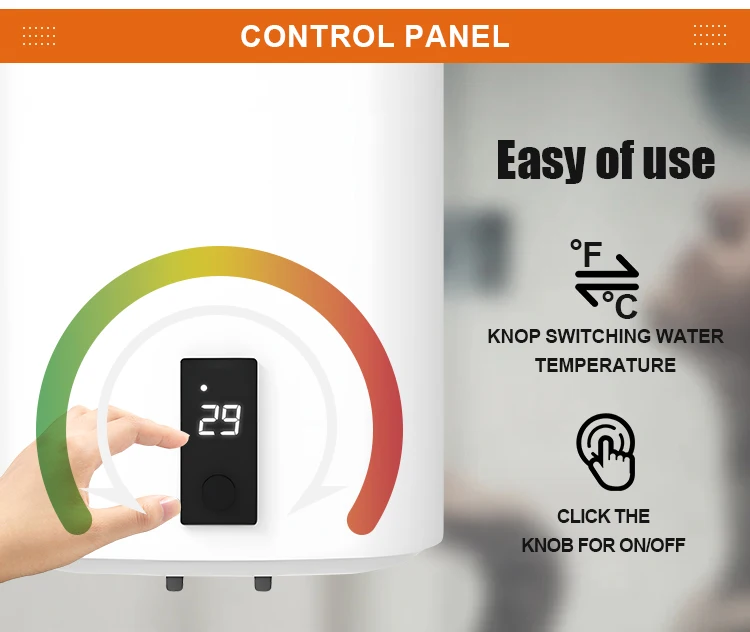

| Contorl | Mechanical temperature control |
| Working Pressure | 0.03 – 0.8 MPa |
| Temperature Range | 30 -75 ℃ |
| Thermal Cutout | 94 ℃ |

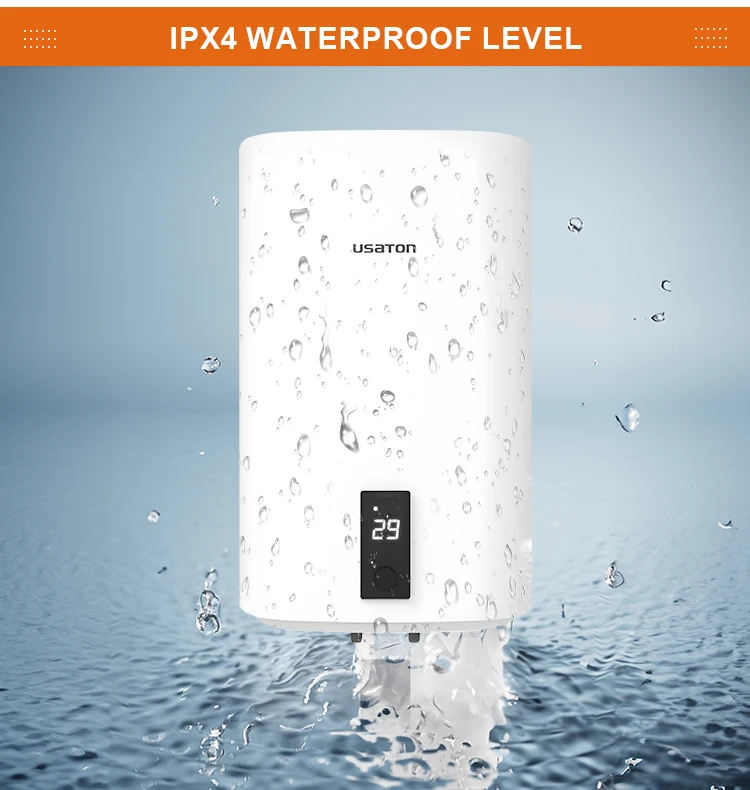

| Waterproofing Grade | IPX4 |
| Housing Material | Cold Rolled Steel Painting |
| Selling Units | Single item |

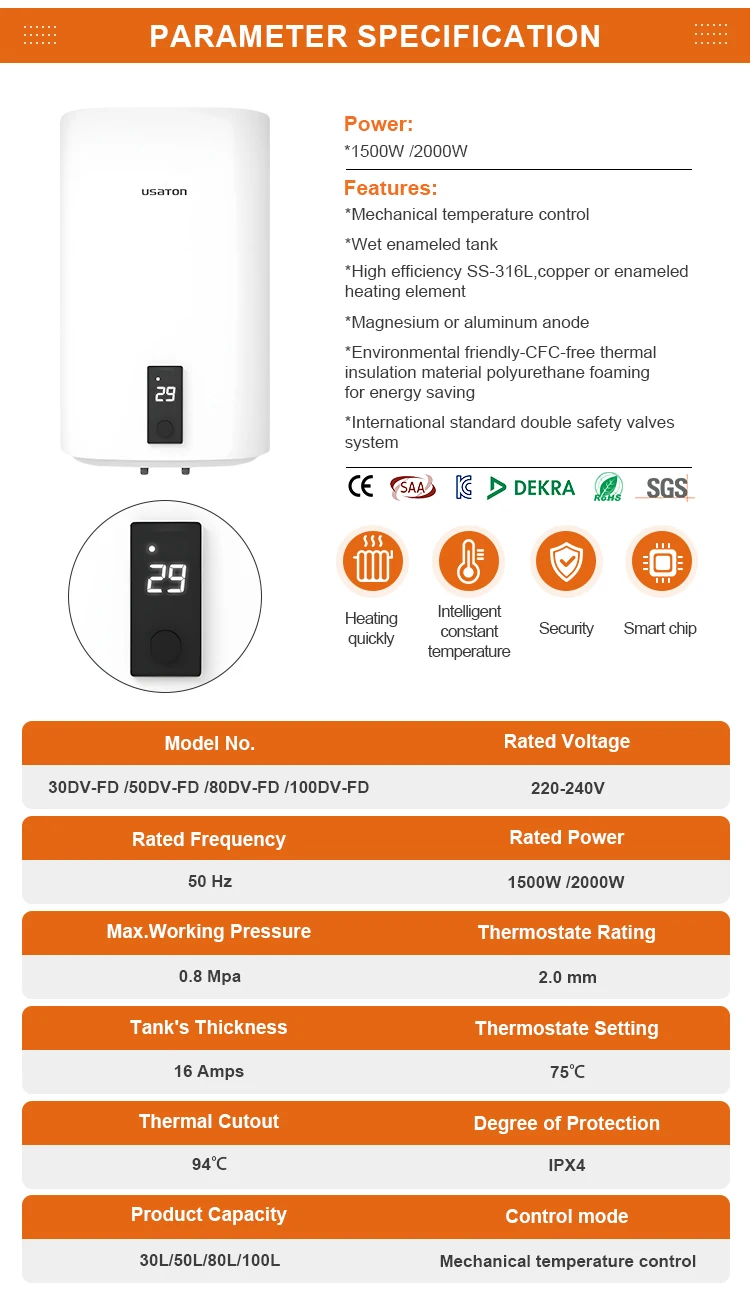

Product Details
Model No. | 30 DV-FD | 50 DV-FD | 80 DV-FD | 100 DV-FD |
Rated Capacity | 30L | 50L | 80L | 100L |
Thermostate Rating | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm |
Thermostate Setting | 75°C | 75°C | 75°C | 75°C |
Rated Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
Rated Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
Rated Power | 1500W/2000W | 1500W/2000W | 1500W/2000W | 1500W/2000W |
Max.Working Pressure | 0.8 Map | 0.8 Map | 0.8 Map | 0.8 Map |
Tank's Thickness | 16 Amps | 16 Amps | 16 Amps | 16 Amps |
Thermal Cutout | 94℃ | 94℃ | 94℃ | 94℃ |
Degree of Protection | IPX4 | IPX4 | IPX4 | IPX4 |
Control Mode | Mechanical temperature control | Mechanical temperature control | Mechanical temperature control | Mechanical temperature control |
Ordering and Pricing
- Minimum order quantity: 600 carton
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 600 carton. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220-240. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer

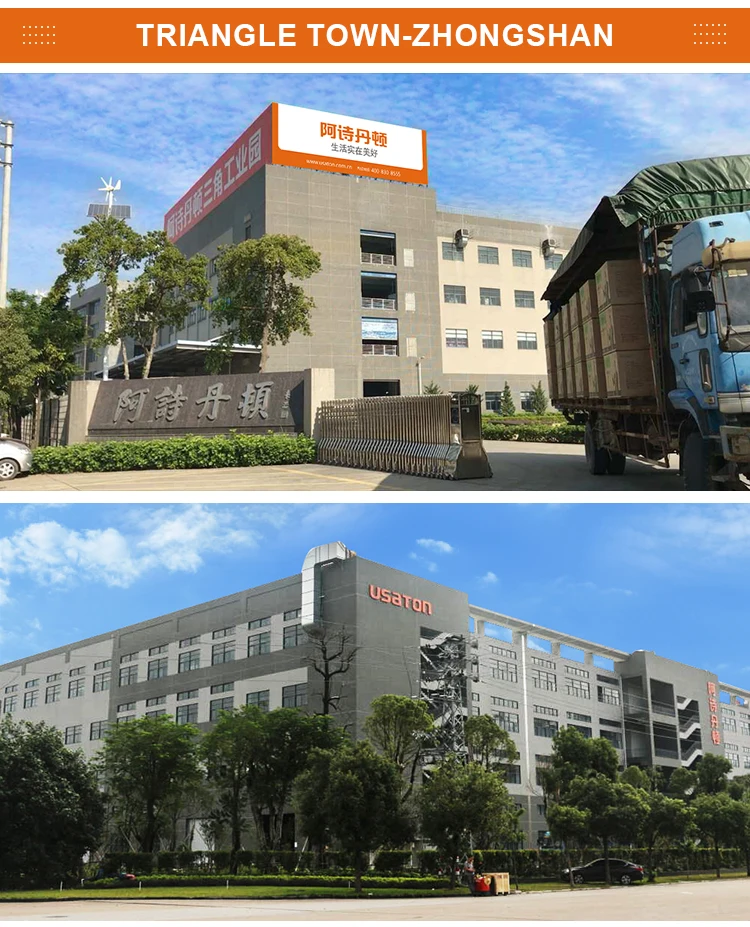

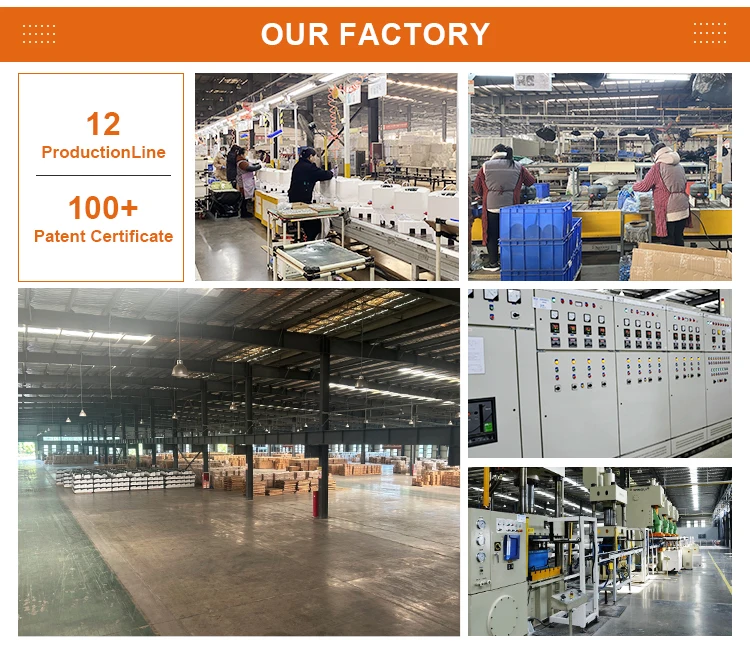

This product is produced by Guangdong Usaton Electric Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Usaton Electric Co., Ltd. range on HVACR Nexus.
