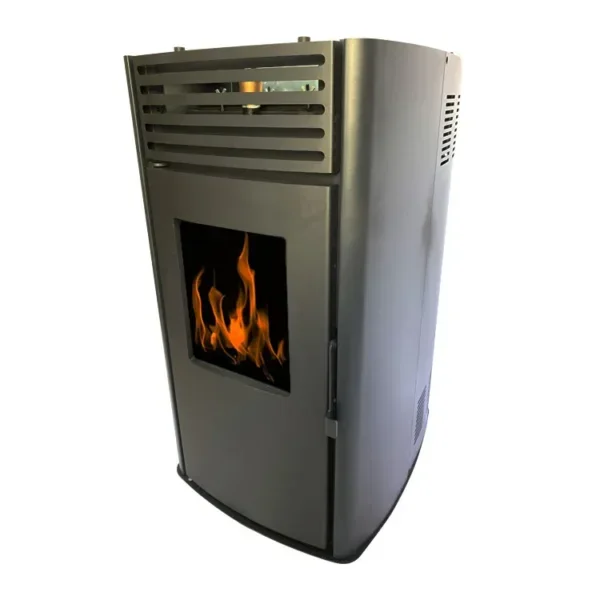

Water home heating fireplace — material Cast Iron, model number HY-20H. The complete factory specification follows. Made by Haining Heying Heating Technology Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Home Heating Fireplace
- Model Number: HY-20H
- Rating Power: 4.9kW-20kW
- Hopper Capacity: 25 Kgs
- Material: Cast Iron
- Warranty: More Than 5 Years
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Bedroom |
|---|---|
| Material | Cast Iron |
| Design Style | Modern |
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | graphic design |
| Place Of Origin | Zhejiang, China |
| Brand Name | HEYING |
| Model Number | HY-20H |
| Color | Black |
| Fuel | Pellet |
| Usage | Indoor |
| Function | Heating Room |
| Heating Area | 200M2 |
| Efficiency | 89.5% |
| Hopper Capacity | 25 Kgs |
| Rating Power | 4.9kW-20kW |
| Style | Europe |
| Packaging Details | Export cartons Wood case |
| Port Of Dispatch | SHANGHAI;NINGBO |
| Selling Units | Single item |
| Single Package Size | 108X54X54 cm |
| Single Gross Weight | 68.0 kg |
| Supply Ability | 5000 pieces per Month |
Product Details
Product parameters(Hydro pellet stove)HY-20H | ||||||||||||||||
Dimension(W*H*D) | 1073*583*546mm | |||||||||||||||
Weight | 150kg | |||||||||||||||
Air input pipe | 50mm | |||||||||||||||
Exhaust Outlet Pipe | 80mm | |||||||||||||||
Water inlet/outlet pipe | 3/4''m | |||||||||||||||
Electrical input | 140-350w | |||||||||||||||
Max useful heat output | 20kw | |||||||||||||||
Useful output power | 3.2/16.8kw | |||||||||||||||
Min useful heat output | 4.9kw | |||||||||||||||
Useful output power | 1.1/3.8kw | |||||||||||||||
Boiler capacity | 22L | |||||||||||||||
Water tank outside stove | 250L | |||||||||||||||
Heat Area | 200㎡ | |||||||||||||||
Auto-burning Time | 6h-31h | |||||||||||||||
Fuel Consumption | 0.8-4.2kg/h | |||||||||||||||
Efficiency | 89.50% | |||||||||||||||
Hopper Capacity | 25kg | |||||||||||||||
Rating Power | 4.9kw-20kw | |||||||||||||||
Rating voltage | 230v | |||||||||||||||
Frequency | 50Hz | |||||||||||||||
2.What color pellet stoves can I buy？
HEYING can provide you with the color spray paint for the side panel.You can choose four colors such as black,bed ,gray and white.
3.What's the difference between air pellet stoves and hydro pellet stoves？
a.Air pellet stove has the advantages of quick heating, high efficiency, easy to install
b.Hydro pellet stove heat up relatively slowly,but heating area, thermal efficiency are higher than air pellet stove c.Hydro pellet stove is higher comfort for heating,the room is relatively dry if you use air pellet stove.
d.Hydro pellet stove cost higher,it also need to be used in combination with radiators.
Your pellet stove works independent of the room air. Negative pressures in the room is not permissible. The use of a safety device(e.g. differential pressure controller) in combination with room air facilities (e.g. ventilation system, exhaust extraction etc.)is stipulated.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–149 piece: US $940 / piece
- 150–249 piece: US $880 / piece
- 250+ piece: US $790 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water home heating fireplace?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
