This water pumpheat pump is published with the manufacturer’s full specification — power supply 220-240V/50Hz/1ph, heating capacity 8~16kw. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Pumpheat Pump
- Model Number: HPM-Nd2
- Power Source: Electric, Gas, Solar
- Power Supply: 220-240V/50Hz/1ph
- Heating Capacity: 8~16kw
- Housing Material: Stainless Steel
- Refrigerant: R290
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A+++ |
| Application | RV, Outdoor, Hotel, Garage, Commercial, Household |
| Refrigerant | R290 |
| Storage / Tankless | Storage |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric, Gas, Solar |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, Field Maintenance and Repair Service, Overseas Call Centers |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Shandong, China |
| Brand | Haier or OEM |
| Model Number | HPM-Nd2 |

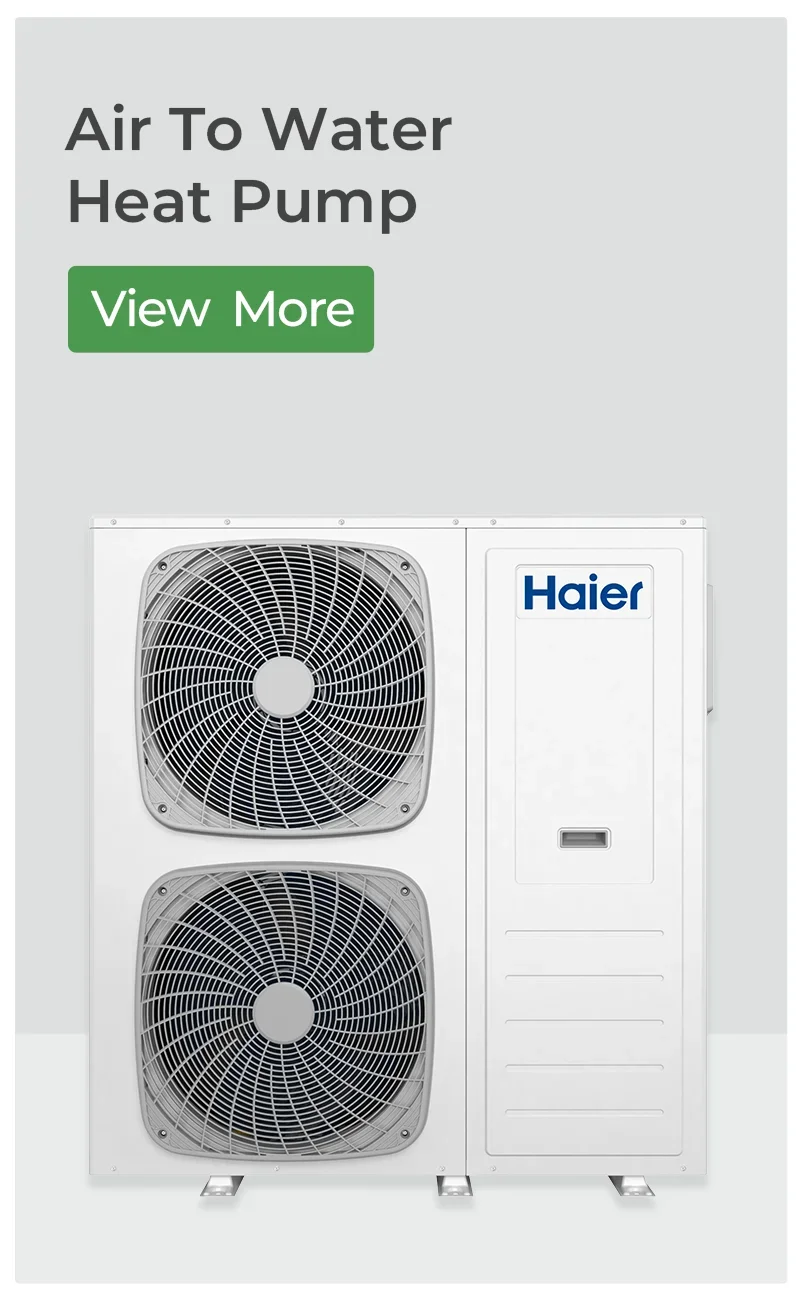

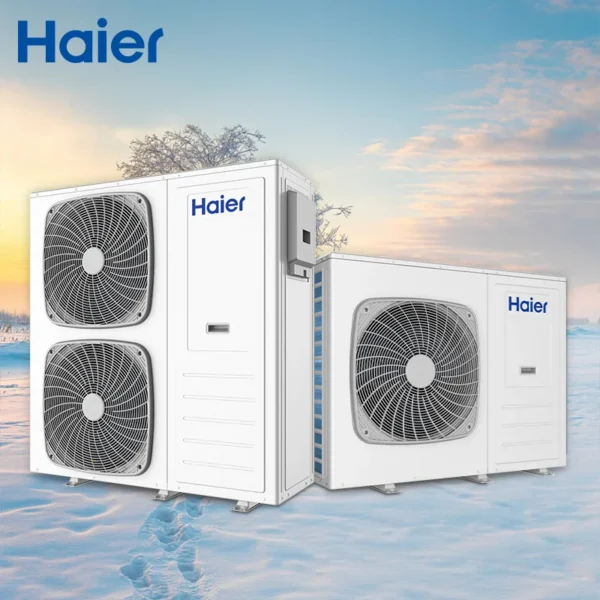

| Product Name | EVI DC Inverter R290 Air To Water Heat Pump For Heating And Cooling |
| Keyword | Air To Water Heat Pump |
| Function | House Heating Cooling Hot Water |
| Heating Capacity | 8~16kw |
| Compressor | EVI DC Inverter Compressor |
| Ambient Temperature | Minus 30~43 Degree |
| Power Supply | 220-240V/50Hz/1ph |
| Noise Level | ≤51dB(A) |
| Selling Units | Single item |
| Single Package Size | 136X57X156 cm |
| Single Gross Weight | 205.0 kg |
Product Details

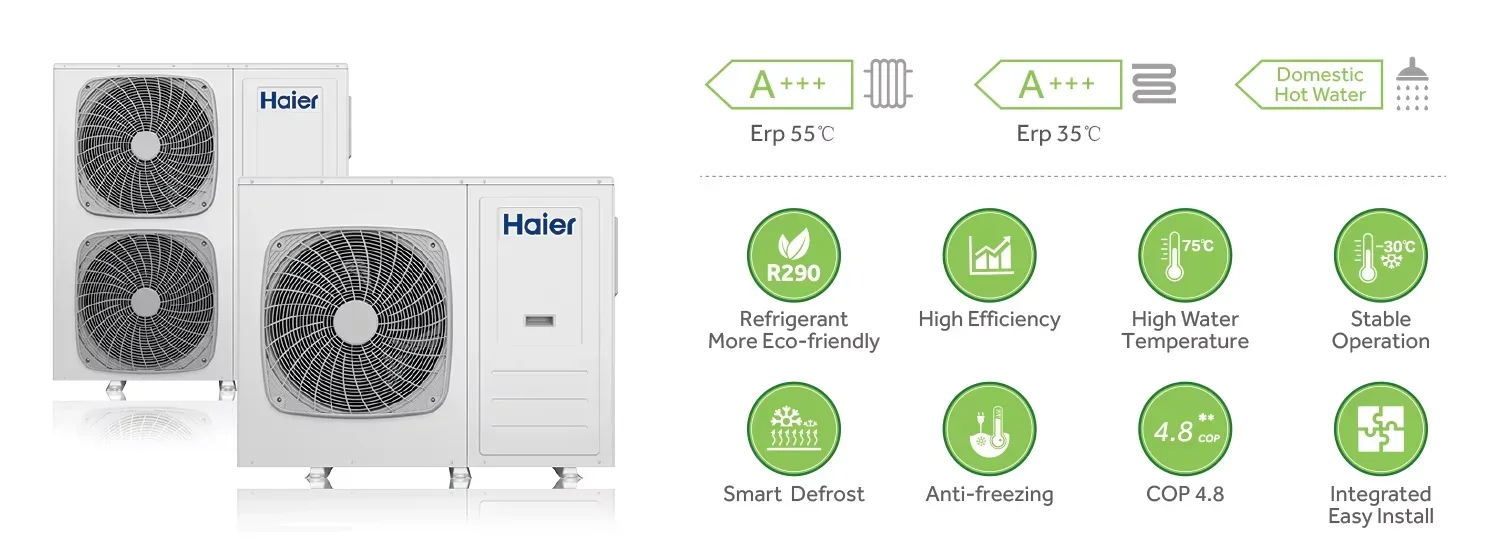

PRODUCT HIGHLIGHTS

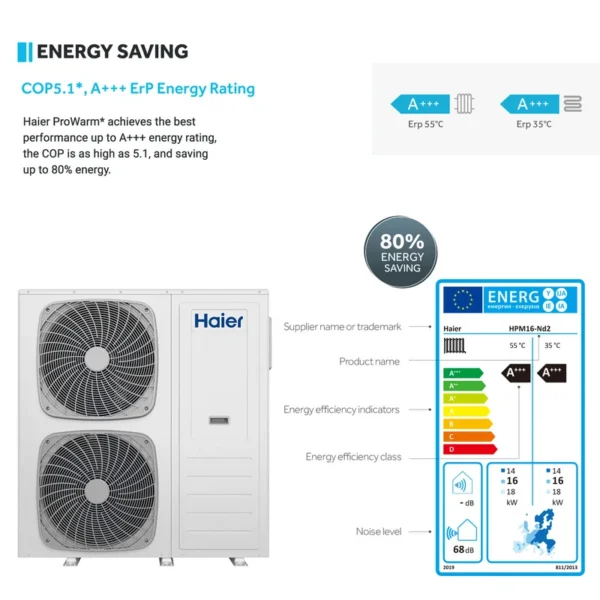

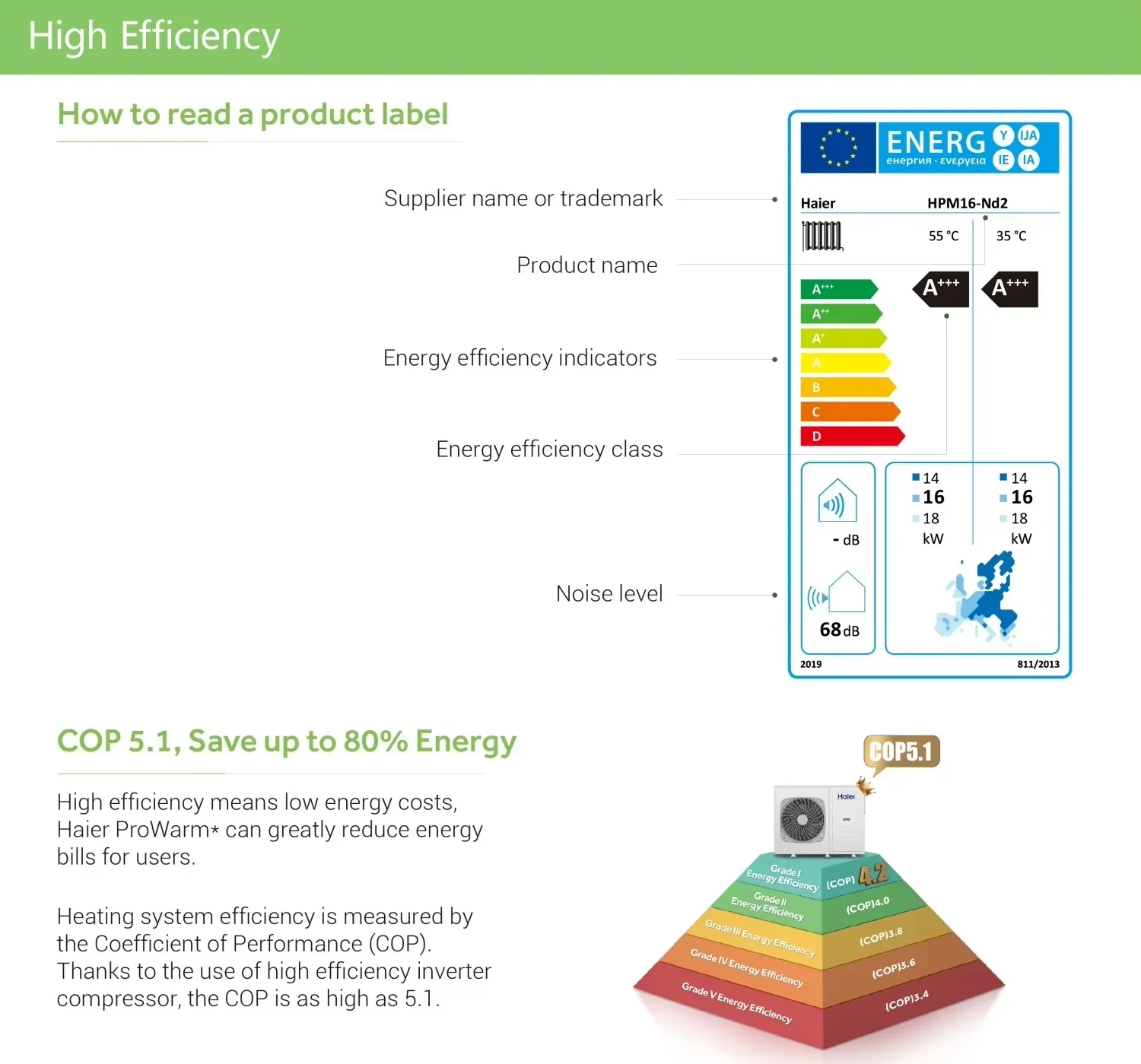

- A+++ High Efficiency: COP up to 5.1 | Max energy savings & lower utility costs
- Eco R290 Refrigerant: Natural, non-toxic, zero ozone depletion
- EVI DC Inverter Tech: Unfazed heating at -10°C | 75°C hot water at -15°C | Stable down to -30°C
- Full Inverter Technology: Significantly improves energy-saving effect by 15%

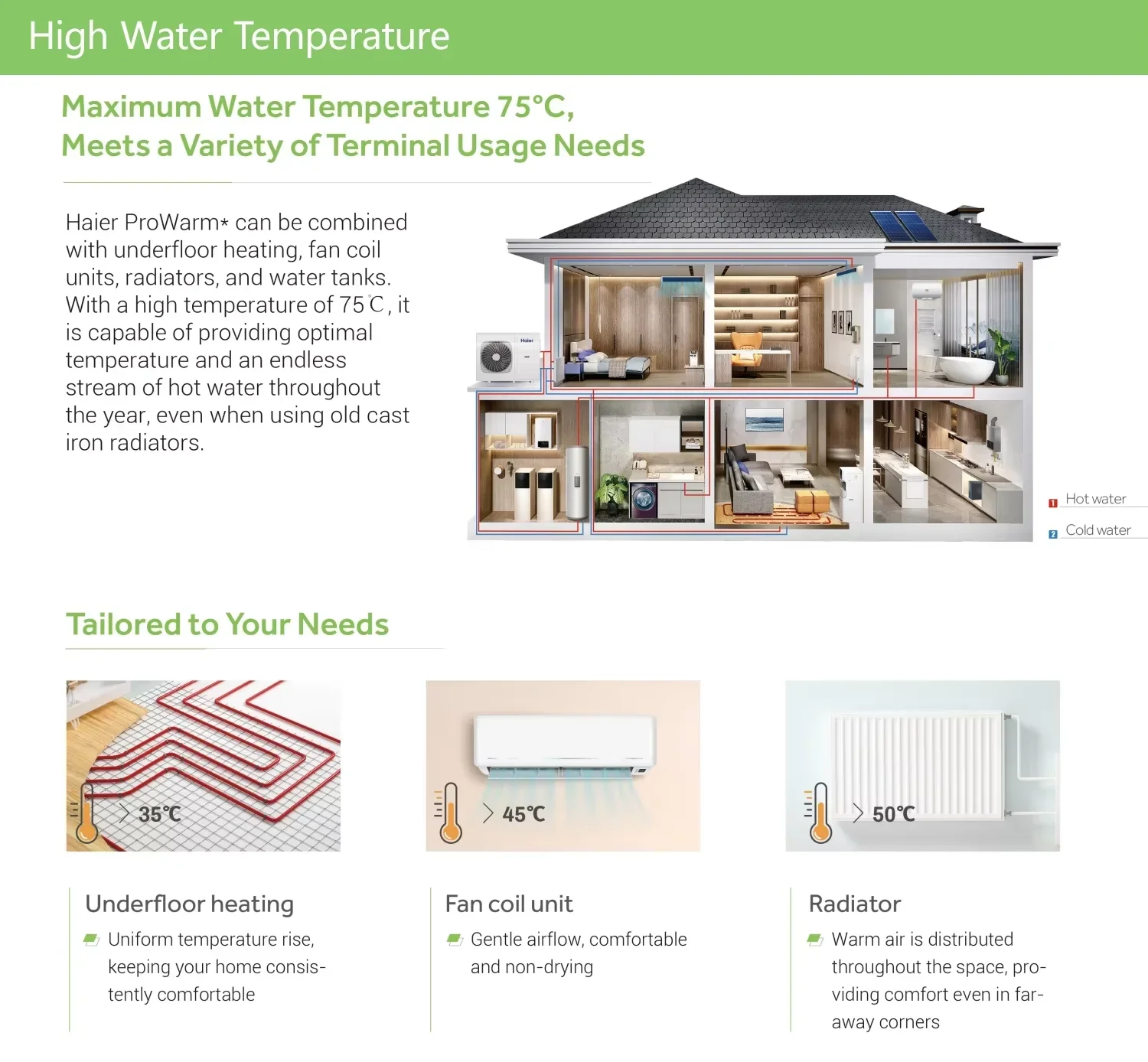

- High Water Temperature: Max 75°C Hot Water, meets diverse terminal heating needs

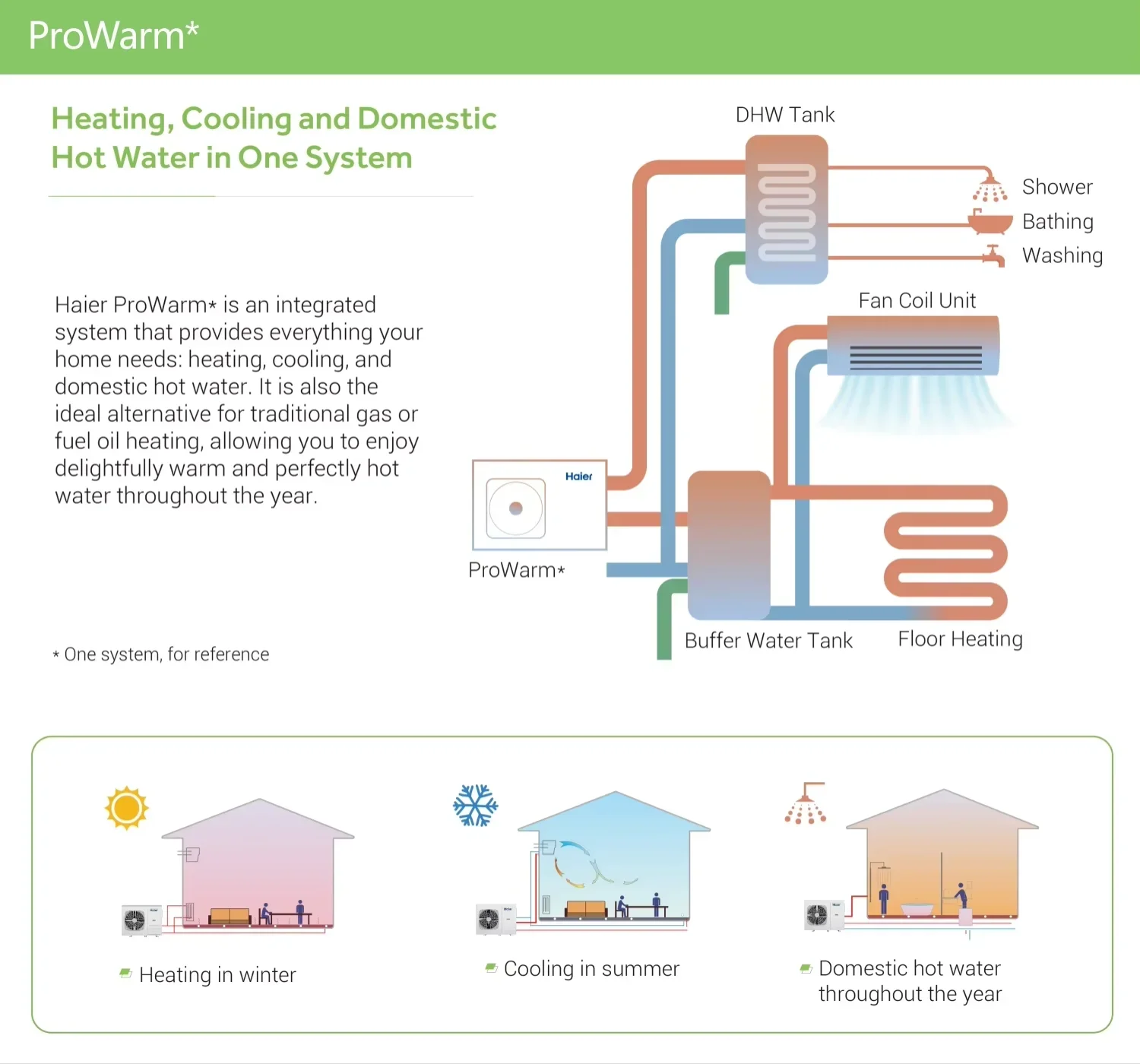

- Stable and Reliable: Haier ProWarm* delivers efficient heating, cooling, hot water in extreme cold
- Anti-freezing Protection: Auto heats to 15°C under ambient <2°C, water <7°C
- Smart Defrost: Multi-touch temp monitoring triggers smart defrost, more efficient than scheduled defrost

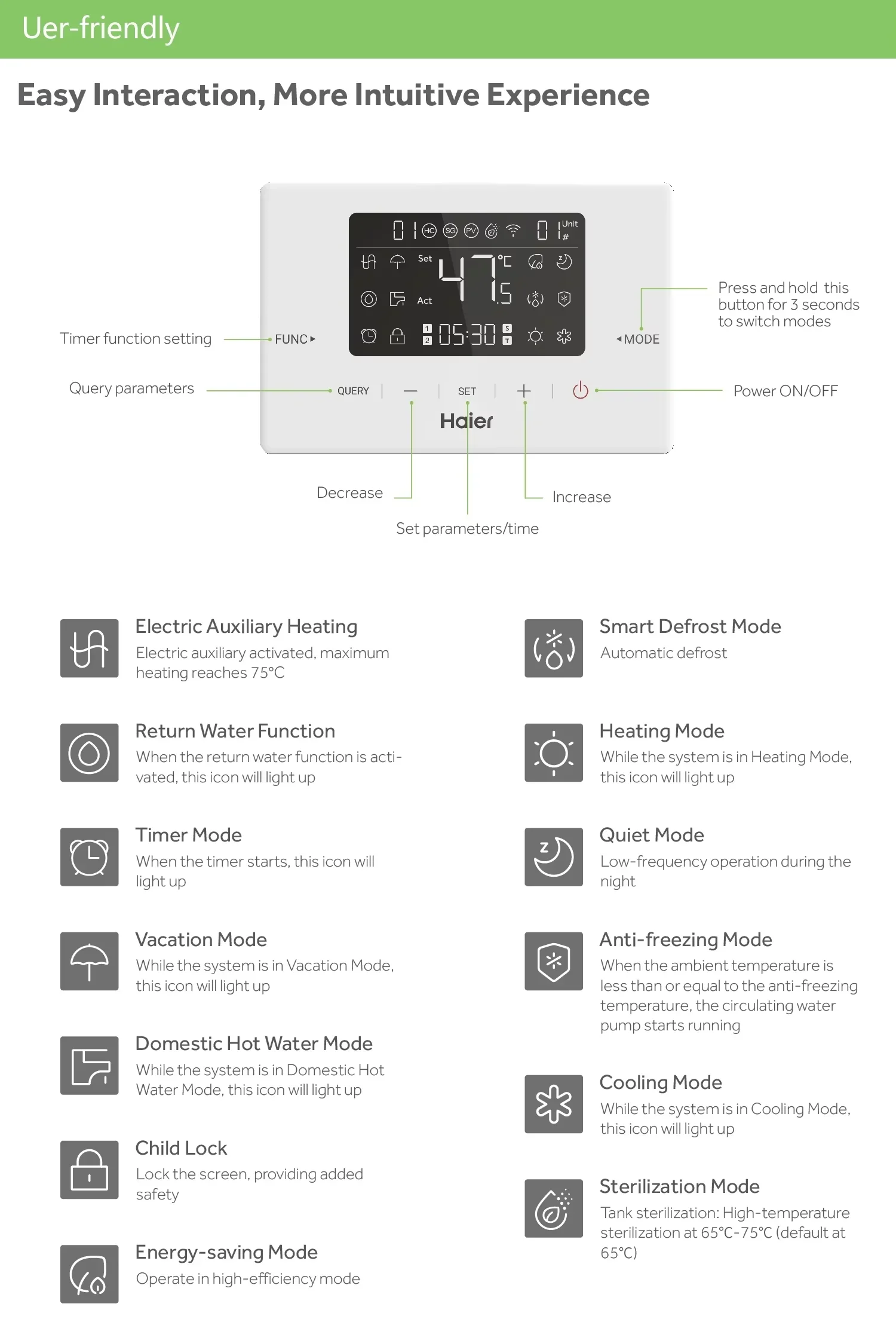

- Smartphone contro: Remote access anytime, anywhere for smart life
- Powerful and Money Savings: Combinable with other heat sources and save energy by saving mode
- Low Noise: Adopts multiple noise reduction technologies, min 66dB

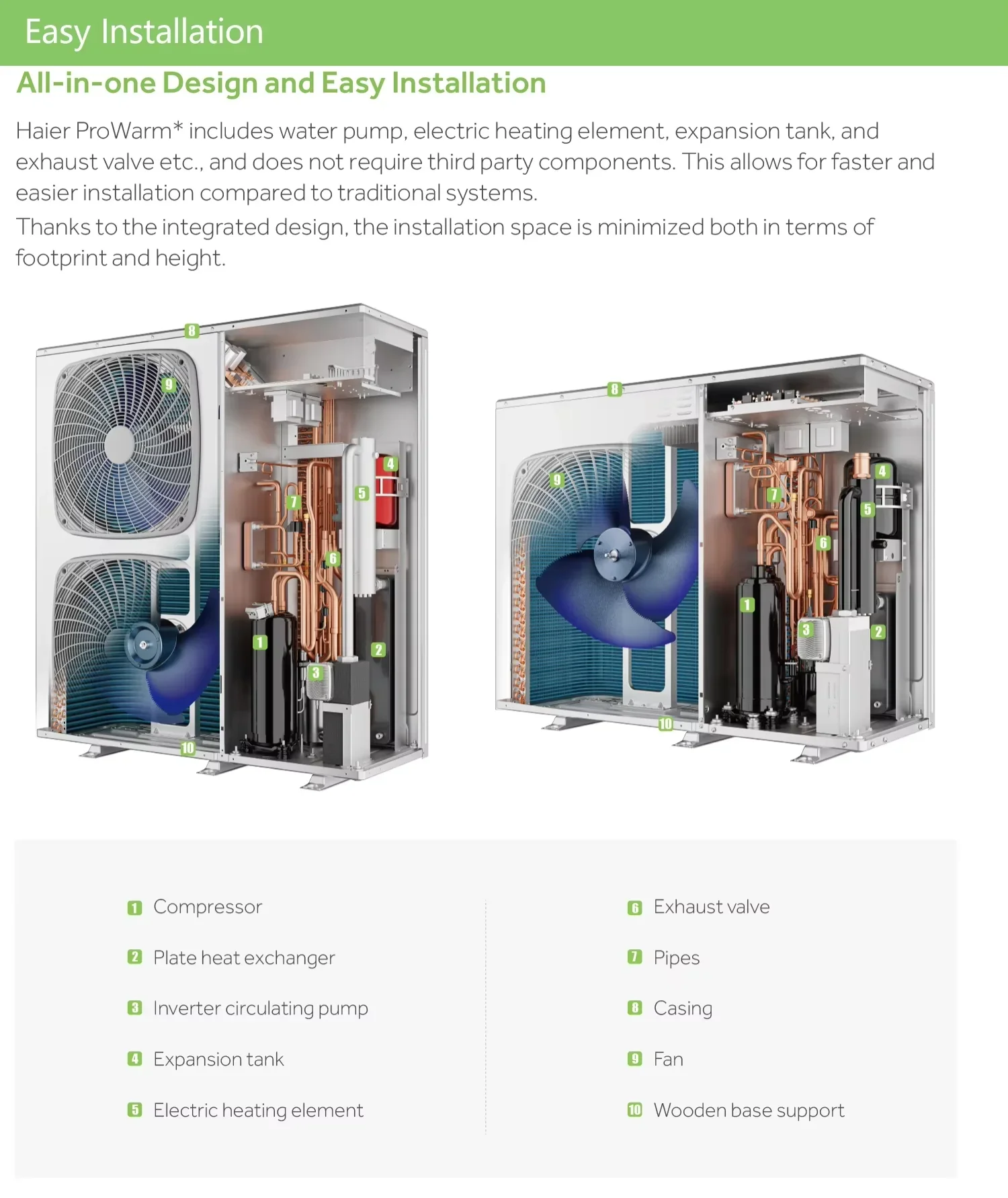

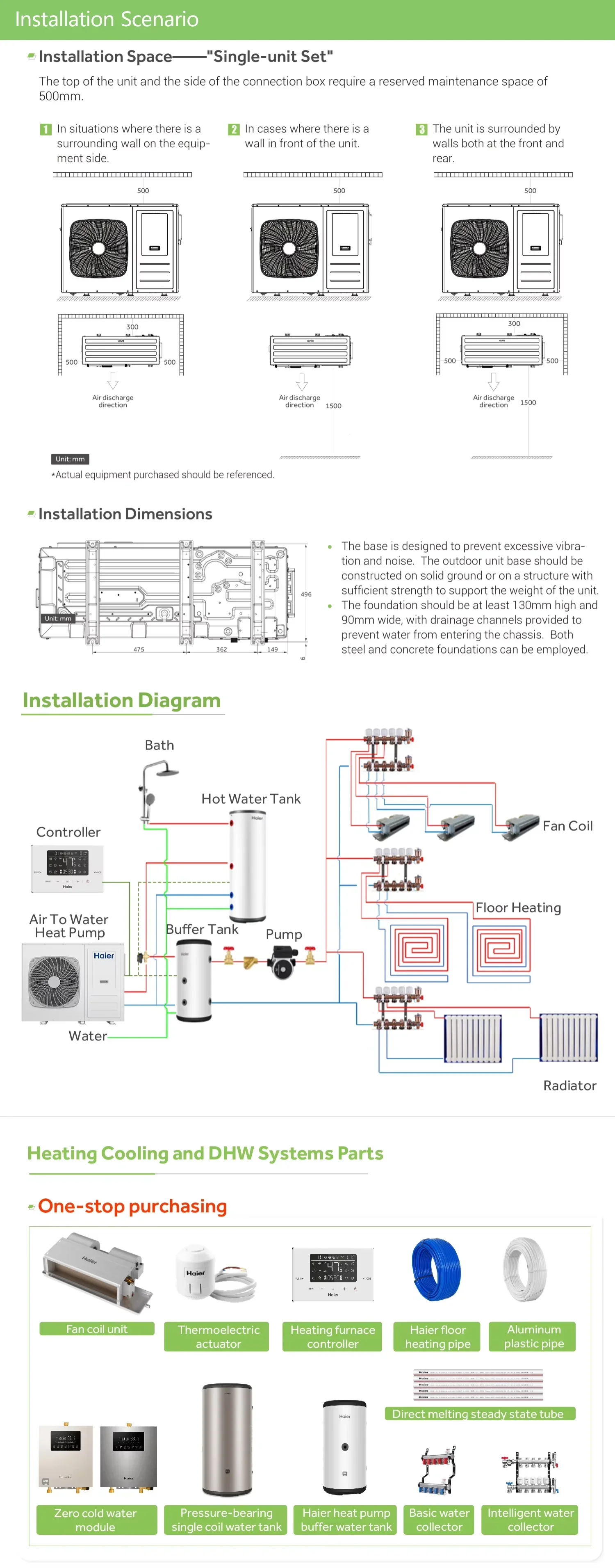

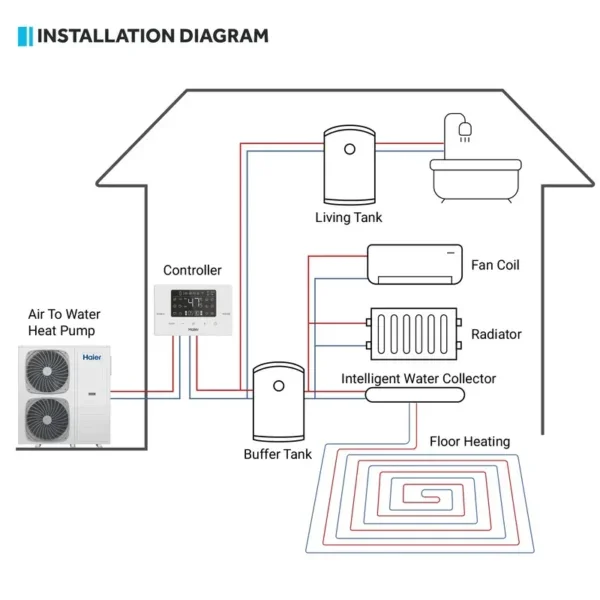

- Easy Installation: All-in-one design and easy installation
China Wholesale Prices New Energy High Temperature High COP Household Domestic Hot Water EVI Full DC Inverter R290 Air Source Monoblock Air To Water Heat Pump For Heating And Cooling | ||||||||||||||

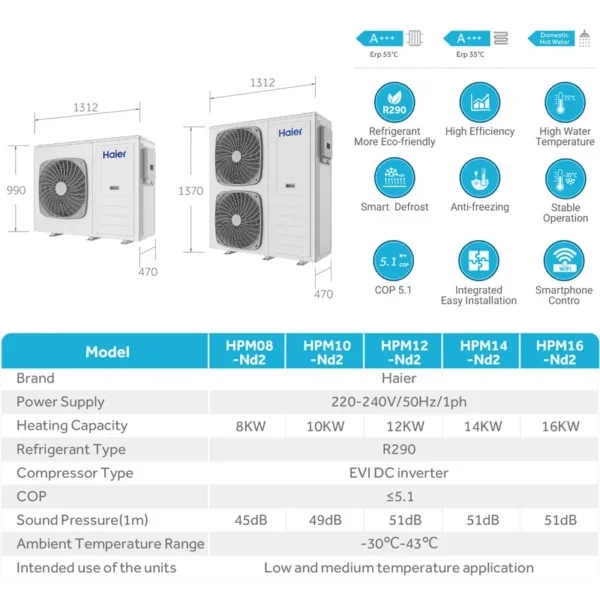

Model | HPM08-ND2 | HPM10-ND2 | HPM12-ND2 | HPM14-ND2 | HPM16-ND2 | |||||||||
Intended use of the units | Low and medium temperature application | |||||||||||||
Power supply | V/Ph/Hz | 220-240/1/50 | ||||||||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 | |||||||
Rated power input | kW | 1.62 | 2.08 | 2.45 | 2.74 | 3.25 | ||||||||
COP | kW/kW | 4.95 | 4.8 | 4.9 | 5.11 | 4.92 | ||||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 | |||||||
Rated power input | kW | 2.42 | 3.03 | 3.43 | 4.24 | 5 | ||||||||
COP | kW/kW | 3.3 | 3.3 | 3.5 | 3.3 | 3.2 | ||||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 | |||||||
Rated power input | kW | 1.63 | 2.15 | 2.78 | 2.74 | 3.33 | ||||||||
COP | kW/kW | 4.9 | 4.65 | 4.1 | 5.11 | 4.8 | ||||||||
Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 | |||||||
Rated power input | kW | 2.5 | 3.33 | 4.07 | 4.52 | 5.51 | ||||||||
COP | kW/kW | 3.2 | 3 | 2.8 | 3.1 | 2.9 | ||||||||
SCOP | Average climate | 35°C | 4.9 | 4.9 | 4.9 | 5.2 | 4.9 | |||||||
Average climate | 55°C | 3.85 | 3.85 | 3.85 | 3.9 | 3.9 | ||||||||
Season space heating energy efficiency class | Average climate | 35°C | A+++ | |||||||||||
Average climate | 55°C | A+++ | ||||||||||||
SEER | Fan coil application | 7°C | 4.5 | 4.5 | 4.5 | 5.1 | 5.1 | |||||||
Cooling floor application | 18°C | 6.3 | 6.5 | 6.2 | 7 | 7 | ||||||||
Refrigerant | Type | – | R290 | |||||||||||
Charge | kg | 1.3 | 1.3 | 1.35 | 1.95 | 1.95 | ||||||||
E-Heater Backup | kW | 3 | 3 | 3 | 6 | 6 | ||||||||
Sound Pressure(1m) | dB | 45 | 49 | 51 | 51 | 51 | ||||||||
Water pump | Rated water flow | m3/h | 1.38 | 1.72 | 2.06 | 2.41 | 2.75 | |||||||
Total water head | m | 12.5 | 12.3 | 12 | 11.5 | 11.1 | ||||||||
Available water head | m | 9 | 8.8 | 8.5 | 8 | 7.6 | ||||||||
Maximum working pressure of refrigerant | Mpa | 0.85/3.2 | ||||||||||||
Water side safety valve | Mpa | 0.6 | ||||||||||||
Water proof grade | / | IPX4 | ||||||||||||
Water side connection | in | 1 | ||||||||||||
Net dimension | W*D*H | mm | 1312x470x990 | 1312x470x1370 | ||||||||||
Package dimension | W*D*H | mm | 1362x567x1167 | 1362x567x1560 | ||||||||||
Ambient temperature range | Cooling | °C | 10~48 | |||||||||||
Heating | °C | -30~35 | ||||||||||||
DHW | °C | -30~43 | ||||||||||||
Leaving water temperature range | Cooling | °C | 5~25 | |||||||||||
Heating | °C | 24~75 | ||||||||||||
DHW | °C | 30~60 | ||||||||||||
High Efficiency Air to Water Heat Pump

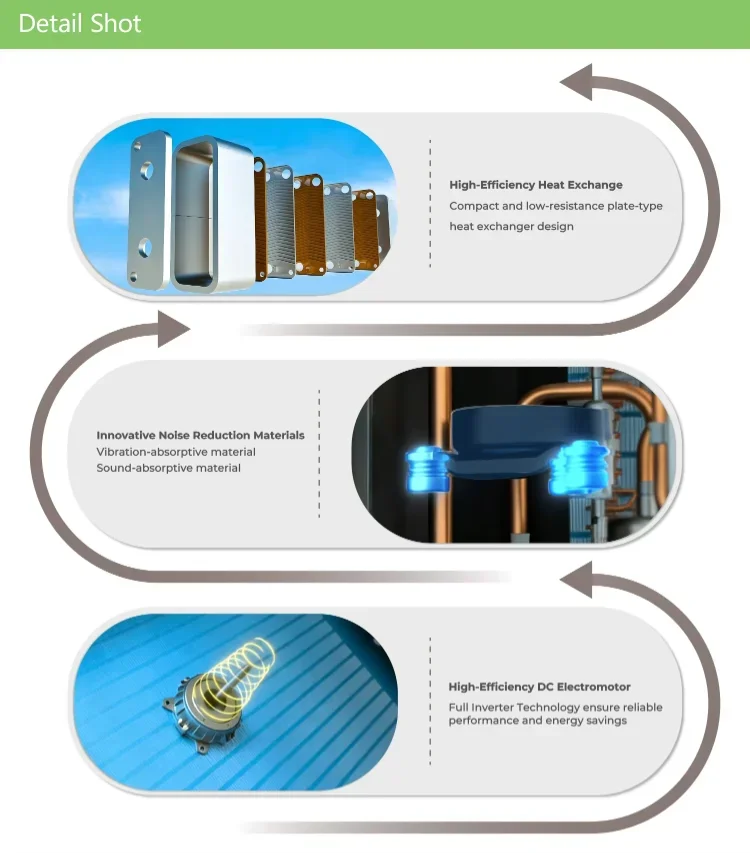

1. High-Efficiency Heat Exchange Compact and low-resistance plate-type heat exchanger design. It boosts heat transfer efficiency while saving space-perfect for heating/cooling! 2. Innovative Noise Reduction Built with vibration & sound-absorptive materials. It minimizes operational noise and vibrations, ensuring a peaceful environment for you. 3. High-Efficiency DC Motor Full inverter technology guarantees stable, reliable performance and remarkable energy savings. Eco-friendly and effective.
Natural, Non-toxic and Free of Ozone-depleting
R290 is a high-purity propane refrigerant with a global warming potential (GWP) of 3, which means it will not contribute to ozone depletion as much as other options. It meets the environmental regulations of multiple countries, making it an Eco-friendly choice.
Excellent Thermodynamic Performance
Moreover, R290 refrigerant offers excellent thermodynamic performance, enabling higher water temperatures to meet various application demands.

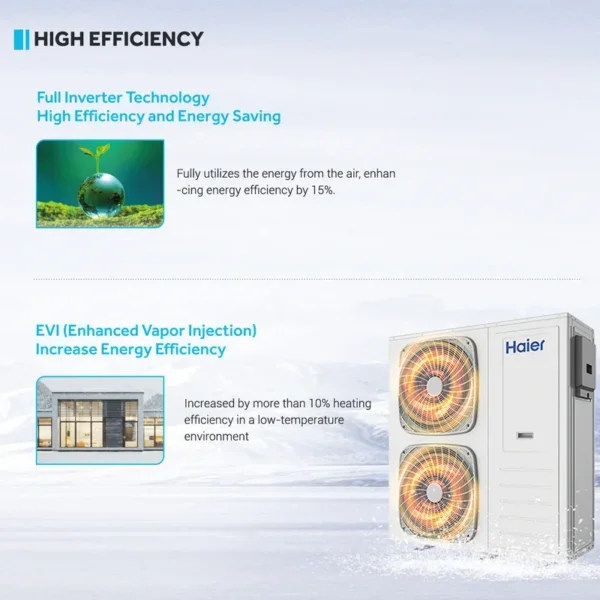

FOUR TECHNOLOGIES FOR ENERGY-SAVING PERFORMANCE
The technologically advanced Haier ProWarm* takes a step ahead in efficiency and sustainability.
MORE
Over 11 Years Of Export Experience | Support OEM/ODM | Compliance And Quality Assurance | One-stop Service
FAQs
Who are we?
Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
What can you buy from us?
Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, instant electric water heater, storage electric water heater, solar water heater, gas water heater, water dispenser, etc.
Why should you buy from us not from other suppliers?
Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $2500 / piece
- 10–49 piece: US $2200 / piece
- 50–99 piece: US $2000 / piece
- 100+ piece: US $1800 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water pumpheat pump?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water pumpheat pump be supplied for my local voltage?
The standard configuration is 220-240V/50Hz/1ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Haier New Energy Electric Appliance Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Haier New Energy Electric Appliance Co., Ltd. range on HVACR Nexus.
