Key specification for this whole house solar panel: 24V, 40W. Everything below is reproduced from the factory data sheet. Made by Jiangmen Sunny Photoelectricity Technology Limited (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Whole House Solar Panel
- Model Number: SN2015010, SN2015010A
- Power: 40W
- Voltage: 24V
- Blade Material: Nylon-Fiber-Aluminum compound fan blades
- Warranty: 5 year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 24V |
|---|---|
| Blade Material | Nylon-Fiber-Aluminum compound fan blades |
| Electric Current Type | DC |
| Mounting Type | Wall Fan |
| Warranty | 5 year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | SIPL |
| Model Number | SN2015010, SN2015010A |
| Power | 40W |

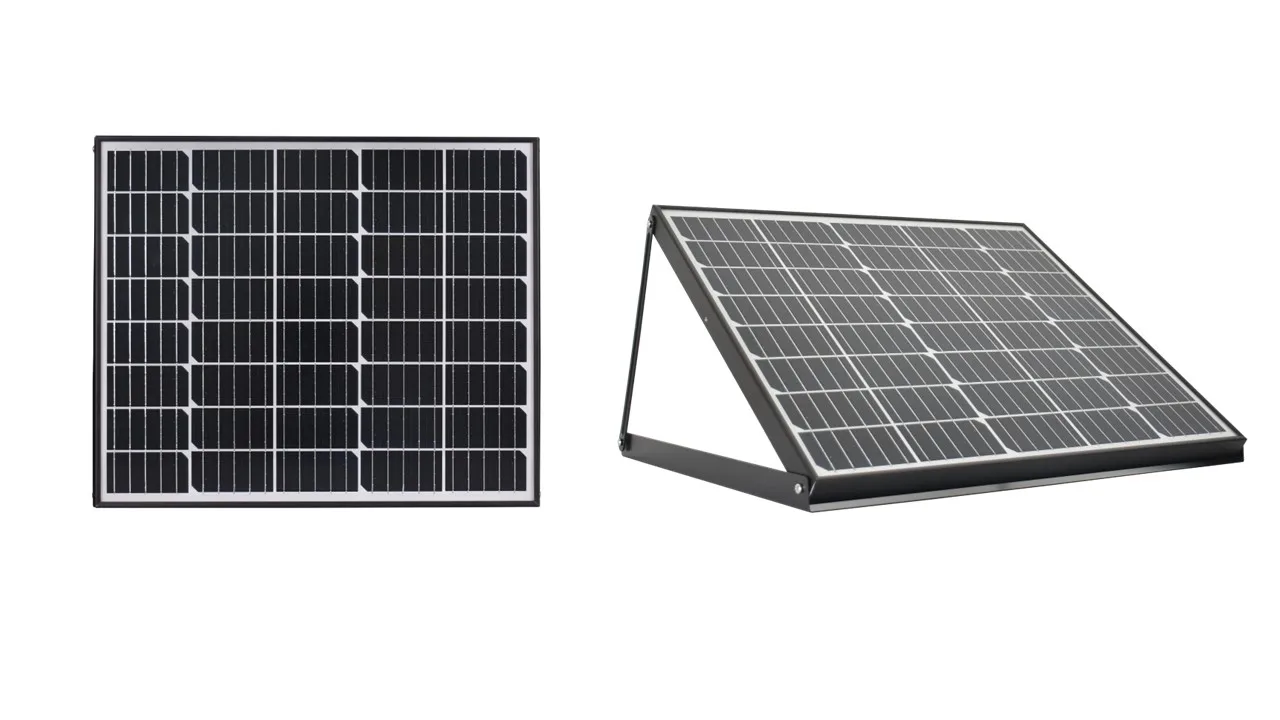

| Solar Panel | monocrystalline solar panel, adjustable with mounting base |
| Blades | 14 inch Composited fan blades ( nylon & fiberglass ), 7pcs |

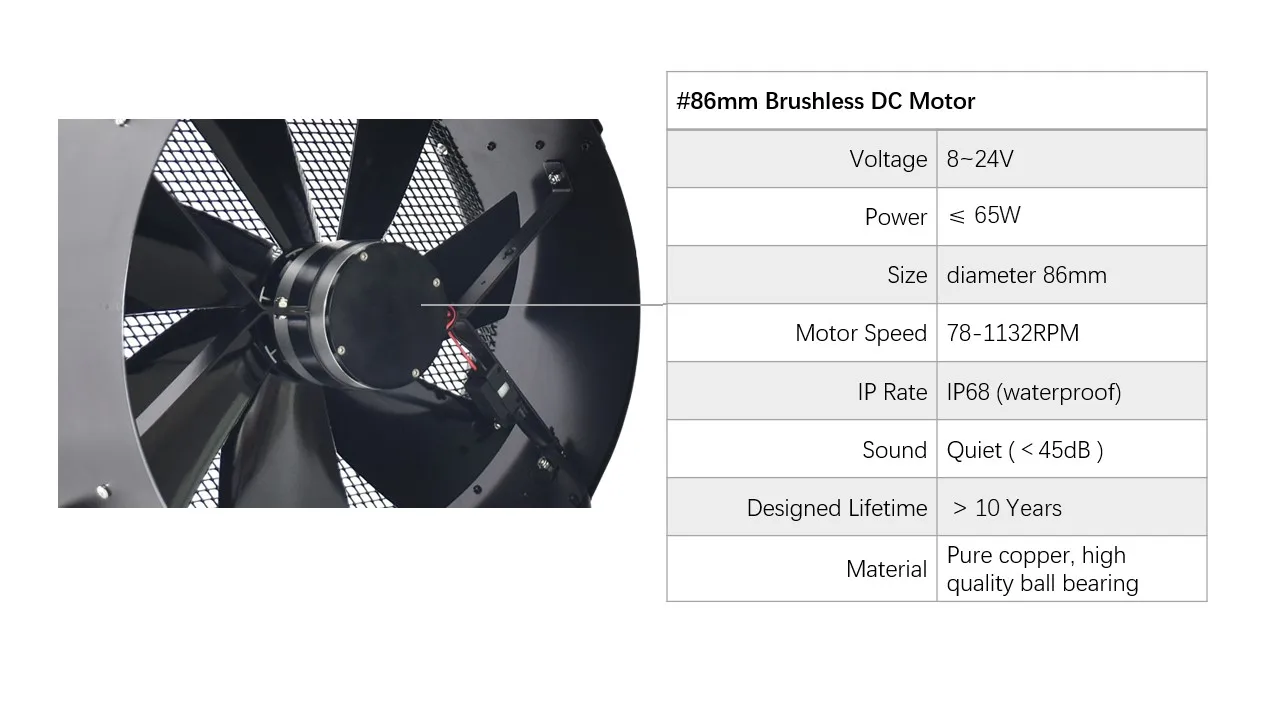

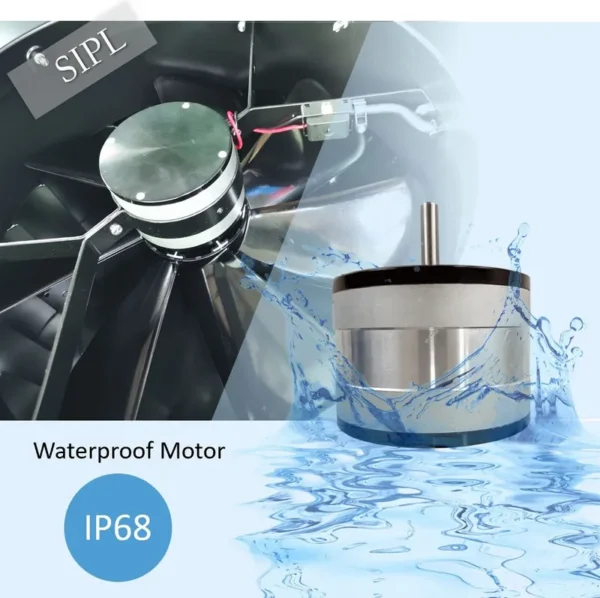

| Motor | IP68 Brushless DC Motor |
| Fan Housing | Galvanized steel with anti-rust, anti-UV powder coating |
| Fan Guard | Front side metal fan guard |
| Cable | 10m cable to connect solar panel & the fan |
| Color | Black |
| Installation | Wall mounting, roof vent mounting, crawlspace |
| Work Time | 24 Hours |
| Type | Axial Flow Fan |

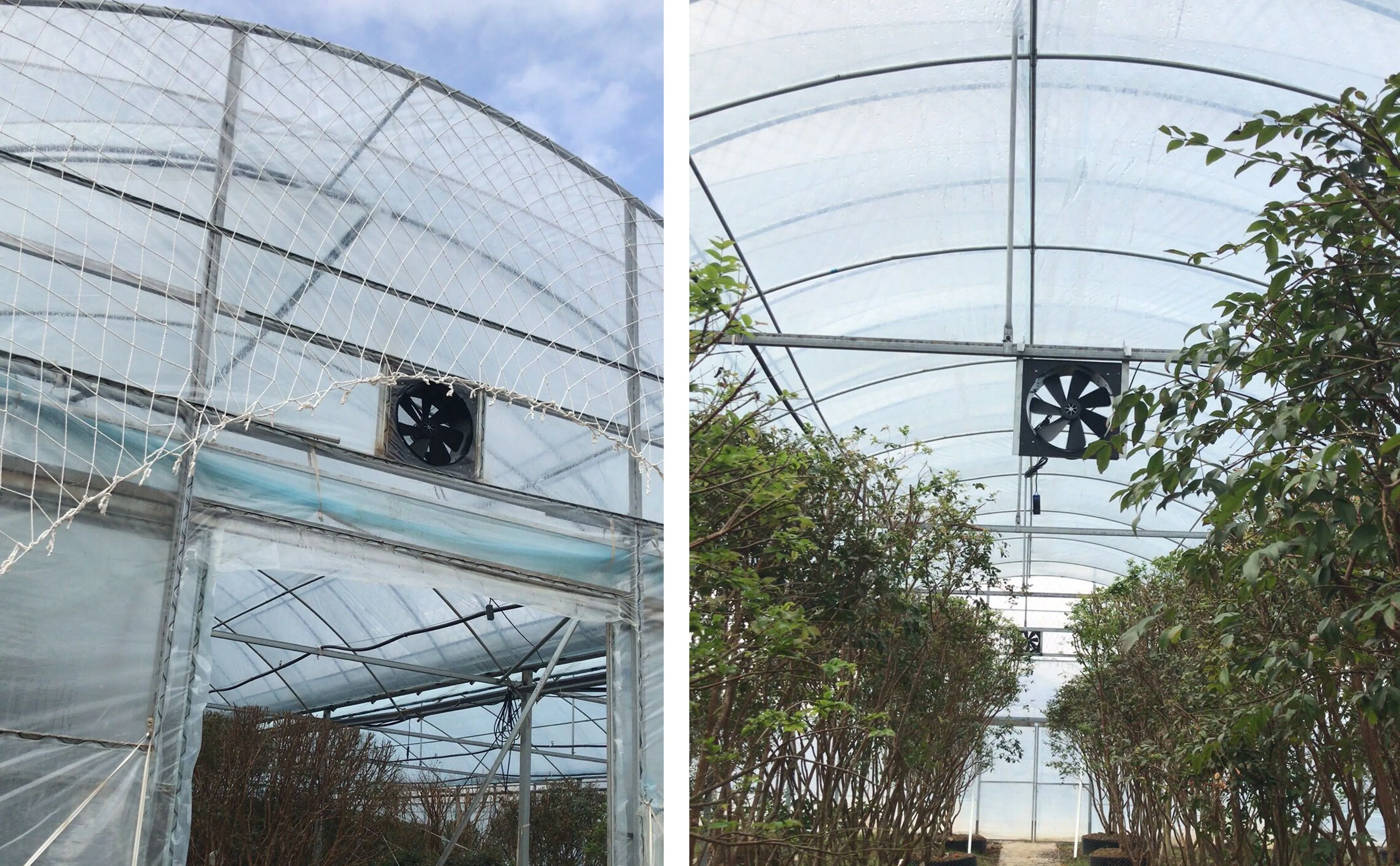

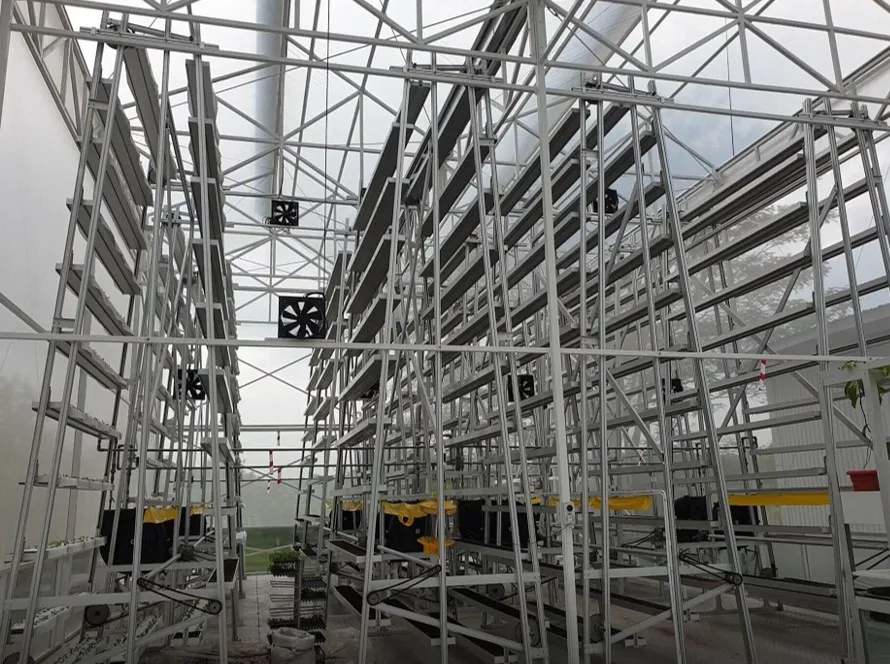

| Applicable Industries | Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Greenhouse |
| Core Components | IP68 BLDC Motor |
| Selling Units | Single item |
| Single Package Size | 57X50X30 cm |
| Single Gross Weight | 10.000 kg |

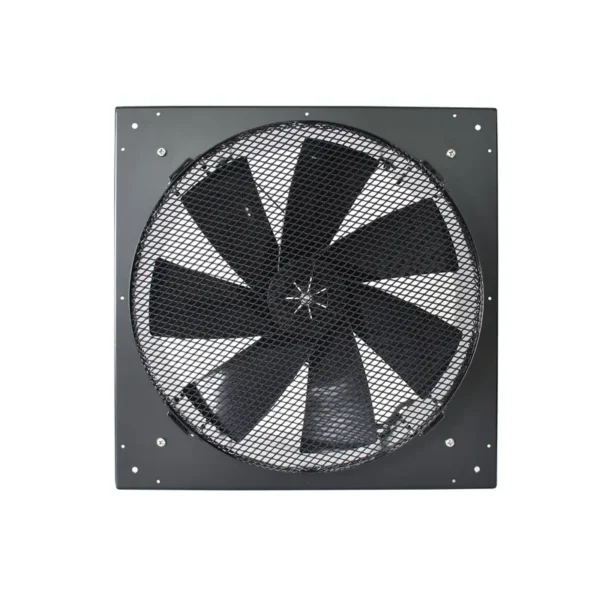

Product Details

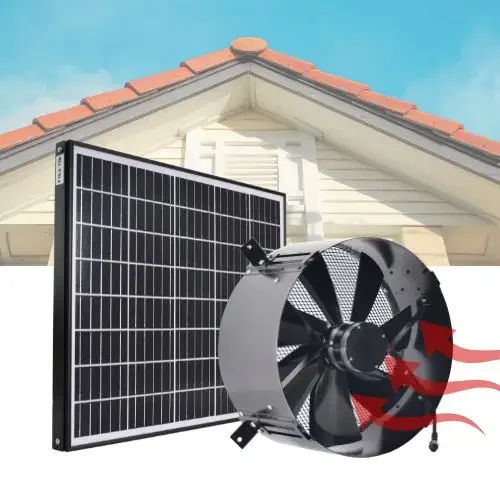

A self-contained axial-flow multi-purposes solar wall ventilation fan, taking advantage of natural solar energy, realizing savings of up to 90%, making high efficient yet quiet ventilation by top grade brushless motor. As an energy-saving ventilation solution for your healthy and comfortable environment!
Flexible to install, Meet A Variety of Ventilation Need
With easy installation and no dependence on AC grid, the solar wall ventilator freshens air for various premises during sunny days at no electric cost! It would pump out interior stale air to improve indoor air circulation, reduce moisture & harmful mildews, and help reduce the load on air-conditioner and HVAC system in summer seasons.
Smart Controlled Power Backup for Running 24h
Under smart control, when connected to AC/ DC power adapter, SIPL solar wall fan can automatically switch to mains supply to keep running in sunless periods effectively. Furthermore, when the sun arise again, backup power will exit automatically, so as to reserve storage battery power or save electricity.
Slidable Mounting Brackets

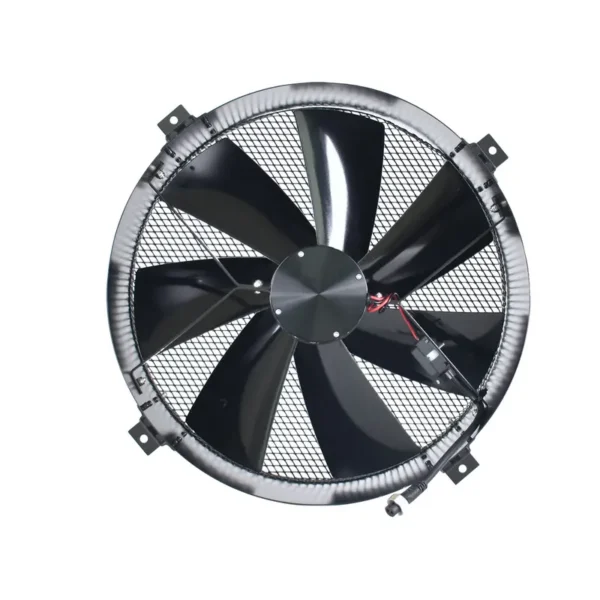

14" Nylon Fan Blades

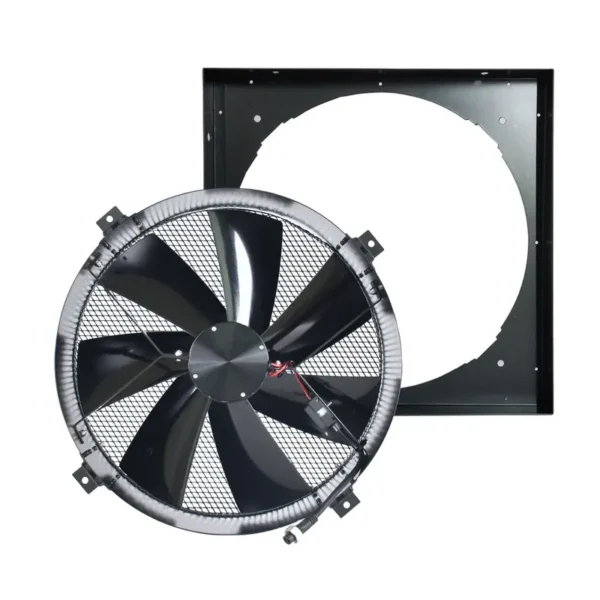

Galvanized Steel Fan Case
Smart Controller

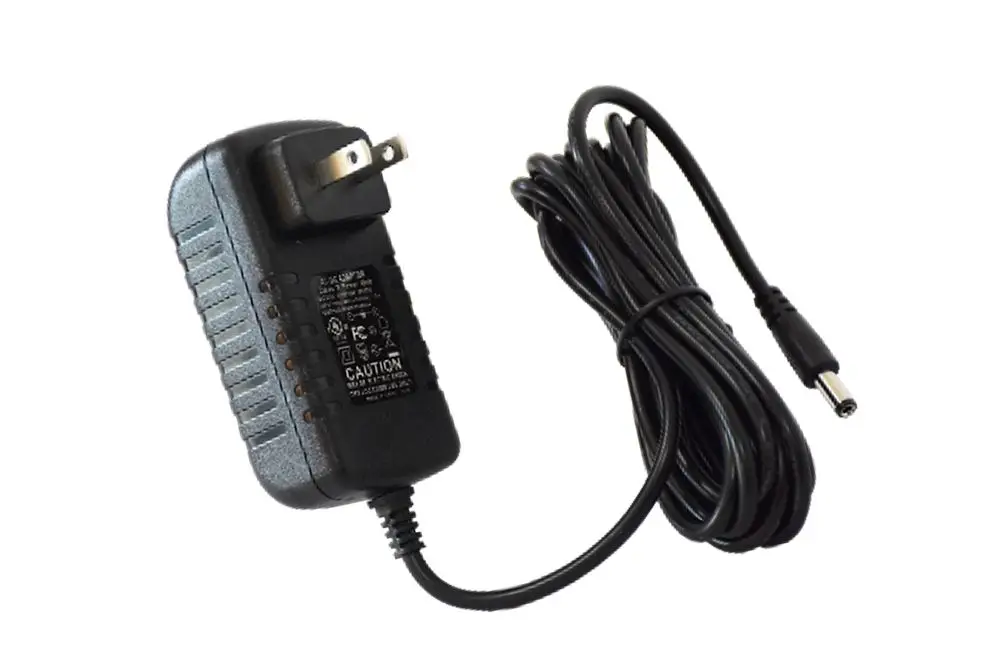

AC/DC Power Adapter

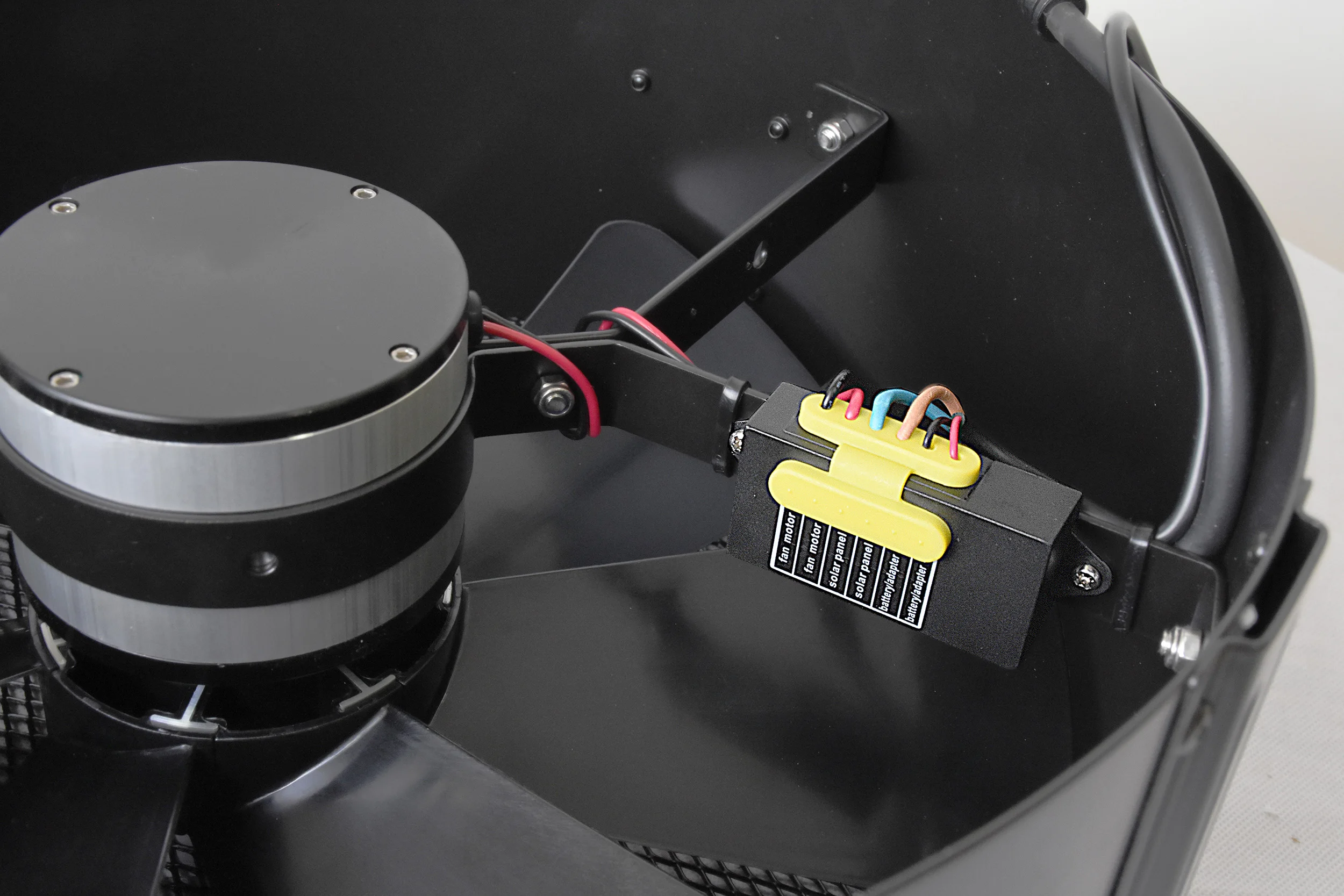

● Waterproof Wire Connector to connect with fan
Q1: What if I only need to use the fan when the temperature is high?
You can add a mechanical Snap-Action Thermostat to have the solar fan start / stop rotating mechanically at preset temperature:
[25ºC thermostat] On: 25ºC +/-3ºC; Off: 18ºC +/-5ºC
[28ºC thermostat] On: 28ºC +/-3ºC; Off: 21ºC +/-5ºC

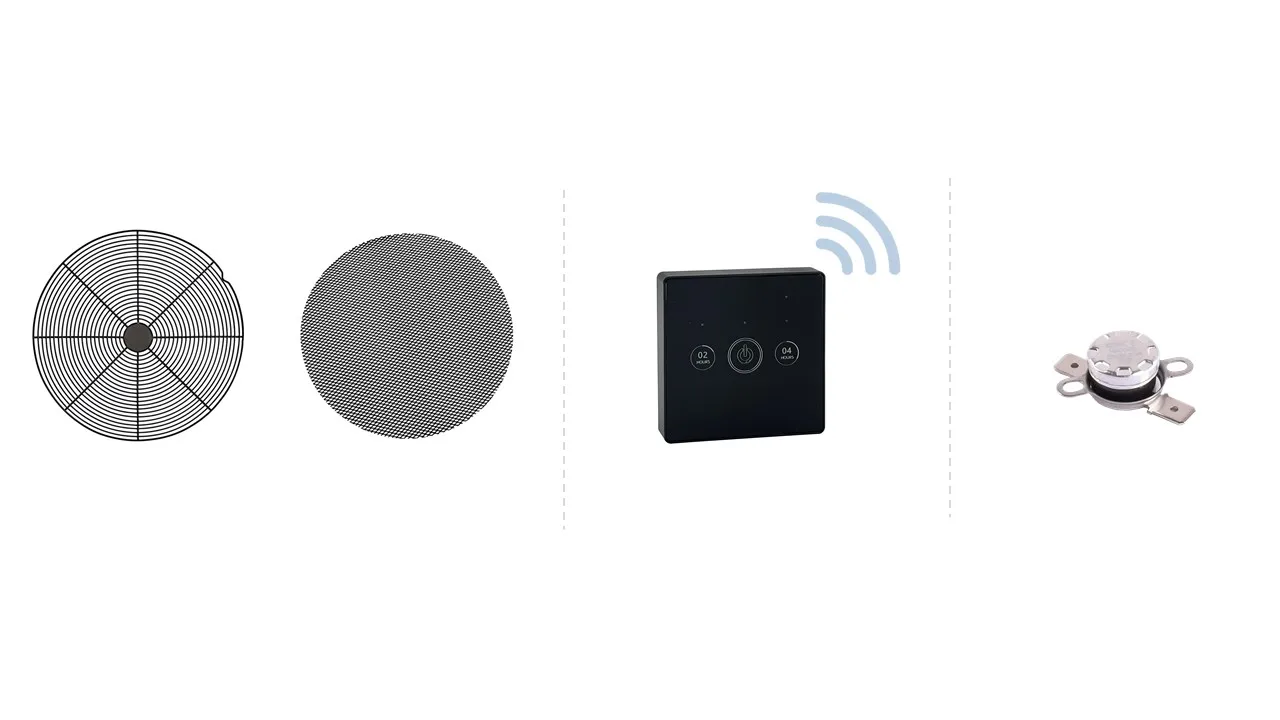

Q2: What if I worry about insects or small animals entering the house?
Don't worry. We have two types of protective fan guard, which can better protect fan blades getting damaged or animals going inside the house.
Q3: Can I have more flexible ways to install the solar wall fan?

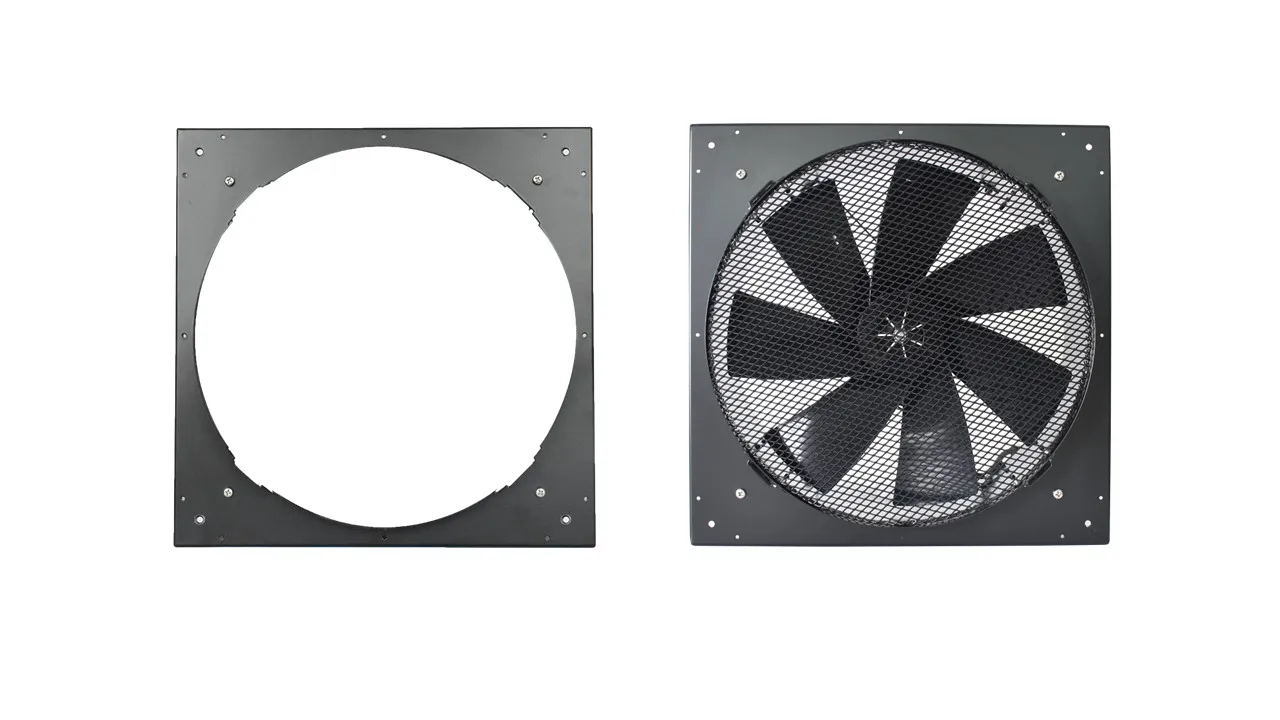

Sure. We have galvanized steel 416*416mm mounting frame is to support easier installation, or connect several wall fans together to meet a variety of ventilation need!
Q4: How to keep the fan working even in cloudy or at night?
You can add an AC/DC power adapter or a battery as backup power to keep the fan working nonstop in sunless times. The adapter will cost a little electricity, while the battery is totally at zero cost.
Product Part | Designed lifespan | Warranty |
Metal Casing | 20 Years | 15 Years |
Solar Panel | 25 Years | 15 Years |
Brushless DC Motor | 10 Years | 5 Years |
AC/DC Power Adapter | 5 Years | 2 Years |
Email: sales07@sunnyintlpowerltd.com
Phone/Whatsapp: +86 13536195646
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this whole house solar panel?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the whole house solar panel be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangmen Sunny Photoelectricity Technology Limited, based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangmen Sunny Photoelectricity Technology Limited range on HVACR Nexus.
