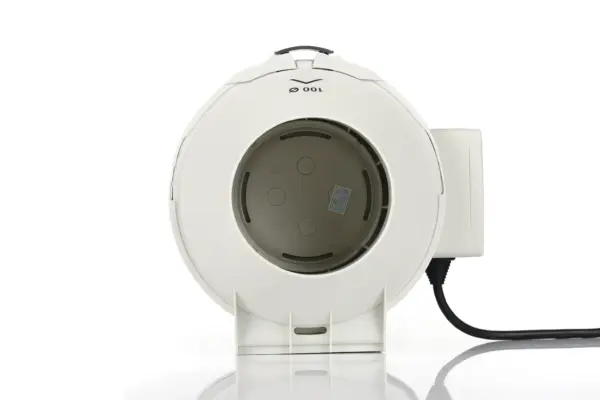

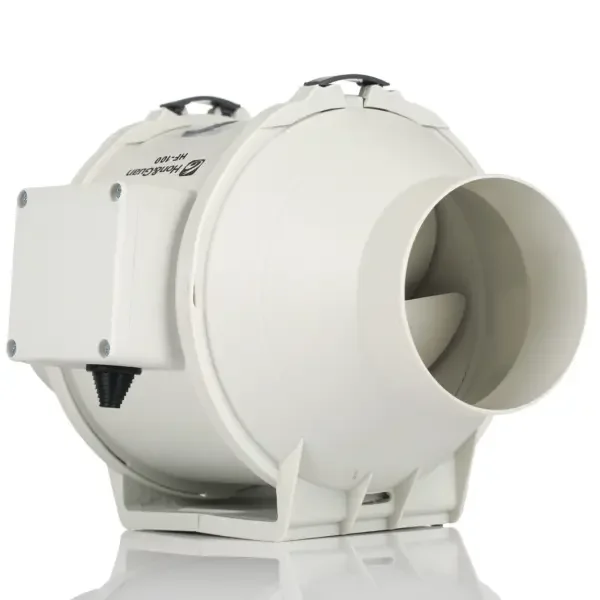

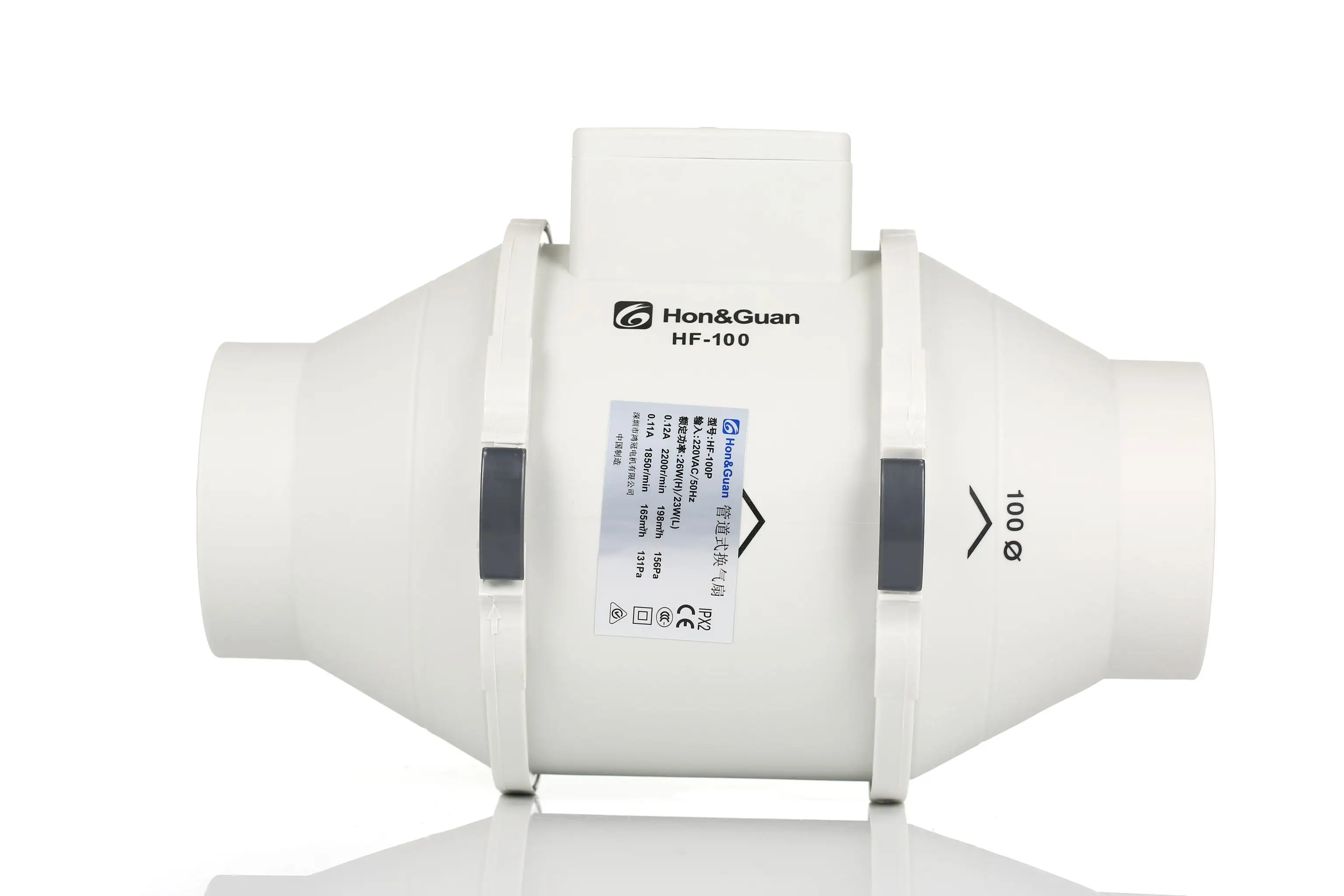

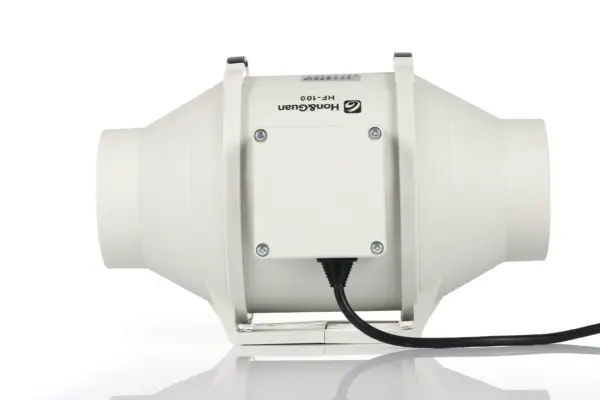

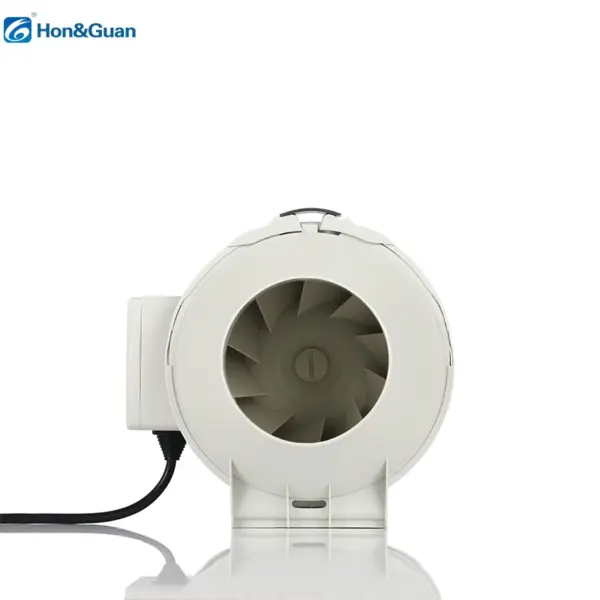

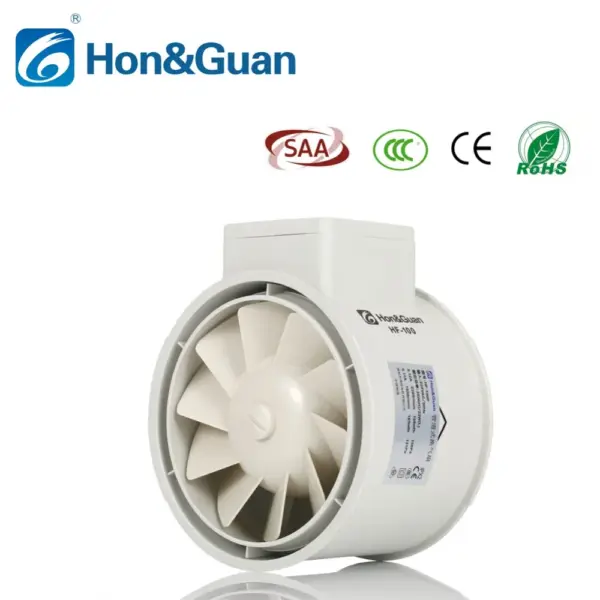

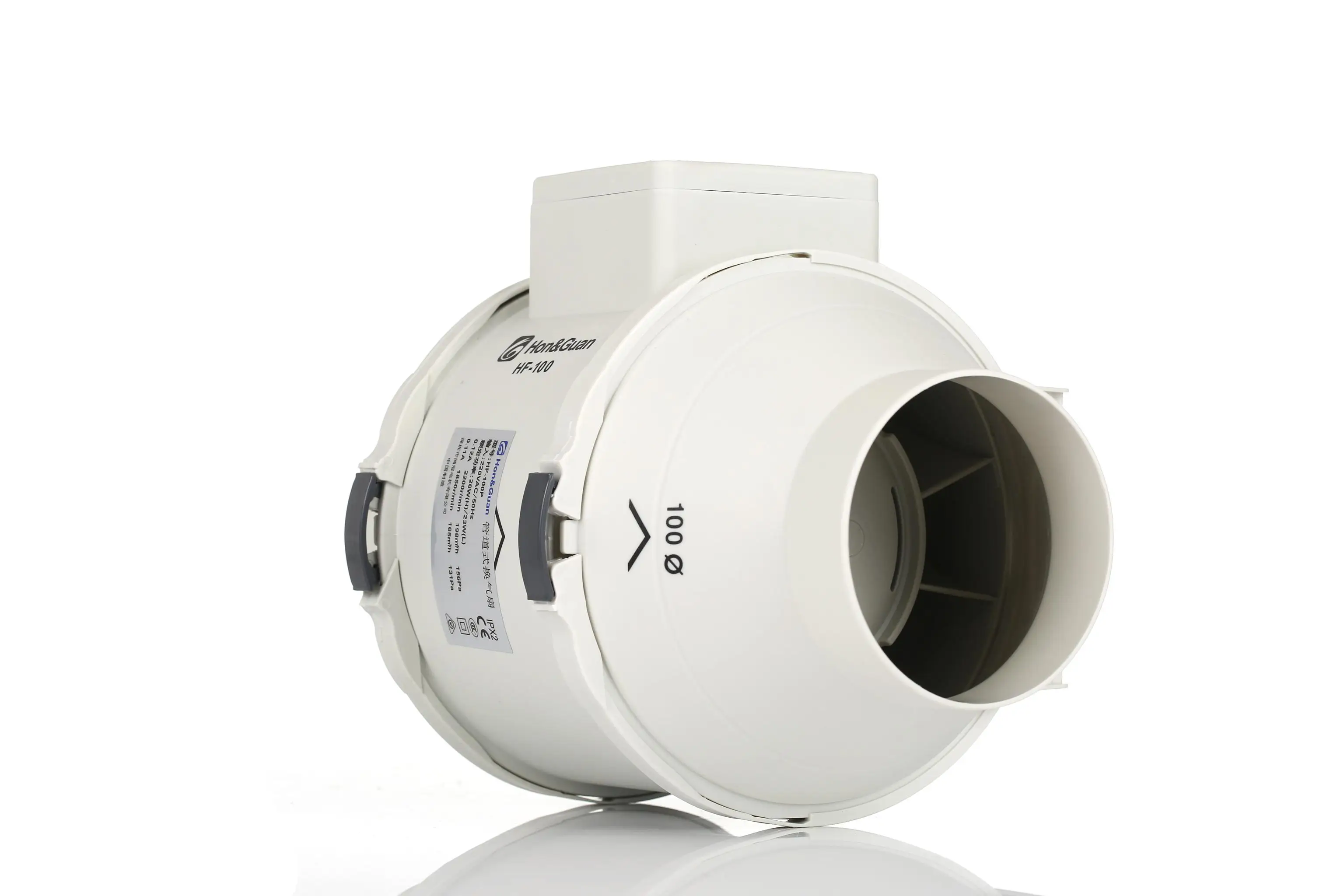

This inline duct fan covers the whole 4 to 12 inch range on a single 100-240V platform, which means one product family serves domestic bathroom extract, commercial kitchen make-up air and HVAC branch runs without switching supplier. Running speeds of 1850-2200RPM keep noise low enough for occupied rooms. Moulded plastic resists the condensation that corrodes steel housings in extract duty, and ball bearings back the two-year warranty.
Key Features of This Inline Duct Fan
- Power Source: Electric
- Voltage: 100-240V
- Material: Plastic
- Blade Material: Plastic
- Speed: 1850-2200RPM
- Warranty: 2 Years

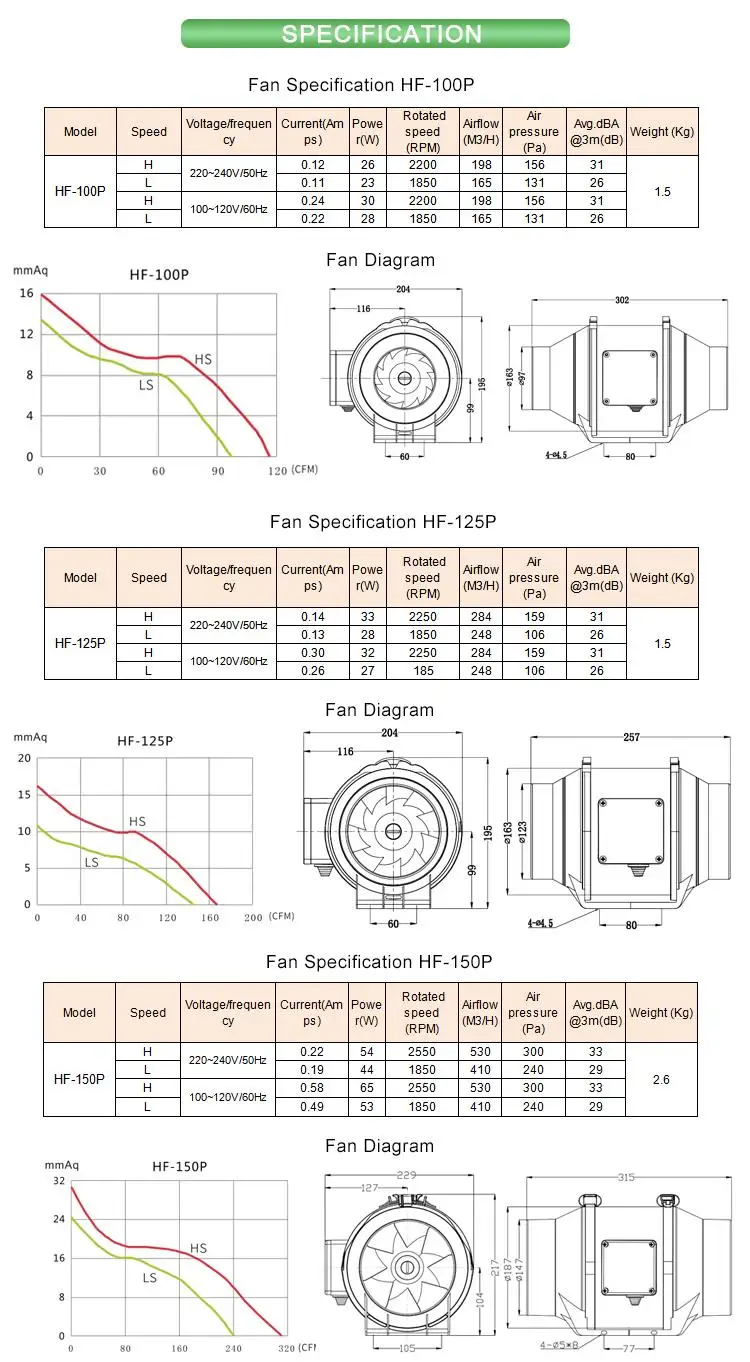

Technical Specifications
| Voltage | 100-240V |
|---|---|
| Material | Plastic |
| Speed | 1850-2200RPM |
| Mounting Type | Duct Fan |
| Type | Duct Axial Fan |
| Warranty | 2 Years |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Selling Units | Single item |
| Single Package Size | 34X24X25 cm |
| Single Gross Weight | 2.500 kg |

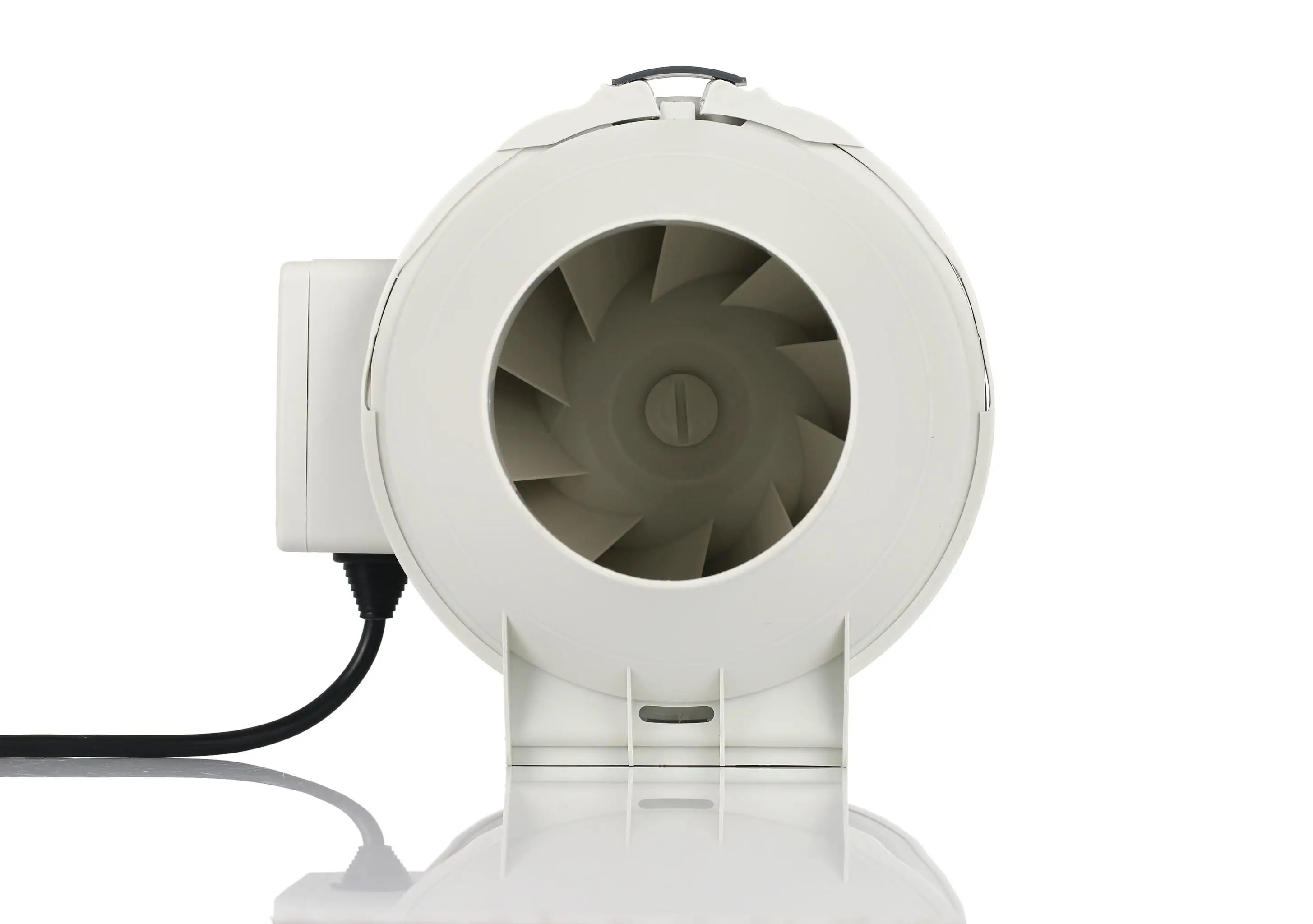

Fan blade is designed according to hydromechanical principle to reach the optimal airflow and air pressure, high efficiency working, low energy consumption and low noise.
Outer rotor motor inside, with Japanese brand NMB ball bearing, long working life over 50000 hours.
Protection class: IP44.
Operating temperature range: -20℃~60℃.
Q: Are you trading company or manufacturer ?

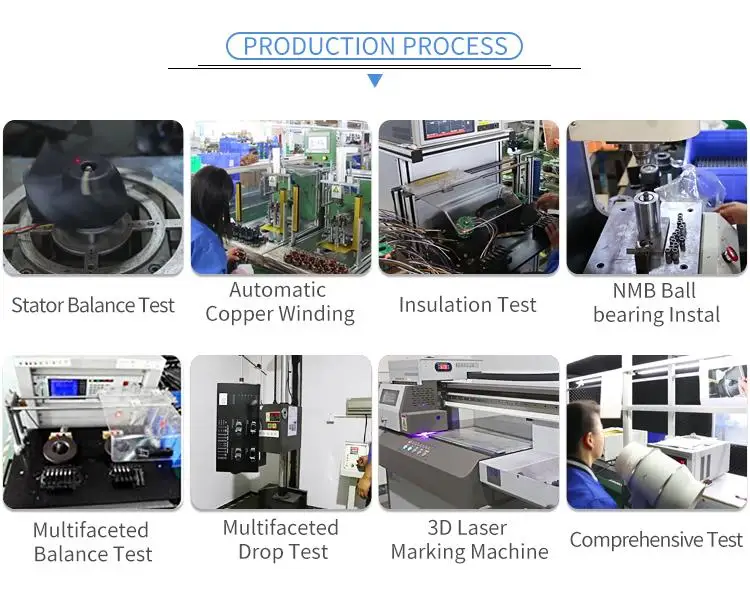

Q: How does your factory do regarding quality control?

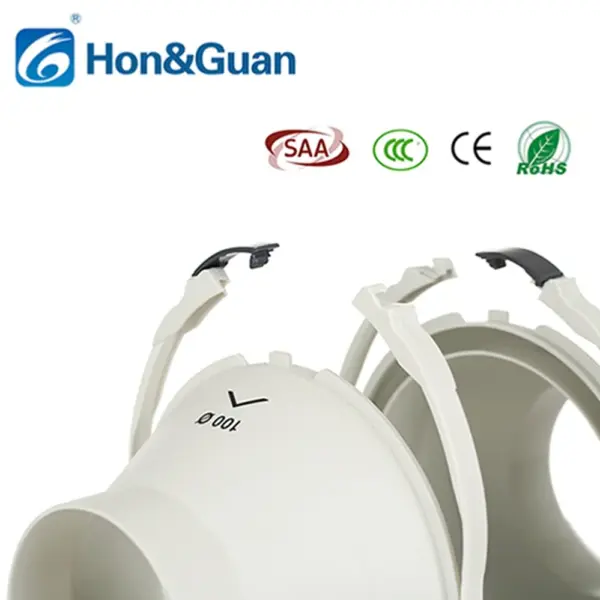

controlling from the very beginning to the very end. Our factory has gained Rohs, SAA, SGS, CE CCC,ISO9001:2008 authentication.Etc
Q: What will u company do with defected items?
Q:Which shipping service you will use for my goods ?
Q:Can I put my logo on the product? Can I customize the colors and package?
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this inline duct fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 100-240V. Alternative voltage and frequency builds are available when confirmed at order stage.

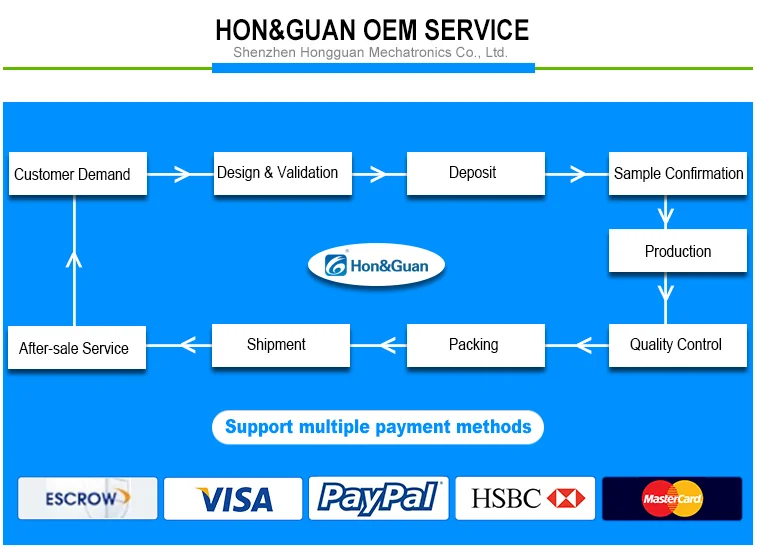

Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This inline duct fan is produced by Shenzhen Hongguan Mechatronics Co., Ltd.. Browse the full Shenzhen Hongguan Mechatronics Co., Ltd. range on HVACR Nexus.
