With Integrated Servo Motor, Aluminum alloy, EC

The with integrated servo motor listed here carries material Aluminum alloy, model number EC, documented exactly as the manufacturer publishes it. Made by Beijing NiMotion Control Technology Co., Ltd. (8 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This With Integrated Servo Motor

• Model Number: EC
• Material: Aluminum alloy
• Warranty: 6 Months
• Place Of Origin: Beijing, China
• Weight (Kg): 5
• Single Gross Weight: 0.0 kg

Technical Specifications

Product Details

Motor recommendation

Product Overview

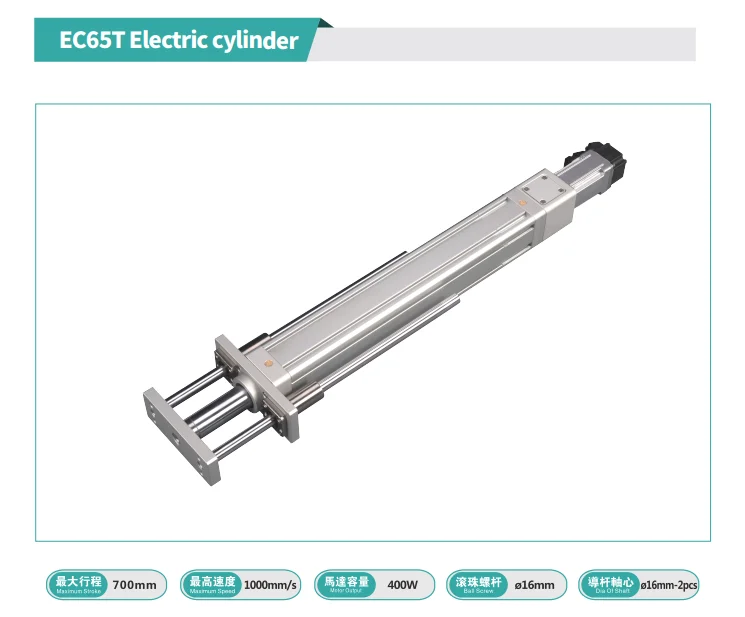

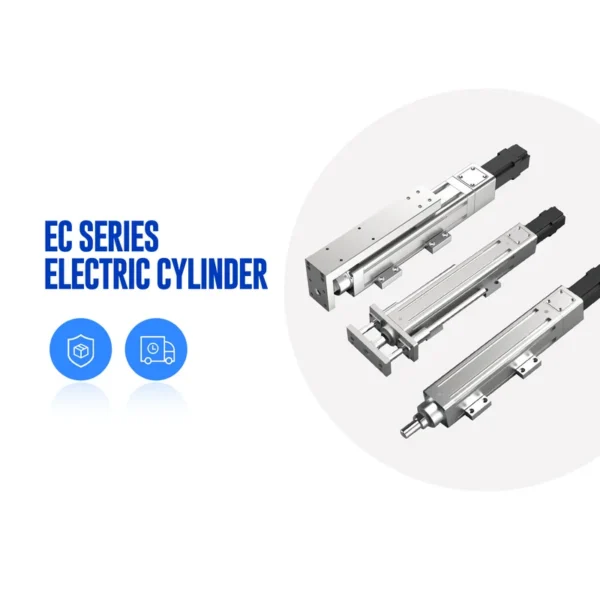

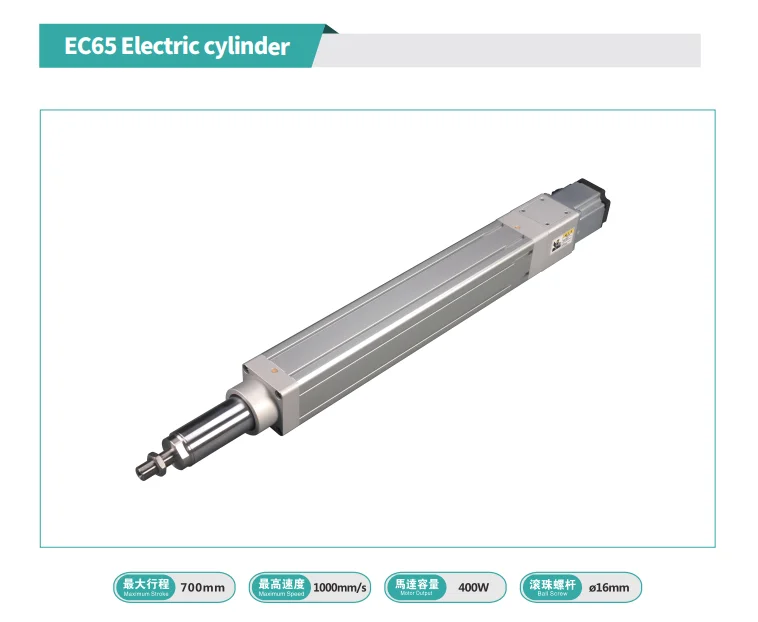

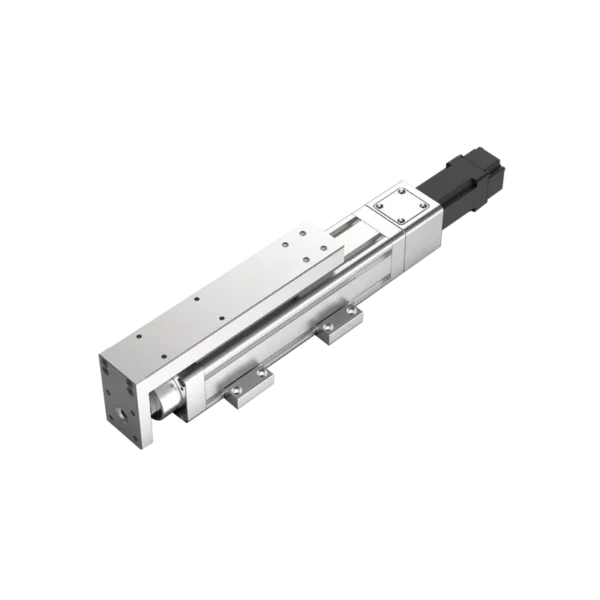

EC series electric cylinder

EC series screw driven electric cylinder, multiple stroke options, low noise and smooth operation, compact overall structure, can be equipped with stepper motor or servo motor!

● Screw driven, fully enclosed design

● Fast response, large thrust, large stroke, stable structure

● Convenient assembly, material strengthening, easy maintenance

Product specification parameter

Model Specification	Moter Outpue(w)	Width(mm)	Repeatability(mm)	Outer Diameter(mm)	Lead(mm)	Horizontal	Vertical	Maximum Speed(mm/s)

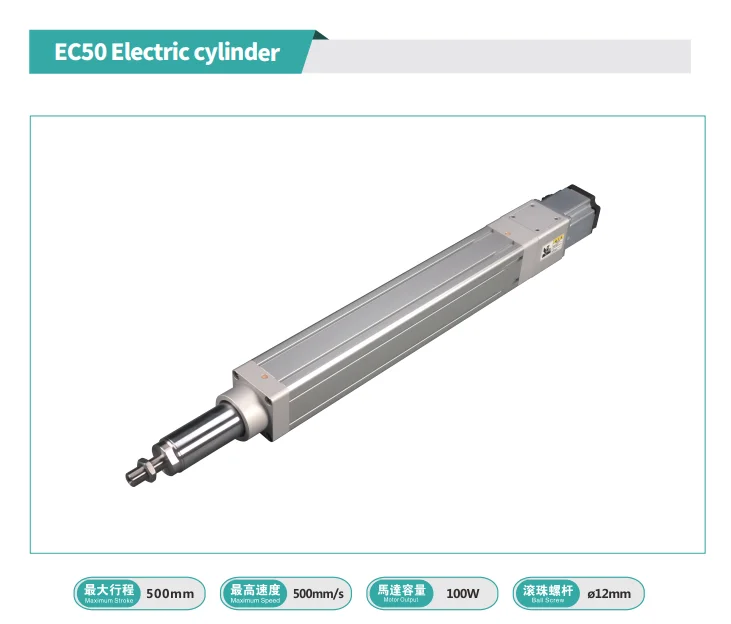

EC50	100W	52	±0.01	12	5	30	12	250
										10	15	5	500

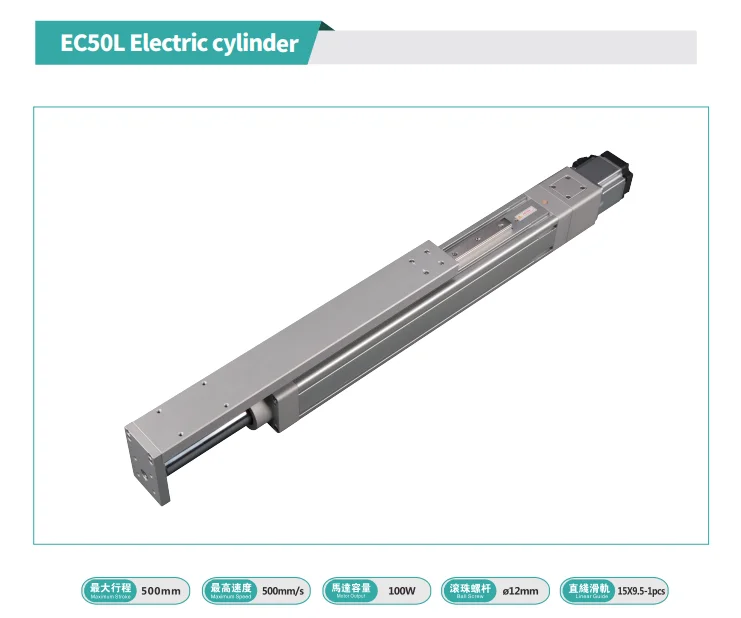

EC50L	100W	52	±0.01	12	5	30	12	250
										10	15	5	500
EC50T	100W	52	±0.01	12	5	30	12	250
										10	15	5	500
EC65	400W	65	±0.01	16	5	110	33	250
										10	88	22	500
										16	48	10	800
										20	40	8	1000

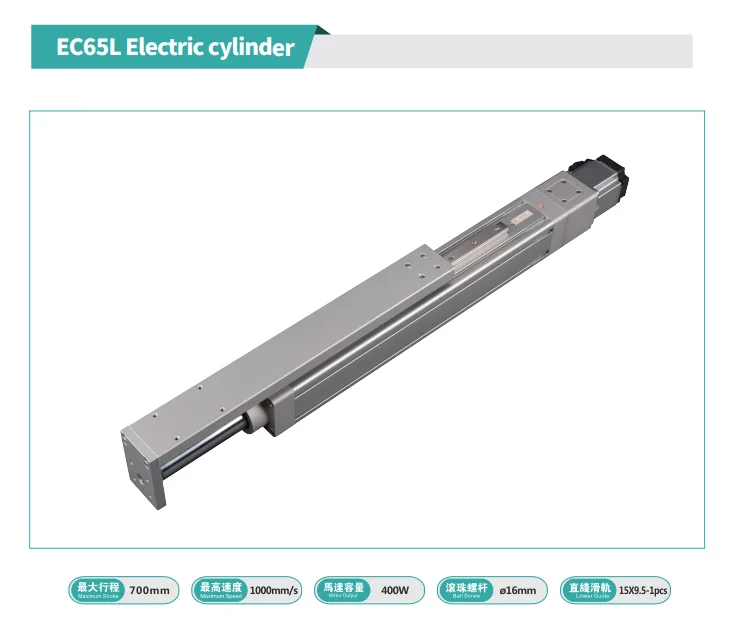

EC65L	400W	65	±0.01	16	5	110	33	250
										10	88	22	500
										16	48	10	800
										20	40	8	1000
EC65T	400W	65	±0.01	16	5	110	33	250
										10	88	22	500
										16	48	10	800
										20	40	8	1000

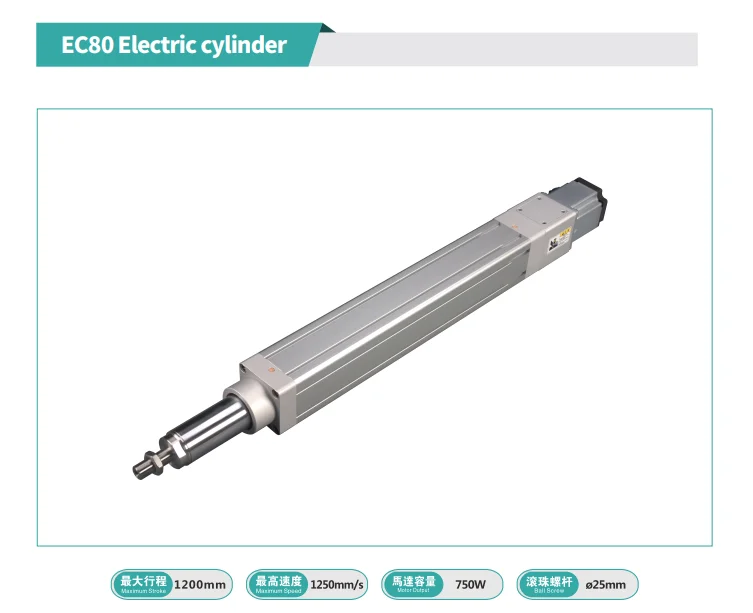

EC80	750W	80	±0.01	25	5	200	65	250
										10	180	55	500
										25	138	25	1000

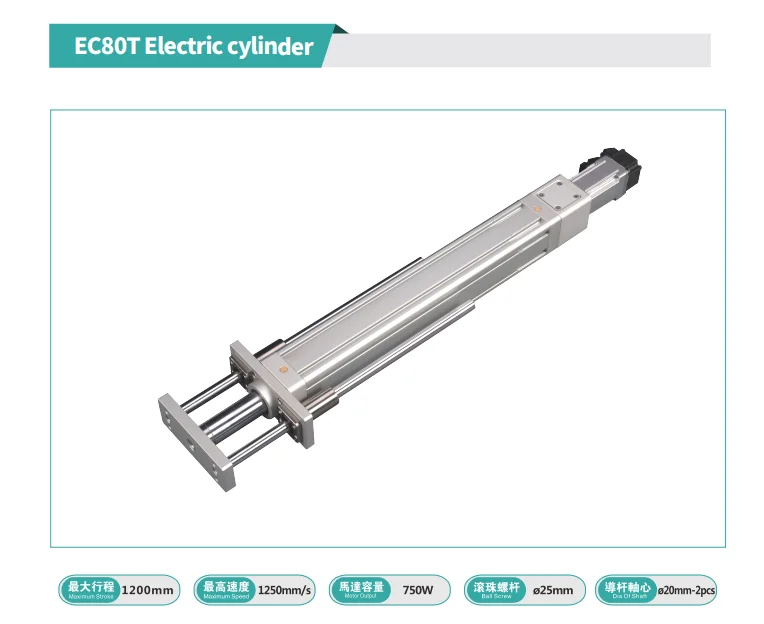

EC80T	750W	80	±0.01	25	5	200	65	250
										10	180	55	500
										25	138	25	1000
Drivern Mode: Ball Screw;  The highest speed is based on the maximum servo motor's rpm(3000)

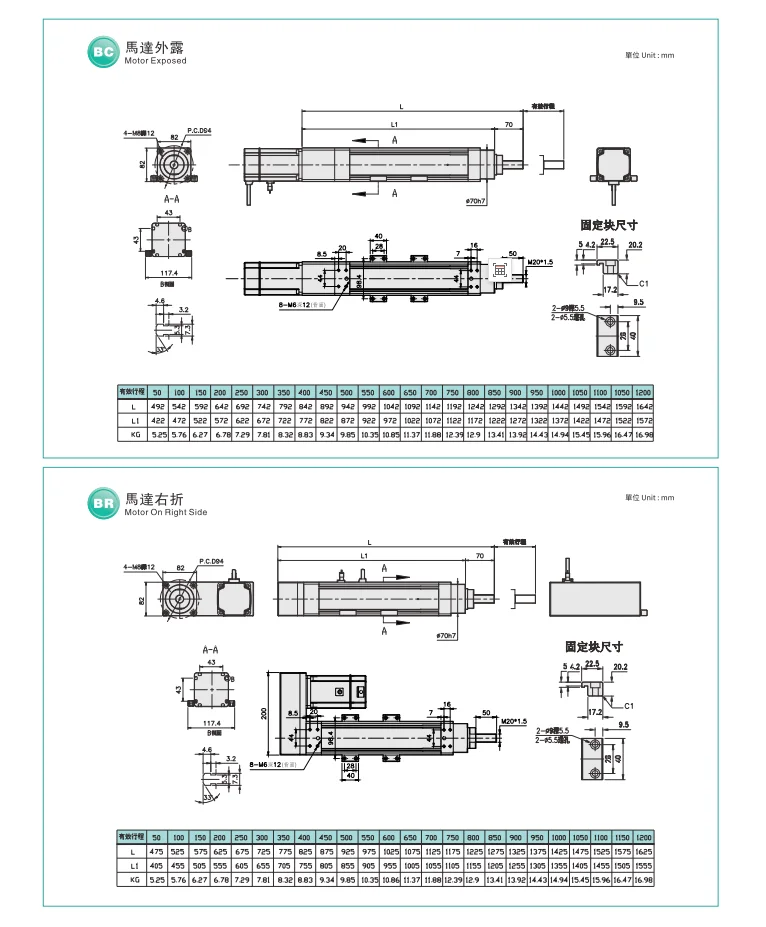

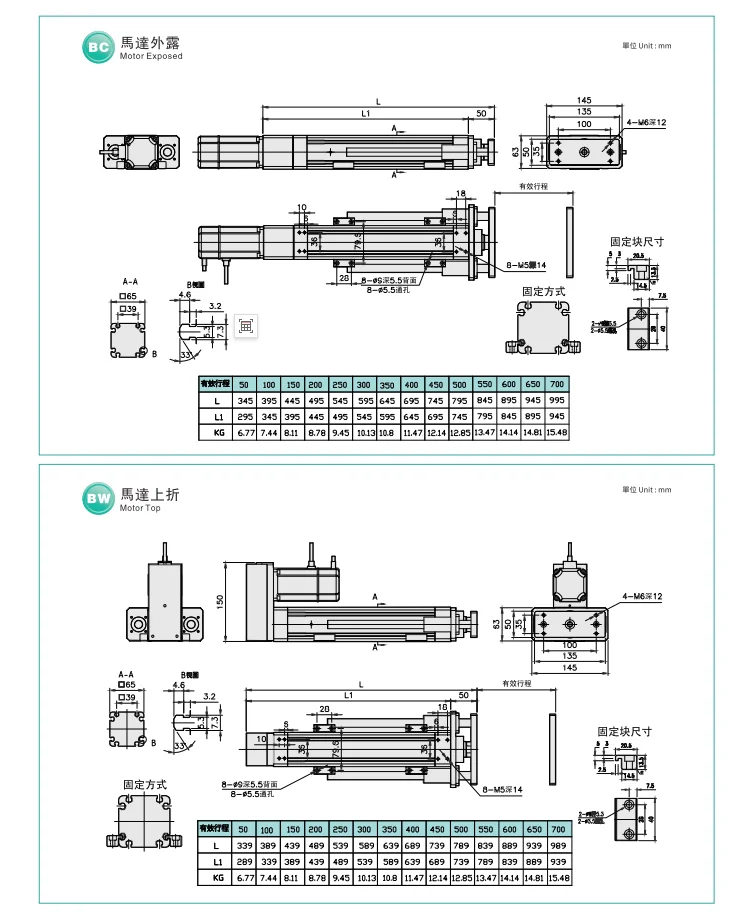

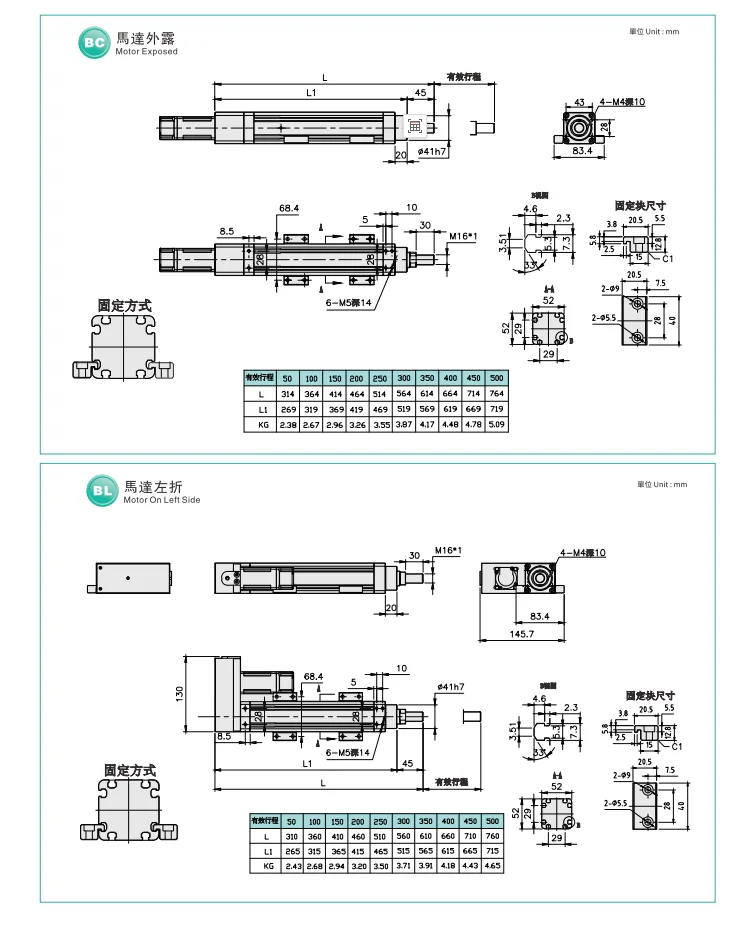

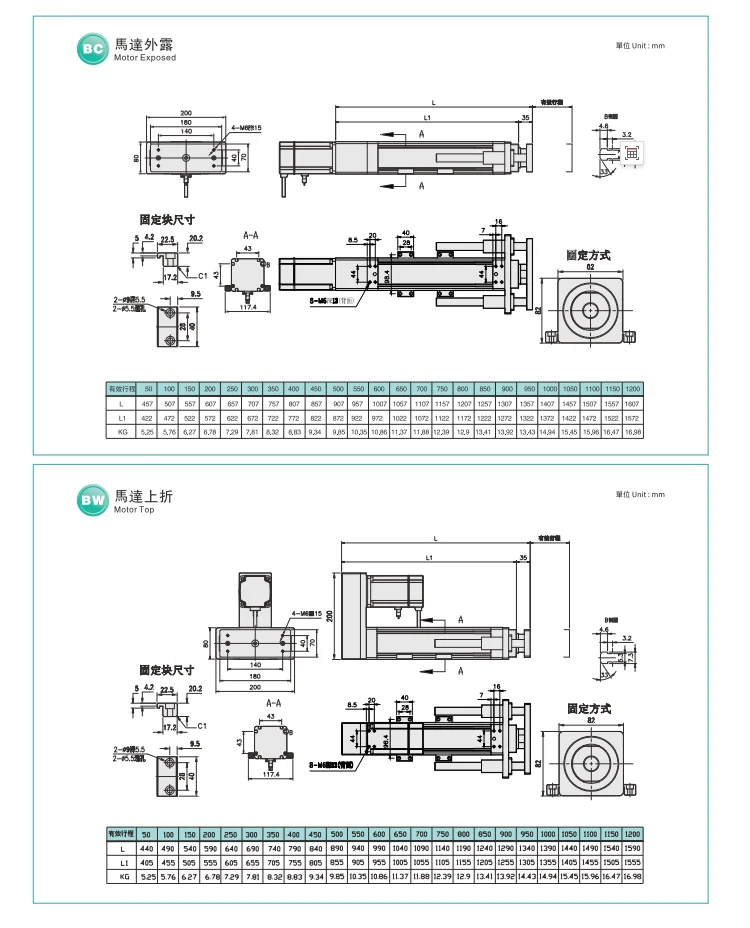

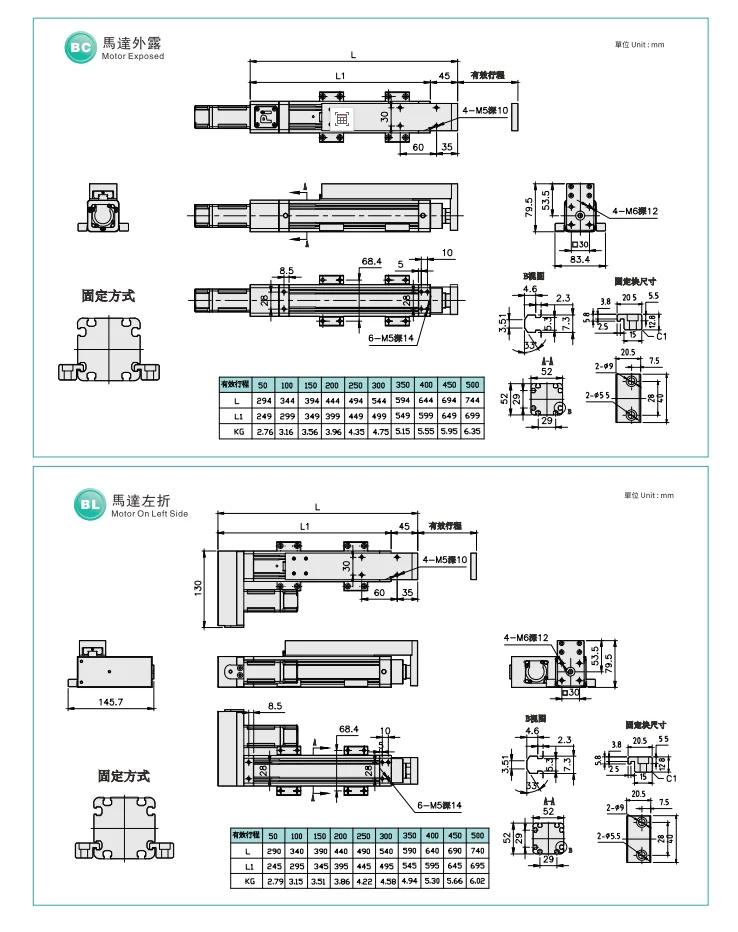

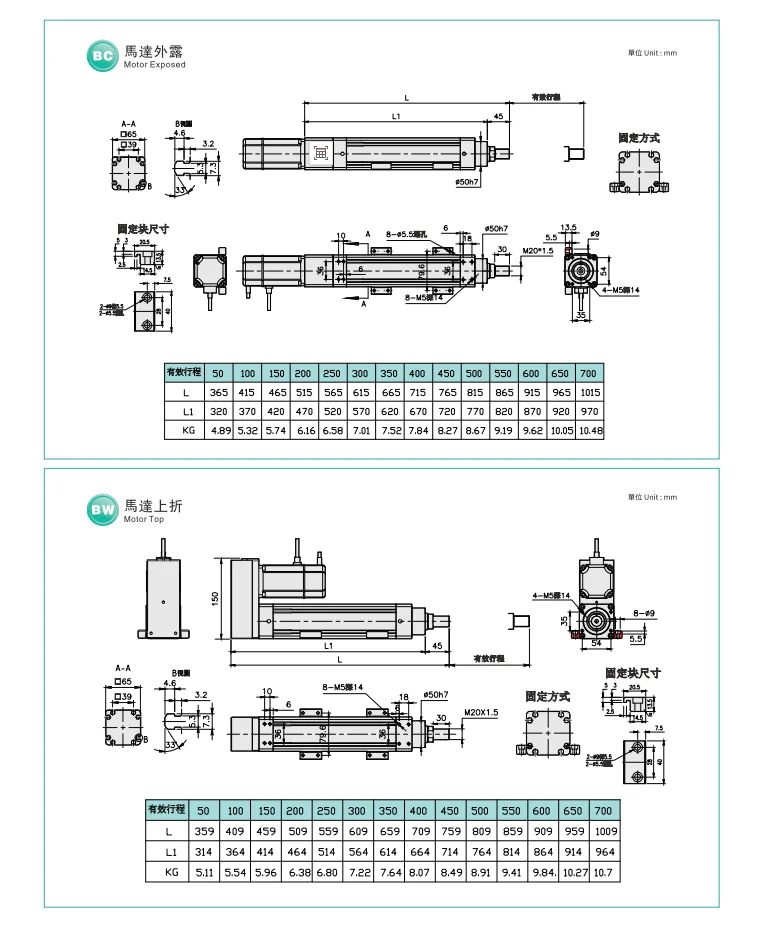

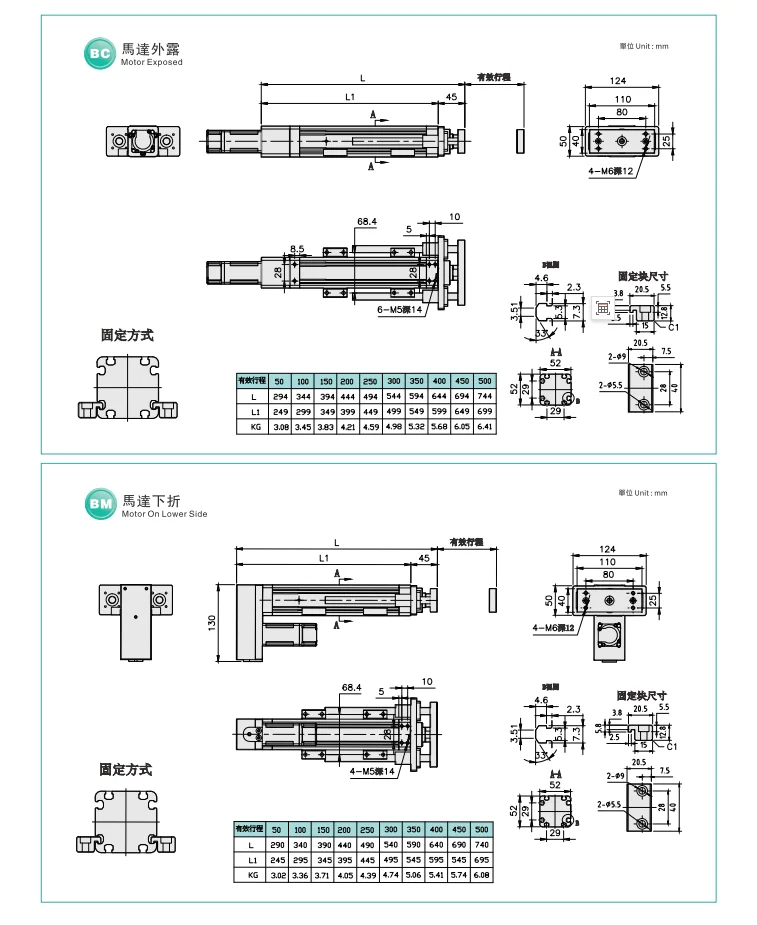

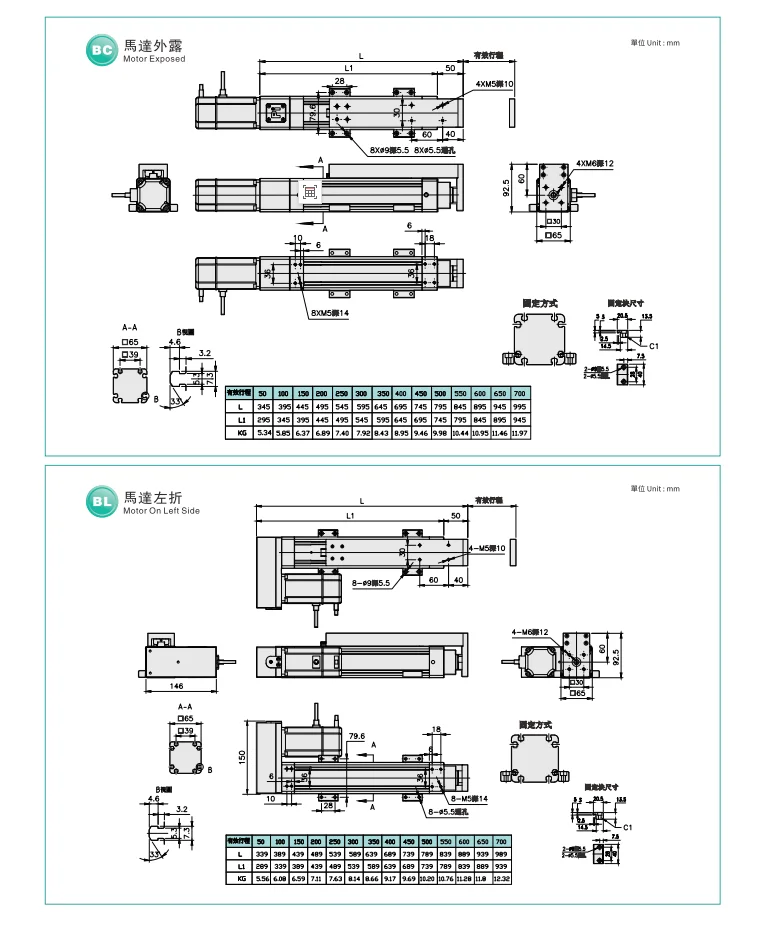

Dimensions

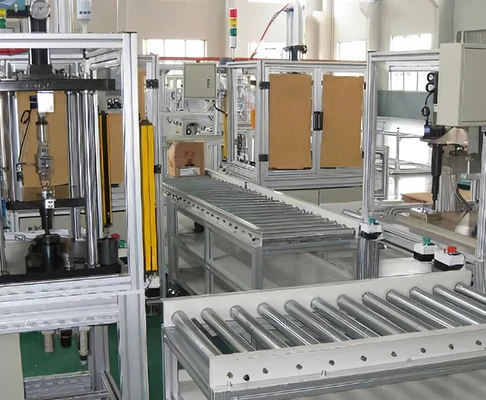

Application scenario

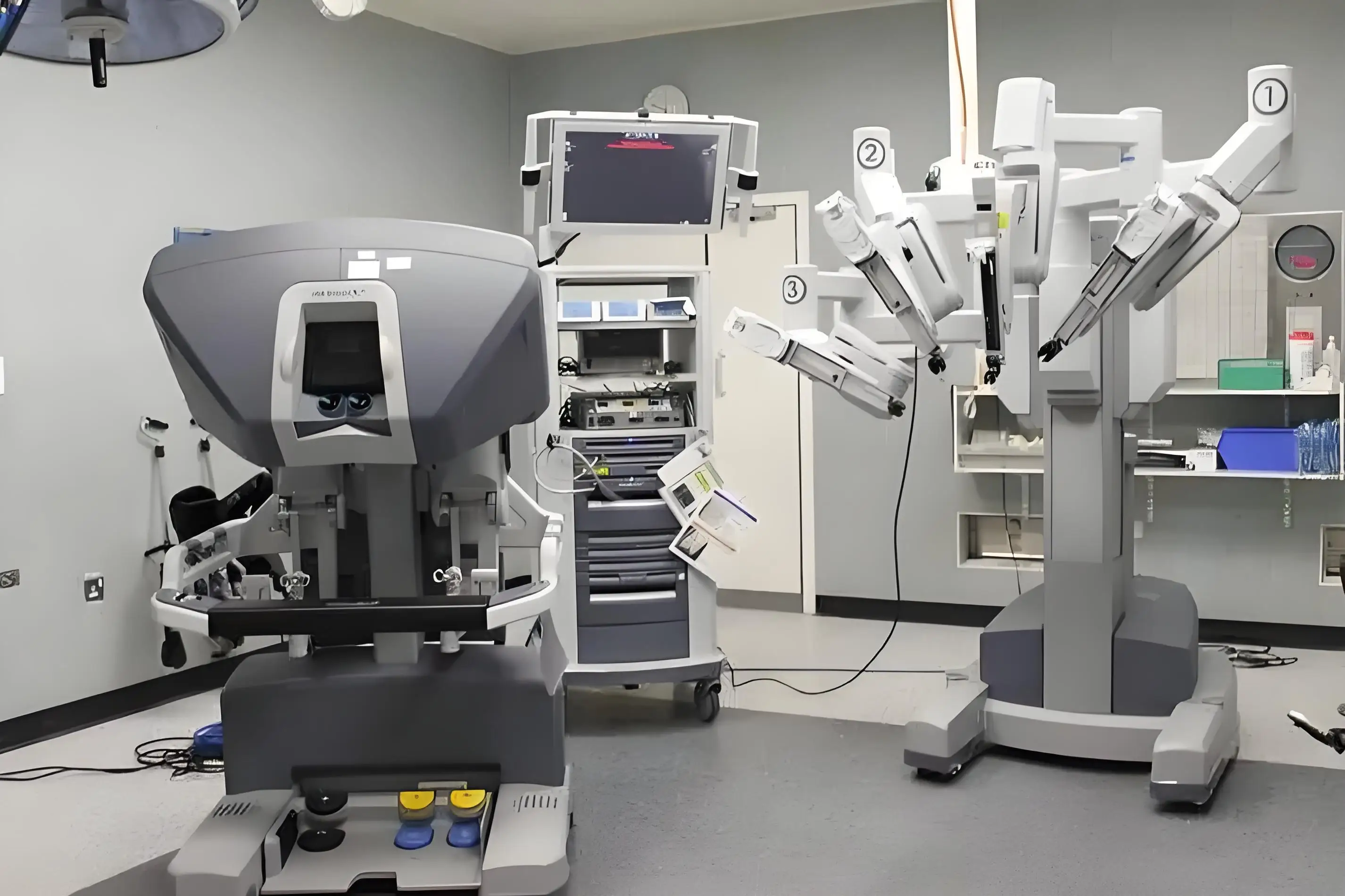

Medical machinery

Transportation classification

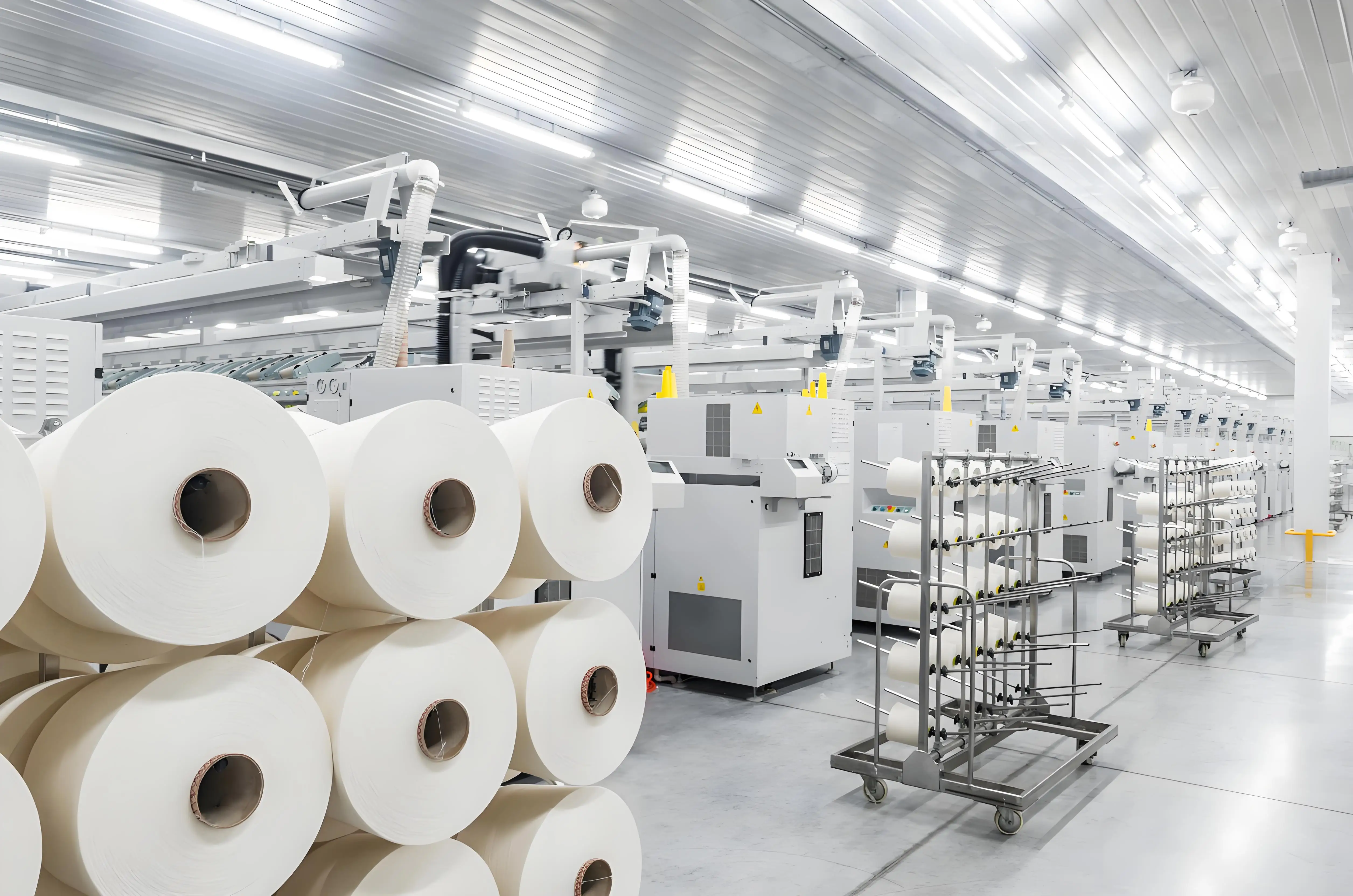

Textile machinery

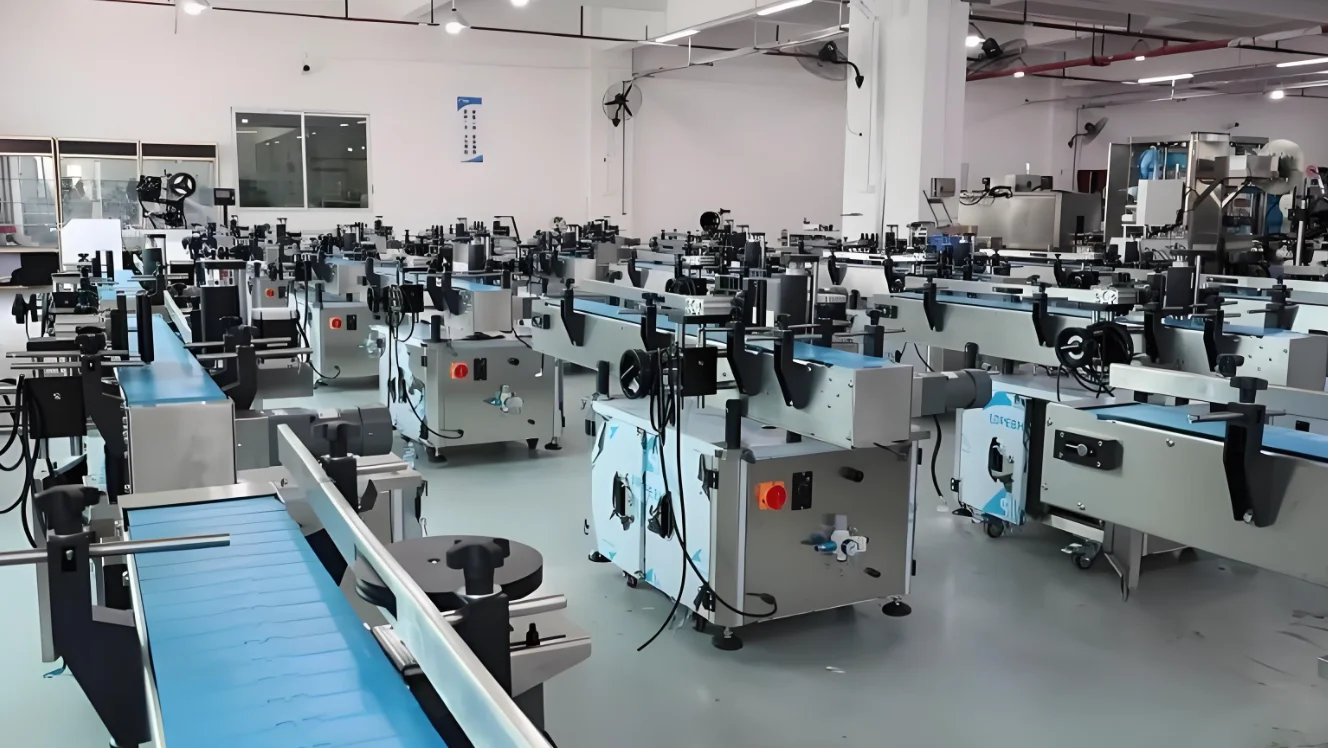

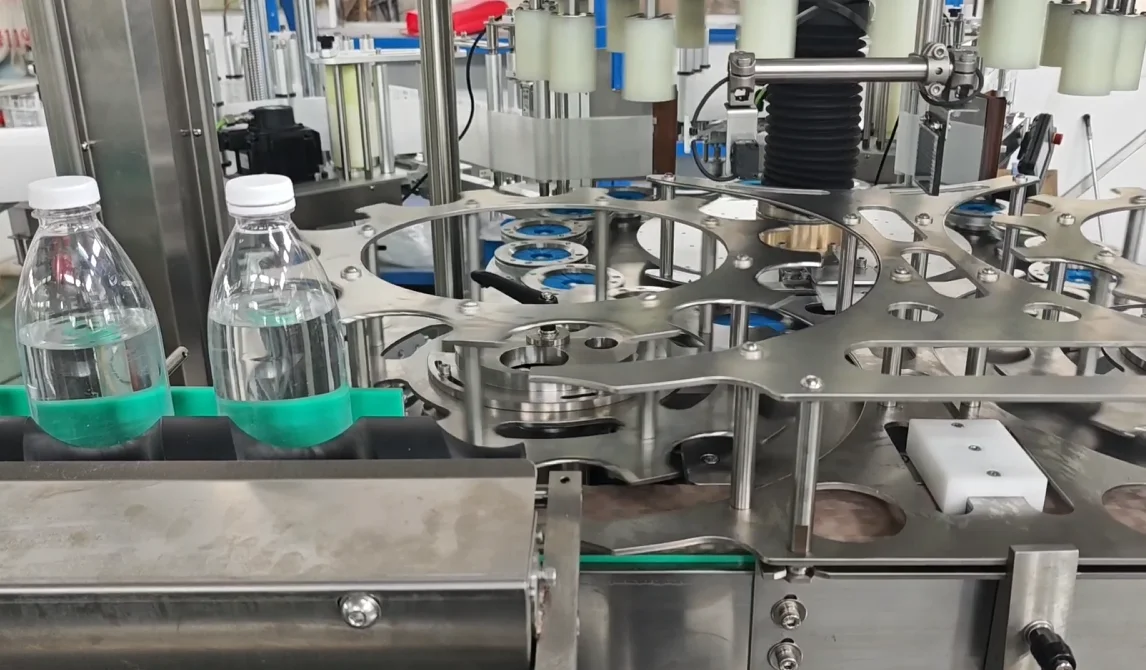

Labeling equipment

Automatic production

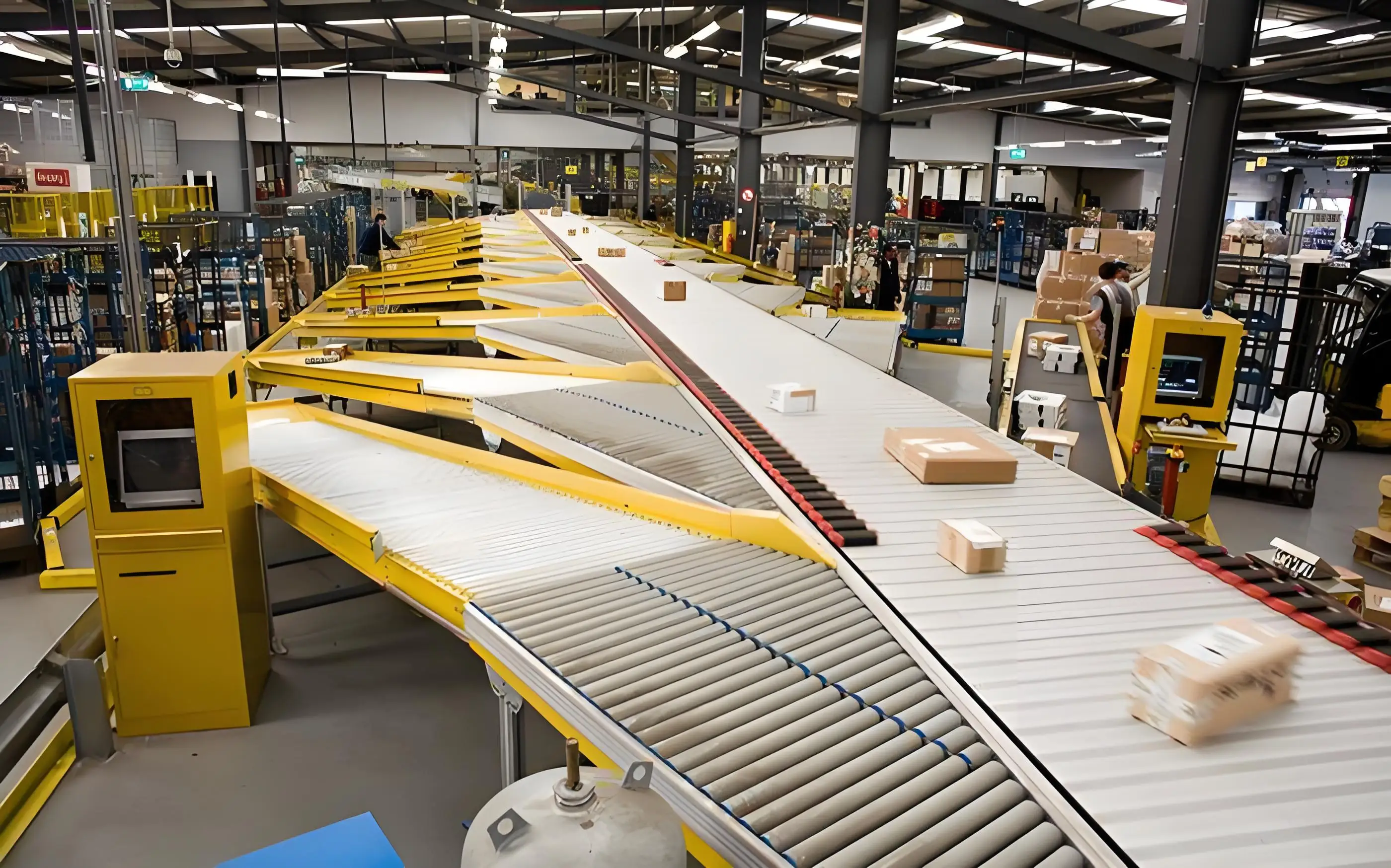

Logistics transportation

Certificate of honor

History of honor

Since the establishment of the company in 2015, the company has won a number of honorary titles such as national high-tech enterprises, Beijing "specialized and special new" small giant enterprises and many patent certificates and software copyright certificates. NiMotion has been deeply engaged in the field of industrial automation for many years and has rich industry experience. By promoting technological innovation, we continue to promote the market and cutting-edge technologies.

FAQ

Q1:What do we do?

A1: NiMotion is to provide integrated motor, control equipment, motion modules, robots and other motionOne-stop procurement service platform and system solution provider for controlling products and services.

Q2:The characteristics of our products

B1: The team is committed to developing smart, refined and efficient automated intelligent products High response, high precision, high intelligence of the ultra-high industry standards.

Q3:What are the control methods of integrated servo motor?

A1: The integrated servo motor can be controlled by programming control, PID control, position control, etc., and the appropriate control mode can be selected according to the specific application requirements.

Q4:Does the product support the upgrade? There is no difficulty in installing the software

C3: Product support online upgrade, software installation is very simple, the manual will have detailed installation steps and use, believe me, this is a satisfactory shopping experience.

Q5:Does the controller have a fault alarm light?

B2: There are yellow and green dual-color indicators, which will be displayed in normal operation or failure, such as the green light is steady on and the yellow light is blinking, and the dual-light is off.

Q6:How long will this controller last?
A2: The life of a controller depends on many factors, including the quality of the product, the environment in which it is used, load conditions and maintenance conditions. Under normal use and maintenance, the controller is usually relatively long. However, if the controller is operated in a harsh environment or under a high load state, it may lead to a shortened life. Therefore, in order to extend the service life, it is recommended that users reasonably use the product, pay attention to the choice of the use environment and the execution of maintenance work.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this with integrated servo motor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 6 Months warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Beijing NiMotion Control Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company. Browse the full Beijing NiMotion Control Technology Co., Ltd. range on HVACR Nexus.
