Parallel compressor rack unit — 380 V, cooling capacity -40 degree. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
A parallel compressor rack unit runs several screw compressors onto a common header, which is how a large cold store matches capacity to a load that changes with door openings and stock movement — and how it keeps running when one machine goes down. Reaching -40C at project scale demands screw machines rather than reciprocating. Semi-hermetic construction on R404 at 380V three phase.
Key Features of This Parallel Compressor Rack Unit
- Voltage: 380 V
- Cooling Capacity: -40 degree
- Refrigerant: R404
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Compressor Type: semi-hermetic
Technical Specifications
| Cooling Capacity | -40 degree |
|---|---|
| Temperature | -35 |
| Compressor Brand | other |
| Compressor Type | semi-hermetic |
| Key Selling Points | Competitive Price |
| Voltage | 380 V |
| Warranty | 1 Year |
| Core Components | compressor |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R404 |
| Place Of Origin | Guangdong, China |
| Weight (KG) | 2869 |
| Selling Units | Single item |

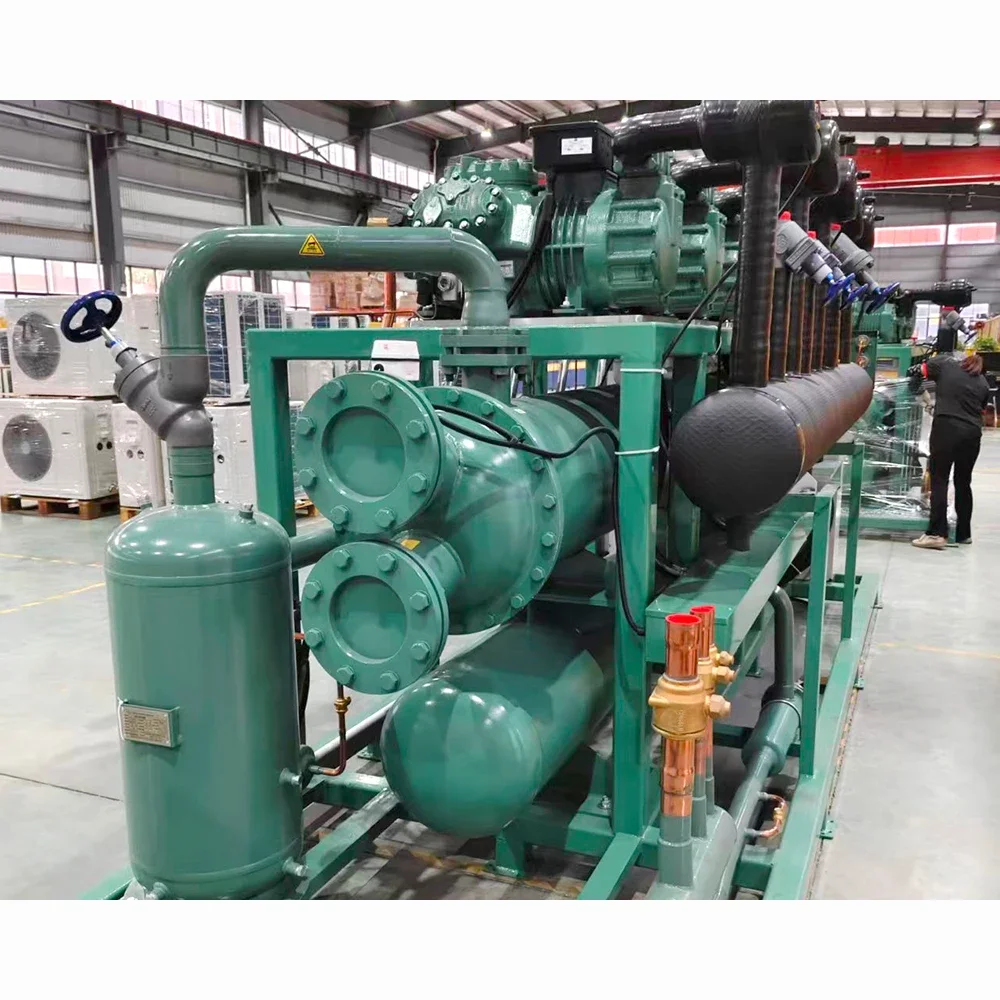

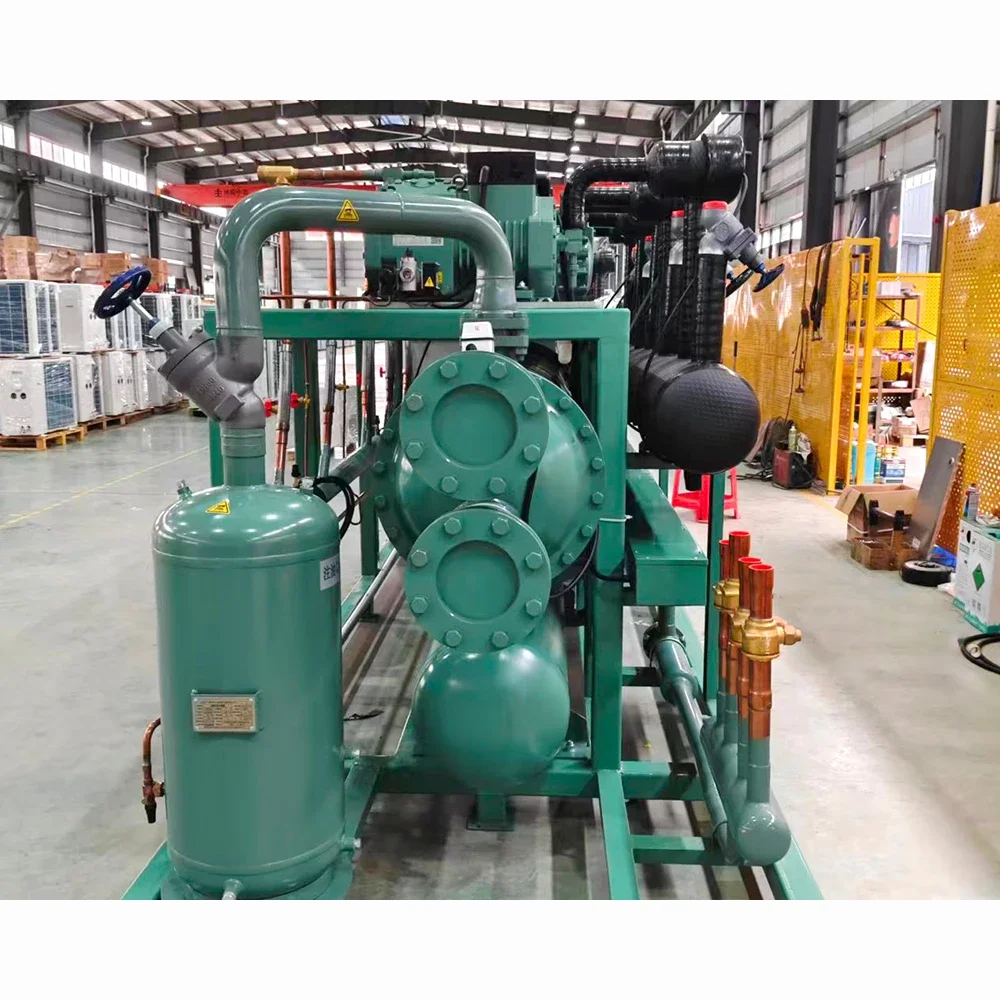

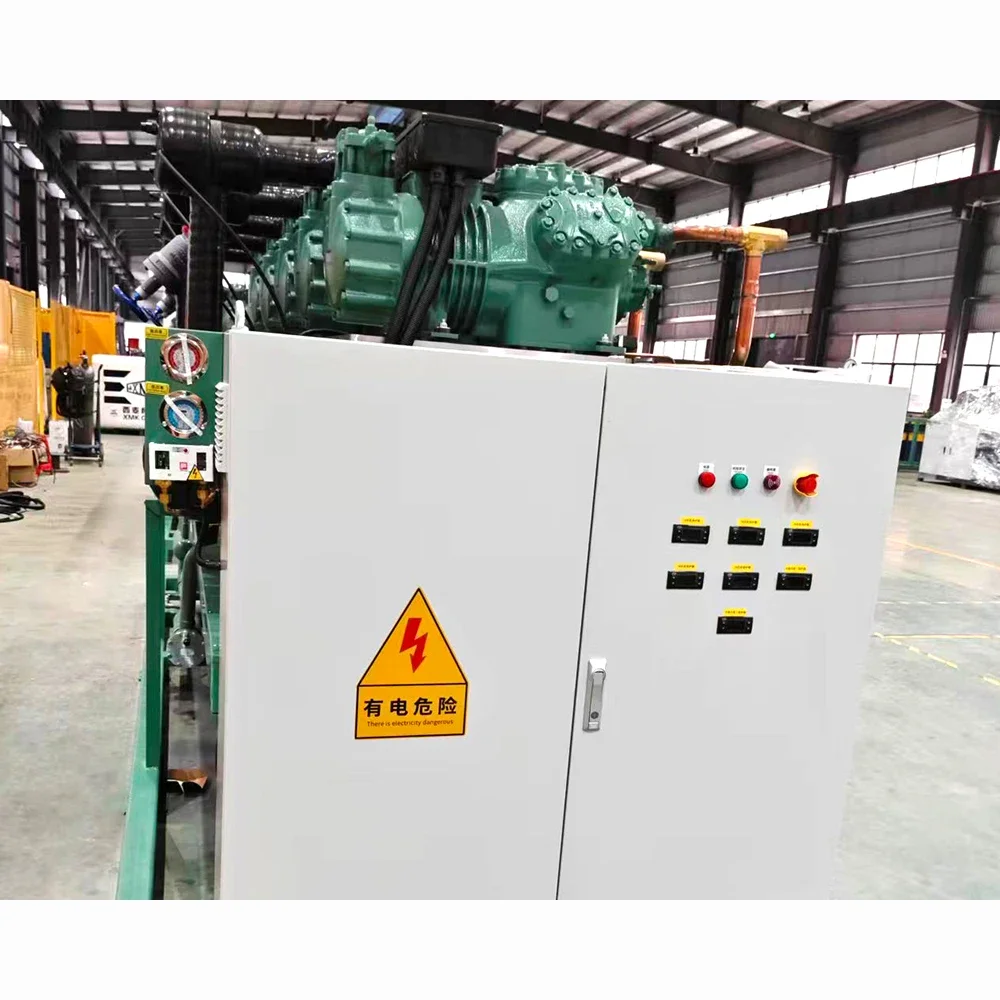

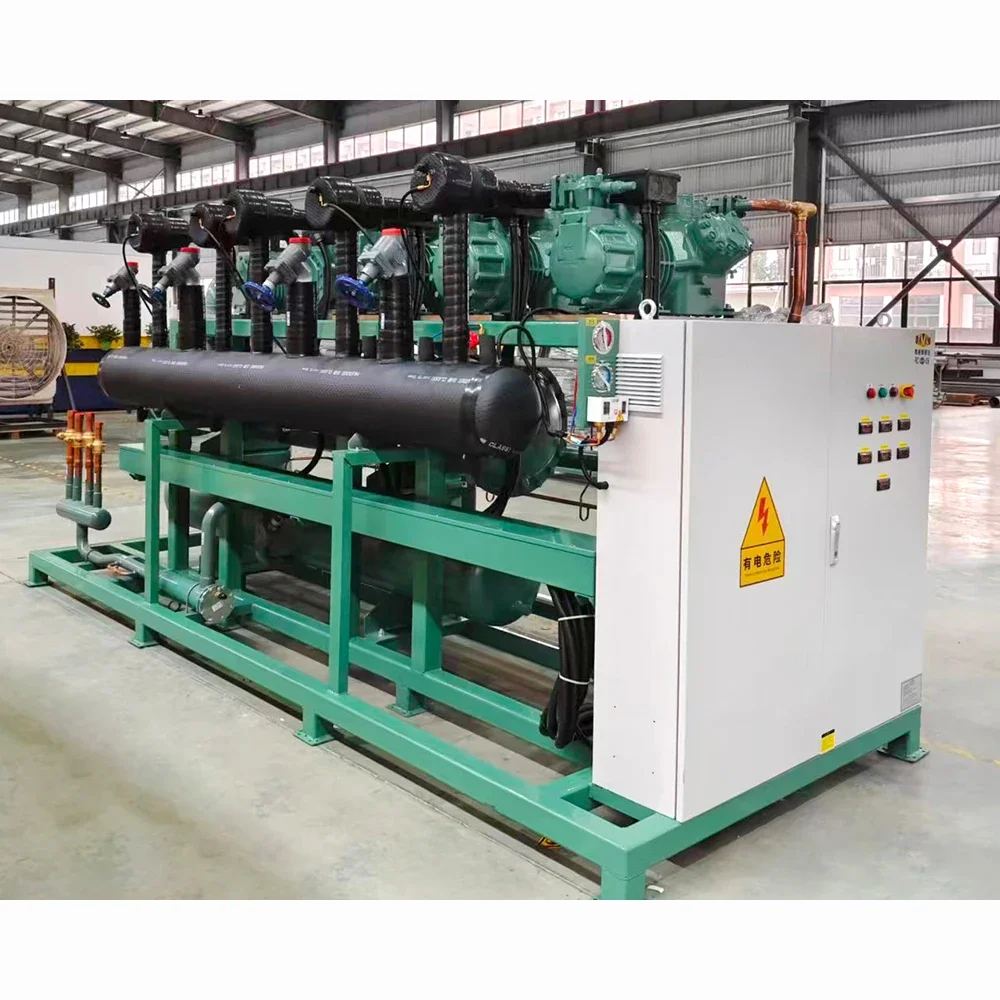

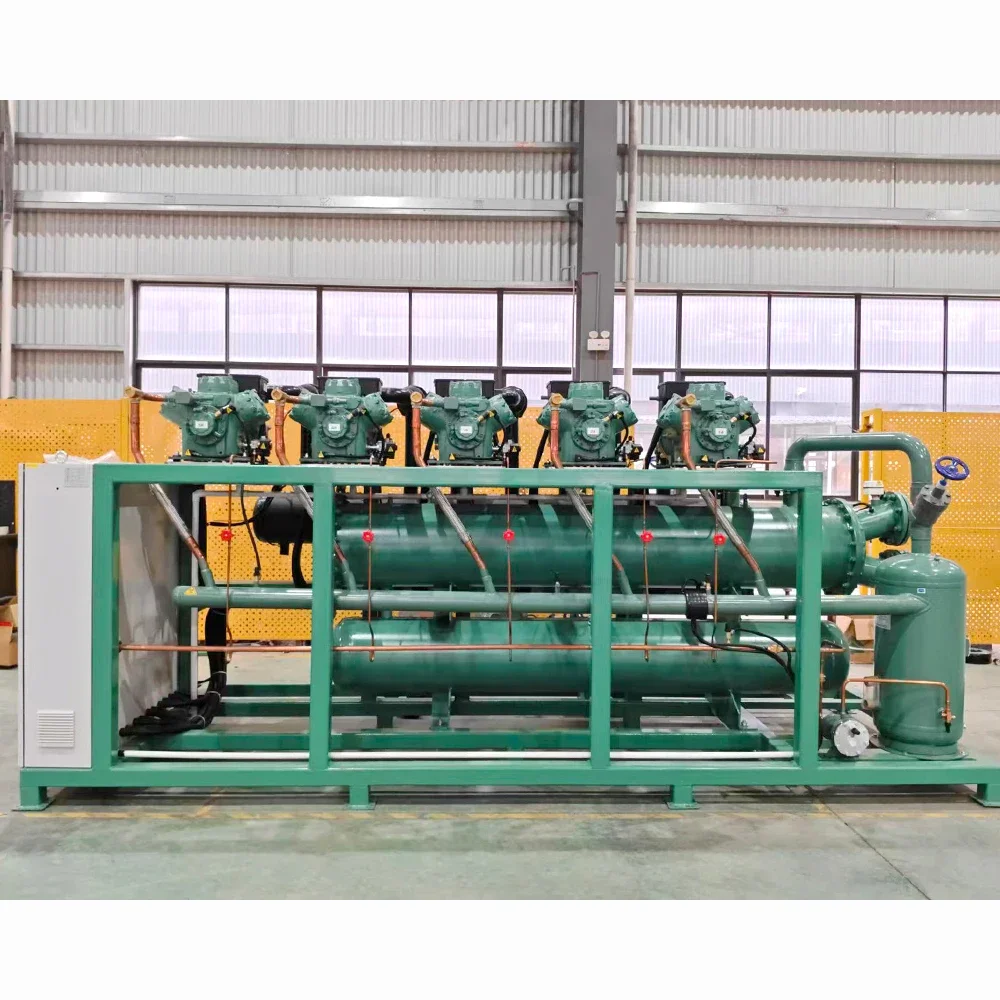

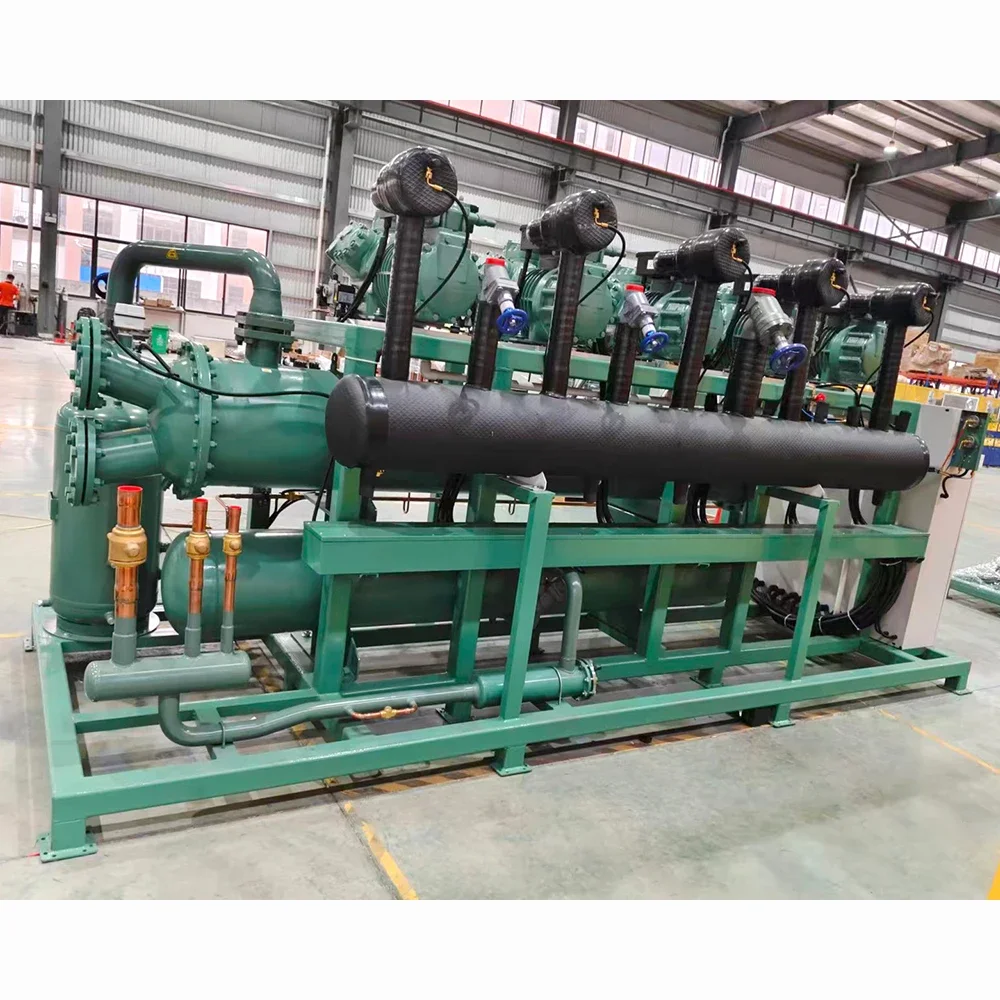

XMK Big Cold Room Project Condensing Screw Parallel Compressor Unit
This open type condenser unit is mainly assembled with semi-hermetic compressor, other brand compressors are also optional.
1. Open-type style makes it easier for moving, installation and maintenance.
2. High and low pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.

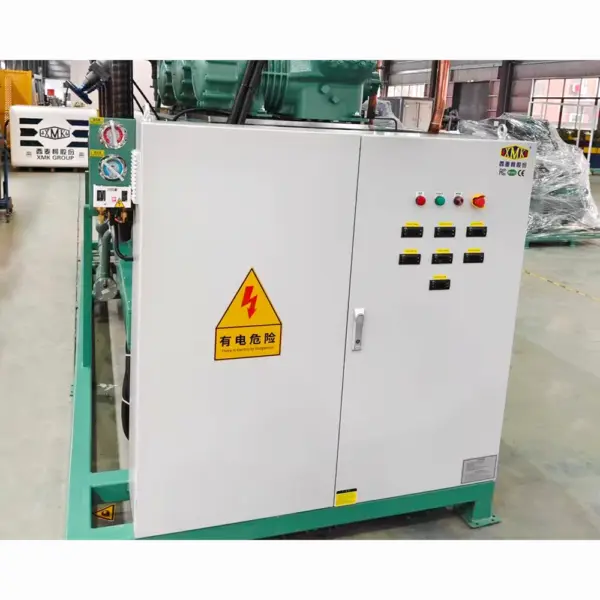

3. Main components are compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box and electrical controller box etc.
| Screw Parallel Compressor Unit | |||
| Model | XBW-2-12MY+3-50MY | Voltage and Frequency | 380V 50Hz 3phase |
| Power | 137KW | Maximum current | 299.8A |
| Capacity | 461.8KW(0degree/+40degree) | Evaporation temperature | 0degree to -45degree |
| Condensing load | 598.8KW(0degree/+40degree) | Refrigerant | R507 |
| Oil | POE | Oil filling amount | 15L |
| Product Size | 4210x1560x1800 | Weight: | 2869KG |
We are a manufacturer, we can customize products for you according to your requirements.If you don’t know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.
We can provide a complete set of cold storage equipment.
Click Me To See All Categories.
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Zhaoqing, Guanggong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
Frequently Asked Questions
What is the minimum order quantity for this parallel compressor rack unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this parallel compressor rack unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
