Hotel Laundry Ventilation

The hottest, most humid room in the building, running long hours out of sight — and the one whose extract failure shows up as damp corridors two floors away.

  • 2,408products across this application
  • 825verified manufacturers
  • 5equipment groups

WhatHeat, moisture and lint together

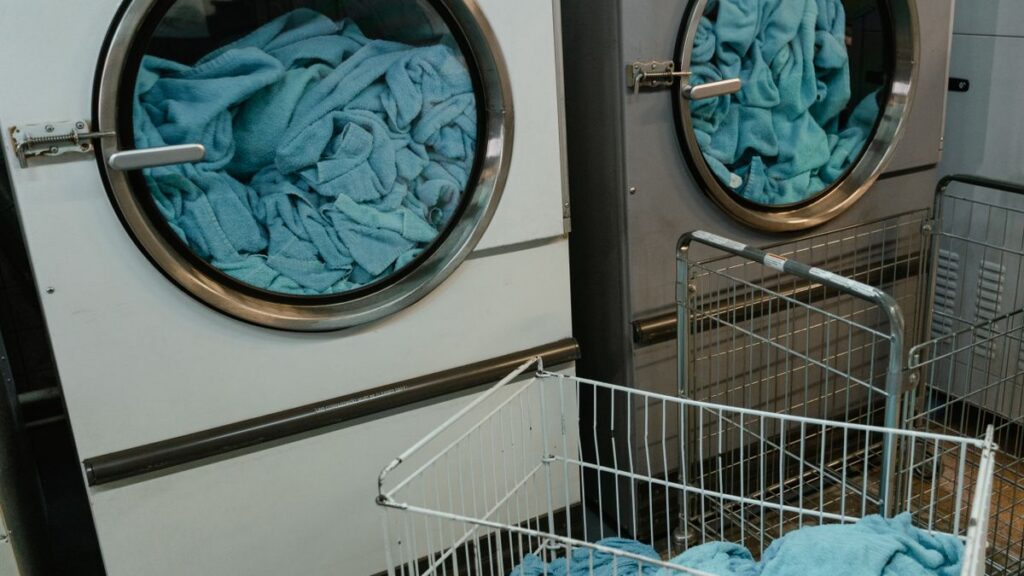

An on-premise laundry runs washers, tumble dryers and flatwork ironers, all releasing heat and moisture into a back-of-house room that rarely has generous ventilation. Dryers need dedicated extract to atmosphere; ironers release large amounts of steam into the room; and everything in the airstream carries lint.

WhoWho buys it

Hotels operating their own laundry, healthcare and care facilities, commercial laundries serving hospitality, and the contractors fitting out back-of-house areas.

WhyWhy it becomes a building problem

A laundry that cannot get rid of its moisture pushes it into the rest of the building. Humid air migrates along corridors and into service risers, condenses on cool surfaces, and produces damp and mould complaints in areas nobody connects to the laundry. Meanwhile lint accumulating in dryer ductwork is a well-documented fire risk, and a hot lint-laden duct is exactly the environment where a fire spreads unseen.

HowExtract at source, replace what leaves

Duct each dryer directly to atmosphere — sharing a duct between dryers causes back-pressure that lengthens drying cycles and pushes moist air into the room. Extract ironer steam locally rather than letting it fill the space. Provide dedicated make-up air; without it dryers starve, cycles lengthen, and the room pulls air from the corridor. Design the lint path for cleaning access at every bend, and treat that cleaning as a fire safety task with a schedule. Then look at recovery: laundry extract is hot, continuous, and one of the better heat sources in a hotel.

Equipment this application needs

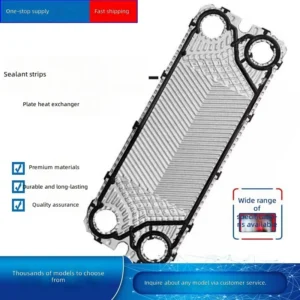

Centrifugal Fans Dryer & ironer extract Centrifugal Fans702 High-temperature construction handling lint-laden air at real duct resistance. Axial Flow Fans Make-up air Axial Flow Fans672 Replacement air so dryers do not starve and the room stays out of negative pressure. Heat Exchangers Heat recovery Heat Exchangers362 Hot continuous extract with an obvious use — preheating laundry hot water. Exhaust Fans General room extract Exhaust Fans134 Removing the residual heat and moisture that escapes local capture. Boilers and Parts Steam & hot water Boilers and Parts468 Steam for ironers and hot water for washers, sized on the laundry’s own peak.

What to check before you order

High Temperature 250
Dryer extract runs hot for the whole operating day.
Industrial Grade 977
Long-hours duty with lint fouling and limited maintenance access.
Heat Recovery 71
Continuous hot extract next to a continuous hot water demand — an unusually good match.
Corrosion Resistant 154
Humidity plus detergent and bleach carryover.
380V 1,427
Three-phase for commercial laundry equipment.

Products for this application

Questions buyers ask

Can several dryers share one extract duct?
It is best avoided. Shared ducts create back-pressure when multiple machines run, which lengthens drying cycles, increases energy use per load, and pushes moist lint-laden air back into the room. Individual ducts to atmosphere are the reliable arrangement, and they also make lint cleaning tractable.
Why does the laundry cause damp problems elsewhere in the hotel?
Because moisture it fails to extract does not stay put. Humid air migrates along corridors and up service risers, then condenses on cooler surfaces well away from the laundry — which is why the damp complaint often comes from a floor nobody associates with the source. Adequate extract plus matched make-up air keeps the moisture where it can be removed.
How serious is lint in dryer ductwork?
Serious enough to be treated as a scheduled fire safety task rather than housekeeping. Lint is combustible, it accumulates in a hot duct, and a fire in concealed ductwork spreads before anyone sees it. Design access at every bend so cleaning is actually possible, and record it.
