Quality guaranteed axial fan — power source Electric, material Copper. The complete factory specification follows. Made by Jinan Retek Industries Inc (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Quality Guaranteed Axial Fan
- Power Source: Electric
- Power: 25~90 W
- Material: Copper
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Outdoor, Hotel, Garage, Commercial, Household
Technical Specifications
| Material | Copper |
|---|---|
| Power Source | Electric |
| Application | Outdoor, Hotel, Garage, Commercial, Household |
| Feature | Eco-Friendly |
| Warranty | 1 Year |
| After-Sales Service Provided | Onsite Installation |
| Operating Language | English |
| Type | Fan Parts |
| Place Of Origin | Zhejiang, China |
| Brand Name | Retek |
| Appliaction | Cooling |
| Blade | S and straighy |
| Insulation | F and B |
| IP | IP42 & IP54 |
| Junction Box | 99 X 99mm |
| Power | 25~90 W |
| Guarantee | one year |
| Selling Units | Single item |
| Single Package Size | 700X700X45 cm |
| Single Gross Weight | 9.858 kg |
Product Details

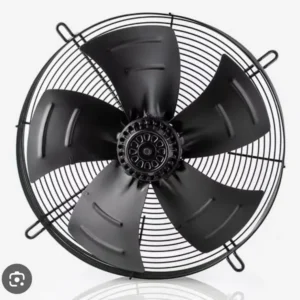

Quality Guaranteed Axial Fan Motor Ac External Rotor Motor Axial Fan 250Mm 300mm 400mm Axial Motor Fan 220V
Specification:
220V Refrigeration Parts Axial Fan Motor
Used for condenser & evaporator
With Grade F insulation and B insulation
IP42De and IP54 available
Axial Fan Motor
They are divided into single-phrase asynchronous capacitor fan motor and three-phrase asynchronous fan motor which are widely used in condensers, evaporators and other refrigeration equipments and ventilating cycle areas.
The insulation class of the YWF series axial fan motors is B, and the protection class of that is IP54. Each of the motor has a thermal protector in its winding.
Voltage/Frequency: The voltage of the single-phrase motor is 220V/50Hz, and that of the three-phrase motor is 380V/50Hz. We can also supply other fan motors with different voltages and frequencies according to clients' requirement.
The standard length of the electrical wire on the fan is 1.5m, and we can also provide connection box to fan motors for clients' choices.
The applicable environment temperature of the fan motors used in condensers is from -30 oC to +60 oC, and that of the fan motors used in evaporators is from -40 oC to 60 oC.
The average working life of motors is more than 30000 hours.
All motors in our factory have attained CE approval in Europe and CCC safety certificate in China.
| Model Number | Diameter | Voltage | Power | Air volume (m³/h) | Fan blade Qty |
| 4E-200-E5Z | 200 | 220 | 30W | 385 | 5pcs |
| 4D/E-250-E5Z | 250 | 380/220 | 50W | 880 | 5pcs |
| 4D/E-300-E5Z | 300 | 380/220 | 70W | 1450 | 5pcs |
| 4D/E-400-E5L | 400 | 380/220 | 200W | 3745 | 5pcs |
| 4D/E-450-E5L | 450 | 380/220 | 260W | 4500 | 5pcs |
| 4D-500-E5L | 500 | 380 | 380W | 6445 | 5pcs |
| 4D-500M-E6L | 500 | 380 | 560W | 8000 | 6pcs |
| 4D-550-E5L | 550 | 380 | 600W | 8415 | 5pcs |
| 4D-600-E5L | 600 | 380 | 750W | 9430 | 5pcs |
| 4D-630-E5L | 630 | 380 | 800W | 11695 | 5pcs |
| 6D-710-E6L | 710 | 380 | 440W | 10165 | 6pcs |
Available with fan guard,and without. Suitable for condensing units for air-conditioning and refrigeration,evaporators,exhaust fans,air heaters.
The insulation class of motors is B.All motors have thermal protector in the winding.
The service life of motors is more than 30,000 hours.
And we can provide products research and develop by customer's demand.
Best regards
vito
Ordering and Pricing
- Minimum order quantity: 100 unit
- Volume pricing:
- 100–199 unit: US $180.95 / unit
- 200+ unit: US $178.85 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this quality guaranteed axial fan?
The standard minimum order quantity is 100 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Retek Industries Inc, based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jinan Retek Industries Inc range on HVACR Nexus.
