Key specification for this cooling tower: 220 V, 380 V, 110 V, cooling capacity 25000-1250000kcal/h. Everything below is reproduced from the factory data sheet. Made by Wuxi Jizhou Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Power(W): 750W, 11000W*2
- Fan Power: 0.75kw-11kw*2
- Motor Power: 0.75kw-5.5kw*2
- Voltage: 220 V, 380 V, 110 V
- Cooling Capacity: 25000-1250000kcal/h
- Material: Metal
Technical Specifications
| Voltage | 220 V, 380 V, 110 V |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 750W, 11000W*2 |
| Material | Metal |
| Core Components | Motor, Pump, Ventilation Fans, Cooling Coils |
| Machinery Test Report | Provided |
| Warranty | 3 Years |
| Video Outgoing-Inspection | Provided |
| Control Method | Touch |
| Noise Level | 40 dB and above |
| Key Selling Points | High Productivity, High Safety Level, Low Noise Level, Energy Saving, Patented Product, Accurate Temperature Control, Low Maintenance Cost, Famous Brand Motor, Competitive Price, Long Service Life |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 320 |
| Product Name | Counter Flow Closed Cooling Tower |
| Shape | Square Shape |
| Application | Industrial Fluids Cooling |
| Coil Material | Ss304/ss316/copper/hot Dipped Galvanised Steel |
| Fan Type | Aluminum -alloy Axial-flow |
| Fan Power | 0.75kw-11kw*2 |
| Motor Power | 0.75kw-5.5kw*2 |
| Water Flow | 5-250m3/h |
| Cooling Capacity | 25000-1250000kcal/h |
| After-Sales Service Provided | Online Support |
| Selling Units | Single item |
Product Details

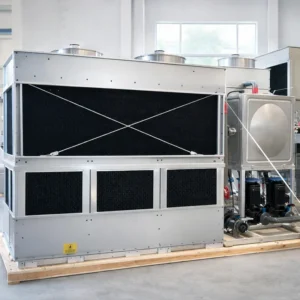

Counterflow Cooling Tower System with Closed Water Circulation for Power Plant Use | ||||||||||||||
Model | Cooling Capacity (m3/h) | Cooler Pipe Diameter (mm) | Fan Motor Power ( kW) | Pump Motor Power (kW) | Operating Weight (kg) | Machine Weight (kg) | Max. Overall Dimensions (mm) | |||||||
FNB-01 | 5 | DN50 | 0.75 | 0.75 | 600 | 320 | 1300*1300*2150 | |||||||
FNB-02 | 10 | DN65 | 0.75 | 0.75 | 900 | 500 | 1300*1200*2350 | |||||||
FNB-03 | 15 | DN65 | 1.1 | 1.1 | 1100 | 650 | 1300*1200*2350 | |||||||
FNB-04 | 20 | DN80 | 0.75*2 | 1.1 | 1800 | 800 | 2750*1200*2560 | |||||||
FNB-05 | 25 | DN80 | 1.1*2 | 1.1 | 1900 | 900 | 2750*1200*2560 | |||||||
FNB-06 | 30 | DN80 | 1.1*2 | 1.1 | 2200 | 1000 | 2750*1300*2560 | |||||||
FNB-07 | 35 | DN80 | 1.5*2 | 1.5 | 2400 | 1200 | 2750*1300*2620 | |||||||
FNB-08 | 40 | DN100 | 1.5*2 | 2.2 | 2800 | 1300 | 3150*1500*2900 | |||||||
FNB-09 | 50 | DN125 | 2.2*2 | 2.2 | 3400 | 1500 | 3150*1700*3340 | |||||||
FNB-10 | 65 | DN125 | 2.2*2 | 2.2 | 4000 | 1800 | 3450*1850*3300 | |||||||
FNB-11 | 80 | DN150 | 3*2 | 2.2 | 5000 | 2100 | 4050*2000*3510 | |||||||
FNB-12 | 100 | DN150 | 3*2 | 4 | 5500 | 2300 | 4050*2200*3510 | |||||||
FNB-13 | 125 | DN125*2 | 4*2 | 5.5 | 6400 | 2800 | 4700*2200*3730 | |||||||
FNB-14 | 150 | DN150*2 | 5.5*2 | 5.5 | 7700 | 3200 | 5100*2200*3780 | |||||||
FNB-15 | 175 | DN150*2 | 5.5*2 | 7.5 | 9000 | 3600 | 5100*2700*3770 | |||||||
FNB-16 | 200 | DN150*2 | 7.5*2 | 4*2 | 10800 | 4300 | 5600*2700*4230 | |||||||
FNB-17 | 250 | DN150*2 | 7.5*2 | 5.5*2 | 12000 | 5000 | 6000*2800*4300 | |||||||
FNB-18 | 300 | DN150*2 | 11*2 | 5.5*2 | 16000 | 6200 | 6850*3000*4810 | |||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $3850 / set
- 5+ set: US $3800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
