The cooling tower listed here carries 380 V, 4kw(5.36hp), documented exactly as the manufacturer publishes it. Made by Lanxi Green Building New Material Co., Ltd. (9 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Tower
- Power (W): 4kw(5.36hp)
- Voltage: 380 V
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Processing Type: Reverse Osmosis
- Weight (Kg): 1500
Technical Specifications
| Productivity | 2000L/Hour(528.34gph) |
|---|---|
| Processing Type | Reverse Osmosis |
| Voltage | 380 V |
| Power (W) | 4kw(5.36hp) |
| Core Components | Gearbox, Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Not Available |
| Weight (Kg) | 1500 |
| Place Of Origin | Zhejiang, China |
| Brand Name | GREEN BUILDING MACHINERY |
| Dimension (L*W*H) | 2200x2200x4500 |

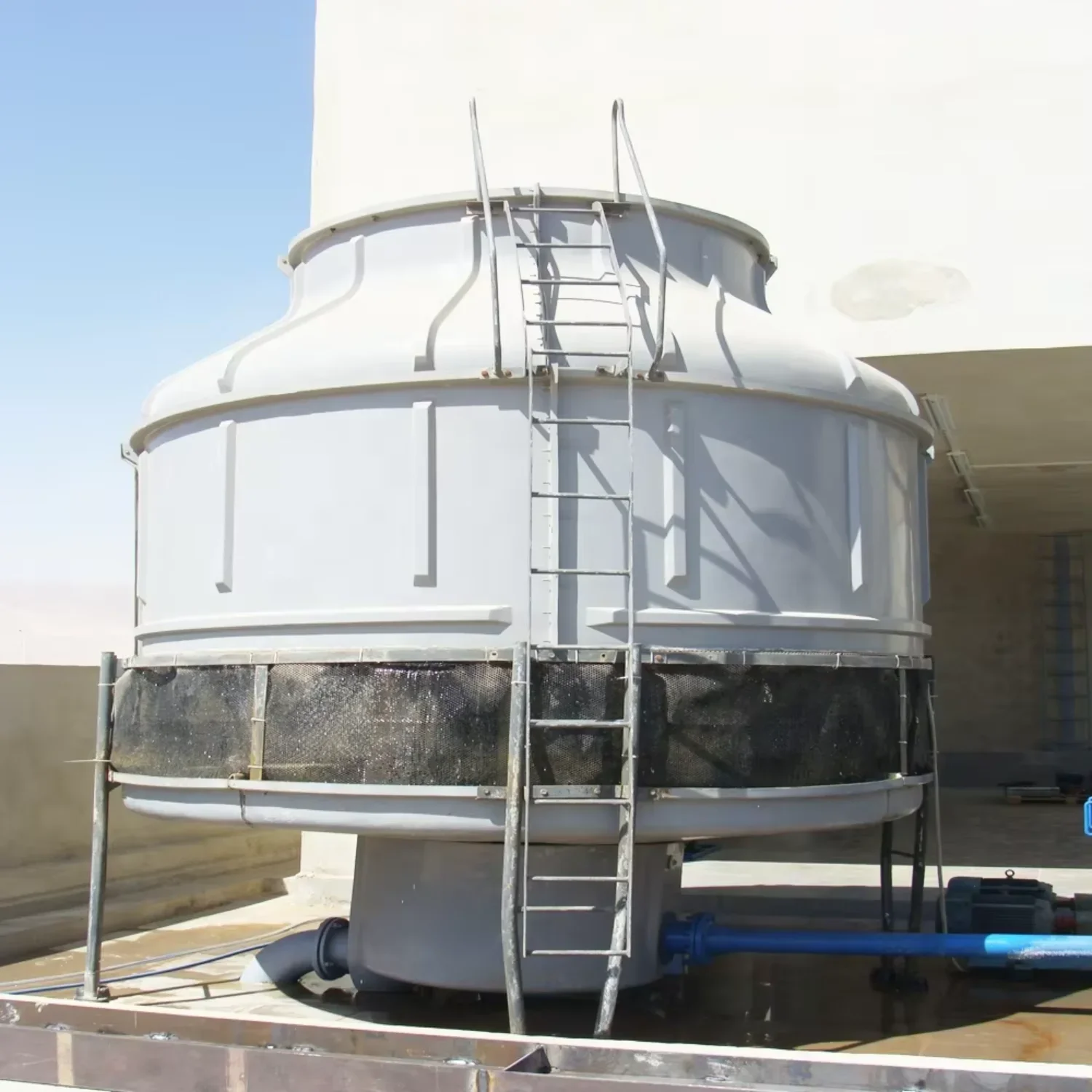

| Product Name | FRP Water Open Cooling Tower Industrial Water Cooling Tower |
| Temperature Gap | 20 degree |
| Water Inlet | 150mm |
| Water Outlet | 200mm |
| Cooling | air cooling |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

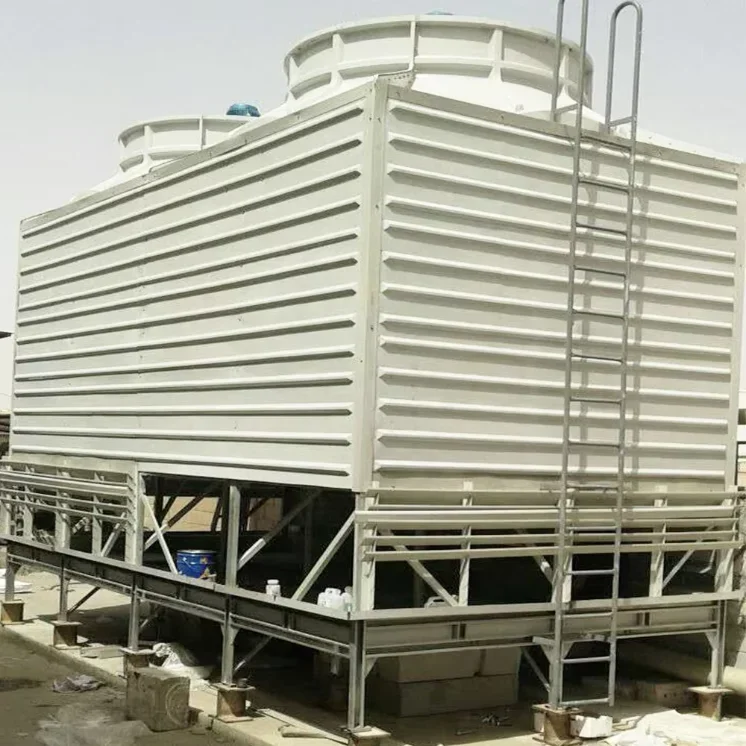

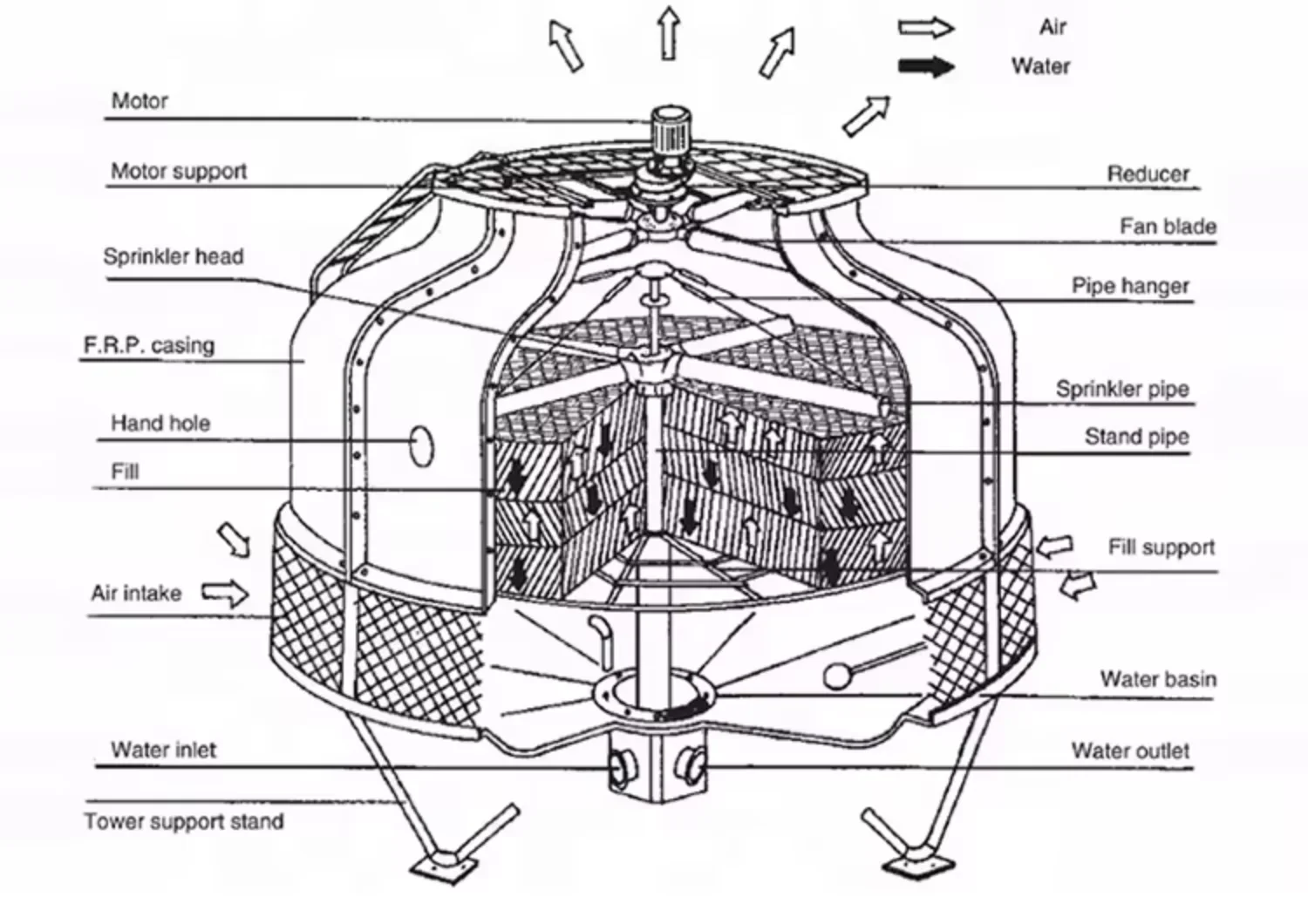

Product Details

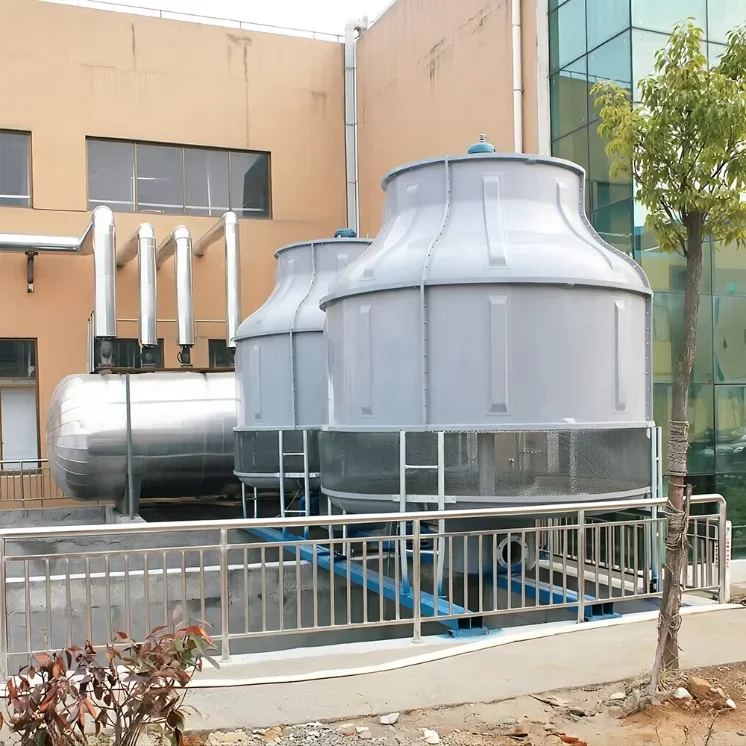

- FRP Casing with HDG or Stainless Steel Structure
- Thermal performance guaranteed
- Compact and Practical
- Easy installation and Maintenance
- Low noise and energy saving
- Low drift loss -Factory Assembled or Field Erected
Item | Category | Content |
Overall parameters | Device name | Reverse-flow cooling tower |
Type | DFG-200 | |
Quantity | 1 | |
Tower shel materal | Steel structure+GRP protection structure | |
Total cooling water yield(m³/h) | 200 | |
Water flow rate(m³/h) | 200 | |
Influent watertemperature(℃) | 70 | |
Efluent watertemperature(℃) | 50 | |
Temperature difference(℃) | 20 | |
Wet ball temperature(℃) | 28 | |
Evaporation loss rate(%) | 3.03 | |
Drift loss rate(%) | 0.001 | |
Tower body delivery head(m) | 5.3 | |
Dimension (L×W×H) | 3500×3500×5230 | |
Inlet pipe diameter DN | DN200 | |
Outlet pipe diameter DN | DN250 | |
Operating weight(kg) | 4990 | |
Draught fan | Fan type | JT-LZ-A-24 |
Fan diameter(mm) | Φ2400 | |
Fan blade material | aluminium alloy | |
Quantity (set) | 1 | |
Blast capacity(m3/h) | 130,000 | |
Rotating speed(rpm) | 220 | |
Motor | Motor type | YLZ160L-6 |
Quantity (set) | 1 | |
Protection grade/insulation grade | IP55/F | |
Temperature rise class | B | |
Power(Kw) | 7.5 | |
Power supply | 380V/50Hz/3P | |
Filling film | Filling waveform | Oblique wave |
Filling material | PP (exclusive use for high temperature | |
tower) | ||
Plate thickness before forming(mm) | 0.4±0.05 | |
Layer spacing(mm) | 30 | |
Processing method | Mold pressing | |
Gear box | Reducer type | NGW-L-F31 |
Quantity | 1 | |
Water collector | Water collector type | BO120-45 |
Water collector material | Modified PVC | |
Sheet thickness(mm) | 0.8±0.05 | |
Support specification | 100-45 | |
Barwith hole | Φ8 | |
Water distribution system | Water distribution method | Tube type dendritic |
Water distribution pipe material | FRP | |
Sprayer nozzle | Three splashed | |
Nozzle material | ABS | |
Material | Steel structure | Q235(hot-dip galvanizing and rotproof) |
Repairing ladder quantity | 1 | |
Standard joint component | Dacromet |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $12000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
