This axial cooling fan is listed with the manufacturer’s full published specification — voltage 220V, power 20w, blade material PBT+glass fiber. It is produced by Shenzhen Yyc Motor Ltd. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Cooling Fan
- Power: 20w
- Voltage: 220V
- Blade Material: PBT+glass fiber
- Speed: 2700/3100RPM
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220V |
|---|---|
| Speed | 2700/3100RPM |
| Electric Current Type | AC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| Blade Material | PBT+glass fiber |
| Place Of Origin | Guangdong, China |
| Power | 20w |
| Air Volume | 98/118CFM |
| Brand Name | YA-COOL |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Packaging Details | Paper Cartons, honeycomb packaging,plastic pallet. |
| Port Of Dispatch | shenzhen,china |
| Selling Units | Single item |
| Supply Ability | 300000 pieces per Month |
Product descriptions from the supplier

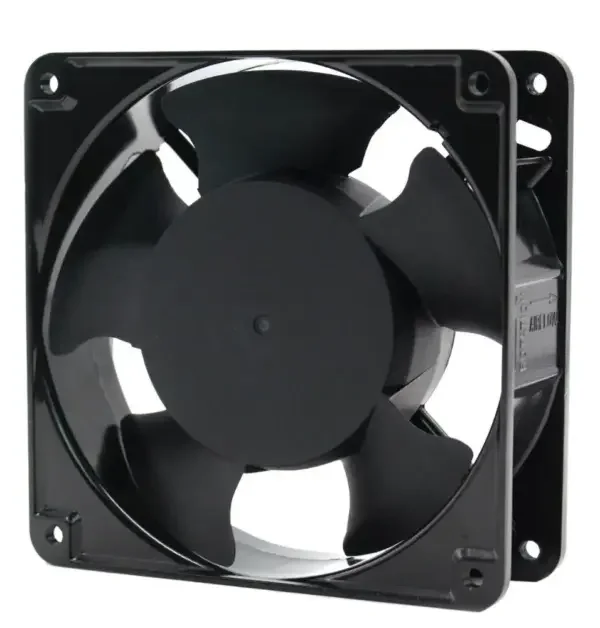

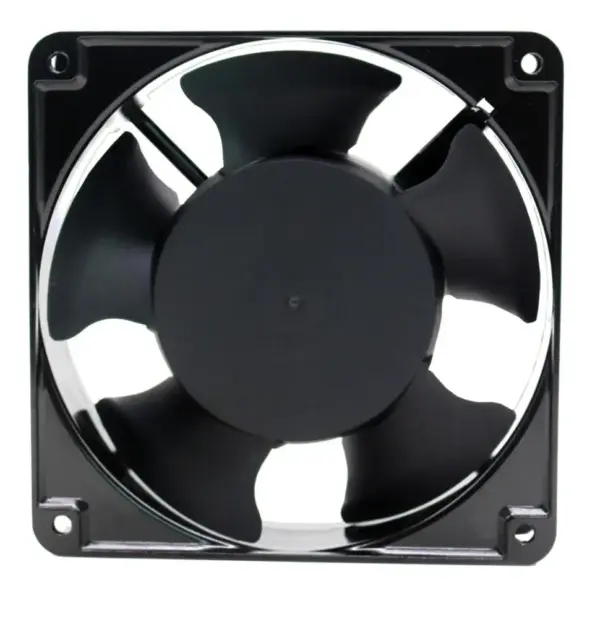

12038B2HT big air flow AC axial cooling fan
AXIAL FAN:12038B2H -HIGH AIR FLOW
Material:
impeller: thermoplastic PBT of UL 94V-0
bobbin: thermoplastic PA66 of UL 94V-0
housing: die-cast aluminum,Painted black,anti-corrosion
Specification:
lead wire or teminal
Impedance protected
operation temperature:-30°C to +75°C(ball bearing), -10°C to +70°C(sleeve bearing)
life expectance:50000hours(ball bearing),20000hours(sleeve bearing)
The high airflow 12038B2HL is our improved model, with an increase in the airflow of about 5% compare with the normal fan.at the same time, the motor temperature of the improved unit is MUCH cooler than the normal design.
| RATING | FREQUENCY | RATING | POWER | SPEED | AIR FLOW | STATIC | NOISE | |||
| MODEL | BEARING | VOLTAGE | CURRENT | CONSUMPTION | PRESSURE | |||||
| VAC | Hz | A | W | RPM | m3/min | CFM | mm-H2O | dBA | ||
| 12038B1H* | Ball | 115 | 50/60 | 0.26/0.19 | 17.0/15.0 | 2700/3100 | 2.78/3.34 | 98/118 | 8.80/9.80 | 42/47 |
| 12038B2H* | Ball | 220 | 50/60 | 0.12/0.10 | 17.0/15.0 | 2700/3100 | 2.78/3.34 | 98/118 | 8.80/9.80 | 42/47 |
| 12038B3H* | Ball | 380 | 50 | 0.06 | 15 | 2700 | 2.78 | 98 | 8.8 | 42 |
Frequently Asked Questions
What is the minimum order quantity for this axial cooling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial cooling fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This axial cooling fan is produced by Shenzhen Yyc Motor Ltd. Browse the full Shenzhen Yyc Motor Ltd range on HVACR Nexus.
