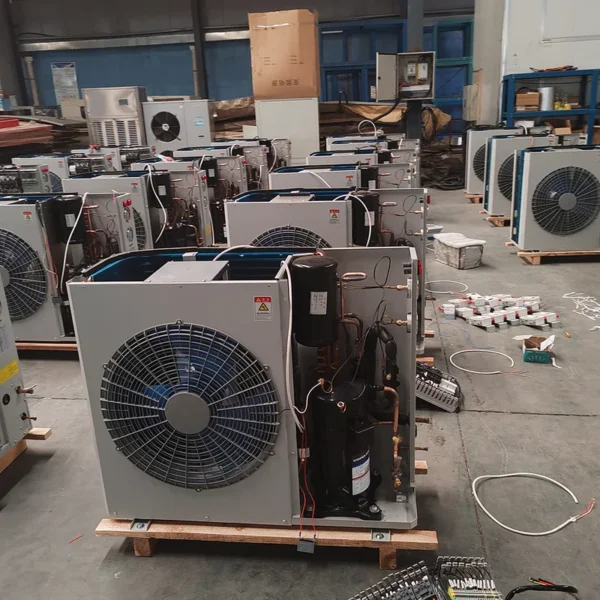

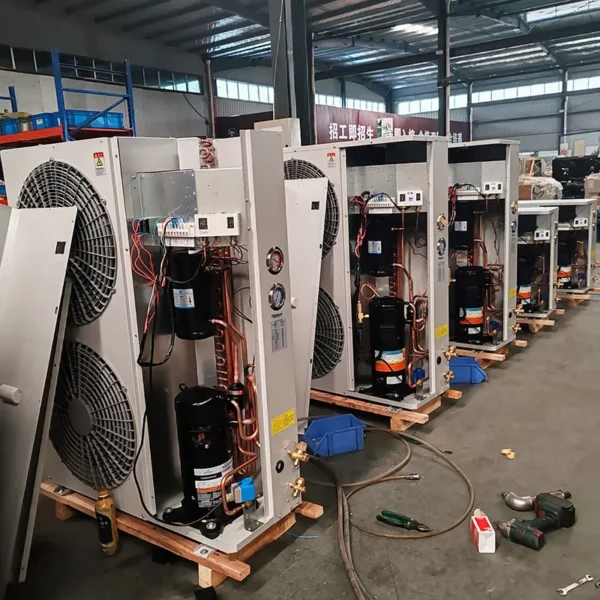

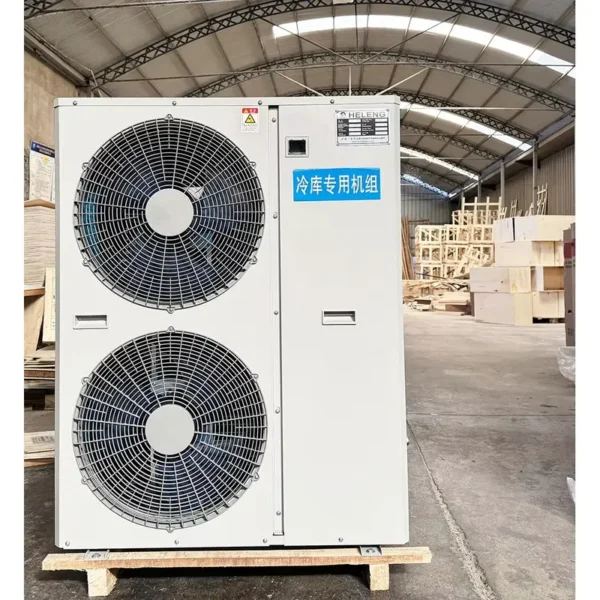

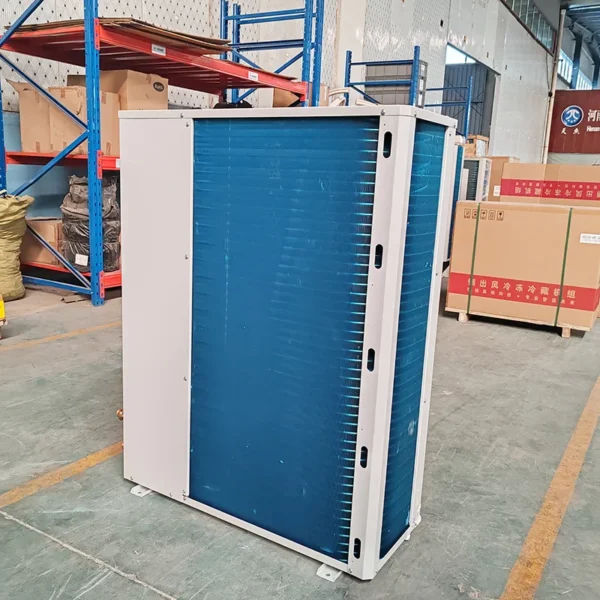

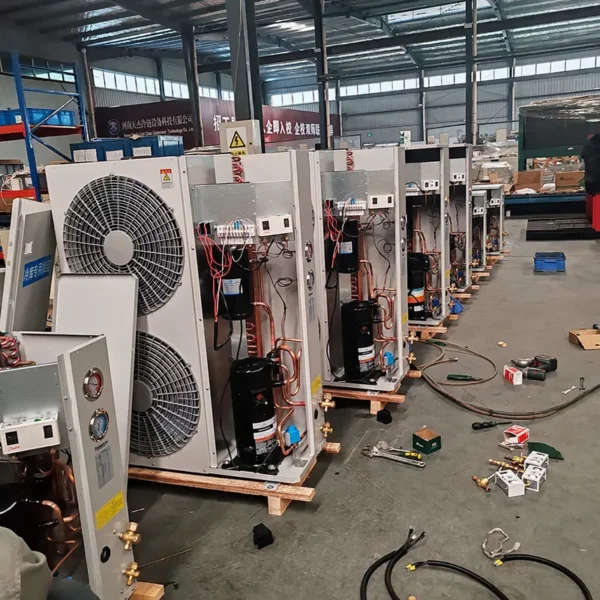

This silent unit is listed with the manufacturer’s full published specification — voltage 440~380v/220~230v/110v, refrigerant R22,R404A or others, model number Monoblock Refrigeration Unit tj0803. It is produced by Sanmenxia Tianshun Refrigeration Equipment Co., Ltd., a verified supplier of 4 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Silent Unit
- Model Number: Monoblock Refrigeration Unit tj0803
- Voltage: 440~380v/220~230v/110v
- Refrigerant: R22,R404A or others
- Warranty: 2 Years
- Certification: ce
- Place Of Origin: Henan, China
Technical Specifications
| Temperature | -20-8c |
|---|---|
| Voltage | 440~380v/220~230v/110v |
| Compressor Type | Scroll Condensing Unit |
| Refrigerant | R22,R404A or others |
| Compressor Brand | Bitzer/Emerson |
| Core Components | Pressure Vessel, Motor, Bearing, PLC, Other |
| Warranty | 2 Years |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Energy Saving |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 50 |
| Model Number | Monoblock Refrigeration Unit tj0803 |
| Cooling Type | Monoblock Refrigeration Unit |
| Application | Fresh-keeping, frozen food storage, quick-freezing |
| OEM Service | Yes |
| Packing | Plywood Case |
| Machinery Test Report | Provided |
| Certification | ce |
| Brand Name | Tianshun |
| Selling Units | Single item |
| Single Package Size | 70X32X56 cm |
| Single Gross Weight | 40.0 kg |
Product Details
all in one heat pump high perfomance air cooled condensing unit with r290 hc Full Dc Variable all in one machine
humidity dehumidifiers all in one machine
| R22 MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | AOS-3.5HP | AOS-4HP | AOS-SHP | AOS-6HP | AOS-7HP |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5HP | 6HP | 7HP |
NOMINALCAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 955x365x1250 | |||||
GROSS WEIGHT(kg) | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ 16 OUTφ 10 | INφ19 OUTφ12 | ||||||
FANSIZE(mm) | 1Ad.450mm | 1Ad.450mm | 2Ad.450mm | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R22 | |||||||
| OIL | SUNISO3GS SUNISO4GS | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 63 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERATION VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| REFERENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
| R404A MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | A0S-3.5P | A0S-4HP | AOS-5HP | A0S-6HP | A0S-7HP. |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5H | 6HP | 7HP |
| NOMINAL CAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 55x365x1250 | |||||
| (kg) GROSS WEIGHT | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ16OUTφ 10 | INφ19OUTφ12 | ||||||
| FAN SIZE(mm) | 1Ad.400mm | 1Ad.450mm | 2Ad.450ms | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R404A | |||||||
| OIL | RL-32H | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 62 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERANT COOL VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| EFFRENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
Condensing Unit all-in-one label finisher cu/air conditioner split unit
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $340 / set
- 5–9 set: US $330 / set
- 10+ set: US $320 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this silent unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this silent unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the silent unit be supplied for my local voltage?
The standard configuration is 440~380v/220~230v/110v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sanmenxia Tianshun Refrigeration Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Sanmenxia Tianshun Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
