The heat exchangers listed here carries 120V/230V, blade material aluminum alloy, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Heat Exchangers
- Model Number: LWBE175-PS
- Voltage: 120V/230V
- Material: Stainless Steel, Plastic, Aluminum Alloy, Steel
- Blade Material: aluminum alloy
- Impeller Material: Plastic +gf
- Speed: 4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM
Technical Specifications
| Mounting | Other |
|---|---|
| Voltage | 120V/230V |
| Speed | 4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM |
| Material | Stainless Steel, Plastic, Aluminum Alloy, Steel |
| Blade Material | aluminum alloy |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWBE175-PS |

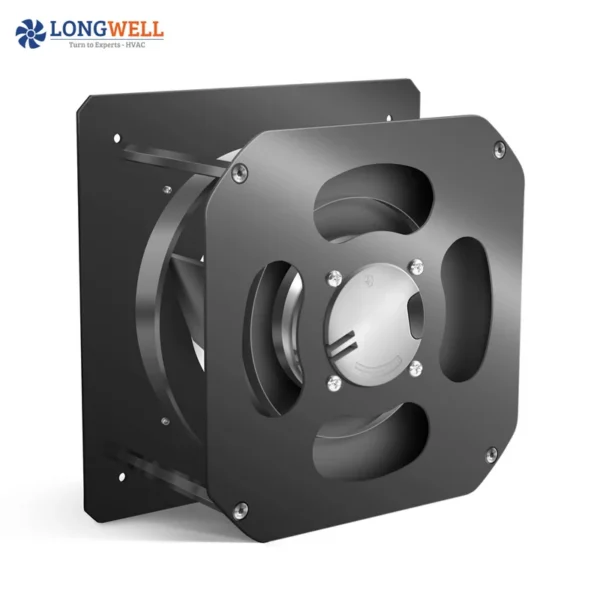

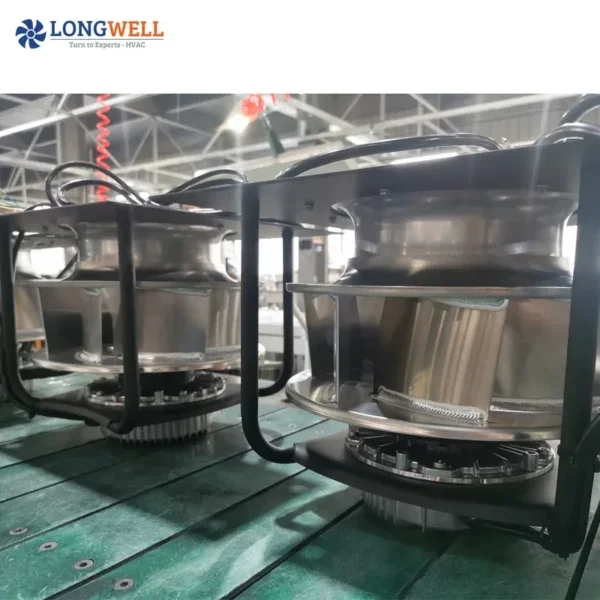

| Type | EC plug fan |
| Frequency | 50/60Hz |
| Impeller Material | Plastic +gf |
| Bearing | Ball Bearing |
| Motor Type | BLEC external rotor motor |
| Amb,Temp | -25 to +60℃ |
| Insulation | B |
| IP LEVEL | IP 55 |
| 100% Replacement Of EBM,ZIEHL-ABEGG | 40000 Hours life-span |
| Leading Time Short To 19 Days | 0-10V/PWM |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 10.0 kg |
Product Details

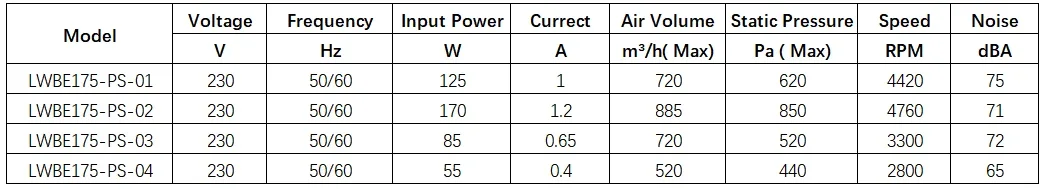

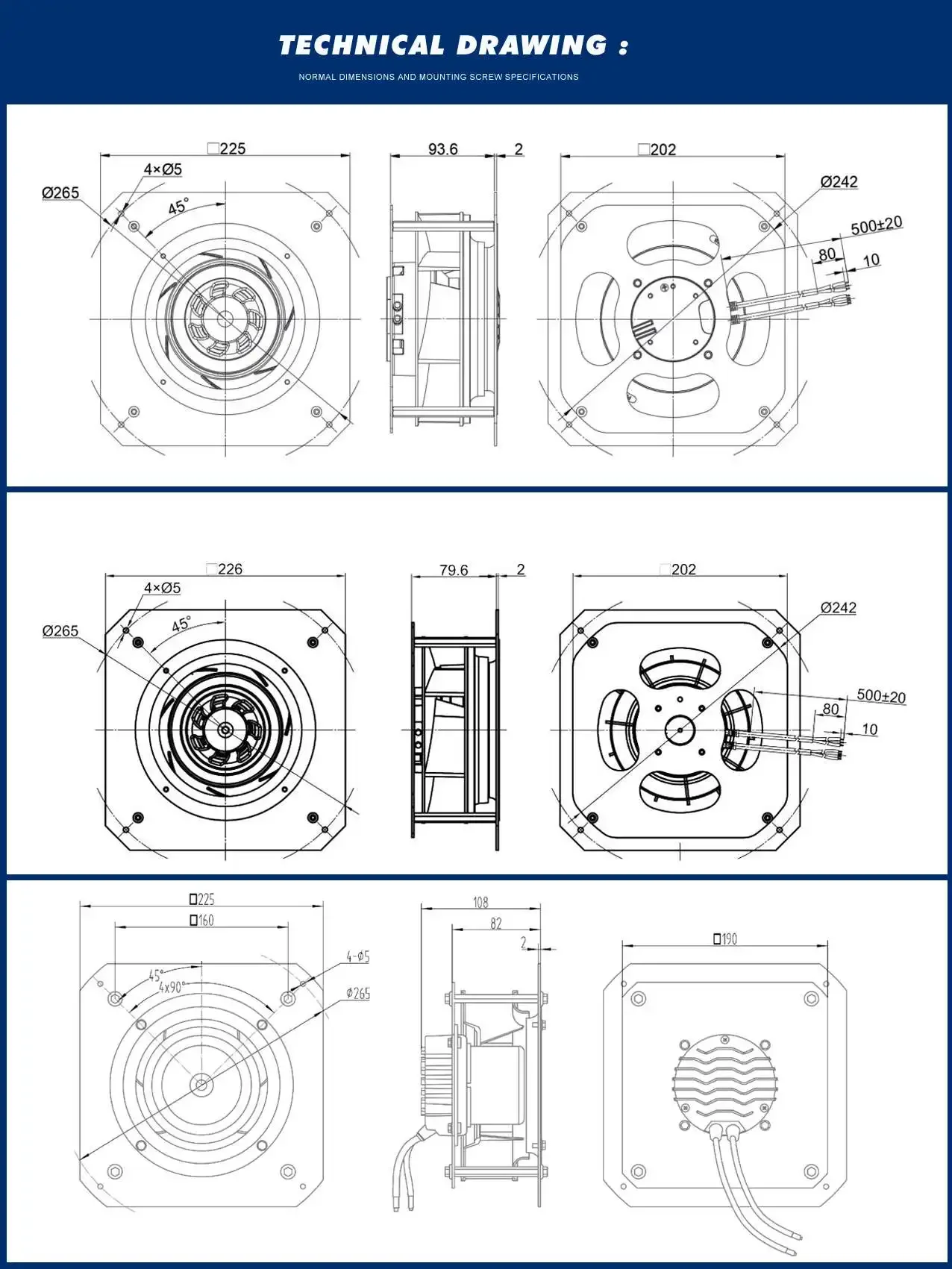

Model Dimesions : | LWBE175-PS-01 / LWBE175-PS-02 /LWBE175-PS-03 /LWBE175-PS-04 | ||||||
Nominal Voltage : | 115V /220V ( EC) | ||||||
Frequency : | 50/60Hz | ||||||
Power Input : | 55W/85W/125W/170W | ||||||
Air Flow Ranges : | 0-885 m³/h | ||||||
Air Pressure : | 0-850 Pa | ||||||
IP Level : | IP 55 ,IP 54 | ||||||
Speed Control : | Control Input 0-10VDC / PWM | ||||||
Life Expectance | 50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH. | ||||||
Electronic Protection : | Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ; Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection | ||||||
Ambient Temp Rangs | -25 ℃ – +60 ℃ | ||||||
EC Fan Series -Product Ranges Overview | ||||||||
Norminal Sizes Ranges : | 133mm – 630mm ; | |||||||
Norminal Voltage : | AC Motor – AC Input: 115v,220v,230v,380v,400v | |||||||
BLDC Motor – DC Input: 12v,24v,48v,310v | ||||||||
ECM Motor – AC Input: 210v,220v,230v,380V | ||||||||
Power Input Ranges: | From 45W to 4.0 kW | |||||||
Air Flow Ranges : | Up to 15000m³/h (or Customized) | |||||||
Speed Ranges | Up to 4000RPM (or Customized) | |||||||
Protection Class : | IP44 ,IP54 | |||||||
Insulation Class : | B | |||||||
Min. amb. temperature : | -25℃ | |||||||
Max. amb. temperature : | +60 ℃ | |||||||
Speed control options | 0-10V / PWM 、 MODBUS RTU | |||||||
Mainly Applications ： | · EC fan array · Electronic cabinet cooling · Clean room modules · Heat exchangers · Air filtration systems · Military HRAC · Pharmaceutical/biological control systems · Computer room air conditioning (CRAC) systems · Air-handling units | |||||||
Electronic Protections: | – Soft Start ; -Locked-rotor Protectionn ; – Tach output -Reverse Polatity | |||||||
LONGWELL EMC Technology is giving more energy saving to our world .
the advantages are :
1.Our ECM motorized fans’effiency are 30%-60% higher than the traditional motors .
2.the build-in PCBA achieved stepless speed control,and communication with customers products .
3.longer life span up to 600,000hours .
4.IP55,IP68 can be customized .
5.Sine wave ,three phase eliminate electromagnetic-acoustic and lots of other protection functions like soft start ,overload,motor block … .
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat exchangers?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heat exchangers be supplied for my local voltage?
The standard configuration is 120V/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

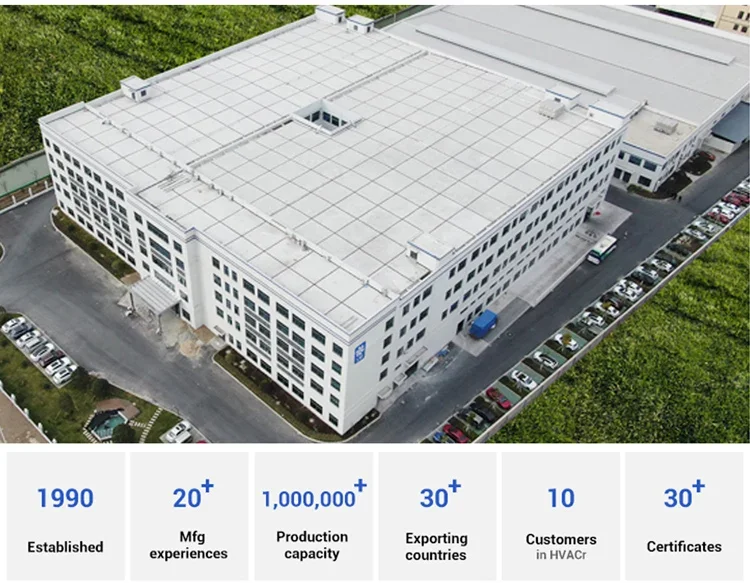

About the Manufacturer

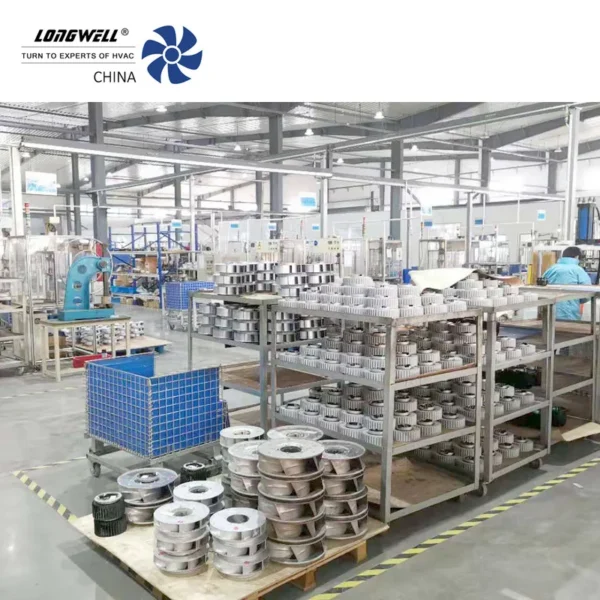

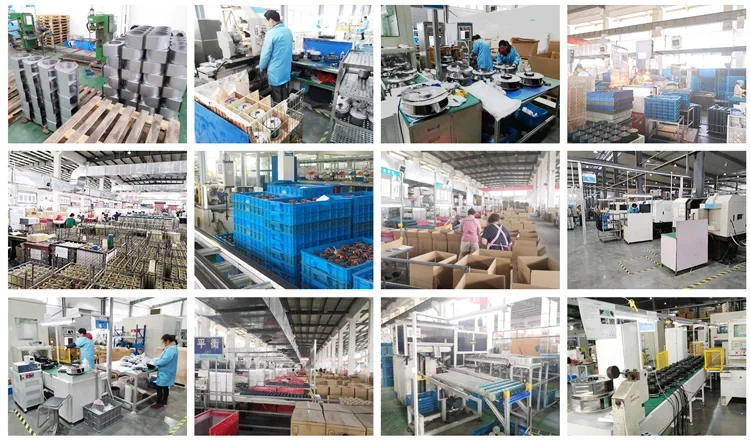

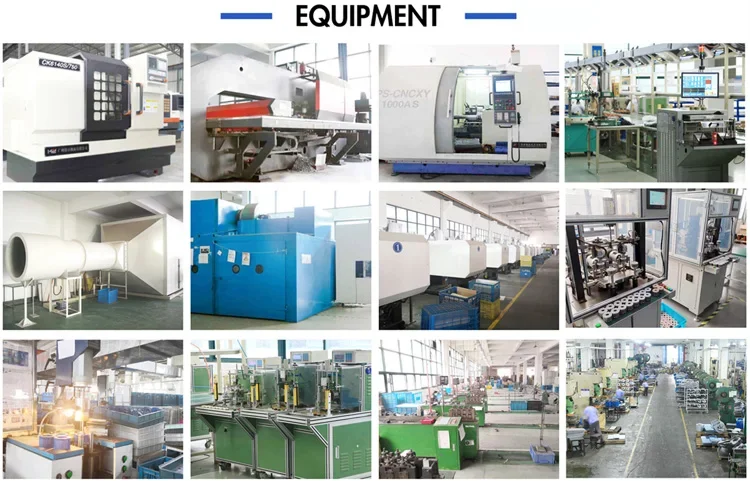

This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
