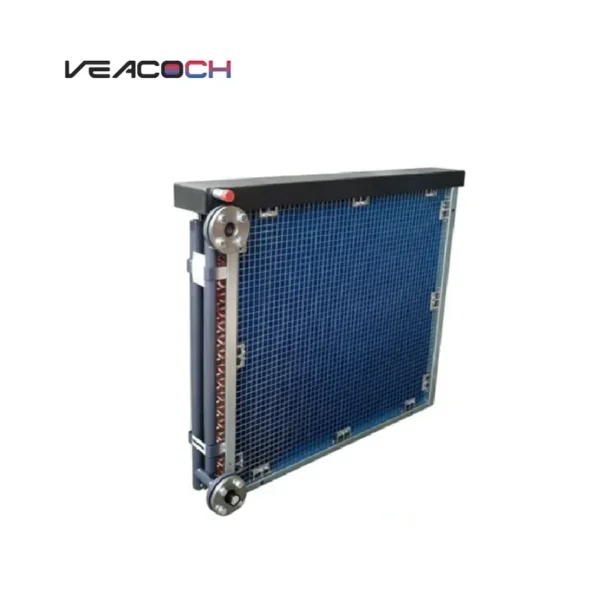

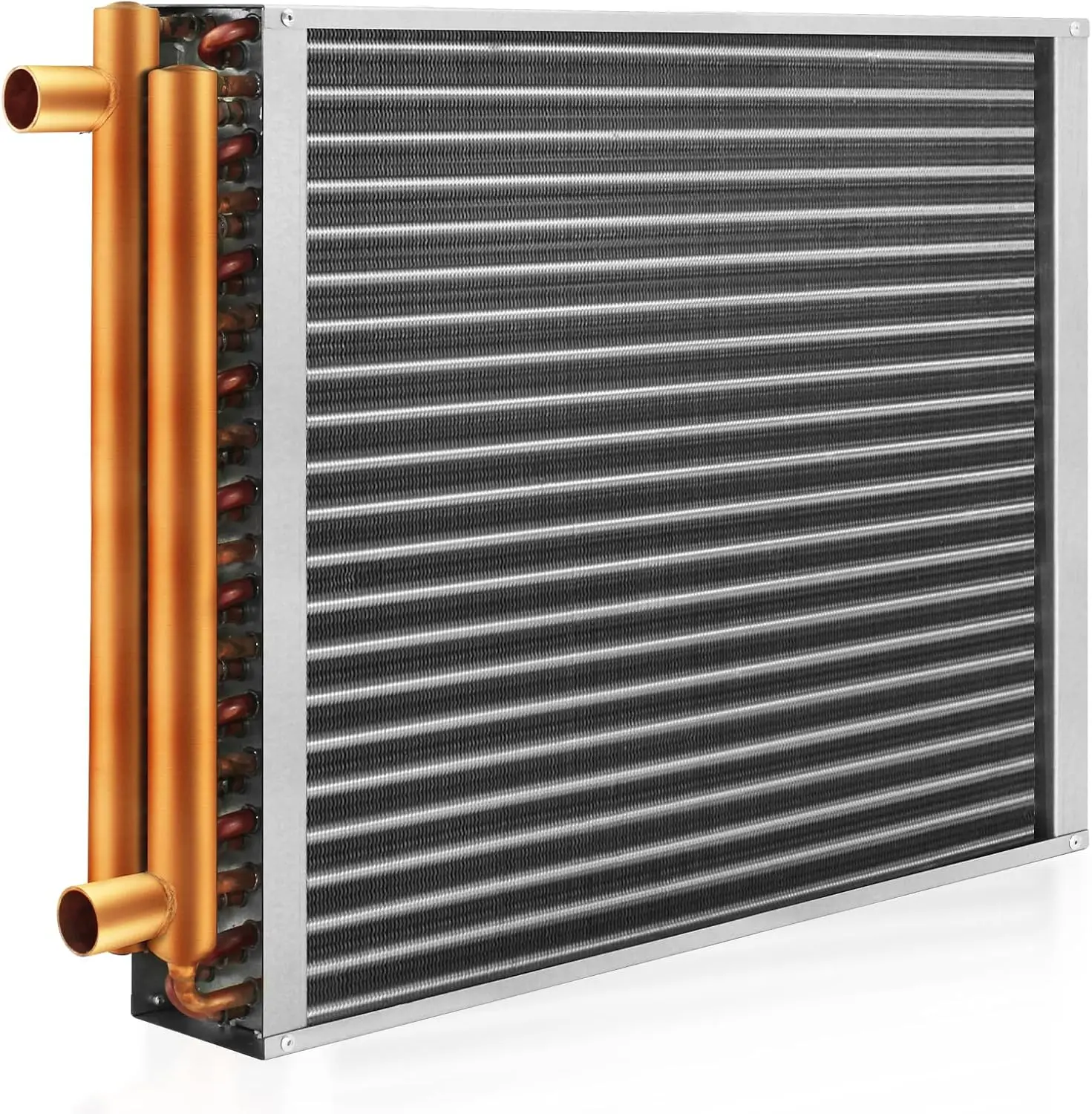

Ahu chilled water coil — 220 V, 240 V, 380 V, material Stainless Steel, Aluminum Alloy, Copper. The complete factory specification follows. Made by Shenzhen Veacoch Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ahu Chilled Water Coil
- Voltage: 220 V, 240 V, 380 V
- Material: Stainless Steel, Aluminum Alloy, Copper
- Tube Material: Stainless steel, Copper
- Fin Material: Aluminum, Copper
- Frame Material: Stainless Steel, GI plate, Aluminum plate
- Warranty: 1 Year
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Fluid Compatibility | Oil, Water, Steam, Refrigerant |
| Material | Stainless Steel, Aluminum Alloy, Copper |
| Voltage | 220 V, 240 V, 380 V |
| Core Components | Tube and Fin |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Low Maintenance Cost, Easy To Operate |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 80 |
| Brand Name | Veacoch |
| Liquid Flow Rate | 0.1~10 M/s |
| Maximum Pressure Rating | 40bar |
| Dimension(L*W*H) | Customized |
| Product Name | copper tube aluminum fin hvac coil for air conditioner |
| Type | Evaporator |
| Application | Ice machine, AHU, Air Conditioner |
| Tube Material | Stainless steel, Copper |
| Fin Material | Aluminum, Copper |
| Tube Type | Smooth, Grooved |
| Fin Type | Flat, corrugated, louvered |
| Frame Material | Stainless Steel, GI plate, Aluminum plate |
| Fin Surface | Epoxy (gold), Blue (hydrophilic), Powder paint, Bare |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Radiators are the type of heat exchanger in which the gas phase fluid passes in the primary circuit and the heater or coolant fluid passes through the secondary circuit. Although it is generally preferred in recycling facilities, radiators are used in every sector and application according to need.
According to the fluid circulating in the radiators, it can be basically examined under the headings such as Steam Radiators, Hot Water Radiators, Superheated Water Radiators, Hot Oil Radiators, Sea Water Radiators.
Steam Radiators
Steam radiators are used to heat the process air by utilizing the energy of the steam.
Hot Water and Superheated Water Radiators
Hot water radiators are used to heat the process air by utilizing the energy of hot water or superheated water. Hot water
radiators offer a simple and effective solution. Fixtures of hot water radiators are less costly than other processes.
radiators offer a simple and effective solution. Fixtures of hot water radiators are less costly than other processes.
Hot Oil Radiators
Hot oil radiators are used to heat the process air by utilizing the energy of the hot oil. Hot oil is preferred where high
temperature demand must be met.
temperature demand must be met.
Advantages of Our Air Radiator Heat Exchanger :
1.Material: Based on different working condition media and heat exchange requirements, optional heat exchange tube materials include carbon steel tubes, stainless steel tubes, copper tubes, nickel tubes and titanium tubes. Corrosion-resistant coating protection can also be applied according to anti-corrosion needs.
2.Customizable: Our heat exchangers can be customized in dimension, water connector, and heat exchange capacity. 3.Parameter: During quotation, our technical department will provide an HTRI calculation report to verify the actual operating conditions and ensure that the heat exchanger fully meets the required
performance specifications.
performance specifications.
4.Applications: our radiator provides a high level of thermal efficiency and durability in a compact and lightweight construction. Ideal for outdoor wood stoves, residential and commercial heating and cooling, forced air heating, hybrid systems, air conditioning, dehumidification and more.
5.Superior Quality — Our water-to-air heat exchangers adopt 20×20 robust 306 steel made case to provide support around the body of the heat exchanger. 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes maximize heating or cooling efficiency.Edges and contact points are base brazed so this heat exchanger can withstand high pressures and temperatures, it is sturdy and durable
6.Warranty:Our heat exchanger has a 1-year warranty.
Production and fabrication can be carried out in accordance with ASME standards as an option.
Production and fabrication can be carried out in accordance with ASME standards as an option.
Our Radiators are manufactured with special design projects in most efficient and reliable way considering the requirement and the capacity based on the process received from the customer.
Any of carbon steel, stainless, copper, brass and CuNiFe tube and special alloy tube serpetines all of which are part of spiral finned and stamped plate finned serpentines group can be used. Tube and fin selection is made to provide highest efficiency by considering fluid pressure drops with the help of special calculation programs in accordance with fluid type to be used, area and application purpose.
Any of carbon steel, stainless, copper, brass and CuNiFe tube and special alloy tube serpetines all of which are part of spiral finned and stamped plate finned serpentines group can be used. Tube and fin selection is made to provide highest efficiency by considering fluid pressure drops with the help of special calculation programs in accordance with fluid type to be used, area and application purpose.
Professional Applications of Finned Tube Radiators :
1. Drying and cooling of beer malt
2. Puffing and drying
3. Wood drying kiln
4. Dye, chemical fiber, soda ash, latex, polyvinyl chloride, gelatin drying
5. Spray drying of dairy products and milk powder
6. Vegetable dehydration tunnel, oven drying
7.Papermaking, coating machine
8. Printing and dyeing, dyeing and finishing, hot air stenter setting machine, heat setting machine,dryer, rotary screen printing machine, flat screen printing machine, blanket setting machine, dryer
9. Food and tea drying
10.Starch, feed steam drying
11. Plastic leather spray dryer
12. Wood grain paper printing machine
13. Adhesive coating machine, dry laminating machine
14. Central air-conditioning heating and cooling
15. Constant temperature heating of factory buildings
16.And more…
3. Wood drying kiln
4. Dye, chemical fiber, soda ash, latex, polyvinyl chloride, gelatin drying
5. Spray drying of dairy products and milk powder
6. Vegetable dehydration tunnel, oven drying
7.Papermaking, coating machine
8. Printing and dyeing, dyeing and finishing, hot air stenter setting machine, heat setting machine,dryer, rotary screen printing machine, flat screen printing machine, blanket setting machine, dryer
9. Food and tea drying
10.Starch, feed steam drying
11. Plastic leather spray dryer
12. Wood grain paper printing machine
13. Adhesive coating machine, dry laminating machine
14. Central air-conditioning heating and cooling
15. Constant temperature heating of factory buildings
16.And more…
Industry Coverage & Product Offerings :
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Air Radiator Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
Details of Materials
Material | Key Properties | Typical Applications & Standards |
Carbon Steel | High mechanical strength, cost-effective | Widely adopted for shells in industrial systems (e.g., ASME SA-516 Gr. 70), suitable for non-corrosive environments and moderate temperatures (<300°C). |
Stainless Steel | Excellent corrosion resistance (e.g., SS304/316), good thermal performance | Ideal for chemical, food processing, and HVAC systems (ASTM A240),resistant to chloride-containing fluids (e.g., < 1000 ppm Cl⁻). |
Nickel Alloys | Superior resistance to extreme corrosion (e.g., Inconel 600/625, Hastelloy C-276) | Selected for high-temperature (>800°C) or aggressive environments (e.g., sulfuric acid, seawater desalination), compliant with NACE MR0175/ISO 15156. |
Copper Alloys | High thermal conductivity (e.g., CuNi 70/30, Brass) | Common in condensers and cooling systems with non-corrosive water (ASTM B111), limited to < 150°C and non-ammonia environments. |
Titanium | Exceptional corrosion resistance (e.g., Grade 2/Grade 7) | Critical for seawater applications (e.g., marine, offshore platforms), resistant to chlorides, acids, and biofouling (ASTM B338 Gr.2). |

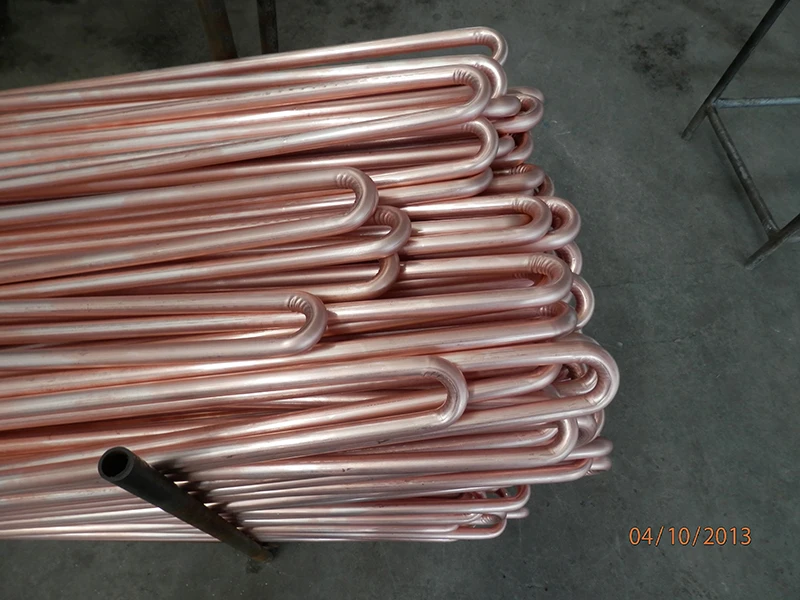

Tubes:
We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel
and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a
consequence it assures efficient thermal exchange.
and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a
consequence it assures efficient thermal exchange.

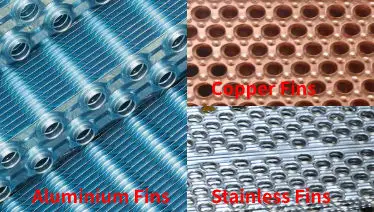

Fines:
The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the
thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of
condensation or defrosting water.
thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of
condensation or defrosting water.

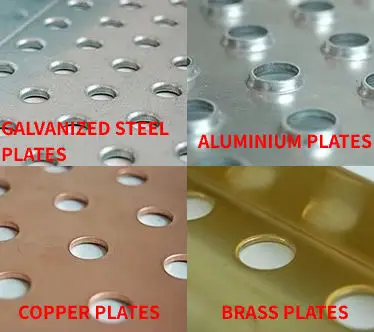

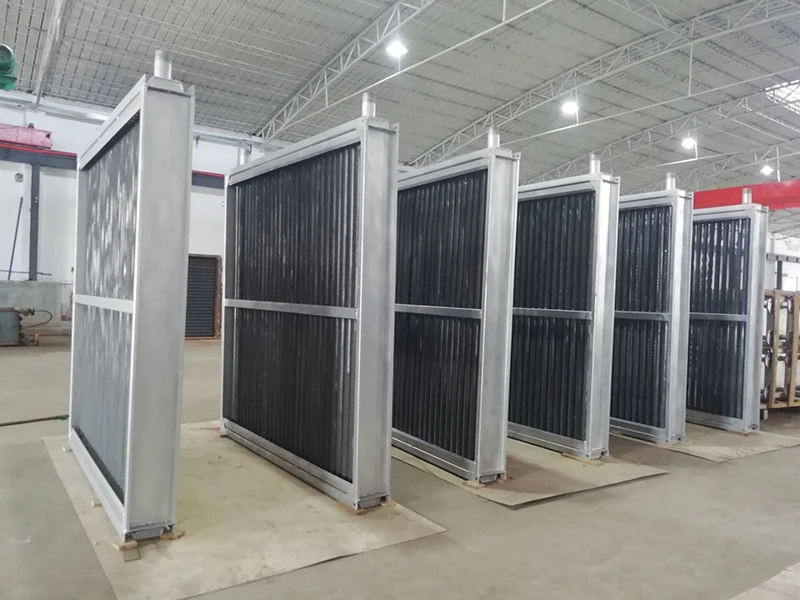

Plants:
The metal frame of a finned tube heat exchanger offers outstanding structural integrity and long-term durability, typically
constructed from high-strength carbon steel, stainless steel, or aluminum alloys, which can be precisely customized in dimensions,
layout, and port configuration to fit specific spatial and performance requirements.
constructed from high-strength carbon steel, stainless steel, or aluminum alloys, which can be precisely customized in dimensions,
layout, and port configuration to fit specific spatial and performance requirements.
Engineering Design
We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

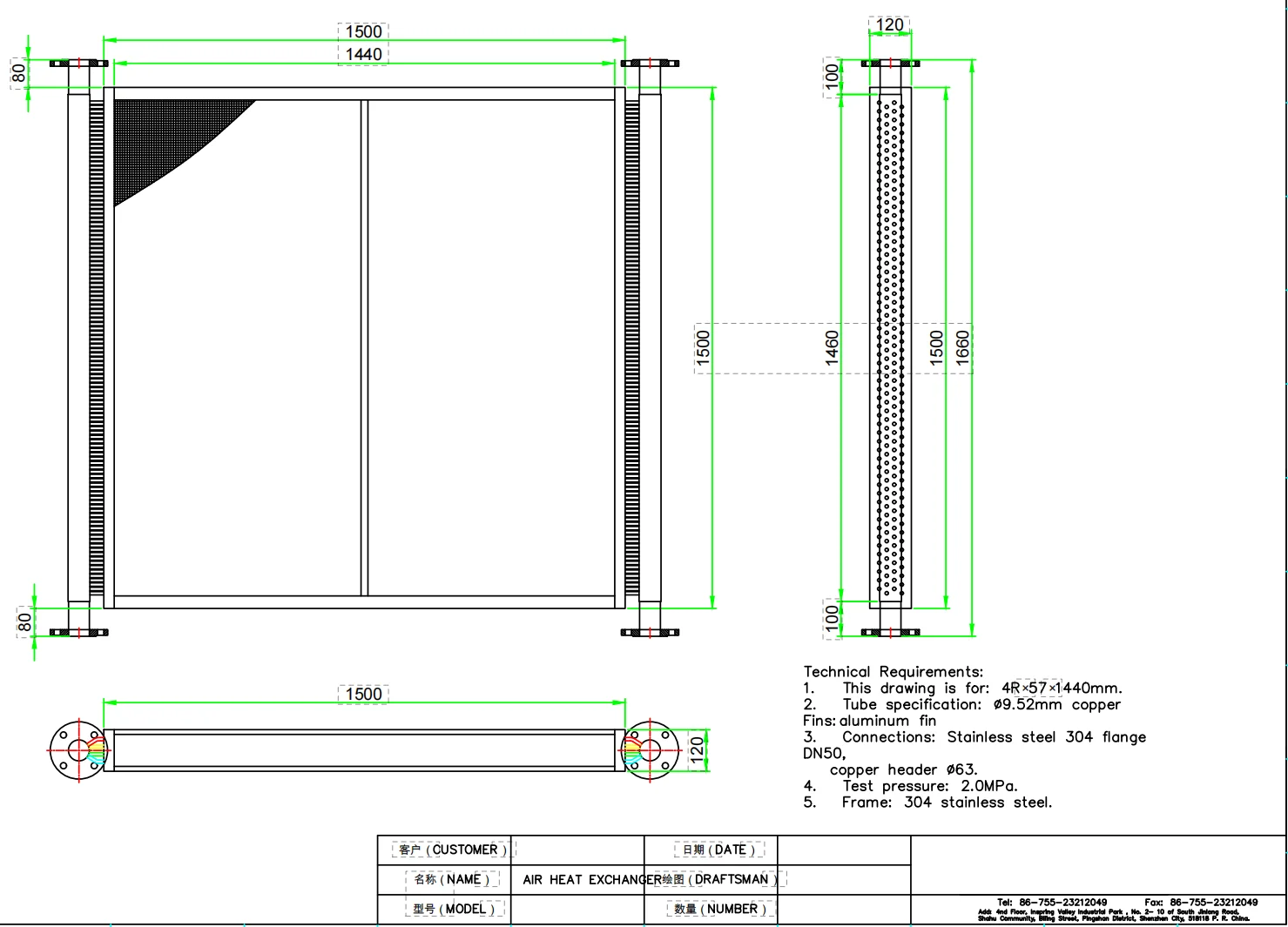

We can provide detailed drawing after your order.We can also provide Custom services.

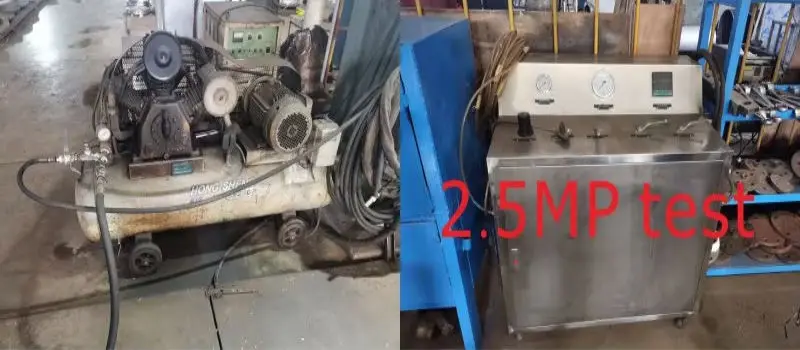

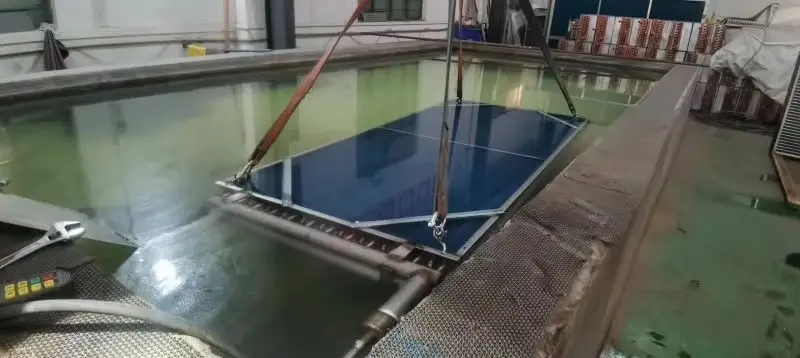

All air heat exchangers undergo a rigorous pressure test: each unit is tested twice at 2.5 MPa and must hold the pressure for at least 15 minutes to verify pressure resistance and ensure no leakage.

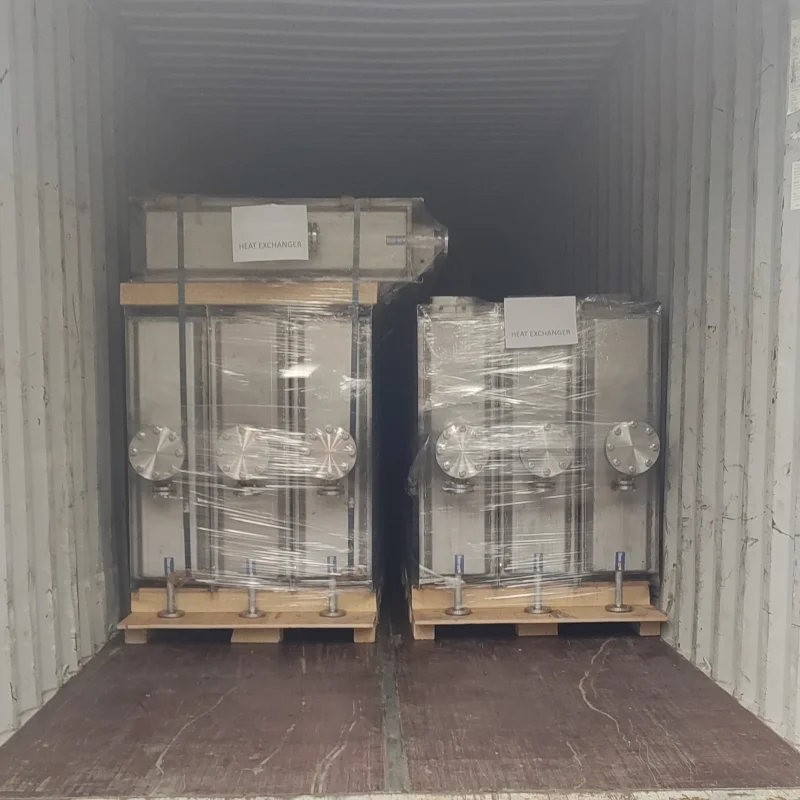

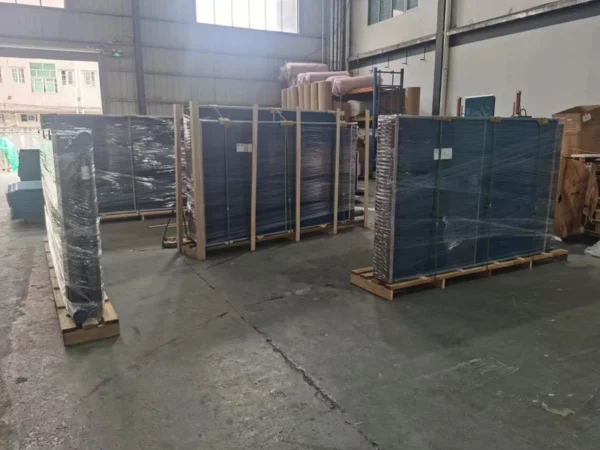

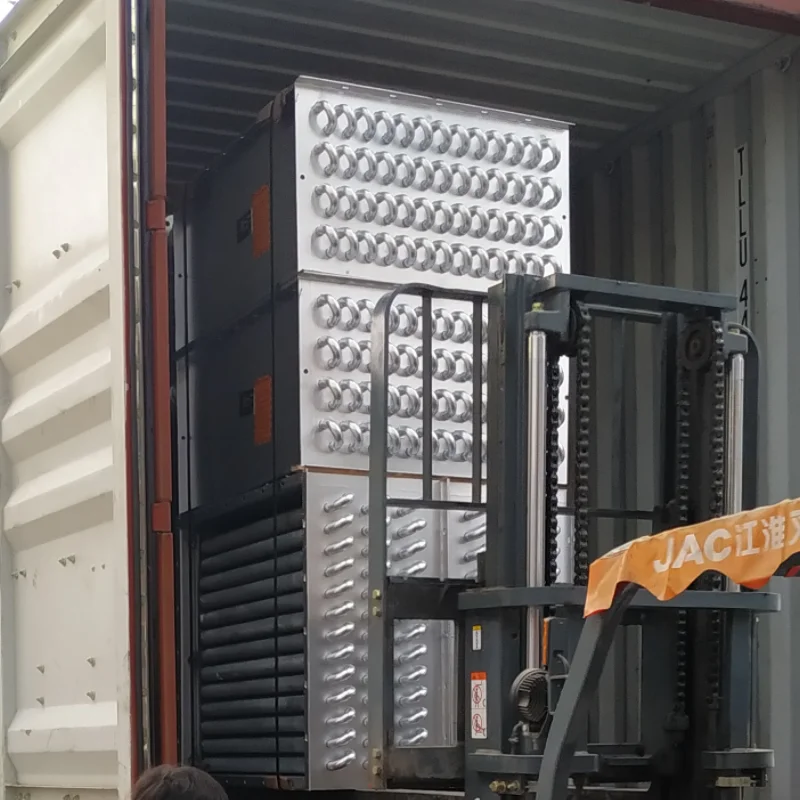

Packing & Delivery

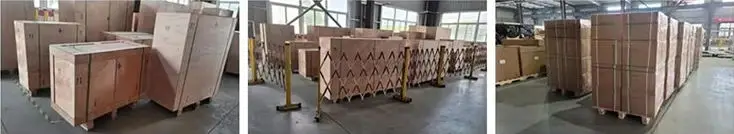

Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Customer Case Photos
France Project
Spain Project
America Project
Philippines Project
Vietnam Project
Singapore Project

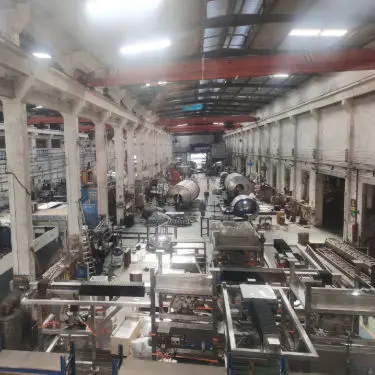

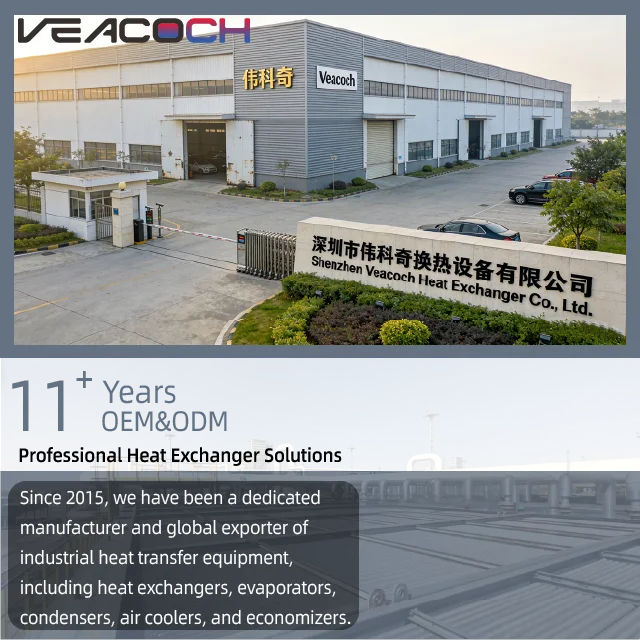

Company Profile

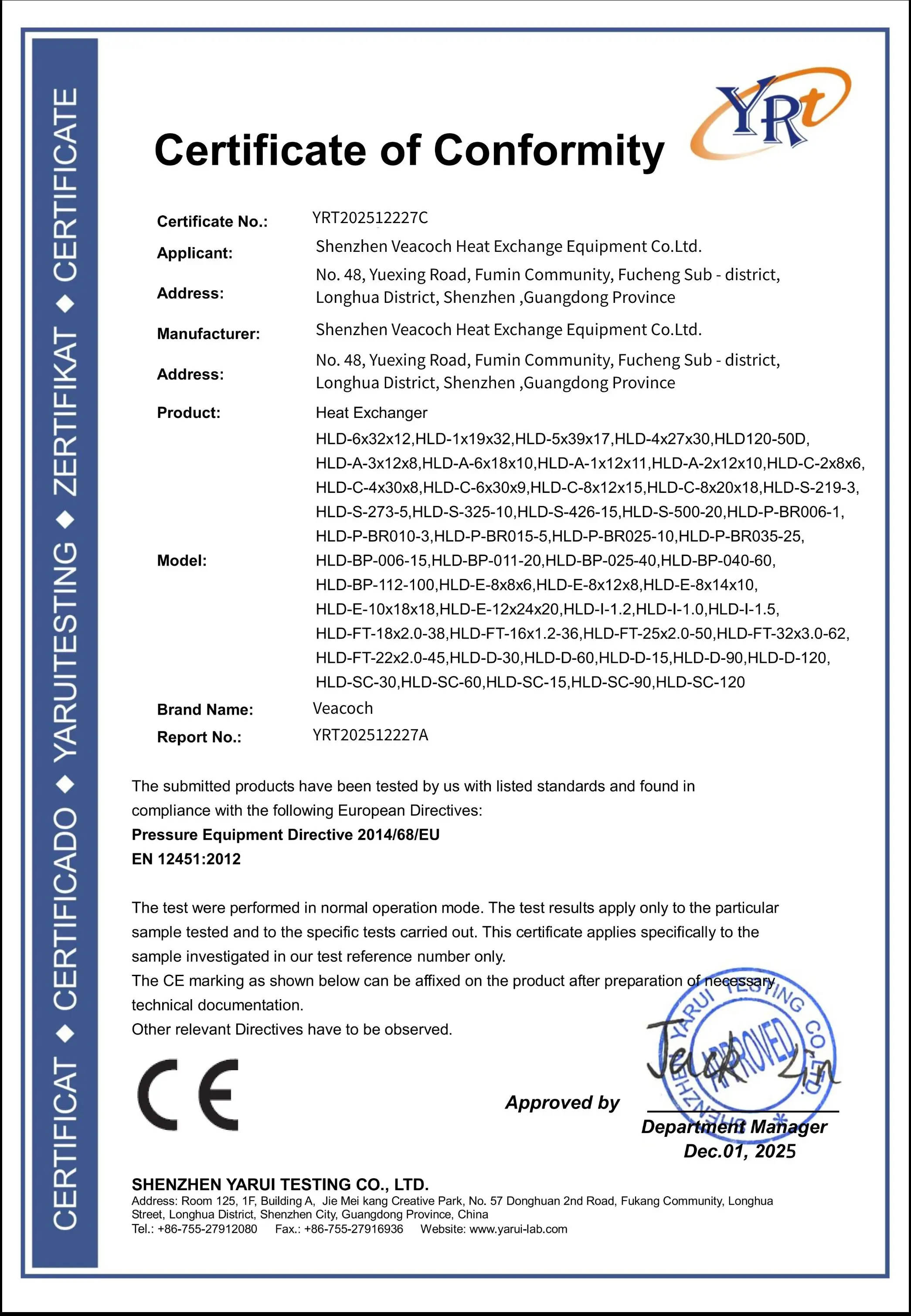

Certifications
FAQ
1 Q: I haven't done business with you so we want to make online order to protect me,is it Ok for you ?
1 A: Our company has been in filed for 10 years, Your Alibaba online order is welcome, we we will provide good service to you.
2 Q: What is the MOQ? Can I place small order please ?
2 A: Small order is also welcome in our company.
3 Q: How long warranty can we have for my orders?
3 A: Finned Tube Heat ExchangerOne year warranty for all products, 2 years warranty available for some specific orders.
4 Q: What service can you provide ?
4 A: We will confirm all details with you before payment, any changes will let you know in advance, any progress will show you photos and video for your reference and will let you know your order’s status. Will send draft documents for your reference before issuing official document.
5 Q: How do you control quality ?
5 A: Our produces heat exchangers since 2015 and we passed ISO 9001 in 2017. We are serving hundreds customers whom from 40+countries around the world. All products will be 100% tested before shipping out.
6 Q: What are your main products ?
6 A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers, plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
1 A: Our company has been in filed for 10 years, Your Alibaba online order is welcome, we we will provide good service to you.
2 Q: What is the MOQ? Can I place small order please ?
2 A: Small order is also welcome in our company.
3 Q: How long warranty can we have for my orders?
3 A: Finned Tube Heat ExchangerOne year warranty for all products, 2 years warranty available for some specific orders.
4 Q: What service can you provide ?
4 A: We will confirm all details with you before payment, any changes will let you know in advance, any progress will show you photos and video for your reference and will let you know your order’s status. Will send draft documents for your reference before issuing official document.
5 Q: How do you control quality ?
5 A: Our produces heat exchangers since 2015 and we passed ISO 9001 in 2017. We are serving hundreds customers whom from 40+countries around the world. All products will be 100% tested before shipping out.
6 Q: What are your main products ?
6 A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers, plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $800 / piece
- 50+ piece: US $600 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ahu chilled water coil?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ahu chilled water coil be supplied for my local voltage?
The standard configuration is 220 V, 240 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Veacoch Heat Exchange Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Veacoch Heat Exchange Equipment Co., Ltd. range on HVACR Nexus.
