Air conditioning compressor — rated voltage 120VAC/240VAC, model number LF08. The complete factory specification follows. Made by Zhejiang Lefoo Controls Co., Ltd. (21 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Conditioning Compressor
- Model Number: LF08
- Max. Voltage: 240VAC
- Rated Voltage: 120VAC/240VAC
- Base Material: Brass, plated steel
- Certification: ROHS
- Place Of Origin: Zhejiang, China
Technical Specifications
| Max. Working Pressure | 5000PSI |
|---|---|
| Max. Voltage | 240VAC |
| Max. Current | 40.2A |
| Whether The Smart | No |
| Place Of Origin | Zhejiang, China |
| Model Number | LF08 |
| Brand Name | LEFOO |
| Product Name | LF08 pressure switch |
| Application | Refrigeration syestem |
| Rated Voltage | 120VAC/240VAC |
| Burst Pressure | 5000 psi |
| Media | air, water, motor oils, transmission oils |
| Circuitry | SPST-NC, SPST-NO, SPDT |
| Base Material | Brass, plated steel |
| Connection | 1/8NPT, 1/4NPT, G1/8, G1/4 |
| Delivery Time | Normally 15 working days |
| Certification | ROHS |
| Packaging Details | Packed in export carton. |
| Port Of Dispatch | Ningbo or Shanghai |
| Selling Units | Single item |
| Single Package Size | 50X25X16 cm |
| Single Gross Weight | 3.000 kg |
| Supply Ability | 50000 pieces per Month |
Product Details
Air conditioning compressor and refrigerant small pressure switch LF08, refrigerator pressure controller

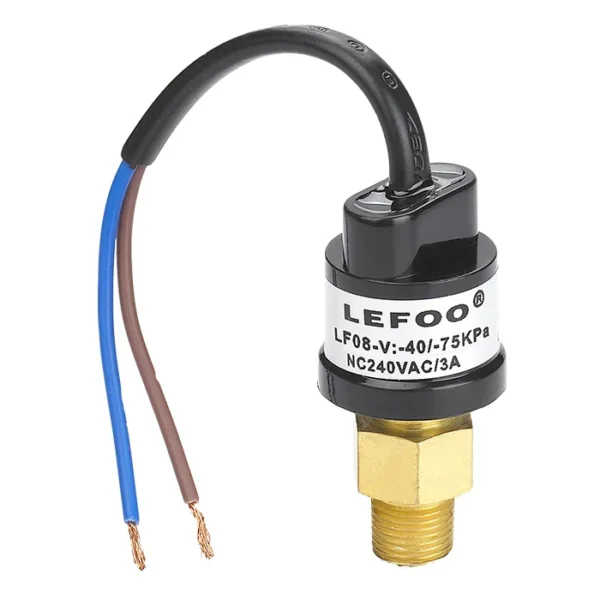

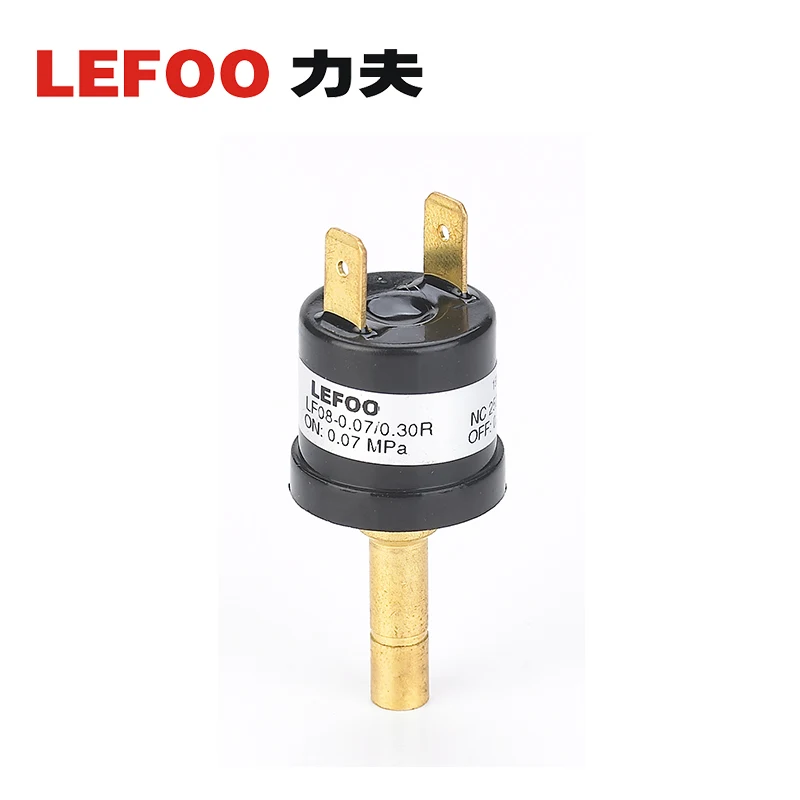

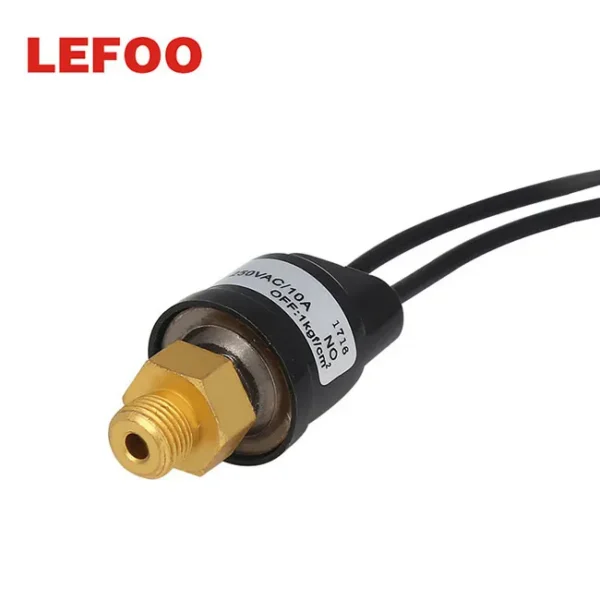

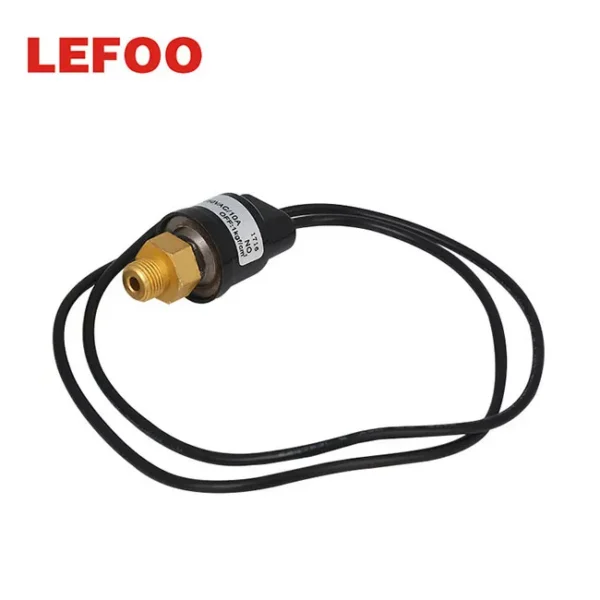

1. Product Pictures:

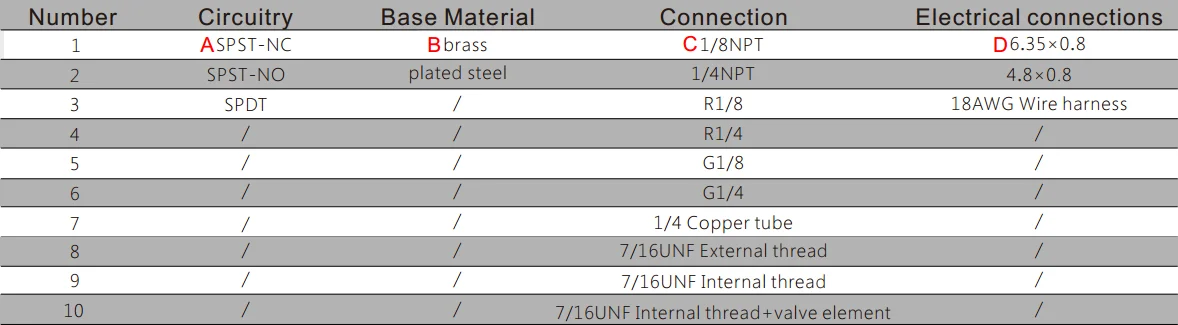

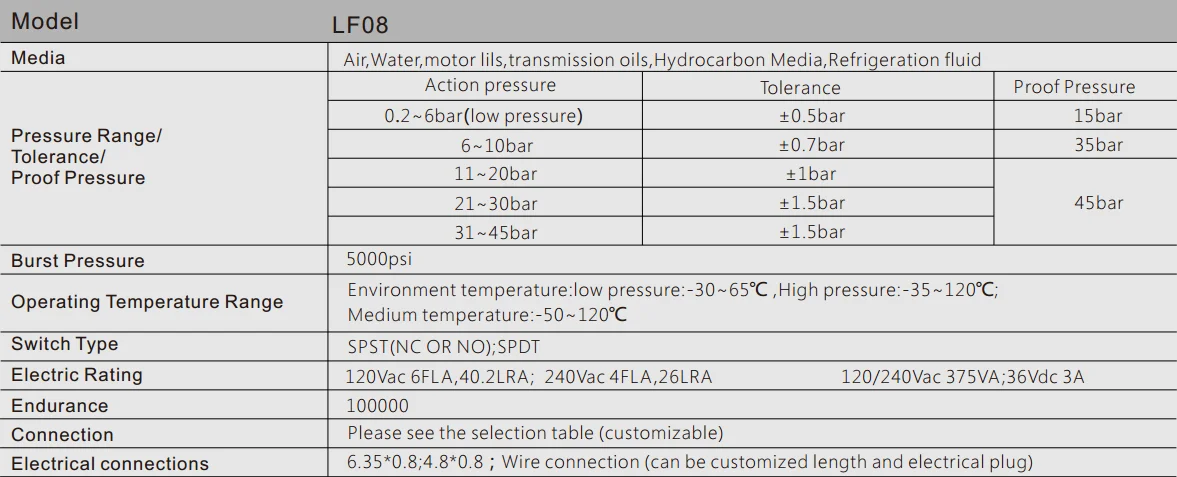

2. Product Specifications:
The LF08 switches are fixed set point, factory calibrated pressure switches. It is automatic
reset, and can be normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industry connectors. In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.

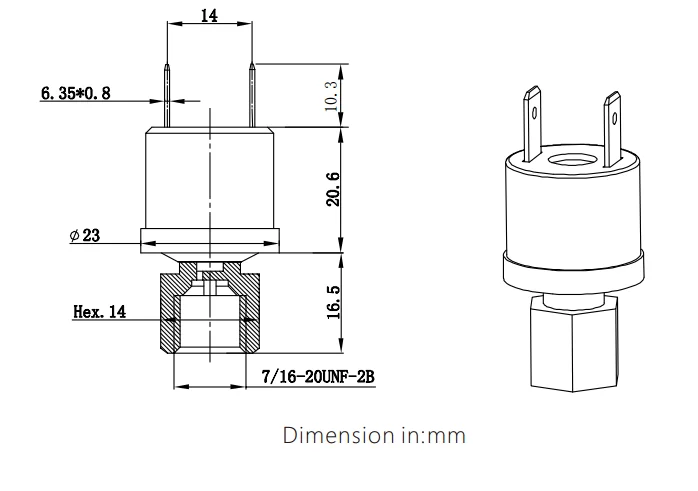

3. Product Dimensions(mm) :
4. Production Lines:
5. Patens:
6. Quality Control:
7. Why choose us?
25 patents
45 products were certified with UL,CSA,VDE,CCC and CE
50 engineers teamed for R&D
Coorperation experience with member in fortune global 500
8. LEFOO Exhibitions:
2019. 3 Acrex India
2019. 1 Ahr Expo
2018. 6 Aquatech Shanghai
2018. 4 Canton Fair
2018. 4 China Refrigeration show
2018.3 MCE Milano
2018.1 AHR Chicago
9. Packing and shipping:
If you are willing to know more
details, pls contact me freely!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $10 / piece
- 50–499 piece: US $6 / piece
- 500–999 piece: US $5.5 / piece
- 1000+ piece: US $5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air conditioning compressor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this air conditioning compressor carry?
It is supplied with ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air conditioning compressor be supplied for my local voltage?
The standard configuration is 240VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Lefoo Controls Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Lefoo Controls Co., Ltd. range on HVACR Nexus.
