This wire terminal heat pump is published with the manufacturer’s full specification — rated voltage 120VAC/240VAC, material Base:brass. Made by Zhejiang Lefoo Controls Co., Ltd. (21 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Wire Terminal Heat Pump
- Model Number: LF08-20200427
- Max. Voltage: 240Vac
- Rated Voltage: 120VAC/240VAC
- Base Material: Brass
- Material: Base:brass
- Certification: UL CE ROHS
Technical Specifications
| Max. Working Pressure | 5000psi |
|---|---|
| Max. Voltage | 240Vac |
| Max. Current | 40.2A |
| Whether The Smart | No |
| Place Of Origin | Zhejiang, China |
| Model Number | LF08-20200427 |
| Brand Name | LEFOO |
| Product Name | LF08 Pressure Switch |
| Application | Water Oil Air |
| Media | Non Hazardous Gas |
| Connection | G1/4 |
| Rated Voltage | 120VAC/240VAC |
| Certification | UL CE ROHS |
| TERMINAL | 1/4 Blade |
| Base Material | Brass |
| Material | Base:brass |
| Switch Type | SPST NC |
| Packaging Details | LEFOO brand carton |
| Port Of Dispatch | SHANGHAI/NINGBO/GUANGZHOU PORT |
| Selling Units | Single item |
| Single Package Size | 56X28X16 cm |
| Single Gross Weight | 3.000 kg |
| Supply Ability | 50000 pieces per Month |
Product Details

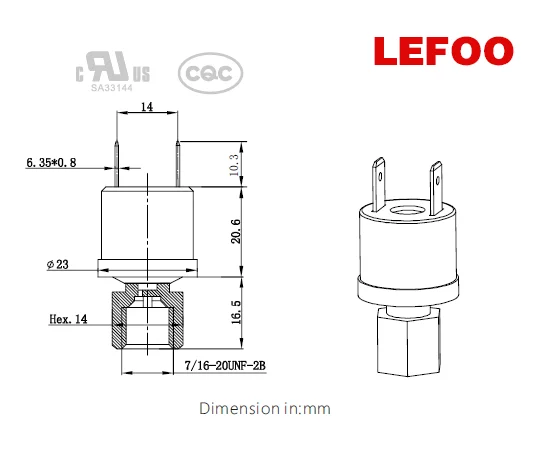

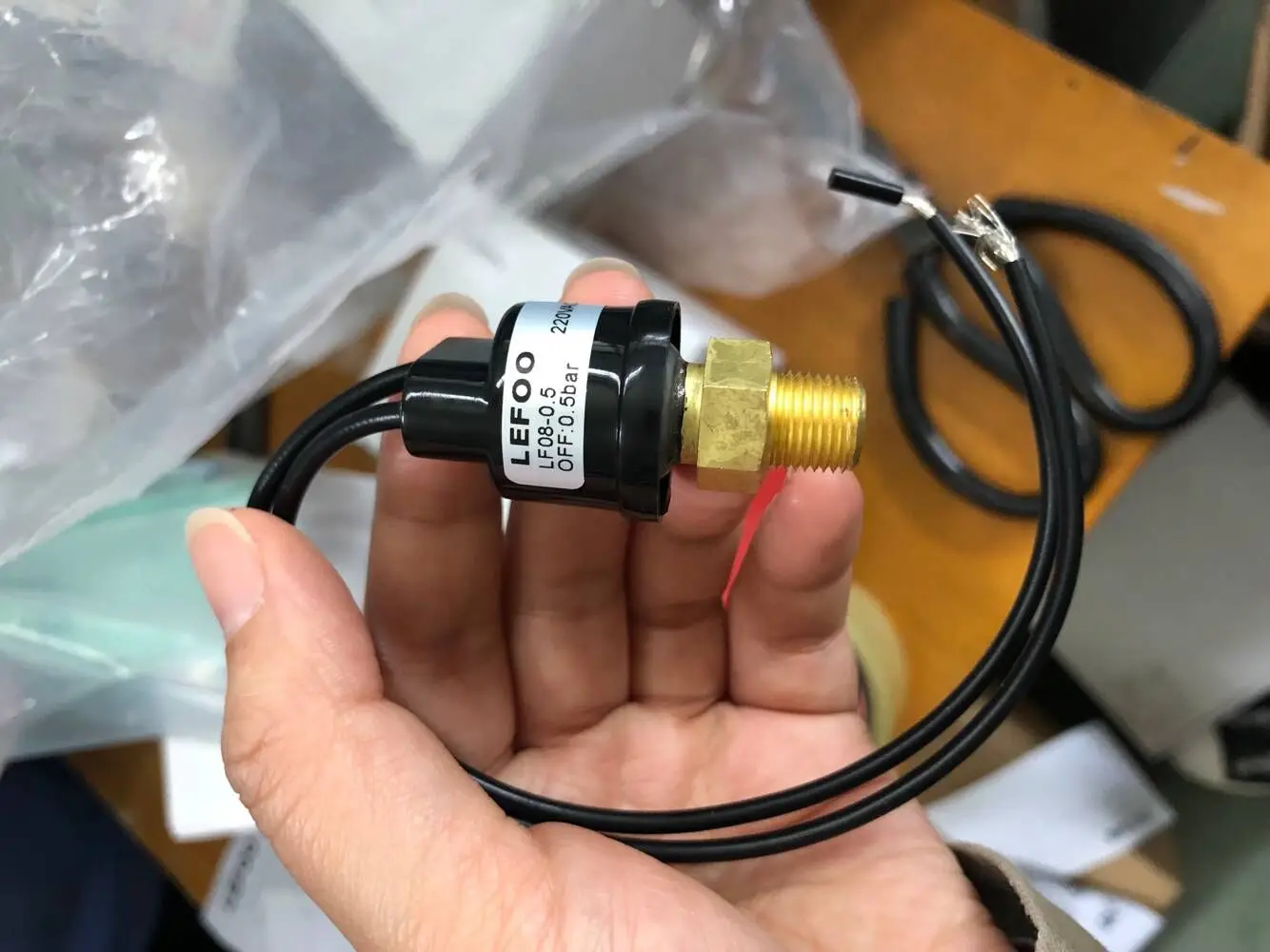

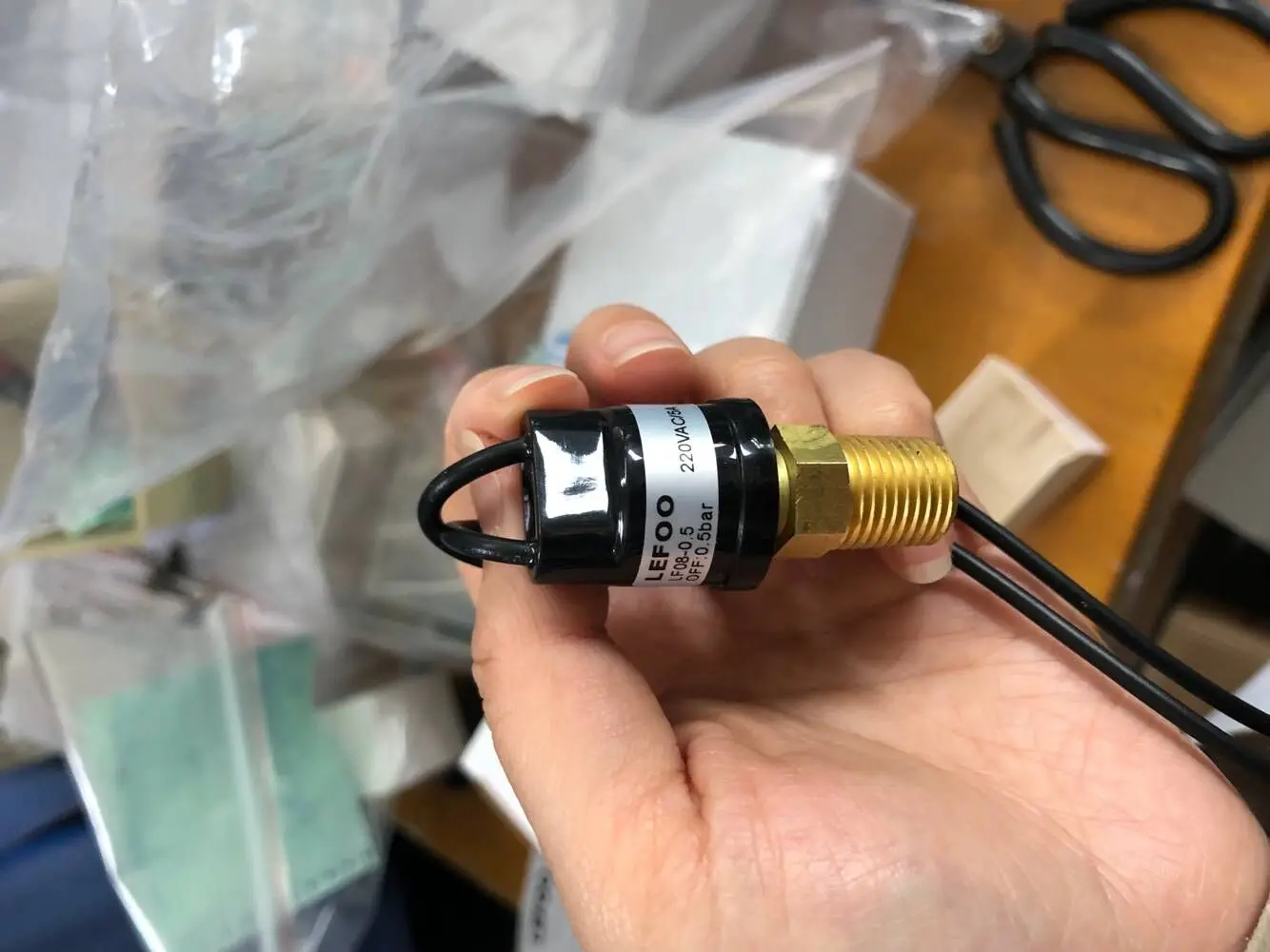

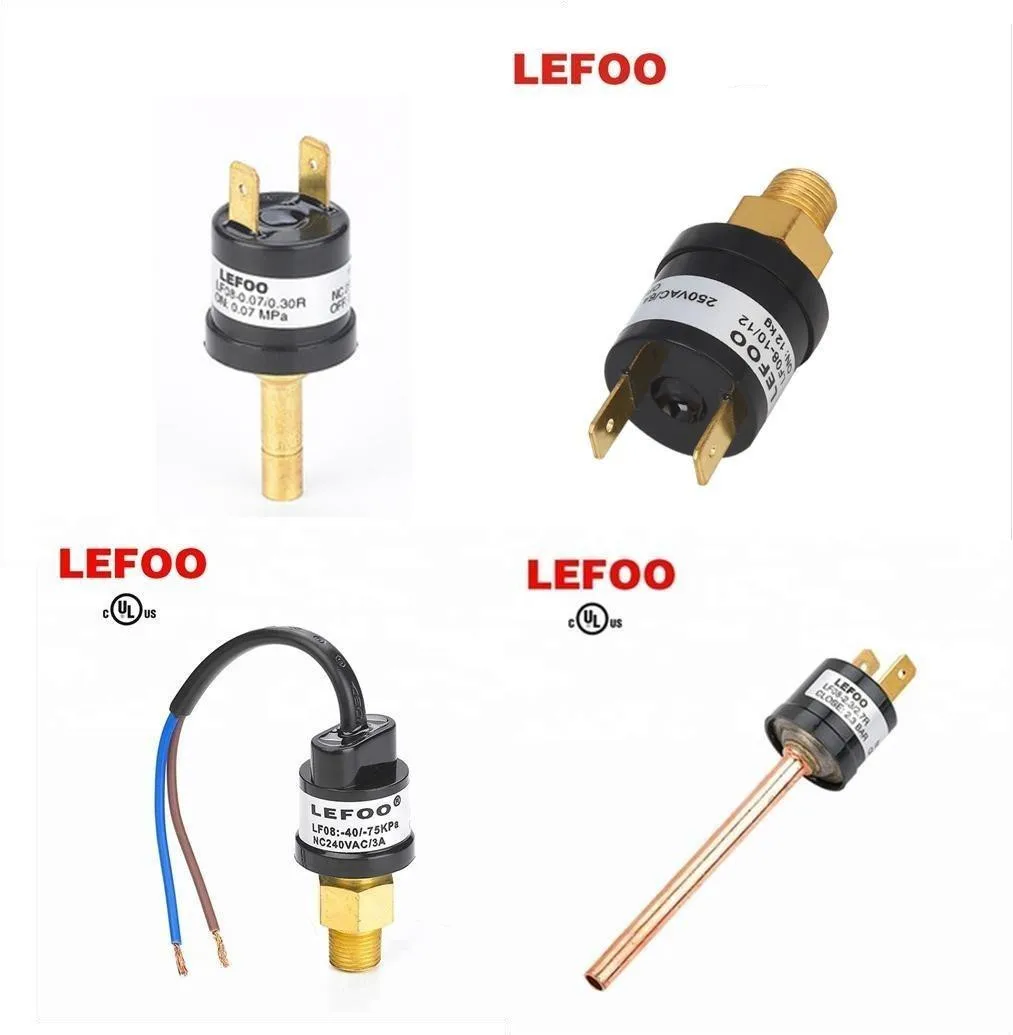

The LF08 switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and can be normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size andstyle push on terminals to wire leads with an array of standard industry connectors. In house machining capabilities allows Lefoo to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubbing for sawing operations.
Media | Air, water, motor oils, transmission oils, jet fuels and other similar Hydrocarbon Media |
Base Material | Brass / Plated steel |
Burst Pressure | 5000psi |
Temperature Range | Low ：-30~65℃ High ：-35~120℃ Medium：-50~120℃ |
Switch Type | SPST-NC / SPST-NO /SPDT |
Electrical Rating | 120Vac/240Vac |
Endurance | 100000cycles |
LEFOO Controls Co., Ltd
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $10 / piece
- 50–499 piece: US $6 / piece
- 500–4999 piece: US $5.5 / piece
- 5000+ piece: US $5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wire terminal heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this wire terminal heat pump carry?
It is supplied with UL CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the wire terminal heat pump be supplied for my local voltage?
The standard configuration is 240Vac. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

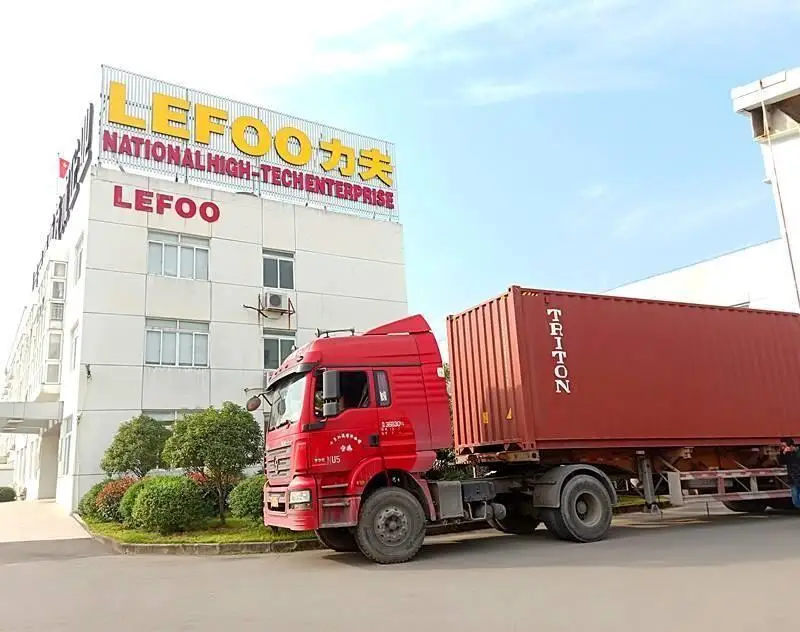

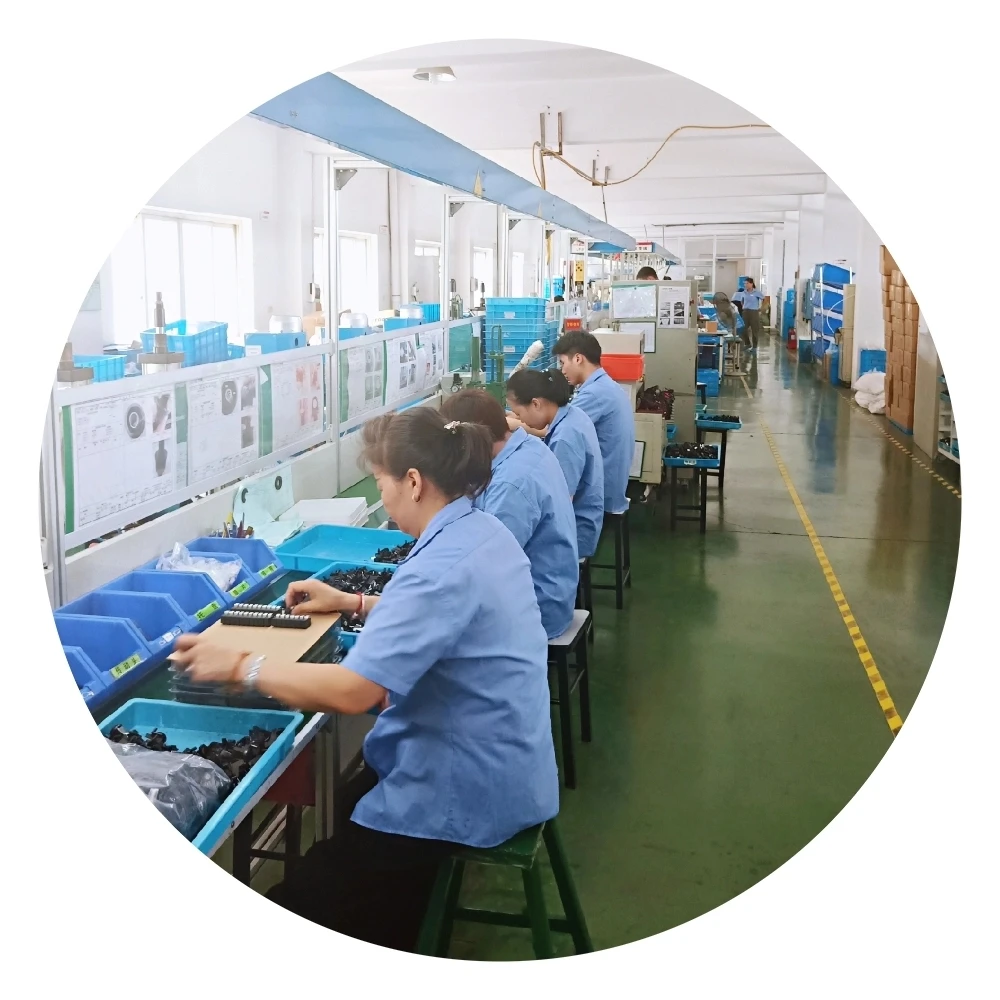

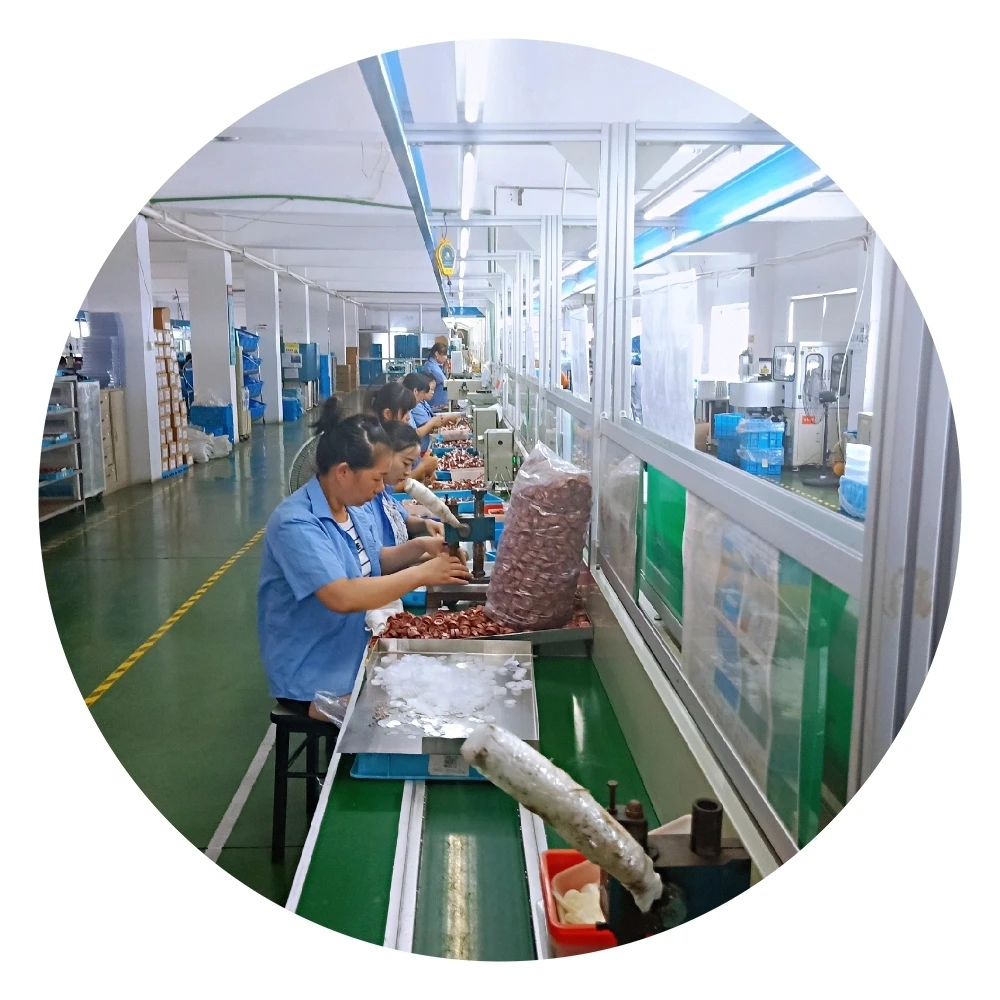

About the Manufacturer
This product is produced by Zhejiang Lefoo Controls Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Lefoo Controls Co., Ltd. range on HVACR Nexus.
