The heat exchange parts listed here carries model number LF08, documented exactly as the manufacturer publishes it. Made by Zhejiang Lefoo Controls Co., Ltd. (21 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Heat Exchange Parts
- Model Number: LF08
- Max. Voltage: 250VAC
- Base Material: brass or plated steel
- Place Of Origin: Zhejiang, China
- Application: Refrigeration system
- Single Package Size: 50X20X13 cm
Technical Specifications
| Max. Working Pressure | 45Bar |
|---|---|
| Max. Voltage | 250VAC |
| Max. Current | 5A |
| Whether The Smart | No |
| Place Of Origin | Zhejiang, China |
| Model Number | LF08 |
| Brand Name | LEFOO |
| Product Name | LF08 Air Conditioning Pressure Control |
| Color | Black |
| Application | Refrigeration system |
| Circuitry | SPST-NC, SPST-NO, SPDT |
| Base Material | brass or plated steel |
| Connection | 1/8NPT, 1/4NPT, R1/8, R1/4, G1/8 and so on |
| Electrical Connections | 6.35*0.8 or 4.8*0.8 |
| Media | Air, water, motor olis and so on. |
| Burst Pressure | 5000 psi |
| Packaging Details | 200pcs/carton |
| Port Of Dispatch | Shanghai, Ningbo |
| Selling Units | Single item |
| Single Package Size | 50X20X13 cm |
| Single Gross Weight | 3.0 kg |
| Supply Ability | 50000 pieces per Month |
Product Details

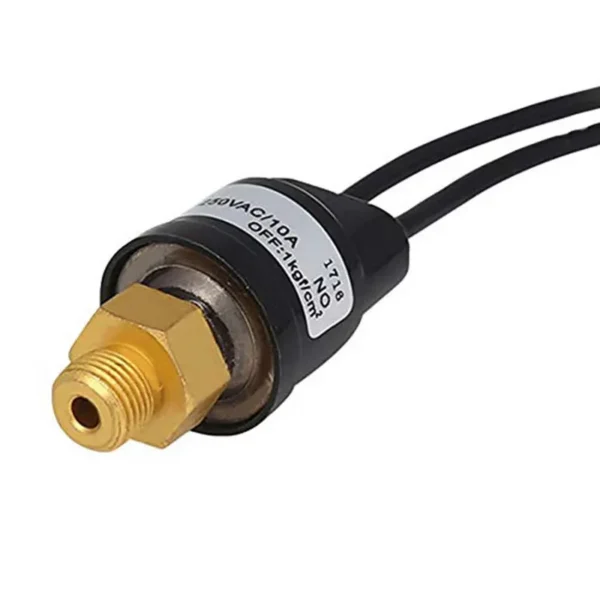

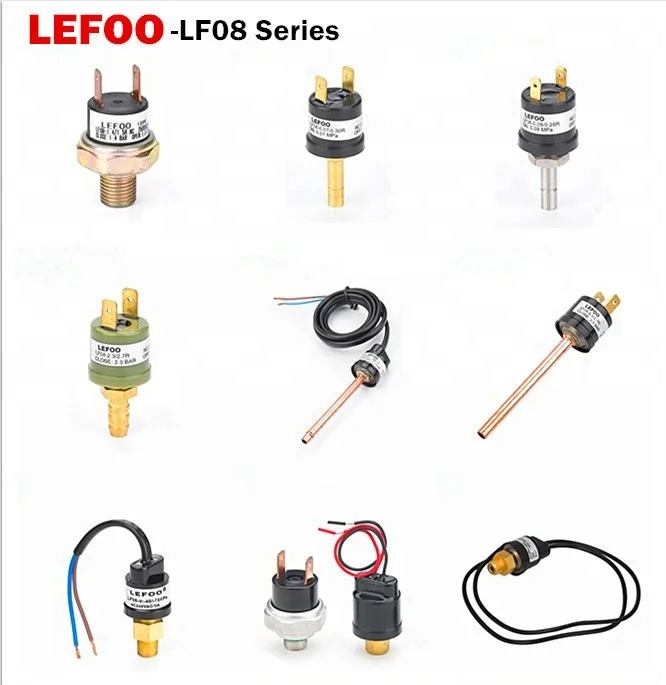

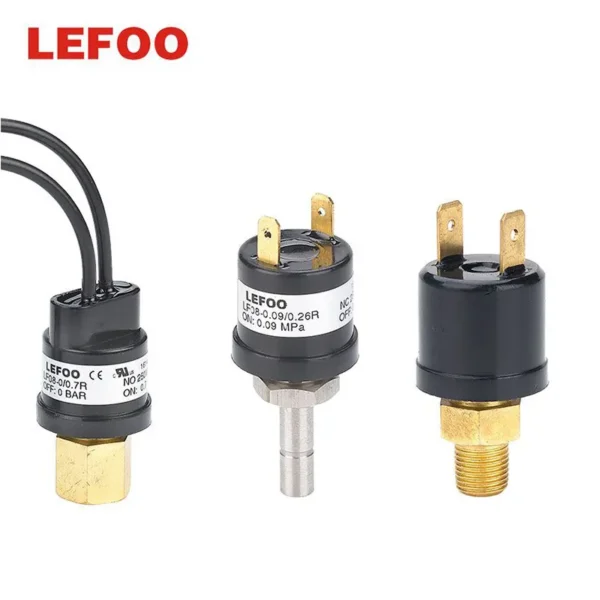

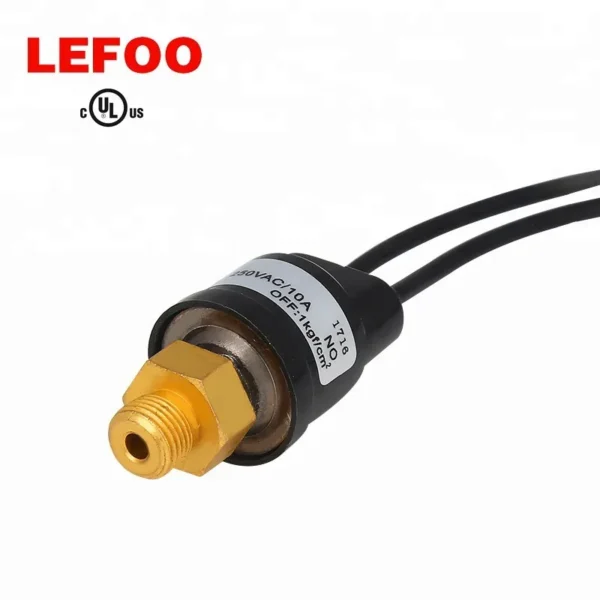

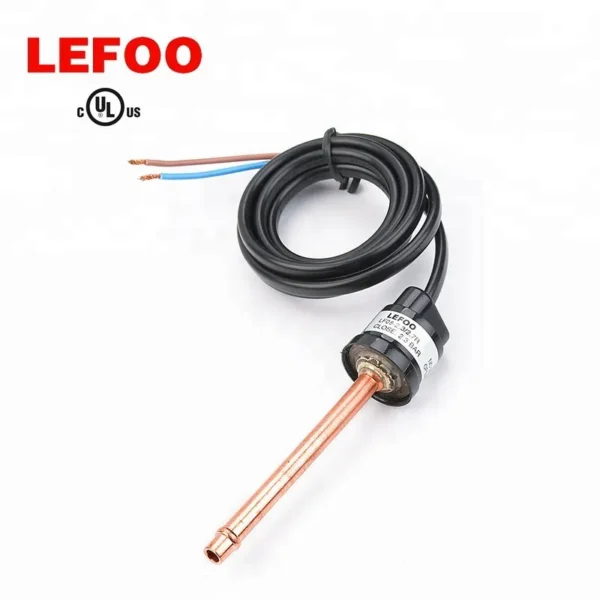

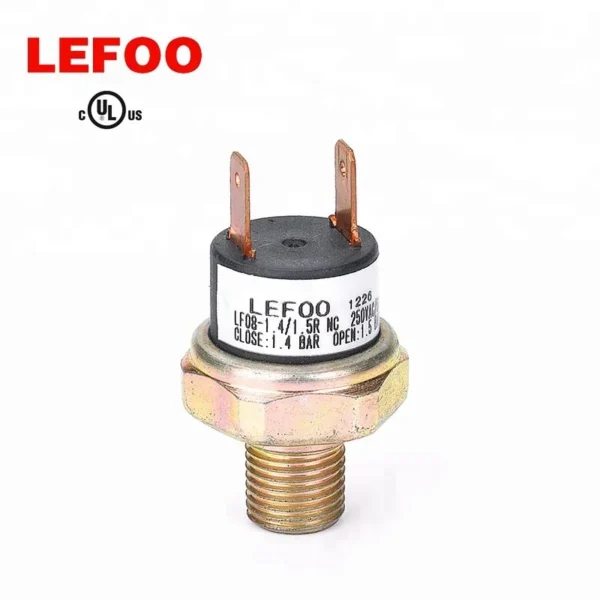

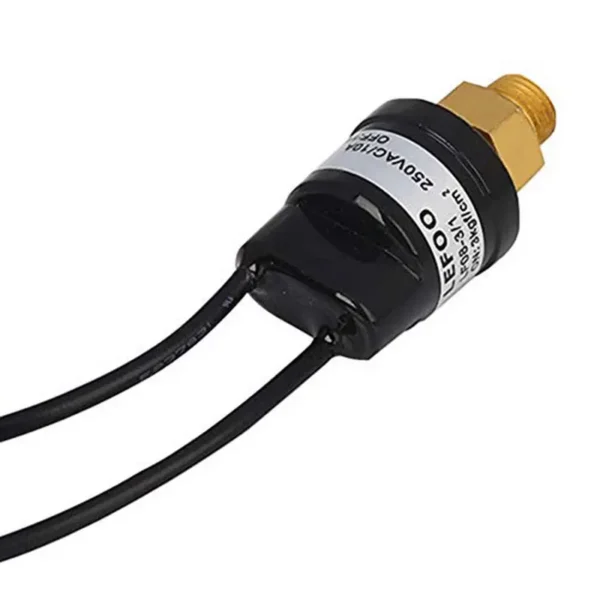

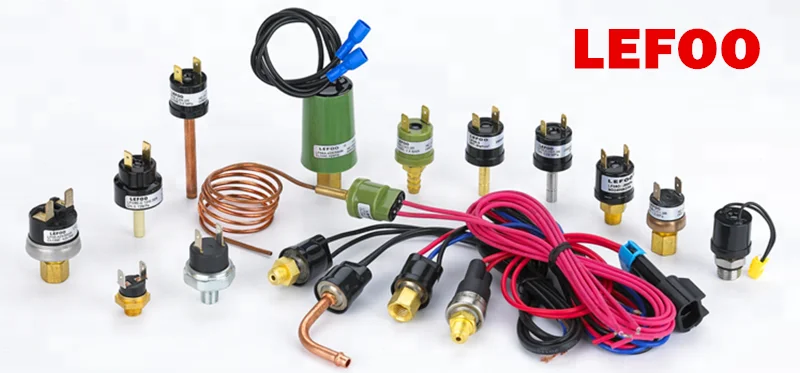

1. Product Pictures:
2. Product Specifications:
LF08 pressure control/pressure switch features
-
Automatic Reset Pressure switch designed.
-
Wide range of pressure settings & meet a board variety of application.
-
Used: Pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
-
Typical Applications: safety controls / air conditioning / refrigeration
ModelLF08MediaAir, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluidPressure Set Pointactuation from 0.2 to 45 BarMax Operating Pressure25 Bar for actuation up to 10 Bar35 Bar for actuation from 10-20 Bar45 Bar for actuation from 20- 45 BarProof Pressure35 Bar for actuation up to 10 Bar55 Bar for actuation from 10-20 Bar85 Bar for actuation from 20- 45 BarBurst Pressure5000 psi (345 bar) Operating Temperature Range-30° C to ~ 80° CSwitch TypeDirect action, blade contact, SPST NC, NOElectric Rating120/240VAC, 375VA
24VAC/DC, 2A
Dielectric Strength750 Vrms across open contacts
1550 Vrms terminals to fittingTerminals1/4 blade, wire leadLife at Related Load 100,000 cycles Connection1/8NPT, G1/8", 1/4NPT, G1/4" Options various connector thread sizes; wire leads (potted & sealed); protective cover.
3. Product Dimensions(mm) :

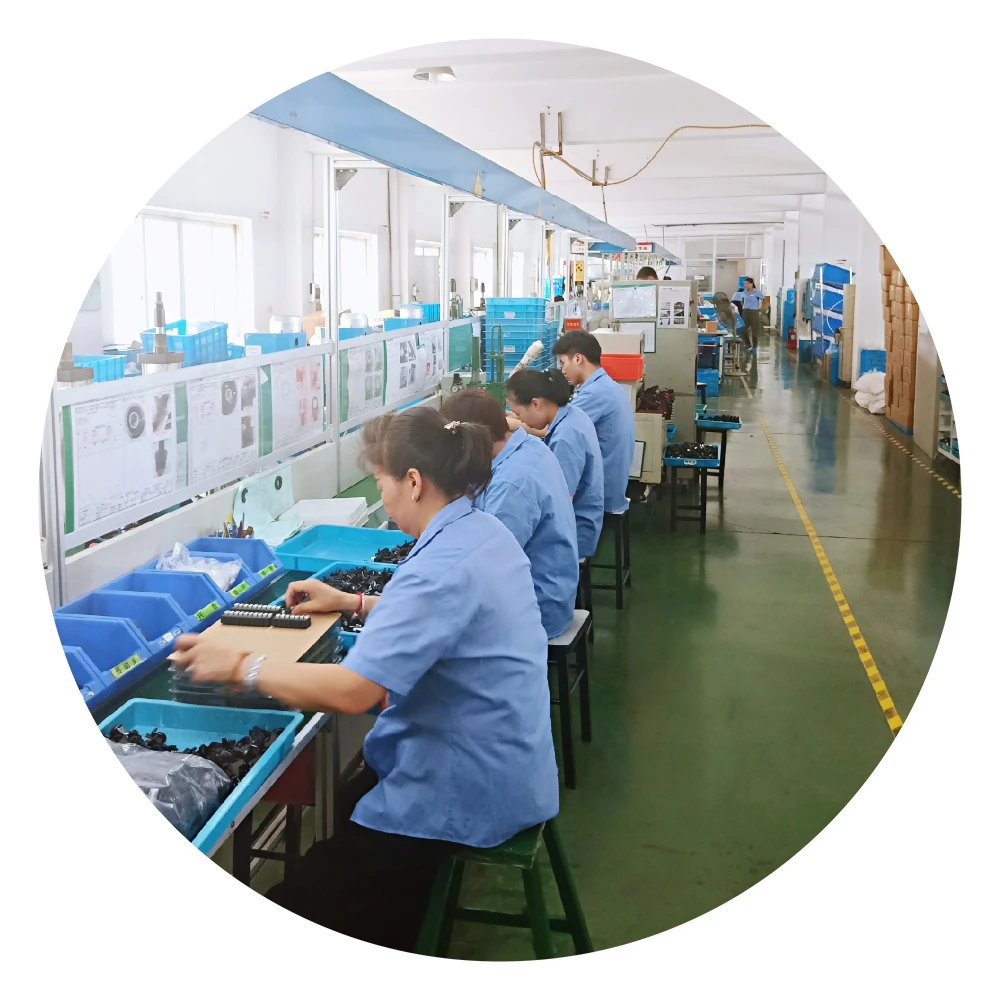

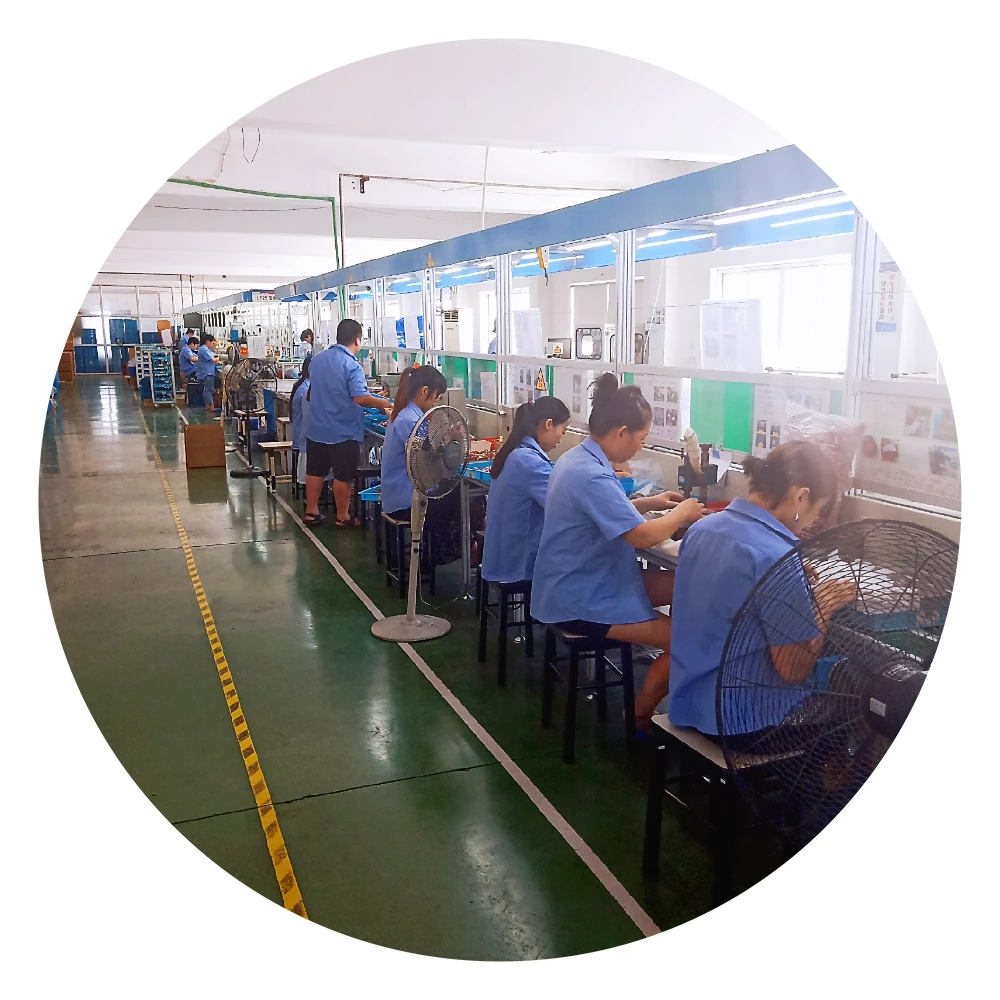

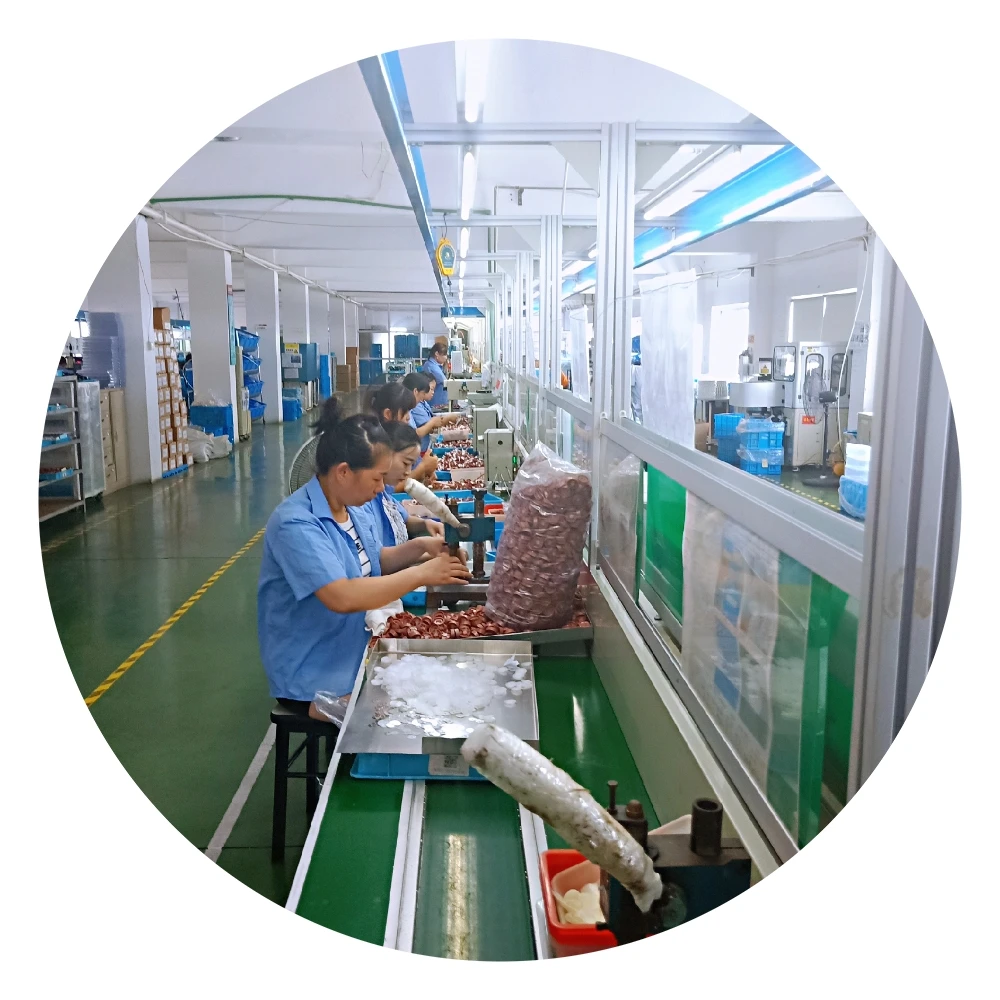

4. Production Lines:
5. Patens:
6. Quality Control:
7. Why choose us?
25 patents
45 products were certified with UL,CSA,VDE,CCC and CE
50 engineers teamed for R&D
Coorperation experience with member in fortune global 500
8. LEFOO Exhibitions:
2019. 3 Acrex India
2019. 1 Ahr Expo
2018. 6 Aquatech Shanghai
2018. 4 Canton Fair
2018. 4 China Refrigeration show
2018.3 MCE Milano
2018.1 AHR Chicago
9. Packing and shipping:
If you are willing to know more
details, pls contact me freely!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $10 / piece
- 50–499 piece: US $6 / piece
- 500–999 piece: US $5.5 / piece
- 1000+ piece: US $5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat exchange parts?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the heat exchange parts be supplied for my local voltage?
The standard configuration is 250VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Lefoo Controls Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Lefoo Controls Co., Ltd. range on HVACR Nexus.
