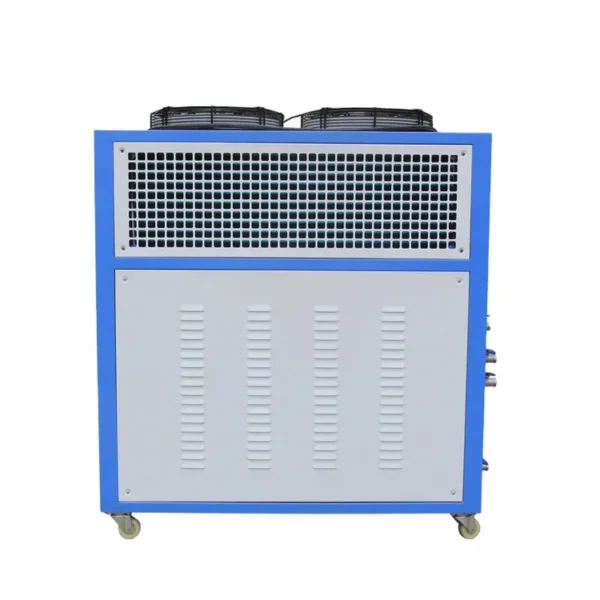

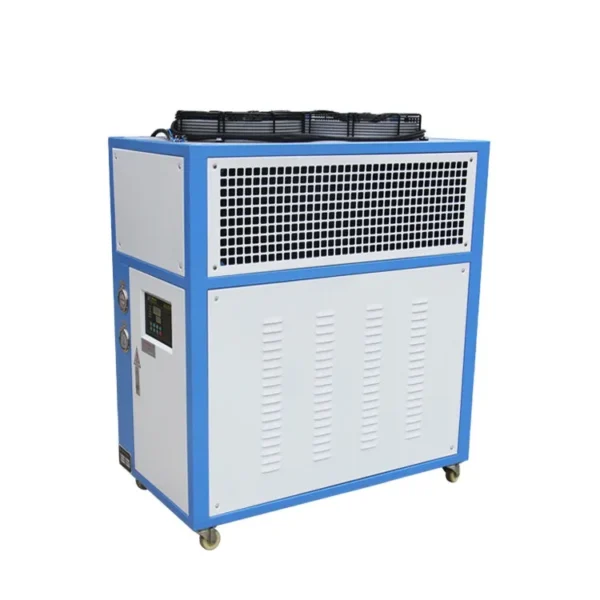

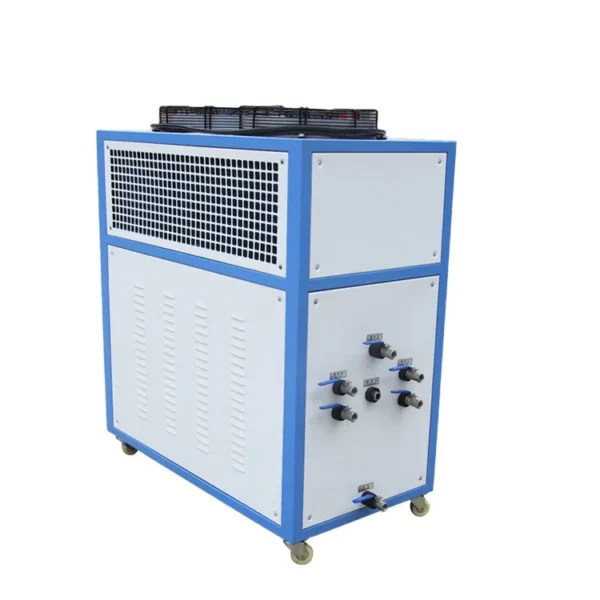

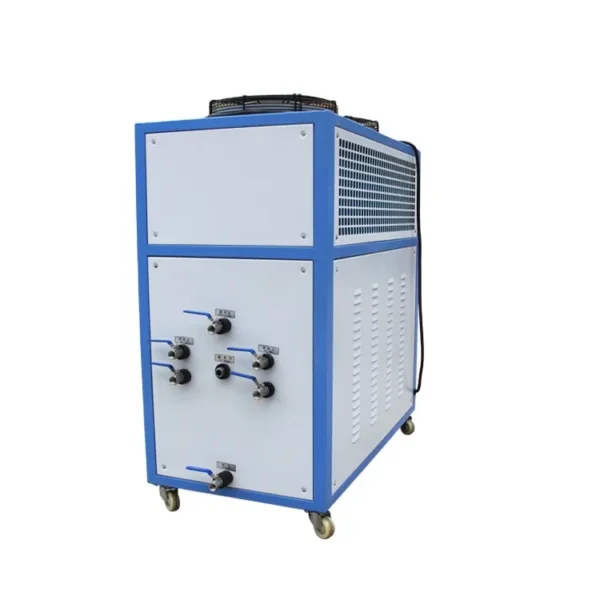

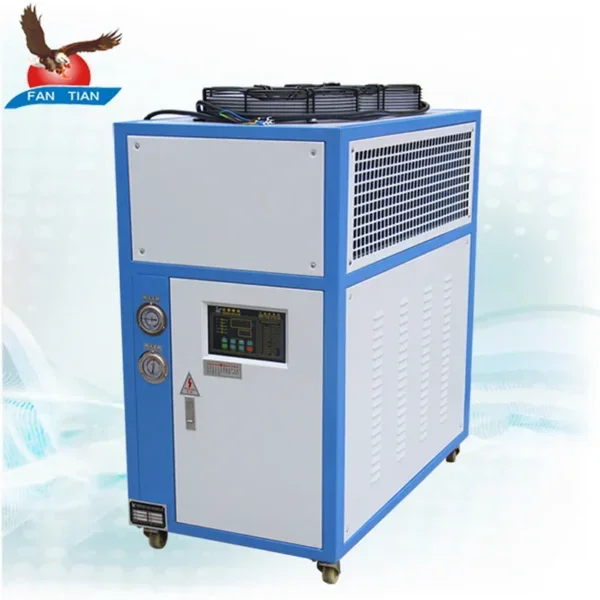

Air-cooled chiller — voltage 3N-380V/415V 50HZ/60HZ, 7.5kw(10.06hp). The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air-Cooled Chiller
- Power: 7.5kw(10.06hp)
- Voltage: 3N-380V/415V 50HZ/60HZ
- Refrigerant: R22/R404a/R407c/R134a
- Warranty: 1 Year
- Certification: CE and ROHS
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 3N-380V/415V 50HZ/60HZ |
|---|---|
| Power | 7.5kw(10.06hp) |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Accurate Temperature Control |

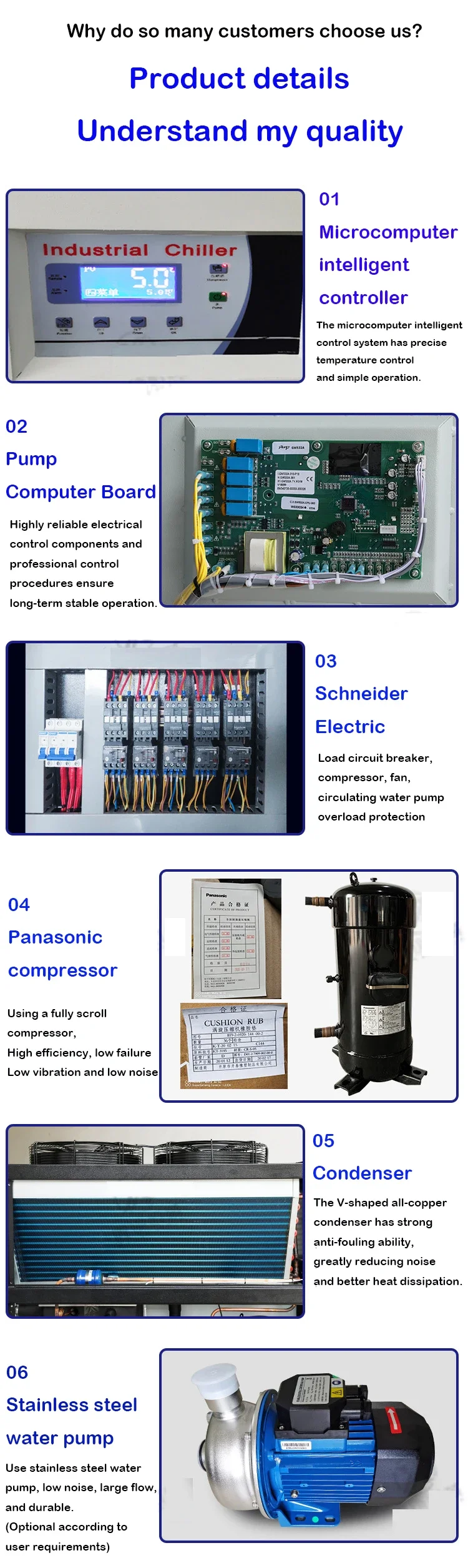

| Core Components | Pump, condenser, evaporator, punp controller, compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 500 |
| Brand Name | Hongsai |
| Dimension(L*W*H) | 160x90x168cm(62.99×35.43×66.14in) |
| Working Temperature Range | 5-25℃(9-45℉) |
| Certification | CE and ROHS |
| Refrigerant | R22/R404a/R407c/R134a |
| Temperature Range | 3degree-room Temperature(Below 0degree) |
| Color | Gray, Blue + White |
| Application | Industrial Cooling |
| Evaporator | Coil and tank |
| Condenser Type | Finned Copper |
| Compressor | Hermetic Scroll or Piston Compressor |
| Selling Units | Single item |
| Single Package Size | 123X68X123 cm |
| Single Gross Weight | 250.0 kg |
Product Details

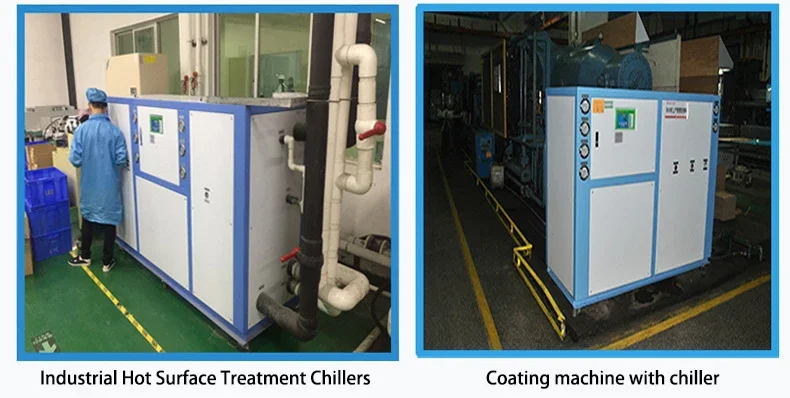

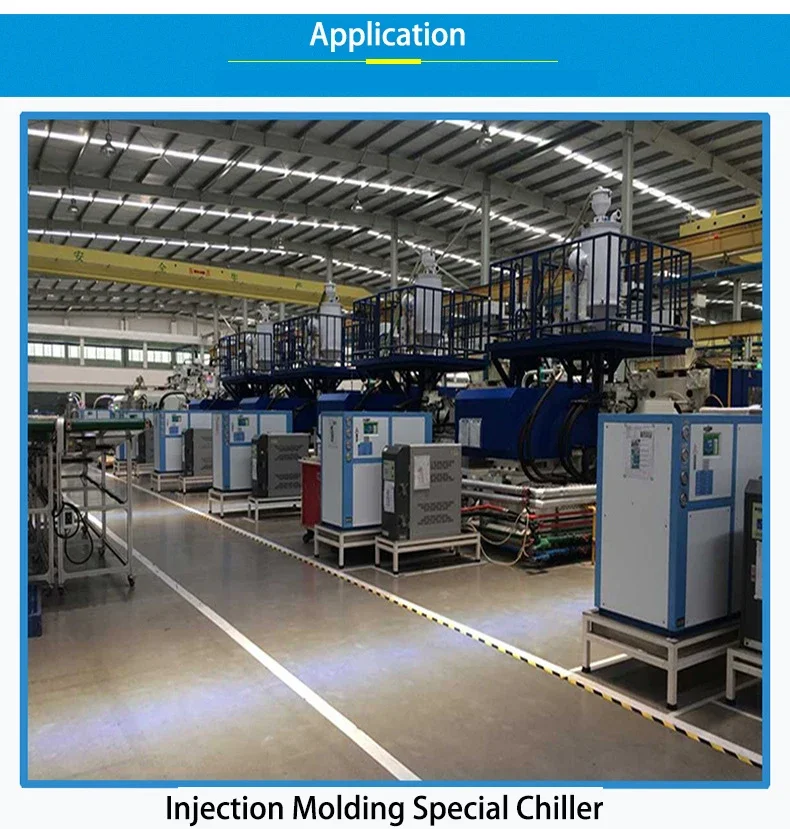

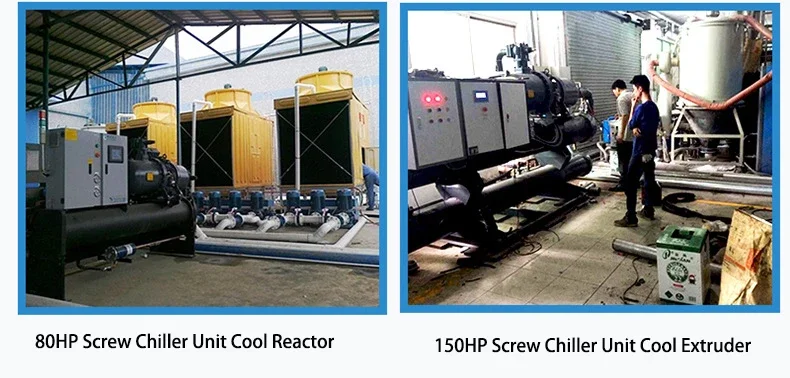

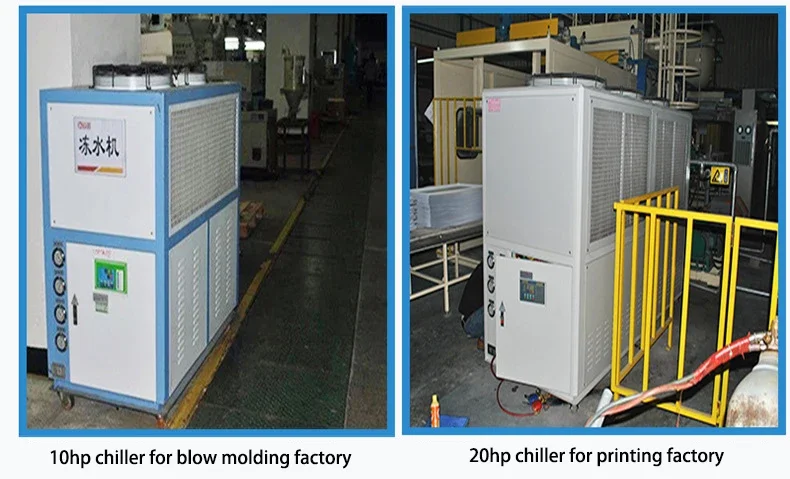

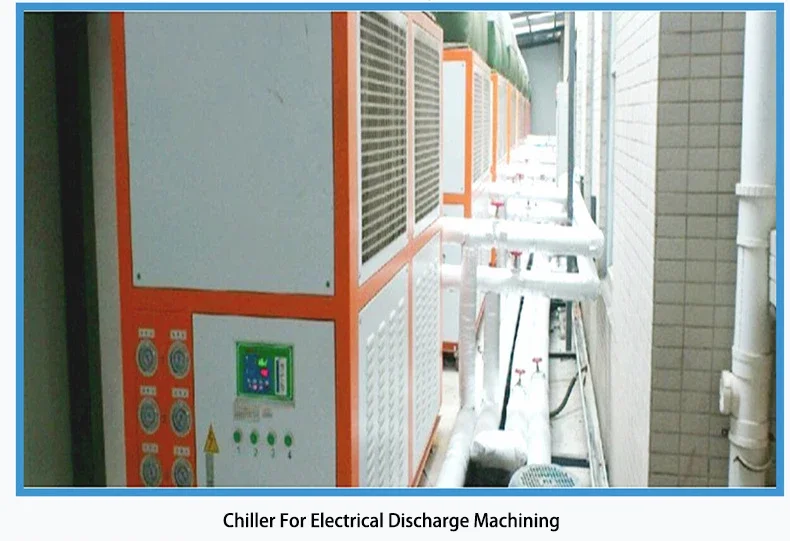

It can be widely used in various industrial refrigeration processes such as plastic stranding, electroplating, electronics, chemicals, printing, food processing and other fields that need to use frozen water, or in large shopping malls, hotels, factories, hospitals and other central air-conditioning projects. The field of concentrated supply of chilled water (special low temperature can reach 45 degrees)
| Hot-Selling Products Catalogue | ||||||
| 1. Model | HS-001A | HS-01A | HS-02A | HS-03A | HS-04A | HS-05A |
| 2. Cooling capacity | 1.4 KW | 2.5 KW | 5 KW | 7.5 KW | 10.8 KW | 12.5 KW |
| 1,205 Kcal/h | 2,153Kcal/h | 4,306Kcal/h | 6,459Kcal/h | 9,301 Kcal/h | 10,765Kcal/h | |
| 3. Temperature range | 3~30 ℃ (it can be customization) | |||||
| 4. Voltage | 1phase 220v 50hz(it can be customization) | 3phase/ 380v/ 50hz(it can be customization) | ||||
| 5. Total power | 0.91KW | 1.26KW | 2.01KW | 3.28KW | 4.03KW | 4.86KW |
| 6. Compressor | Type:Hermetic Scroll Type or Piston | |||||
| Power:0.4kw | Power:0.75kw | Power:1.5kw | Power:2.25kw | Power:3kw | Power:3.75kw | |
| 7. Cooling fan | Air volume:2670m³/h | 5,340m³/h | 7000m³/h | |||
| Power: 0.14kw | Power: 0.28kw | Power: 0.46kw | ||||
| 8. Condenser | Efficient brass sets corrugated aluminum fin | |||||
| 9. Evaporator | Inlet and outlet port:G1/2 ‘’ | Inlet and outlet port:G1 ‘’ | ||||
| Type:tank and coils | ||||||
| 10.Tank | 30~40 liters | |||||
| 11. Pump | Power: 0.37kw | Power: 0.75kw | ||||
| 12. Size | 83x53x95cm | 116x60x122cm | 136x63x145cm | |||
| 13. Weight | 198kg | 250KG | 350KG | |||
Q1: Where can l get product&price information? How to start a custom-made project with your company?
A1: Write down your requirement and send us email. According to the drawings,descriptions and the technical proposal you offer us,we will meet your demand.
Q2: How do you deal with the quality control?
A2: Good quality is our culture. 100%Inspection before shipment.
Q3: How to choose a right water chiller?
A3: To make sure the water flow inlet and outlet,temperature machine need, Phase/Voltage/Frequency,then we will calculate a right cooling capacity need for you.
Q4. Are you a factory or trading company?

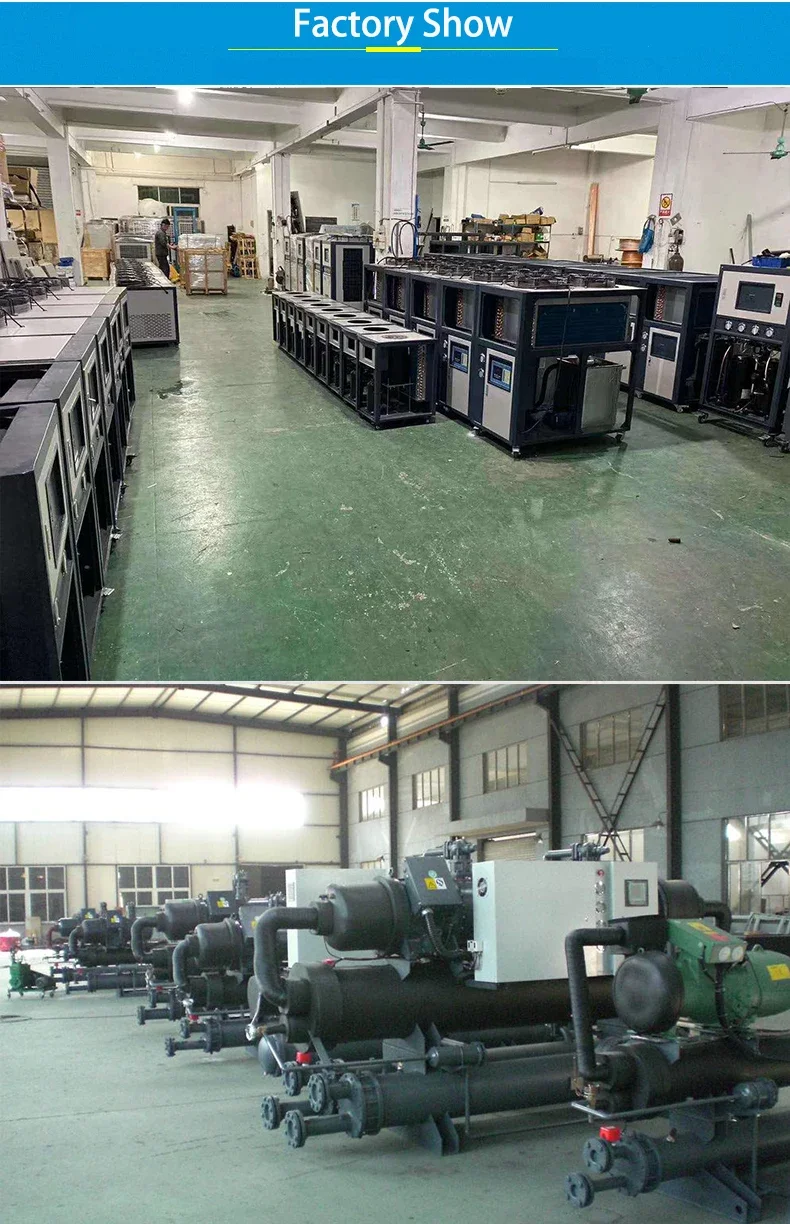

A4: We are a professional manufacturer and it have factory. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q5: How to deal with quality problem?
A5: Quality is the first place in our business. Please call us at any time. We will give you a best reply and solution.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3127 / set
- Ships from: China

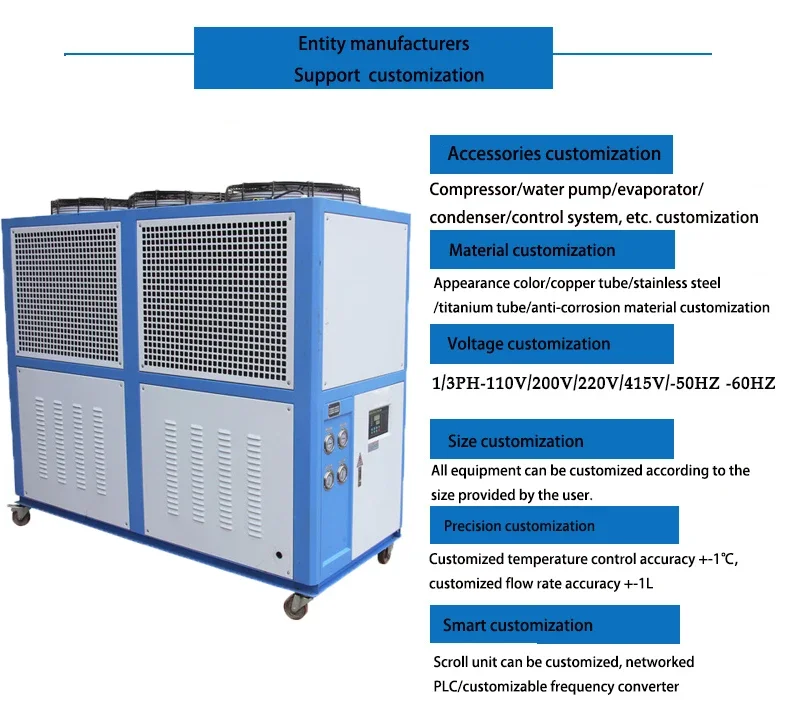

- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-cooled chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

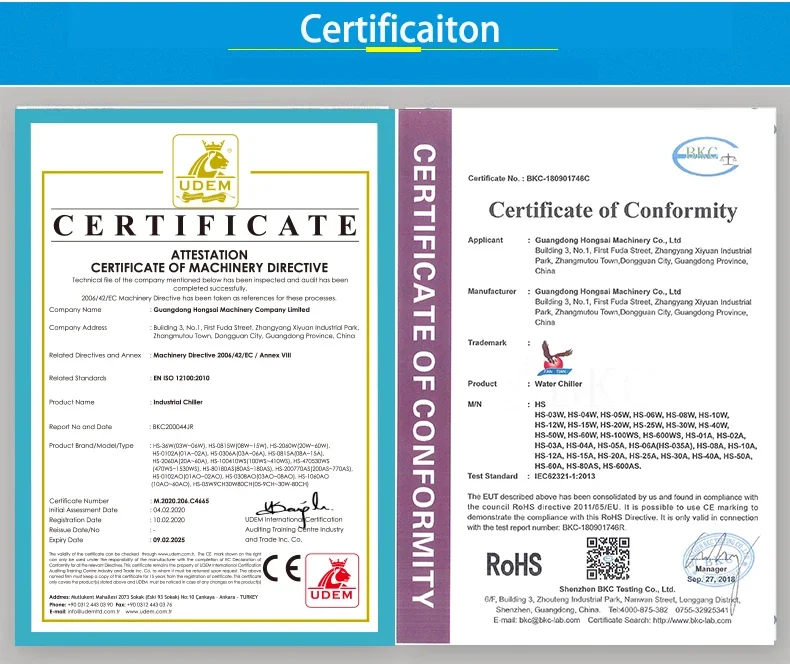

Which certifications does this air-cooled chiller carry?
It is supplied with CE and ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air-cooled chiller be supplied for my local voltage?
The standard configuration is 3N-380V/415V 50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
