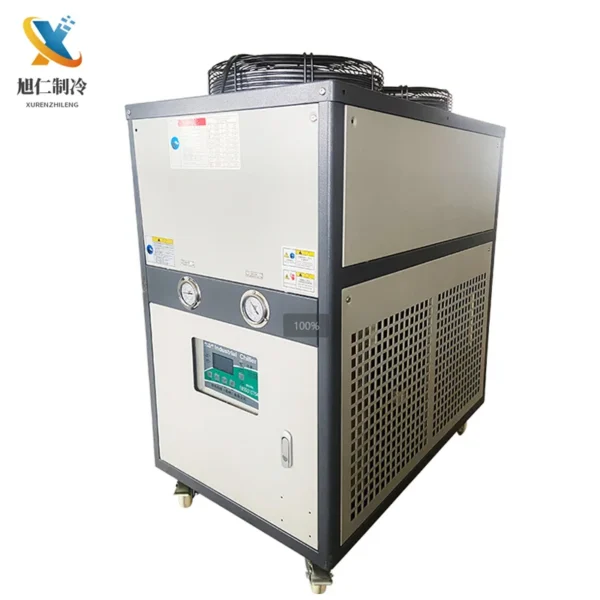

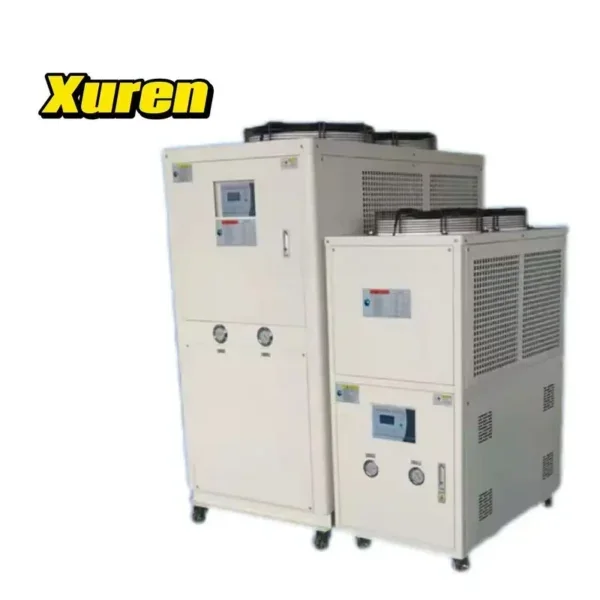

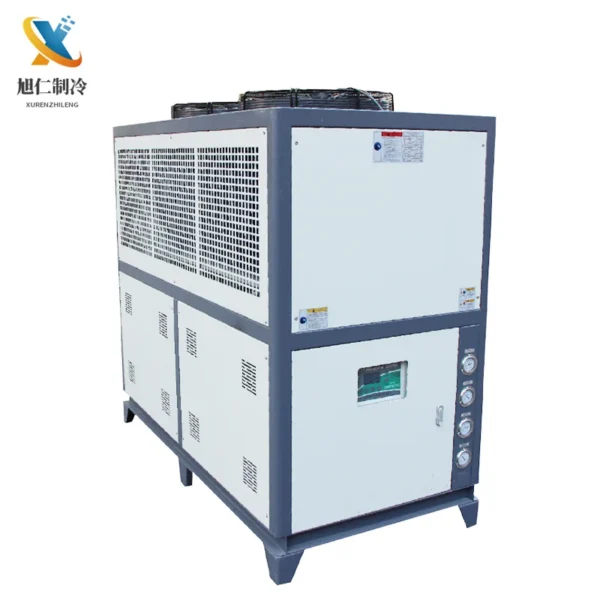

The air-cooled industrial water chiller listed here carries 380v-3n-50hz, 1hp, documented exactly as the manufacturer publishes it. Made by Suzhou Xuren Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air-Cooled Industrial Water Chiller
- Model Number: XR-1HP
- Power: 1hp
- Voltage: 380v-3n-50hz
- Warranty: 1 Year
- Warranty Of Core Components: 1 year
- Place Of Origin: Shandong, China
Technical Specifications
| Voltage | 380v-3n-50hz |
|---|---|
| Power | 1hp |
| Compressor Brand | Other |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic |
| Core Components | Pump. |
| Model Number | XR-1HP |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 45 |
| Brand Name | Xuren |
| Dimension(L*W*H) | 2050*1100*1650mm |
| Working Temperature Range | -5 to 35 degree(can be customized) |
| Weight | 75 |
| Warranty Of Core Components | 1 year |
| Product Name | Ice Bath Chiller |
| Application | Industrial Cooling Solutions |
| Function | Circulating Cooling Water |
| Keyword | ChiIler |
| Name | Water Chiller Water Cooler Machine |
| Chiller | Air-cooled Chilling Equipment |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Contact me for consultation! Get free customization requirements!
For more discounts, please consult me!

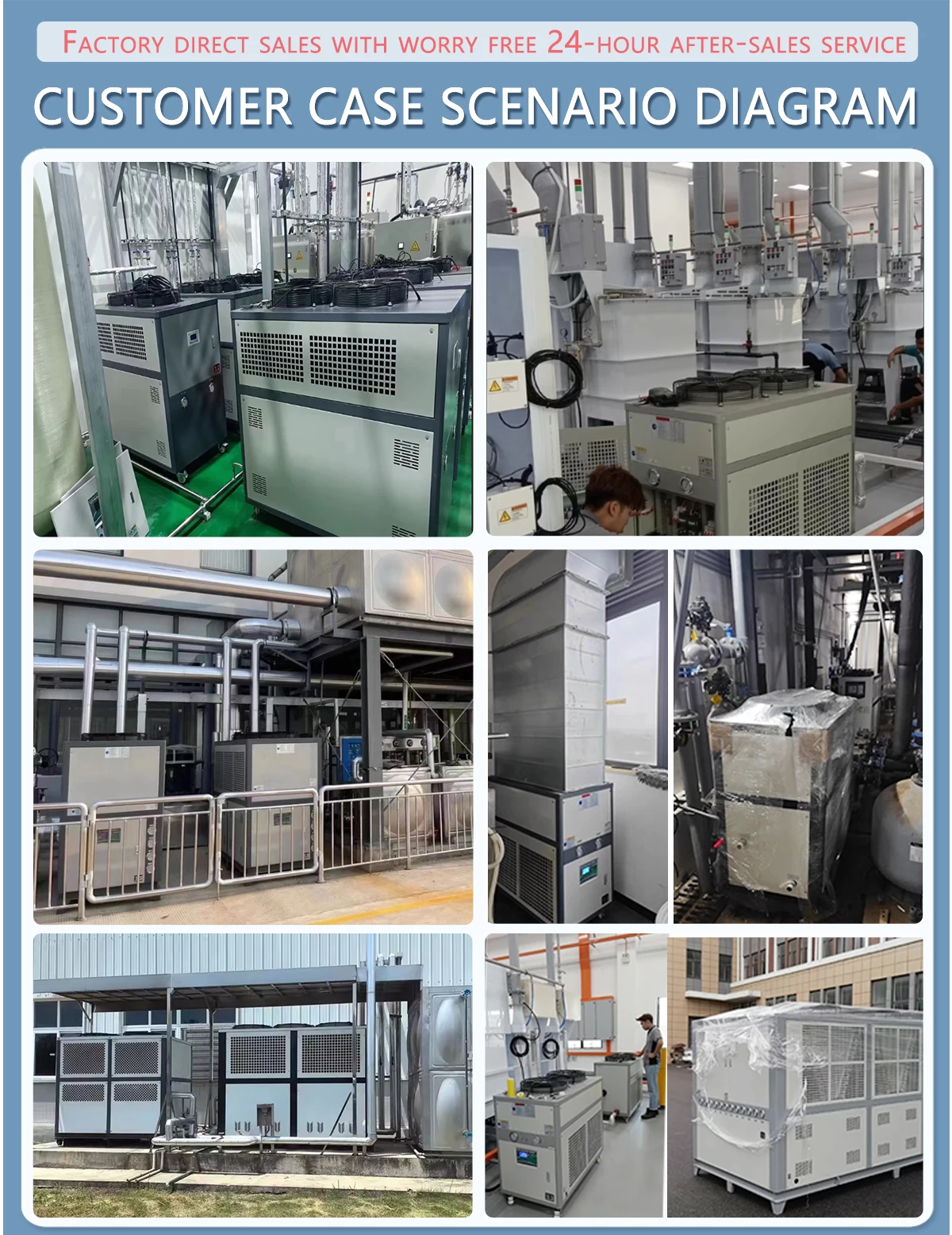

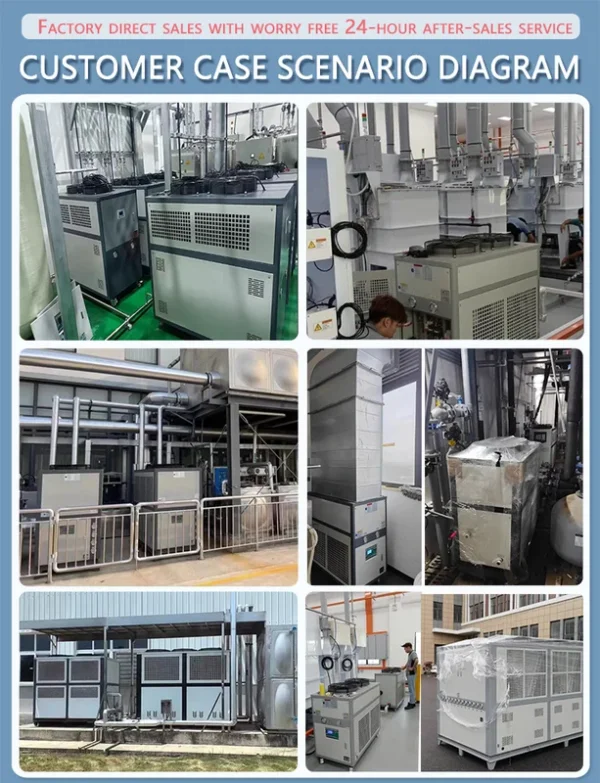

Company customer case presentation
Product Description
Factory direct sales, industrial chiller
Strong refrigeration capacity The refrigeration capacity of industrial chillers ranges from a few kW to thousands of kW. They can meet the cooling needs of various large-scale equipment and processes in different industrial fields such as chemical, pharmaceutical, and electronic industries. They can quickly take away a large amount of heat and maintain the production environment or equipment at a suitable temperature.

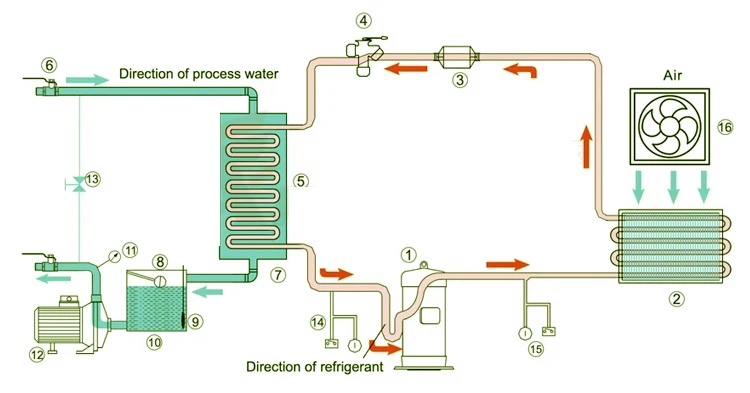

Working Principle

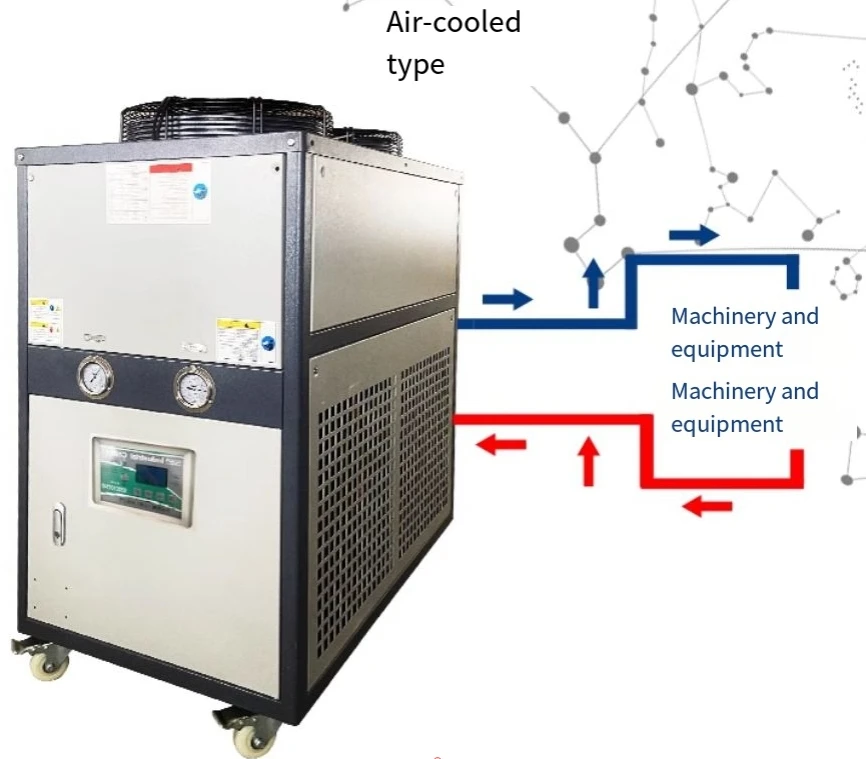

When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.
Application Scope in the Industry

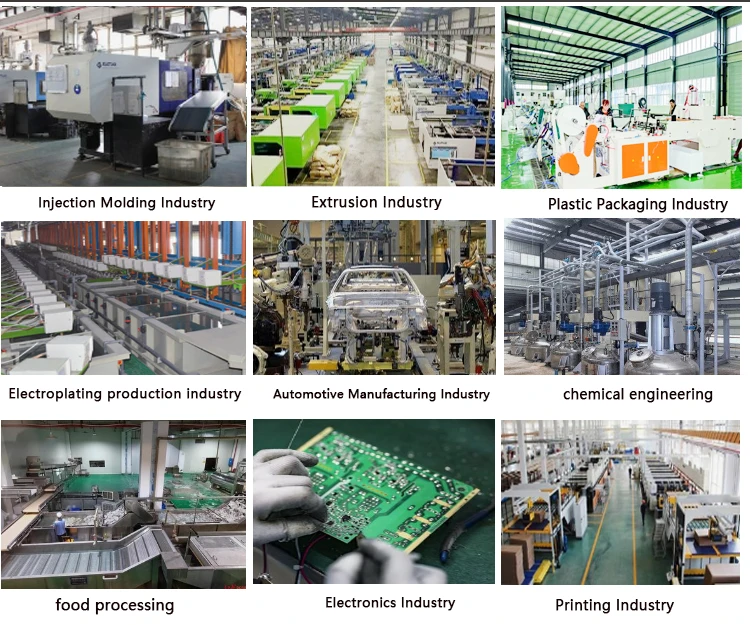

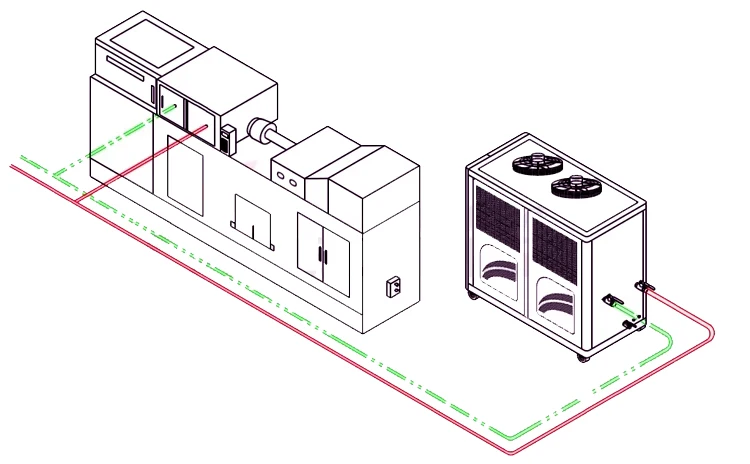

Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.
Highlights of the Product

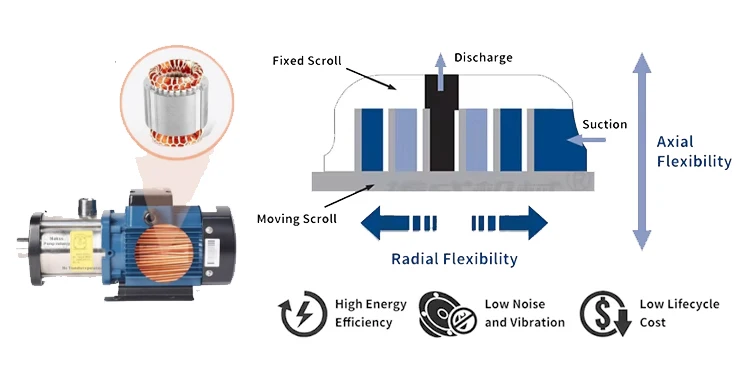

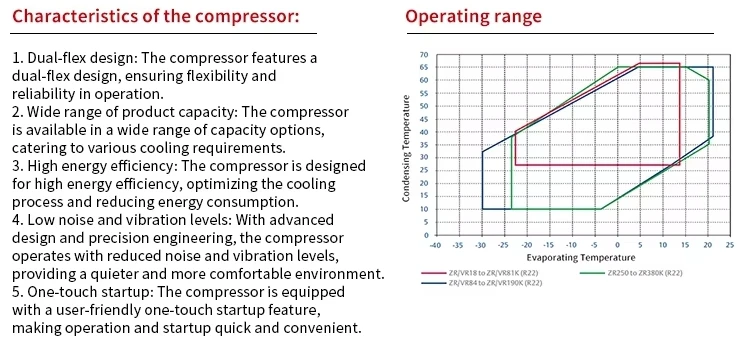

Scroll Compressor
The entire range of xuren air cooled chillers utilizes scroll compressors. The compressor serves as the heart of the entire
refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.
refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.
Shell and Tube Evaporator
The air cooled chiller utilizes a shell and tube evaporator. In this system, the refrigerant evaporates inside the heat exchange tubes, while water flows on the shell side. To enhance the heat exchange efficiency, a 2mm thick baffle plate is installed on the shell side, causing the water to flow back and forth to create ice brine. Additionally, to maintain a stable operating temperature, the exterior shell of the evaporator is covered with insulation material. For the heat exchange tubes, we employ high-efficiency seamless copper tubes. These tubes undergo a grooving process to form internal thread fins, thereby increasing the heat exchange surface area with the refrigerant. With this technology, the heat transfer area is doubled, significantly improving the heat transfer efficiency.

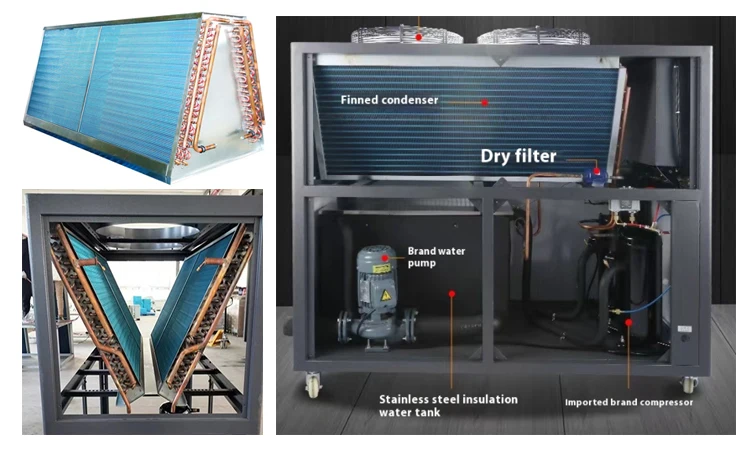

Finned Type Condenser
By adopting a high-efficiency copper tube with aluminum finned type condenser, the air cooled chiller effectively dissipates heat. The finned structure increases the heat exchange surface area between the condenser and the surrounding environment, improving the heat dissipation efficiency. The excellent thermal conductivity of copper tubes, combined with the efficient heat dissipation characteristics of aluminum fins, ensures high efficiency during the cooling process. Additionally, the application of light water aluminum and blue aluminum foils provides an additional protective layer. They help prevent corrosion of the copper tubes in corrosive environments, thereby extending the lifespan of the condenser and maintaining optimal refrigeration performance.
The chiller is used in the plastic processing machinery mold cooling, electroplating industry,machinery industry, building industry, vacuum coating and food industry,etc.
Specification
dimension(l*w*h) | 2050*1100*1650mm |
working temperature range | -5 to 35 degree(can be customized) |
Product name | Ice Bath Chiller |
Brand Name | OEM |
Application | Industrial Cooling Solutions |
Function | Circulating Cooling Water |
Keyword | ChiIler |
Name | Water Chiller Water Cooler Machine |
Cooling capacity | 18KW~4000KW |

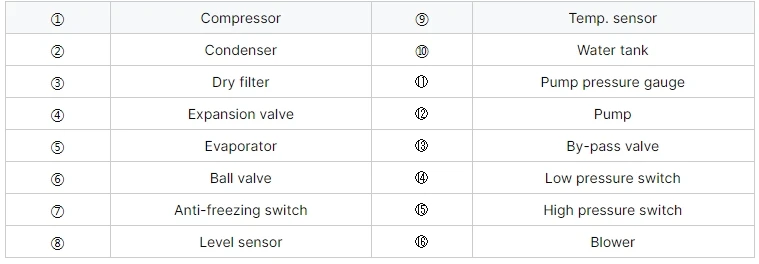

Core Components | Pump, Compressor, Evaporator, Fan, Condenser, Tank |
Voltage | 208-230V,380-420V,440-480V,50Hz or 60Hz,3phase |
Refrigerant | R134a, R407c, R410a |
FAQ
Why choose us? *We are a professional manufacturer with 25 years of manufacturing experience. *We support OEM/ODM and can meet various customer requirements. We also provide you with multiple styles. *If you are interested, you can serve as our agent there. Lower price and faster delivery time. *Our delivery speed is fast, with less than 10 sets of regular styles shipped within 10 days. *After sales service guarantee, one-year quality guarantee, only replacement, no repair, 24-hour online after-sales service. *Transportation guarantee, damage guarantee. *Wooden packaging is safe and sturdy. *DDP services exported to over 90 countries
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-cooled industrial water chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air-cooled industrial water chiller be supplied for my local voltage?
The standard configuration is 380v-3n-50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Xuren Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Xuren Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
