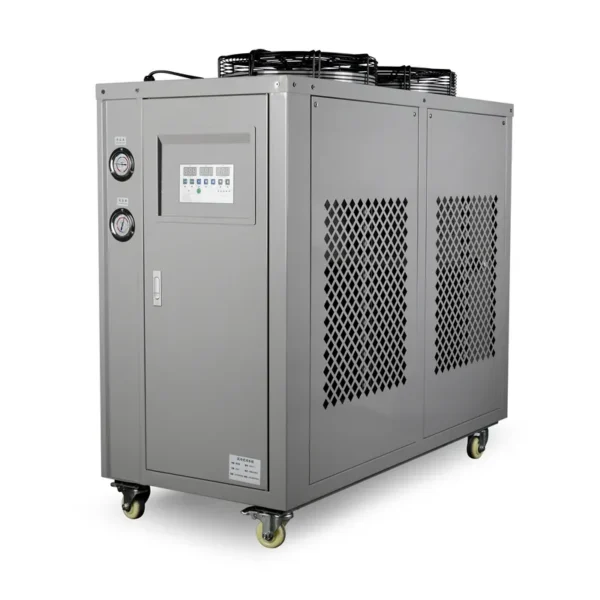

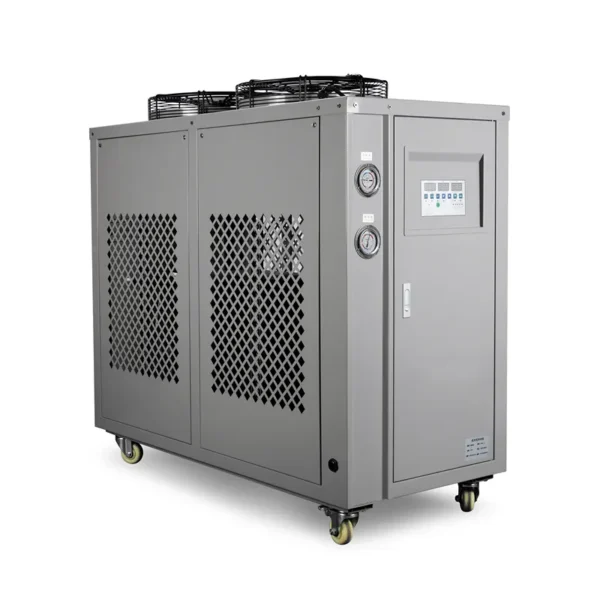

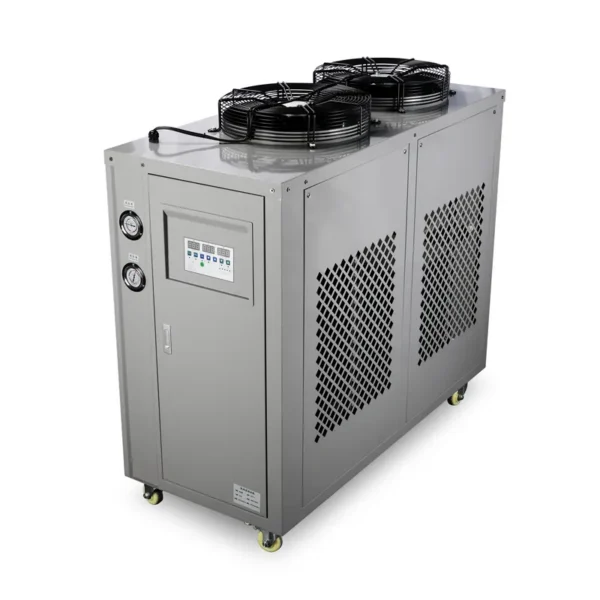

Air Cooled Screw Chiller, 5HP, 380 V, 1660W

This air cooled screw chiller is published with the manufacturer’s full specification — 380 V, 1660W. Made by Foshan Springvive Equipment Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Cooled Screw Chiller

• Power: 5.3KW
• Machine Power:: 5300W
• Compressor Power:: 470W
• Voltage: 380 V
• Working Voltage: AC3HP 380V
• Cooling Capacity:: 1660W

Technical Specifications

Product Details

Specifications

Working Voltage	AC 220V/50Hz or AC 110V/60Hz
Input Power	5300W
Compressor Power	4700W
Cooling Capacity	1700W
Refrigerant	R410A/R22
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Capacity	80L
Pump Flow	50L/min
Pump Lift	26m
Type of Cooling	Air Cooling
External Dimension	131*120*68cm
Output Protection	Multiple protected output
Net Weight	188kg

Working Principle

When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

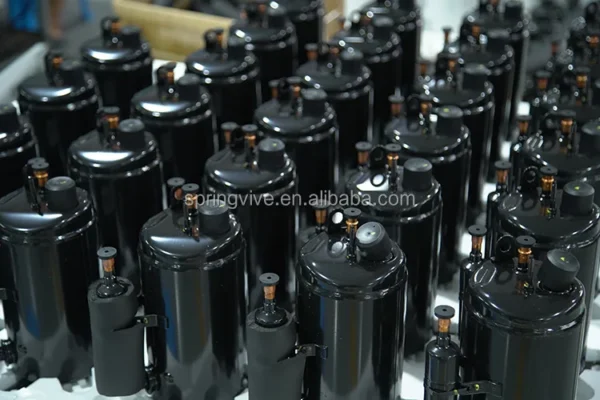

①	Compressor	⑨	Evaporator
②	Low Pressure Gauge	⑩	Expansion Valve
③	Stainless Steel Water Tank	⑪	Dry Filter
④	Drain Outlet	⑫	Liquid Receiver
⑤	Water Return Outlet	⑬	Condenser

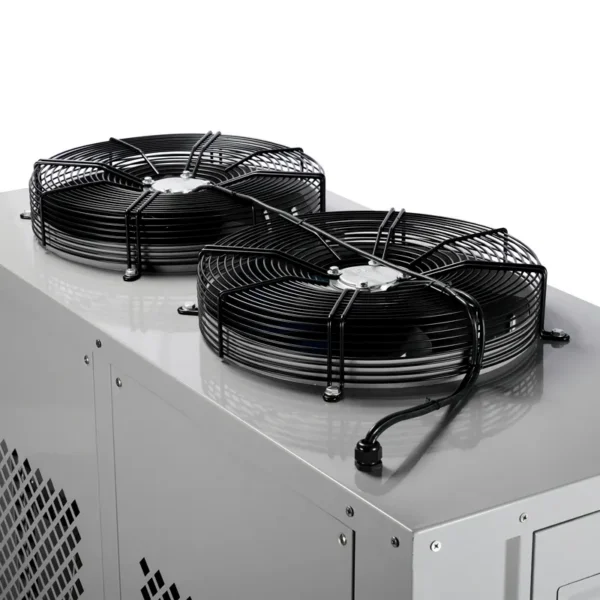

⑥	Bypass Valve	⑭	Condensing Fan
⑦	Water Supply Outlet	⑮	High pressure Gauge
⑧	Circulation Pump

Application Scope in the Industry

Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.

Injection Molding Industry

Extrusion Industry

Plastic Packaging Industry

Ultrasonic Cooling

Automotive Manufacturing Industry

Chemical Engineering Industry

Electroplating Industry

Electronics Industry

Printing Industry

Model	CY-1200
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	500W
Compressor Power	330W
Cooling Capacity	1050W
Refrigerant	R134A
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	80L
Pump Flow	12L/min
Pump Lift	10.5m
Type of Cooling	Air Cooling
External Dimension	L50*H32*W32cm
Output Protection	Multiple protected output
Net Weight	21.5 kg

Model	CY-2800
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	678W
Compressor Power	580W
Cooling Capacity	1750W
Refrigerant	R134A/R22
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Capacity	5L
Pump Flow	19L/min
Pump Head	12m
Type of Cooling	Air Cooling
External Dimension	L40*H42*W50cm
Output Protection	Multiple protected output
Net Weight	24.5kg

Model	CY-5000
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	560W
Compressor Power	430W
Cooling Capacity	1050W
Refrigerant	R134A/R22
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	6.7L
Pump Flow	12L/min
Pump Head	10.5m
Type of Cooling	Air Cooling
External Dimension	L57*H28.6*W42.2cm
Output Protection	Multiple protected output

Model	CY-5200
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	610W
Compressor Power	480W
Cooling Capacity	1450W
Refrigerant	R134A/R22
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	6.7L
Pump Flow	23L/min
Pump Lift	13m
Type of Cooling	Air Cooling
External Dimension	L57*H28.6*W42.2cm
Output Protection	Multiple protected output

Model	CY-6000
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	1135W
Compressor Power	900W
Cooling Capacity	2700W
Refrigerant	R22/R32
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	18L
Pump Flow	24L/min
Pump Lift	38m
Type of Cooling	Air Cooling
External Dimension	L48*H55*W89cm
Output Protection	Multiple protected output

Model	CY-6200
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	1690W
Compressor Power	1320W
Cooling Capacity	3660W
Refrigerating Fluid	R22/R32
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	80L
Pump Flow	50L/min
Pump Lift	26m
Type of Cooling	Air Cooling
External Dimension	L48*H55*W89cm
Output Protection	Multiple protected output

Model	CY-6300
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	2140W
Compressor Power	1760W
Cooling Capacity	5500W
Refrigerant	R22/R32
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	26L
Pump Flow	28L/min
Pump Lift	40m
Type of Cooling	Air Cooling
External Dimension	L48*H55*W89cm
Output Protection	Multiple protected output

Model	CY-8500
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Machine Power	3570W
Compressor Power	2600W
Cooling Capacity	8200W
Refrigerating Fluid	R22/R32
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Capacity	46L
Pump Flow	50L/min
Pump Head	26m
Type of Cooling	Air Cooling
External Dimension	L61*H75*W90cm
Output Protection	Multiple protected output
Net Weight	54kg

Model	CY-9500
Working Voltage	AC220V,50Hz(110/120/230V,50/60Hz)
Input Power	3800W
Compressor Power	2625W
Cooling Capacity	12000W
Refrigerating Fluid	R22/R32
Temperature Range	5-35°C
Temperature Accuracy	(±1°C)
Tank Volume	50L
Pump Flow	50L/min
Pump Head	26m
Type of Cooling	Air Cooling
External Dimension	L113*H26*W96cm
Output Protection	Multiple protected output
Net Weight	188kg

Company Profile

Established in 2011, moved to Foshan in 2023 and set up Foshan Springvive Equipment Co., LTD. Springvive is committed to the development of the field of chiller as the professional high-tech enterprise integrates research and development, manufacturing, sales, service. It has self-built plant of 20000 square meters and a professional team of experts with self-research experience in more than 10 years.

With series of ice bath chiller machines and industrial chillers, it adheres to the pursuit of safety and higher quality, provides diversified customization in terms of product functions, which fully meets household and commercial needs. In refrigeration efficiency and product iteration, we are keeping our leading role of the industry. It is equipped with advanced equipment, like standard testing room,cryogenic laboratory,halogen detector and automatic fluorine injection machine.

We has developed a series of ice bath chiller products in 2020, and applied for lots of invention patents, but also numbers of international certification, including but not limited to CE, LVD, EMC certificates. With excellent cooling capacity, compact design and fully automatic functionality, combining with portability, high quality and competitive pricing, our products are popularly sold to Europe, North America and Middle East countries. In the future, we will focus on overseas markets and actively seek global business partners.

Packing & Delivery

Certifications

FAQ

1.Can you fully realize our design?

SPRINGVIVE has professional program designers, engineers and artists with full capability to take a sketch brief or engineering designs right through from development to production, all done in house by our team of trained, experienced and fully qualified staff.

2.Can you provide samples?

We can provide samples according to your needs. Of course, the sample/ freight should be paid due to the high value of our product .

3.What is your minimum order quantity?

The MOQ is 50pcs .

4.What is your delivery date?

lt takes about 30 days to order 50 pieces in batch and it will take extra time if a new model is required to open.

5.What are the terms of payment?

Payment Term is: 50% deposit and 50% before shipping.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air cooled screw chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the air cooled screw chiller be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Springvive Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Foshan Springvive Equipment Co., Ltd. range on HVACR Nexus.
