This industrial chiller is published with the manufacturer’s full specification — 18KW~4000KW, 5 kW, 10kw, 15kw, 20kw, 30kw, 40kw, 50kw. Made by Jinan Mgreenbelt Machinery Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Industrial Chiller
- Model Number: MG-3C, MG-5C, MG-6C, MG-8C, MG-10CD, MG-12CD, MG-15CD, MG-20CD, MG-25CD, MG-30CT, MG-40CF, MG-50CF
- Power: 5 kW, 10kw, 15kw, 20kw, 30kw, 40kw, 50kw
- Voltage: 220 V, 415V, 240 V, 230 V, 380v/3phase/50hz, 440v/60hz
- Cooling Capacity: 18KW~4000KW
- Refrigerant: R-410A, R404A, R507, R134a, R407C
- Warranty: 1 Year
Technical Specifications
| Voltage | 220 V, 415V, 240 V, 230 V, 380v/3phase/50hz, 440v/60hz |
|---|---|
| Power | 5 kW, 10kw, 15kw, 20kw, 30kw, 40kw, 50kw |
| Refrigerant | R-410A, R404A, R507, R134a, R407C |
| Compressor Brand | Sanyo, Copeland, Bitzer, Emerson, DANFOSS |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Core Components | compressor, evaporator, condenser, heat exchanger, water tank, Water pump, Controller |
| Model Number | MG-3C, MG-5C, MG-6C, MG-8C, MG-10CD, MG-12CD, MG-15CD, MG-20CD, MG-25CD, MG-30CT, MG-40CF, MG-50CF |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 500 |
| Brand Name | Mgreenbelt |
| Dimension(L*W*H) | 1200*600*1100mm |
| Working Temperature Range | -5-+35c |
| Product Name | Water Chiller |
| Function | Circulating Cooling Water |
| Application | Industrial Cooling Solutions |
| Keyword | ChiIler |
| Cooling Capacity | 18KW~4000KW |
| Evaporator Type | High Efficiency Copper Tubeshell |
| Condenser Type | Efficient Copper Tube Aluminum Finned |
| Compressor Type | Scroll Closed |
| Temperature Range | 5~35C |
| Selling Units | Single item |
| Single Package Size | 120X70X122 cm |
| Single Gross Weight | 200.0 kg |
Product Details

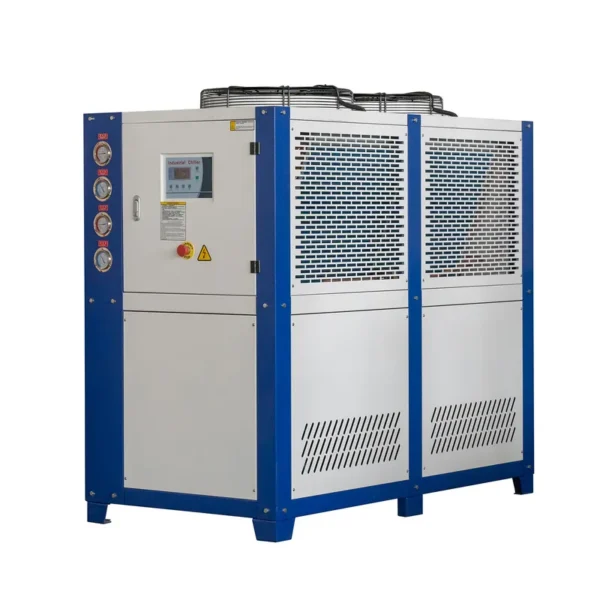

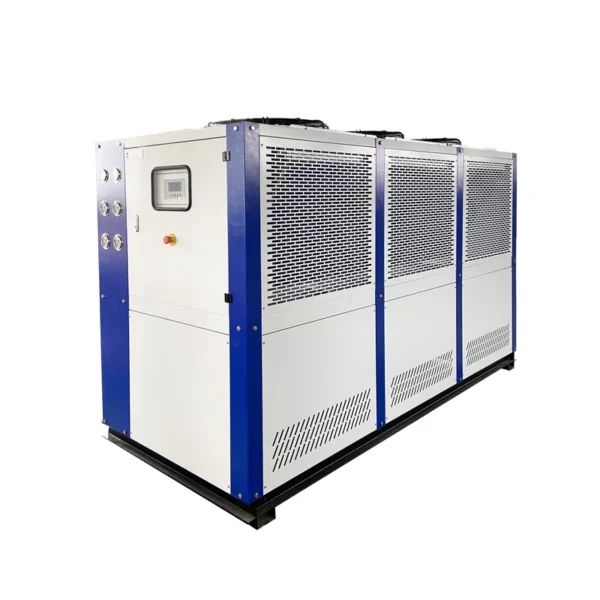

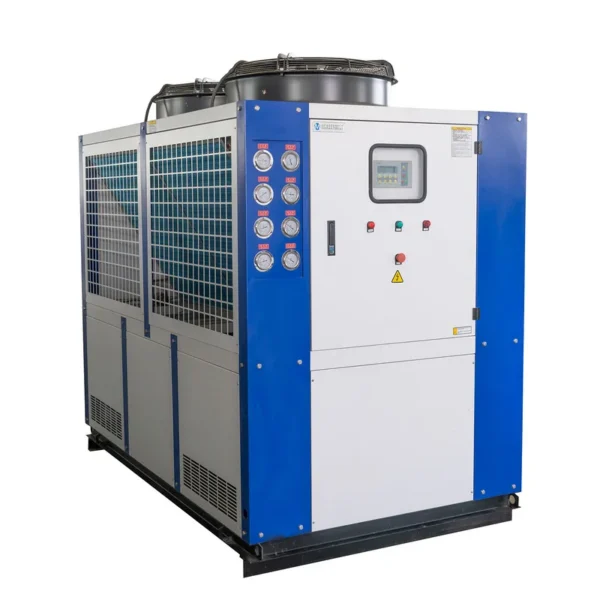

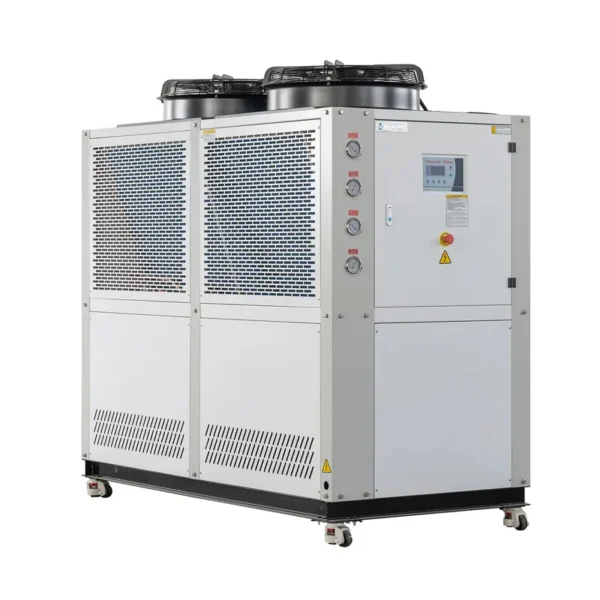

Air cooled water chiller | ||||||||||||||||
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | ||||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | |||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | ||||||||
Power input | 3PH-380V-50HZ / 220V-60HZ /480V-60HZ | |||||||||||||||
Refrigerant | Type | R22/ R407C/ R410A/ R134A/ R404A/ R448A | ||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||

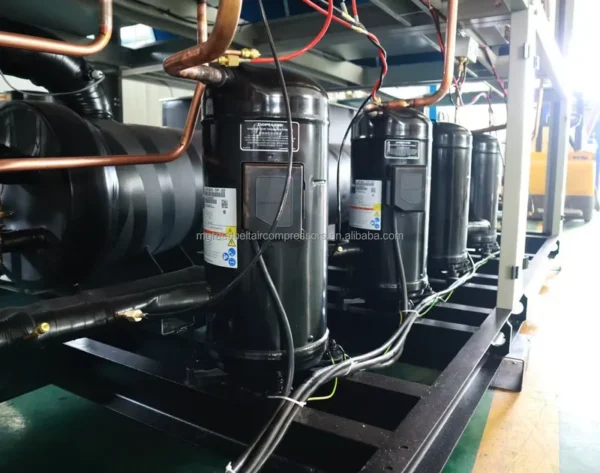

Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | |||||||||
Type | SS Water Tank with coil / Shell and tube OR PHE | |||||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | |||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Condenser | Type | High efficiency hydrophilic aluminum foIl finned type | ||||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | |||||||||
Pump | Type | Centrigual /SS304 water pump | ||||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | |||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | ||||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | |||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Components description | Brand | ||||
Compressor | Copeland / Panasonic /Danfos | ||||
Evaporator | MGREENBELT | ||||
Condenser | MGREENBELT | ||||
Thermal expansion valve | EMERSON/DANFOSS | ||||
Control Panel | PUNP | ||||
Drier Filter | EMERSON/DANFOSS | ||||
Electric Components | SCHNEIDER | ||||
adjustment, enabling intelligent operation according to specific requirements, enhancing system stability and performance.
1. High Efficiency and Energy Saving:
It utilizes advanced scroll compressor technology, providing higher compression efficiency and energy efficiency ratio, resulting
in effective energy utilization and reduced operational costs.
such as overload protection,high/low-pressure protection, and temperature protection, ensuring safe operation of the equipment.
allows us to tailor the chiller to specific processes and ensure optimal cooling performance.
ensuring a stable cooling effect.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
1. 12 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt3. 24 Hours working phone call/WA/WECHAT/EMAIL/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
If this chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -35 deg C~+35 deg C based on different industry working need.
Q: How to choose the water chiller model you need?
A: Please make sure the details as follow :
1. Flow rate
2. Inlet and outlet temperature
3. Power supply ( Phase-Voltage/Frequency)
4. Refrigerant (R22,R407c,R410A,R134a and etc)
5. Cooling capacity
6. Other requirement
Q: What's the lead time ?
A: Standard configuration 15 days, special request need 30 days.
Q: What is the payment terms?
A: 50% in advance and the balance before delivery.
Please feel free to contact me,if you have any questions:
Amanda Wu | Manager
Jinan Mgreenbelt Machinery Co.,ltd.
Professional water chiller & refrigeration equipment Manufacturer/Supplier
Email: amanda@mgreenbelt.com | Wechat/Whatsapp/cell:0086-18615589083
Main products: Industrial chiller, water chiller, air cooled water chiller, water cooled chiller, glycol chiller
NOTE: You can add wechat or whatsapp to get quick answer.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $4000 / set
- 3–4 set: US $3000 / set
- 5–9 set: US $2000 / set
- 10+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial chiller be supplied for my local voltage?
The standard configuration is 220 V, 415V, 240 V, 230 V, 380v/3phase/50hz, 440v/60hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Mgreenbelt Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jinan Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
