This air-cooled scroll chiller is published with the manufacturer’s full specification — 380V-3N-50HZ, cooling capacity 50-280KW. Made by SANHE TOP Air Conditioning (Guangdong) Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air-Cooled Scroll Chiller
- Model Number: TPS-A
- Power: 100 W
- Voltage: 380V-3N-50HZ
- Cooling Capacity: 50-280KW
- Refrigerant: R407C, R134a, R-404A
- Warranty: 1 Year
Technical Specifications
| Voltage | 380V-3N-50HZ |
|---|---|
| Power | 100 W |
| Refrigerant | R407C, R134a, R-404A |
| Compressor Brand | Refcomp/Hanbell/Bitzer |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Plug Type | China |
| Core Components | PLC |
| Model Number | TPS-A |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2000 |
| Brand Name | SANHE TOP or OEM |
| Dimension(L*W*H) | 1500*1000*1850MM |
| Working Temperature Range | -30~40 C degree |
| Product Name | Industrial Air Cooled Scroll Chiller |
| Cooling Capacity | 50-280KW |
| Chilled Water Outlet Temperature | 7℃ |
| Product Category | Air cooled scroll chiller |
| Evaporator Type | Shell and tube |
| Condenser Type | Fin-tube |
| Expansion Valve | Emerson/Danfoss |
| After-Sales Service Provided | Free spare parts |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

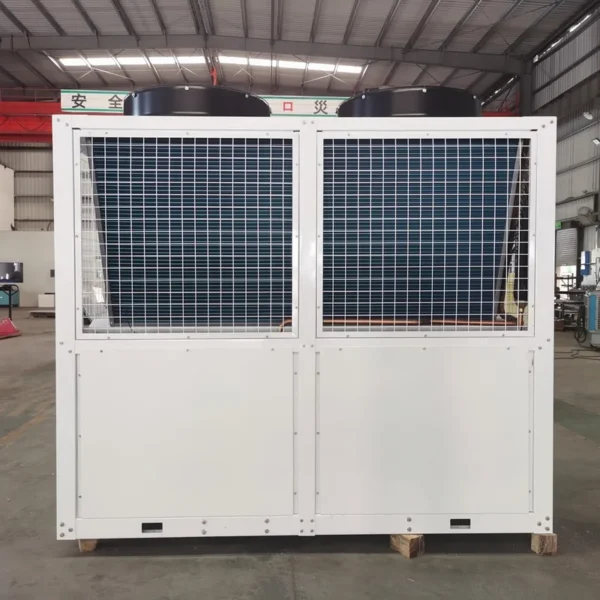

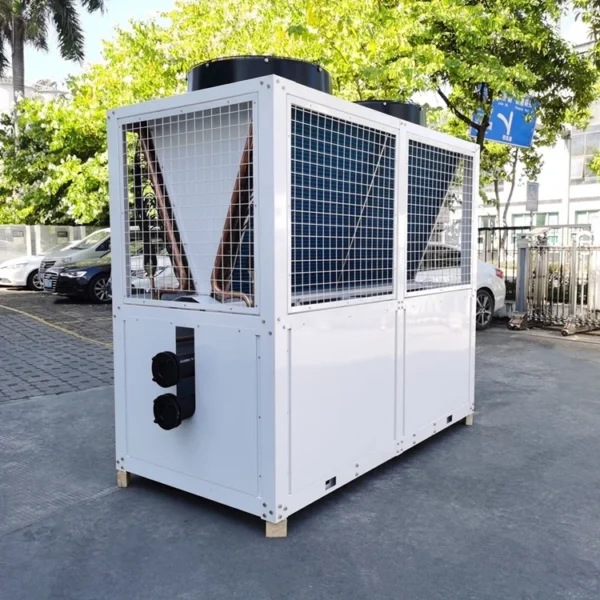

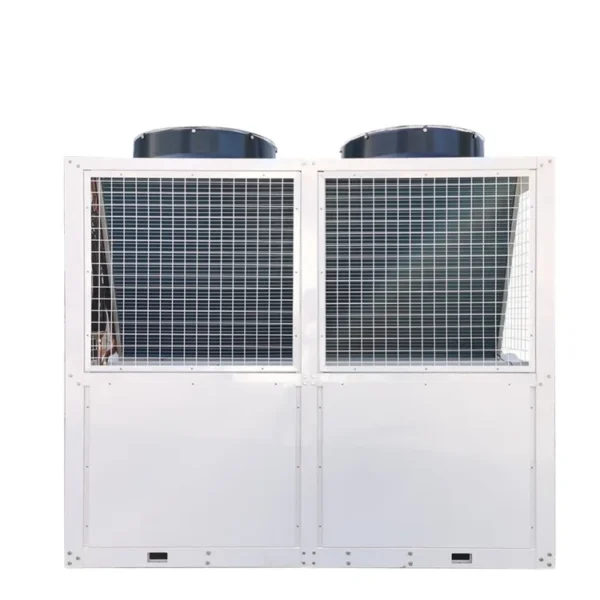

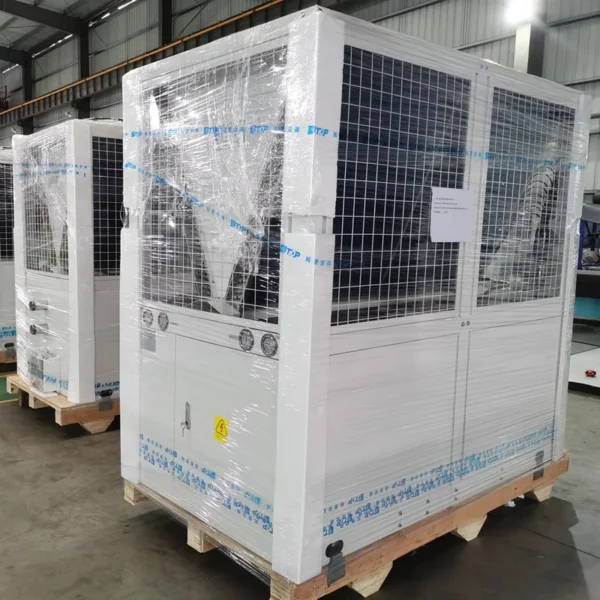

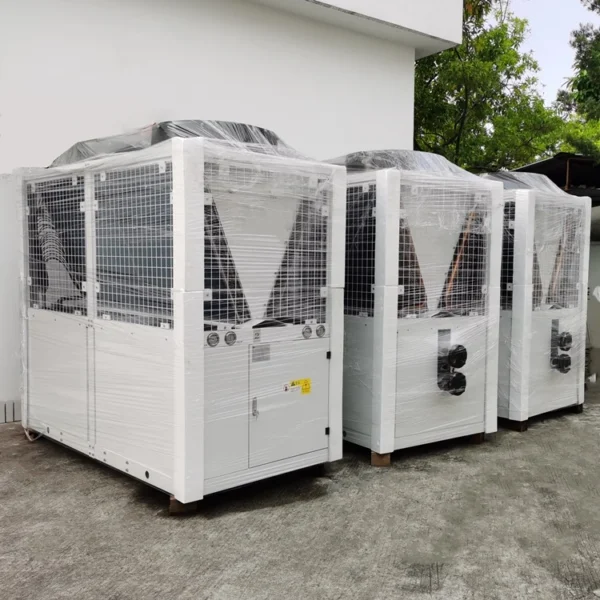

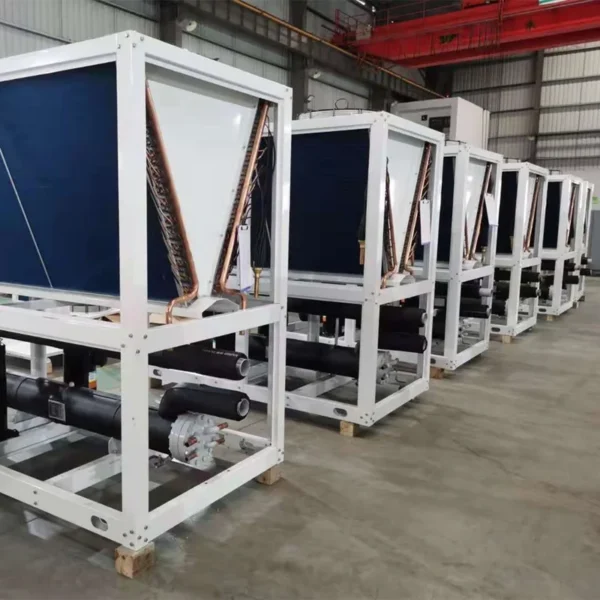

Air-cooled Scroll Chiller Modular Assembly Refrigerating Capacity 65KW 100KW 130KW
| Specification | |||||||
| Model TPS-A-RC–A4 | 50 | 70 | 100 | 140 | 210 | 280 | |
| Cooling capacity (KW) | 45 | 70 | 90 | 140 | 210 | 280 | |
| Heating capacity (KW) | 48 | 75 | 96 | 150 | 225 | 300 | |
| Power input(Cooling) KW | 13.5 | 18 | 27 | 43.4 | 65.4 | 86.8 | |
| Power input(Heating) KW | 13 | 17 | 26 | 42 | 64 | 84 | |
| Power supply | 380V/3N/50Hz | ||||||
| Protection device | Phase sequence protection,overcurrent protection,Anti frozen protection,high and low voltage protection,Exhaust temperature protection,water flow protection,External linkage protection | ||||||
| Refrigerant | R410a | R410a | R410a | R410a | R410a | R410a | |
| Controller | Micro computer | Micro computer | Micro computer | Micro computer | Micro computer | Micro computer | |
| Compressor | Type | Fully enclosed scroll | |||||
| Quantiy (pcs) | 1 | 2 | 2 | 2 | 3 | 4 | |
| Condenser Fan | Type | Axial flow fan | |||||
| Power kW*QTY | 1.1 | 0.8 *2 | 0.85*3 | 2.2 *2 | 2.2 *3 | 2.2 *4 | |
| Evaporator | Type | Shell-and-tube | |||||
| Pipe diameter | 2" | 2" | 2-1/2" | 2-1/2" | 4" | 4" | |
| Water flow rate m3/h | 7.7 | 12 | 15.5 | 24.1 | 36.1 | 48.1 | |
| Water Pressure drop KPa | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | |
| Weight(kg) | 420 | 650 | 750 | 860 | 1900 | 2000 | |
| Operation weight(kg) | 460 | 700 | 820 | 960 | 2100 | 2200 | |
| Dimension (mm) | L | 1500 | 2000 | 2200 | 2200 | 2300 | 2300 |
| W | 1000 | 1100 | 1175 | 1180 | 2203 | 2203 | |
| H | 1850 | 2015 | 2170 | 2170 | 2196 | 2196 | |
Remark:
1.Cooling capacity test conditions: air dry and wet bulb temperatures 35℃/24℃, chilled water outlet temperature 7℃, water flow rate 0.172m3/(h*kW).
2.Heating capacity test conditions: outdoor ambient temperature 7℃, hot water outlet temperature 45℃, water flow rate 0.172m3/(h*kW).
3.Modular units can be combined based on the same or different modular units as needed, with a maximum of 16 units in a combination.
4.Specifications and dimensions are subject to change without notice due to product improvements.
Our Main Product:
1. Magnetic Bear Centrifugal Chiller
2. Water cooled screw chiller, Air cooled screw chiller, Flooded type Screw Chiller
3. Water cooled Scroll chiller, Air cooled scroll chiller
4. Water-cooled Packaged air conditioner, Air-cooled packaged air conditioner
5. Low temperature chiller(0℃~-25℃)
6. Anti-corrosion chiller, explosion-proof chiller
7. Fan coil units, Air handling Units
Q1: Are you a manufacturer?
A1: Yes, we have more than 10 years experience in water chiller manufacture.
New plant was bulit in 2017 in Guangzhou city. Welcome to visit us anytime!.
Q2: Could you help us to recommend the suitable model for our project?
A2: Yes, we have engineers to check the details and make the scheme for you. Based on the following:
1) Cooling capacity;
2) Refrigerant;
3) Chilled water inlet/outlet temperature
4) Voltage;
5) For which industry
6) The building drawing(if you have)
7) Any other special requirements.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $6000 / piece
- 2+ piece: US $5000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air-cooled scroll chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air-cooled scroll chiller be supplied for my local voltage?
The standard configuration is 380V-3N-50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
