Air handling unit — refrigerant R-404A, type Central Air Conditioners. The complete factory specification follows. Made by SANHE TOP Air Conditioning (Guangdong) Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Refrigerant: R-404A
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Hospital
- Type: Central Air Conditioners
- Mounting Type: Floor Standing
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Refrigerant | R-404A |
| Mounting Type | Floor Standing |
| Compressor Brand | Hitachi, Daikin |
| Fan Motors Type | AC/EC |
| Application | Hospital |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Remote Control, R410A |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1000 |
| Brand Name | SANHE TOP |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

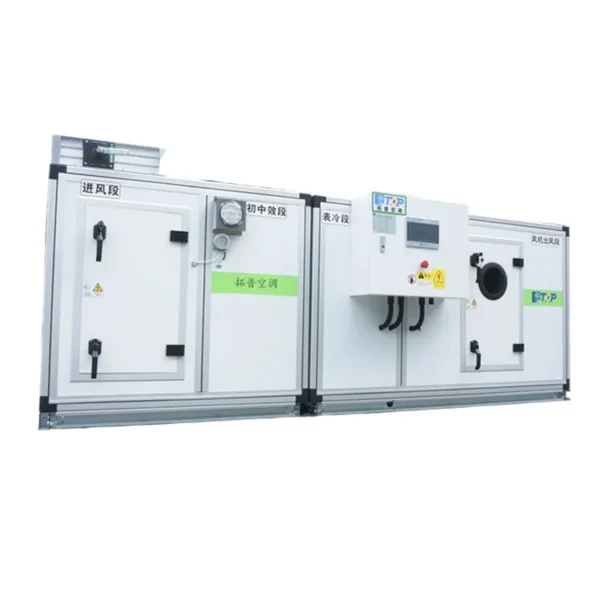

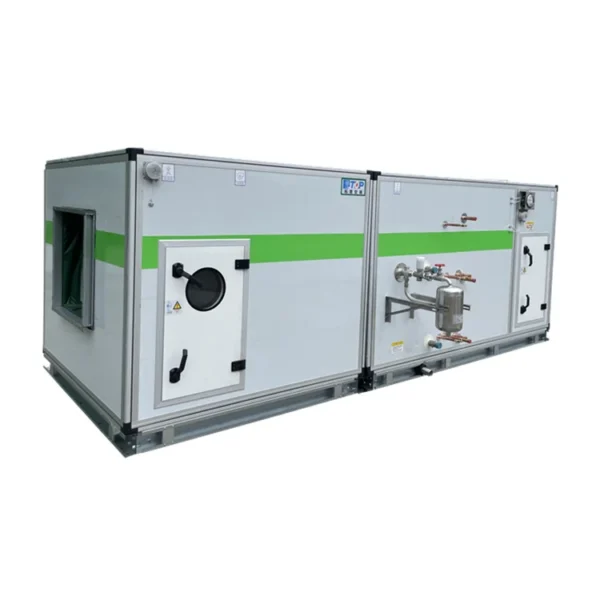

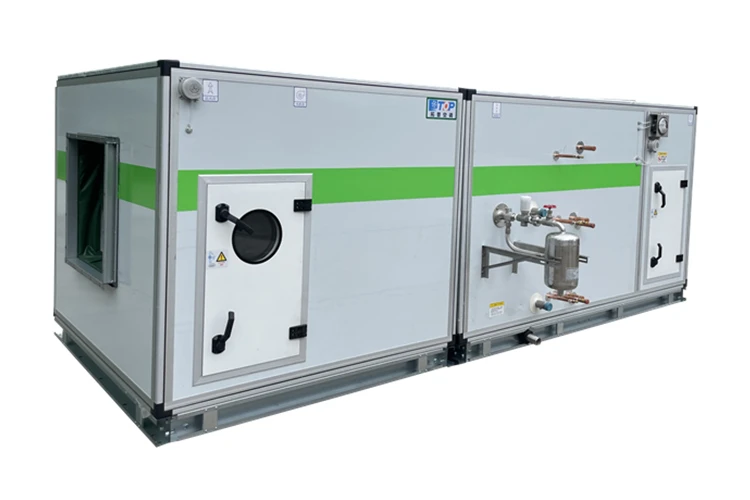

Clean Room Equipment Air Conditioner Systems AHU Fresh Ceiling Air Handling Unit

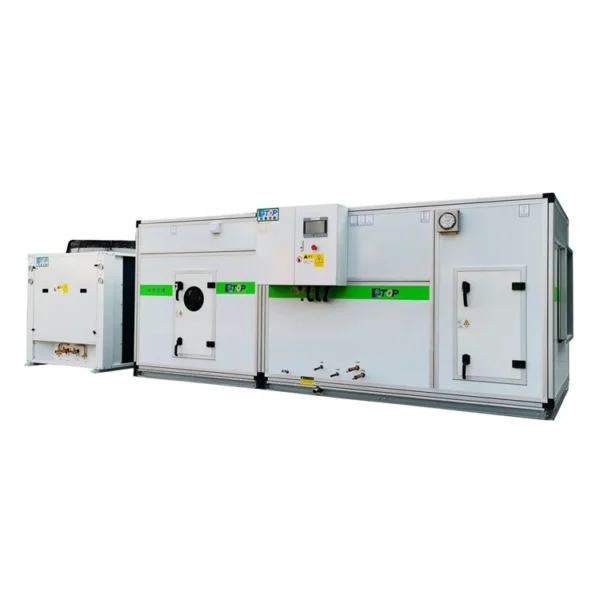

* Fixed frequency direct expansion, full DC variable frequency direct expansion, heat pump and single cooling are available.
* Multiple high-efficiency scroll compressors are assembled to adjust energy accurately.
* The whole series adopts environmentally friendly R410A refrigerant (other refrigerants can be customized).
* The first sunken three-slope insulation condensate tray design allows condensate to be quickly removed and kept dry.
* Sterile "hydrophobic" fin coating design for indoor and outdoor heat exchangers.
* The panel of the unit is available in two thicknesses of 25mm and 50mm. The panel uses fluorine-free polyurethane closed foam with a density of not less than 48kg/m3 as the insulation material, and the thermal conductivity is only 0.0188W/m.
* According to the AHRI standard, the box deformation rate is CD1, the air leakage rate is CL1, the heat transfer coefficient is CT1, and the thermal bridge factor is CB2.
*According to the EN1886 standard, the measured deformation of the box body reaches D1 level, the measured air leakage reaches L1 level, the measured heat transfer system reaches T1 level, and the measured thermal bridge factor reaches TB1.
*Optional variable frequency constant pressure air supply system to achieve VAV control.

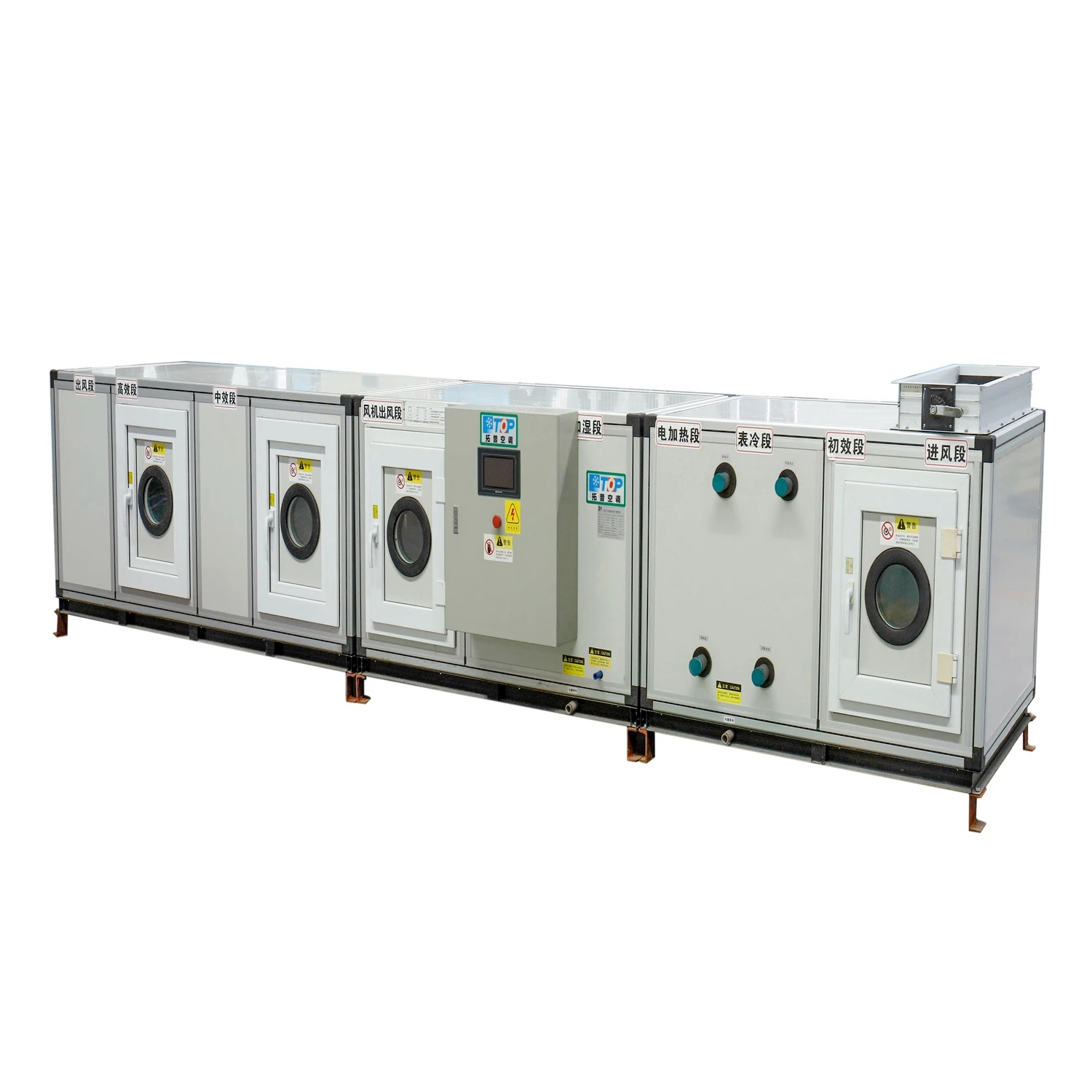

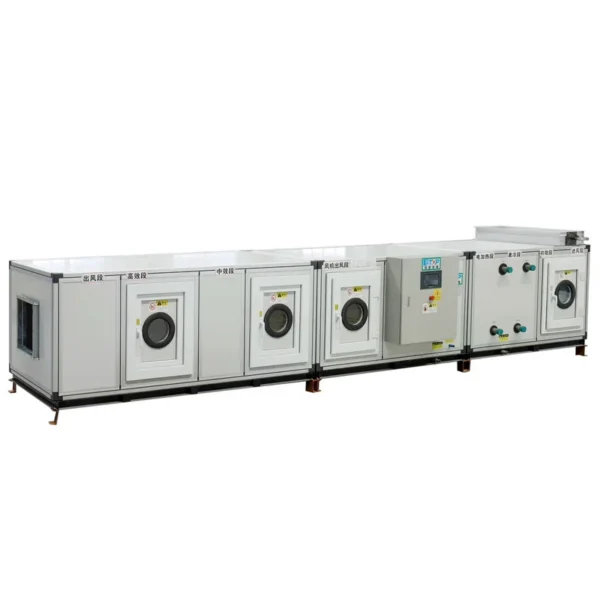

*Flexible and changeable functional segments, support on-site assembly of parts.
*The building system based on the MODBUS protocol can be directly connected to the centralized control system through the MODBUS communication interface standard on the unit, and intelligent monitoring of centralized control can be achieved without connecting to conversion equipment, which is suitable for large and medium-sized air-conditioning places.
| Model TPH-A- | 10 | 15 | 20 | 25 | 35 | 40 | 50 | 65 | 80 | ||
| Air flow | m3/h | 1800 | 3000 | 3500 | 4300 | 5200 | 6500 | 8000 | 10000 | 13000 | |
| Cooling capacity | kW | 9 | 14.6 | 18 | 23 | 28.7 | 35 | 45 | 58 | 68 | |
| Heat pump | kW | 10 | 15 | 20 | 25 | 31 | 38 | 47 | 62 | 75 | |
| Electrical heater | kW | 3 | 6 | 10 | 15 | 15 | 20 | 25 | 35 | 40 | |
| Humidification | kg/h | 4 | 4 | 4 | 4 | 8 | 8 | 15 | 15 | 15 | |
| ESP | Pa | 450 | 450 | 450 | 450 | 450 | 500 | 500 | 650 | 650 | |
| Refrigerant | R410a | ||||||||||
| Moter power | kW | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 5.5 | 7.5 | |
| Power supply | 380V/3N/50Hz | ||||||||||

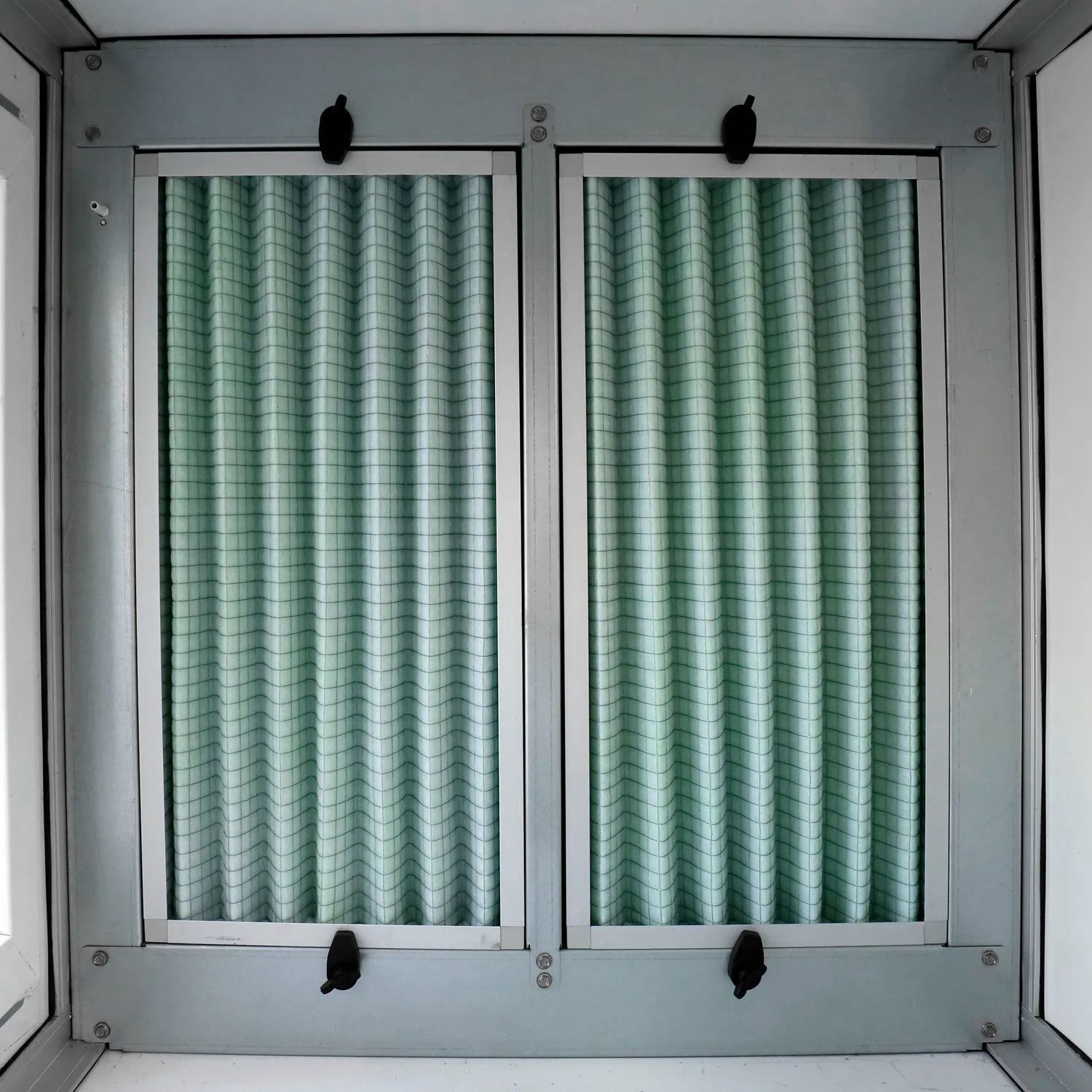

| Pre-filter and Medium-filter Combined | Cool only | L | 2500 | 2500 | 2500 | 2600 | 2700 | 2800 | 2800 | 3200 | 3200 |
| W | 800 | 800 | 900 | 1000 | 1290 | 1290 | 1290 | 1290 | 1550 | ||
| H | 900 | 900 | 900 | 900 | 900 | 1000 | 1150 | 1360 | 1390 | ||
| Section | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | ||
| power kW | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 5.5 | 7.5 | ||
| Constant T.&H. | L | 2700 | 2700 | 2700 | 2800 | 2900 | 3000 | 3000 | 3200 | 3200 | |
| W | 800 | 800 | 900 | 1000 | 1290 | 1129 | 1290 | 1290 | 1550 | ||
| H | 900 | 900 | 900 | 900 | 900 | 1000 | 1150 | 1360 | 1390 | ||
| Section | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | ||
| power kW | 7.5 | 11.2 | 15.2 | 21 | 24 | 30 | 40.3 | 51.8 | 58.8 | ||
| Pre-filter and Medium-filter Seperated | Cool only | L | 3100 | 3300 | 3300 | 3500 | 3500 | 3700 | 3900 | 4000 | 4200 |
| W | 800 | 800 | 900 | 1000 | 1290 | 1290 | 1290 | 1290 | 1550 | ||
| H | 900 | 900 | 900 | 900 | 900 | 1000 | 1150 | 1360 | 1390 | ||
| Section | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | ||
| power kW | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 5.5 | 7.5 | ||
| Constant T.&H. | L | 3400 | 3500 | 3500 | 3700 | 3700 | 3700 | 3900 | 4000 | 4200 | |
| W | 800 | 800 | 900 | 1000 | 1290 | 1129 | 1290 | 1290 | 1550 | ||
| H | 900 | 900 | 900 | 900 | 900 | 1000 | 1150 | 1360 | 1390 | ||
| Section | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | ||
| power kW | 7.5 | 11.2 | 15.2 | 21 | 24 | 30 | 40.3 | 51.8 | 58.8 | ||
| Connection pipe | Liquid mm | 9.52 | 12.7 | 12.7 | 15.88 | 15.88 | 15.88 | 15.88+12.7 | 15.88*2 | 15.88*2 | |
| Gas mm | 15.88 | 19.05 | 19.05 | 25.4 | 25.4 | 25.4 | 25.4+19.05 | 25.4*2 | 25.4*2 | ||
| Outdoor unit power | kW | 2.5 | 4.6 | 5.2 | 6.7 | 9.6 | 10.1 | 14.8 | 19.3 | 22 | |
| 1.Nominal cooling conditions: outdoor air dry-bulb temperature 35℃/24℃, indoor air dry-bulb temperature 24℃/17℃, Nominal heating conditions: outdoor air dry-bulb temperature 7℃/6℃, indoor air dry-bulb temperature 20℃/15℃, | |||||||||||
| 2.Specifications and dimensions are subject to change due to product improvements without prior notice. | |||||||||||
Application:
Clean room air conditioners are mainly used in places with high requirements for cleanliness.
In the industrial field, they are mainly suitable for IC semiconductors, pharmaceuticals, photovoltaics, optoelectronics, aerospace, atomic energy and other industries.
In the biological field, they are mainly suitable for hospitals (operating rooms, sterile wards), food and beverage production, animal laboratories, physical and chemical testing laboratories, blood stations, etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
