This air cooled water chiller is published with the manufacturer’s full specification — 380v, power AC380~415V /3PHASE 50/60HZ. Made by Shanghai Venttech Refrigeration Equipment Co., Ltd. (13 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Cooled Water Chiller
- Power: AC380~415V /3PHASE 50/60HZ
- Voltage: 380v
- Plate Material: galvanized steel sheet
- Refrigerant: R407c/R134a/R407c/R410a
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
Technical Specifications
| Type | Water-Cooled |
|---|---|
| Voltage | 380v |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Core Components | PLC, Motor |
| Place Of Origin | Shanghai, China |
| Brand Name | Venttech |
| Dimension(L*W*H) | customized |
| Working Temperature Range | -35degree to 50degree |
| Cooling Capability(Kw) | 10KW-1500KW |
| Compressor | scroll, screw type |
| Condenser | copper tube aluminum fin |
| Evaporator | shell and tube heat exchanger |
| Plate Material | galvanized steel sheet |
| Application | Factory, building, school, hospital, shopping mall |
| Function | Cooling and heating water |
| Refrigerant | R407c/R134a/R407c/R410a |
| Power | AC380~415V /3PHASE 50/60HZ |
| Water Temperature Range | 12degree~7degree |
| Packaging Details | Wooden package |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 226 units per Month OEM service is available |
Product Details
Products Features
1. Twin screw compressor brand is employed, with high efficiency, low noise level, less wearing and long operation time.
2. Four stage volume control or 0%-100% automatic regulation.
3. Use PLC microcomputer control from Germany SIEMENS. LCD touch screen, both English and Chinese human-machina intertace.
4. Perfect breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.
Product options
1. Salt water evaporator
2. Stepless energy regulation
3. Whole heat recovery/partial heat recovery
4. Pump control
5. Special power supply
6. Remote communication connector
Product specfication
Refrigerant: R22/R407C
Evaporator max water pressure drop: 1.0Mpa
Evaporator: fouling factor 0.018m2.℃/KW
Power supply: 380V/3P/50Hz
Allowable voltage fluctuate: ±5%
Allowable frequency fluctuate: ±2%

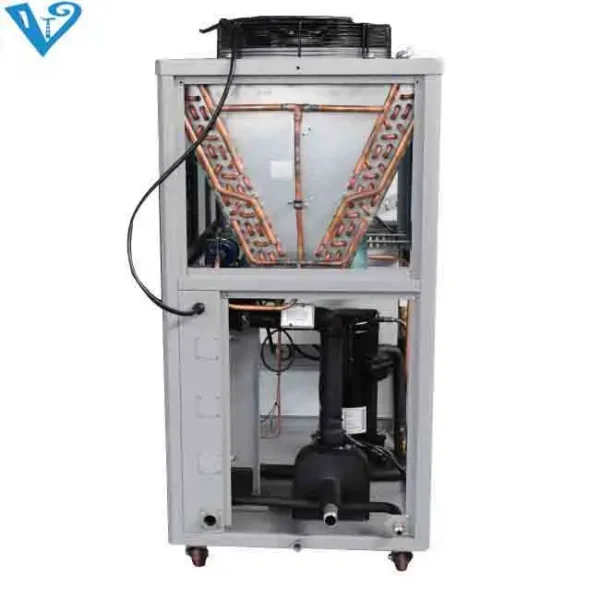

The unit uses high efficiency heat exchanger with advanced, unique shape design and systems. Units can be installed directly on the roof, or other well-ventilated place outdoors, without a separate room, space saving construction. Compact shape, appearance, unit uses “W” type coil design, space utilization, small unit size, in order to adapt to the outdoor weather conditions to ensure that the unit has a good operating results during the life cycle.
Friendy choose to use environmentally R407C, R134A or R410A refrigerant ect.
There may be change of the dimensions without pre notice. For accurate you are welcome to ask us for installing drawing.
Technical parameter
Air cooled screw(heat) chiller(single compressor) technical parameter
| VA- | |||||||||||
| Type | 85S | 115S | 150S | 160S | 200S | 220S | 255S | 270S | 300S | 320S | |
| Nominal cooling capacity | kw | 85.0 | 115.0 | 150.0 | 160.0 | 200.0 | 220.0 | 255.0 | 270.0 | 300.0 | 320.0 |
| 104 kcal/h | 7.3 | 9.9 | 12.9 | 13.8 | 17.2 | 18.9 | 21.9 | 23.2 | 25.8 | 27.5 | |
| Nominal heating capacity | kw | 92.0 | 135.0 | 170.0 | 185.0 | 230.0 | 250.0 | 290.0 | 300.0 | 330.0 | 360.0 |
| 104 kcal/h | 8.2 | 11.6 | 14.6 | 15.9 | 19.8 | 21.5 | 24.9 | 25.8 | 28.4 | 31.0 | |
| Operating control method | Use PLC microcomputer control | ||||||||||
| Power Supply | 380V/3N/50HZ | ||||||||||
| Startup type | Y- | ||||||||||
| Machine power | kw | 30.8 | 40.9 | 50.3 | 59.6 | 70.6 | 76.7 | 85.0 | 88.5 | 99.8 | 108.4 |
| Machine operating current | A | 58.5 | 77.7 | 95.5 | 113.2 | 134.1 | 145.7 | 161.4 | 168.1 | 189.5 | 206.0 |
| Compressor | Type | Semi-closed 5:6 asymmetric twin-screw compressor | |||||||||
| Cooling power(kw) | 27.5 | 36.5 | 45.5 | 50.0 | 61.0 | 66.5 | 75.0 | 78.5 | 86.5 | 94.5 | |
| Cooling current(A) | 46.5 | 61.0 | 77.0 | 84.5 | 103.0 | 112.0 | 126.0 | 132.5 | 146.0 | 159.0 | |
| Heating power(kw) | 26.5 | 35.0 | 43.5 | 48.0 | 58.5 | 63.5 | 72.0 | 75.5 | 83.0 | 91.0 | |
| Heating current(A) | 44.5 | 58.5 | 74.0 | 81.0 | 98.5 | 107.0 | 120.0 | 127.0 | 140.0 | 152.0 | |
| Energy regulation | 0-33%-66%-100% | 0-25%-50%-75%-100% | |||||||||
| Evaporator | Type | High efficiency dry type shell and tube heat exchanger | |||||||||
| Flow(L/min) | 14.6 | 19.8 | 25.8 | 27.5 | 34.4 | 37.8 | 43.8 | 46.4 | 51.5 | 55.0 | |
| Water pressure drop(kPa) | 45.0 | 45.0 | 45.0 | 48.0 | 48.0 | 48.0 | 50.0 | 50.0 | 50.0 | 50.0 | |
| Interface size | DN65 | DN80 | DN100 | ||||||||
| Condenser | Type | High efficiency fin type heat exchanger | |||||||||
| Fan quantity | 6 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | |
| Stand-alone power | 0.6 | 0.6 | 0.6 | 1.6 | 1.6 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | |
| Refrigerant | Type | R22 | |||||||||
| Refrigerant volume(kg) | 17.0 | 23.0 | 30.0 | 32.0 | 40.0 | 45.0 | 52.0 | 55.0 | 60.0 | 65.0 | |
| Overall dimensions | Length(mm) | 2500 | 2950 | 2950 | 3200 | 3500 | 3500 | 3700 | 3700 | 4000 | 4000 |
| Width(mm) | 1400 | 1400 | 1400 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Height(mm) | 1925 | 2100 | 2250 | 2150 | 2150 | 2200 | 2250 | 2350 | 2150 | 2250 | |
| Weight | Machine weight(kg) | 1900 | 2000 | 2200 | 2600 | 2850 | 3000 | 3200 | 3500 | 3800 | 3950 |
| Operating weight(kG) | 2200 | 2300 | 2500 | 2900 | 3150 | 3300 | 3500 | 3800 | 4100 | 4250 | |
Cooling condition: Chilled water inlet/outlet temperature 12/7 ℃, ambient dry bulb temperature 35℃
Heating condition:Hot water outlet temperature 45℃, ambient dry bulb temperature 7℃, ambient wet bulb temperature 6℃
Air cooled chiller
Water coolde chiller
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $1500 / unit
- 10+ unit: US $1300 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air cooled water chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air cooled water chiller be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
