This air coolers is published with the manufacturer’s full specification — material Kraft Paper/Resin/Glue, model number DHS-5090/7090. Made by Qingzhou Duohui New Material Technology Co., Ltd. (5 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Air Coolers
- Model Number: DHS-5090/7090
- Material: Kraft Paper/Resin/Glue
- Frame Material: Aluminum/Galvanized/Stainless Steel
- Warranty: 1 Year
- Certification: CE CCC
- Place Of Origin: Shandong, China
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Model Number | DHS-5090/7090 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 5 |
| Brand Name | DuoHui |
| Application | Animal Husbandry/Greenhouse |
| Function | Cooling Ventilation |
| Certification | CE CCC |
| Material | Kraft Paper/Resin/Glue |
| Frame Material | Aluminum/Galvanized/Stainless Steel |
| Paper Weight | 95g/105g |

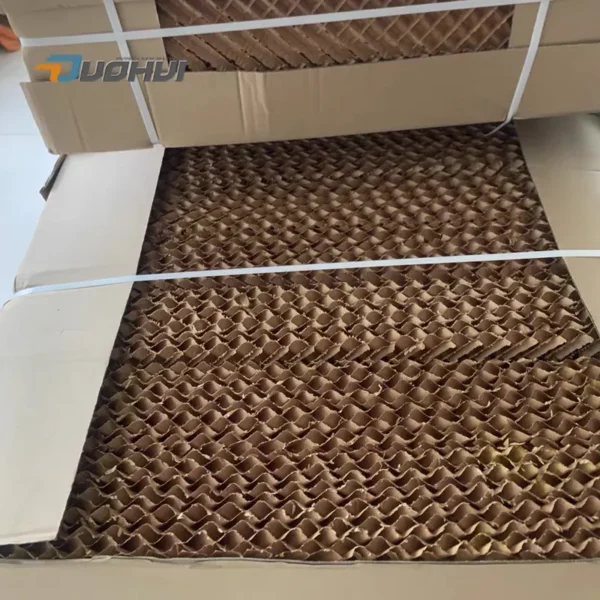

| Packaging Details | standard export packing |
| Selling Units | Single item |
| Single Package Size | 20X65X200 cm |
| Single Gross Weight | 15.0 kg |
| Supply Ability | 120 cubic meters per Day |
Product Details
Products Description

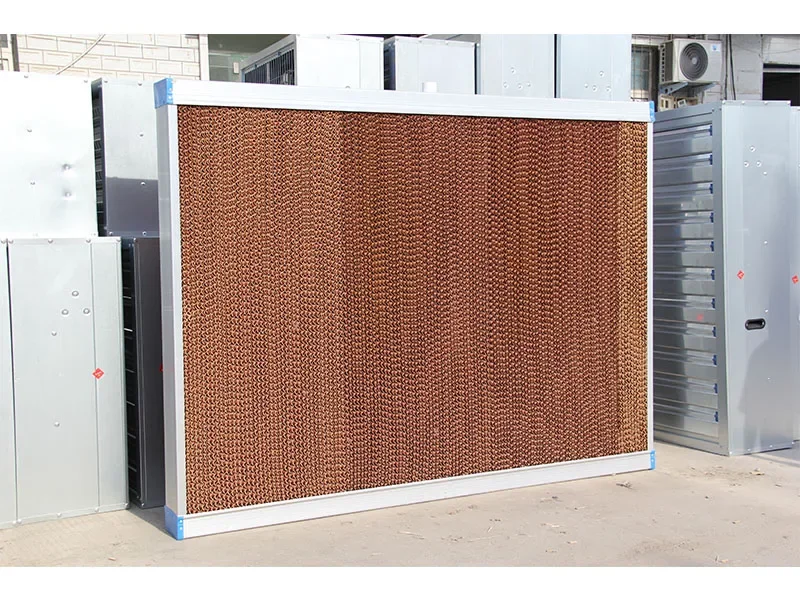

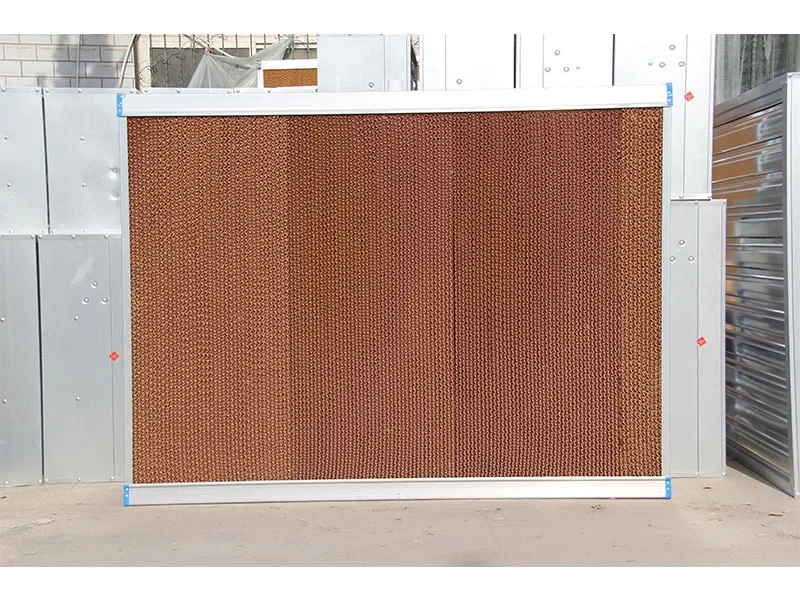

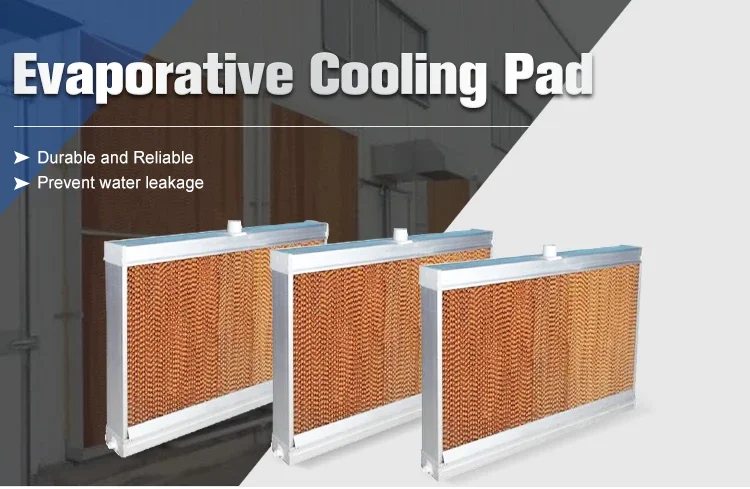

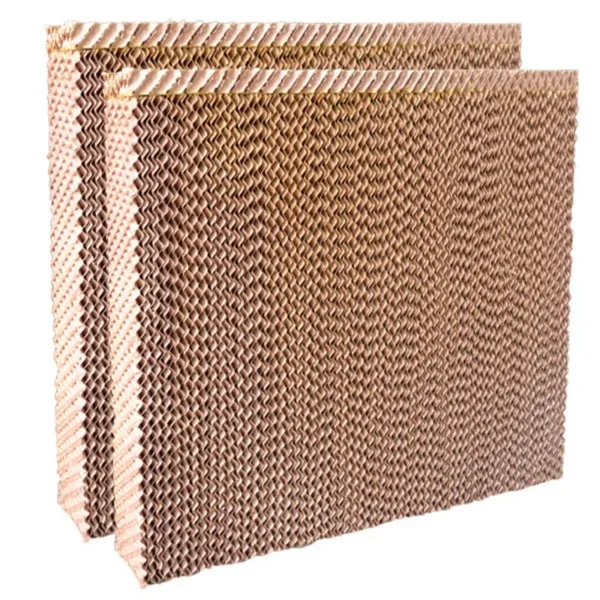

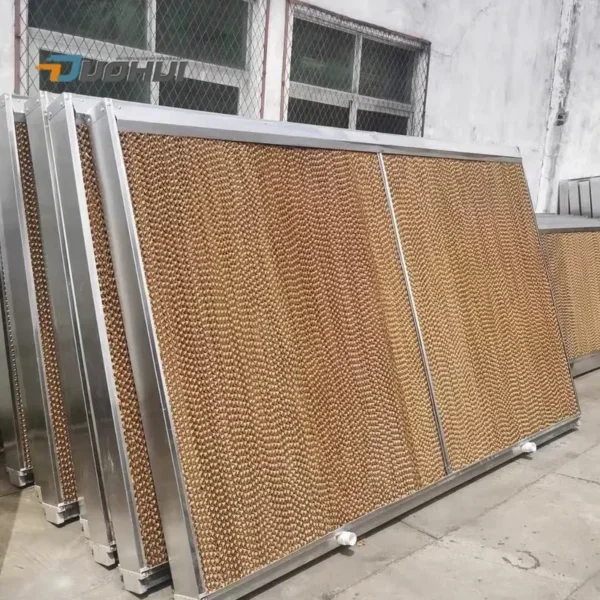

Evaporative Kraft Paper Honeycomb Cooling Pad:
The Cooling Pad is based on the natural physical phenomenon of “water evaporates and absorbs heat”, that is, water flows from top to bottom under the action of gravity, forming a water film on the corrugated fiber surface of the cooling pad. When the fast-moving air passes through the cooling pad, the water in the water film absorbs the heat in the air and evaporates, so that the temperature of the air passing through the cooling pad is reduced, thereby achieving a cooling effect.

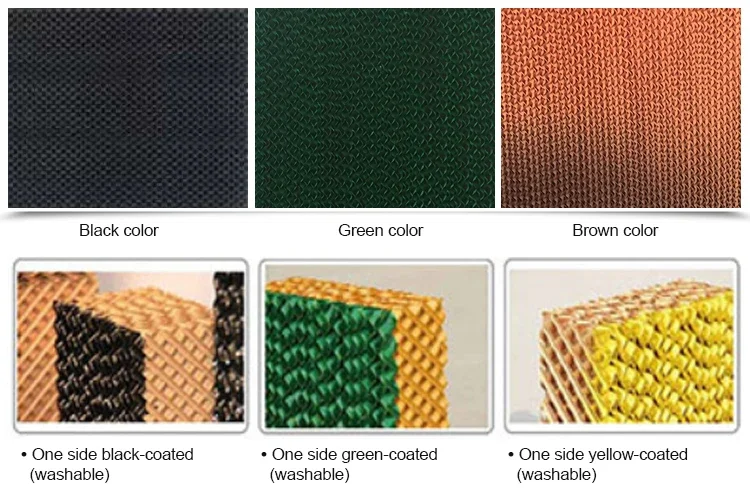

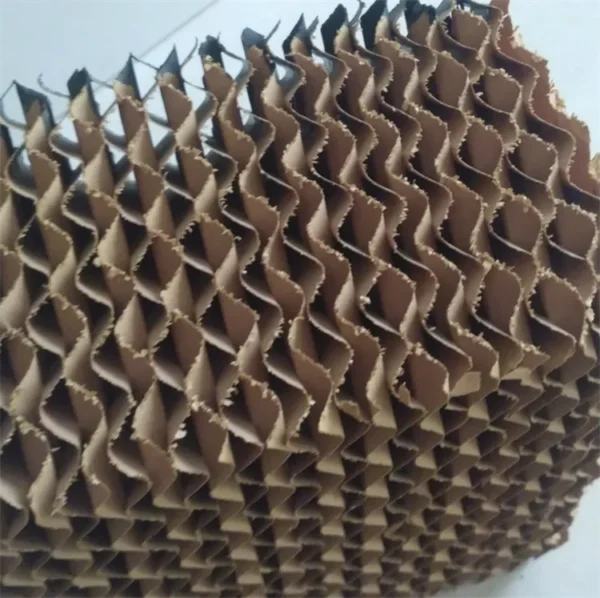

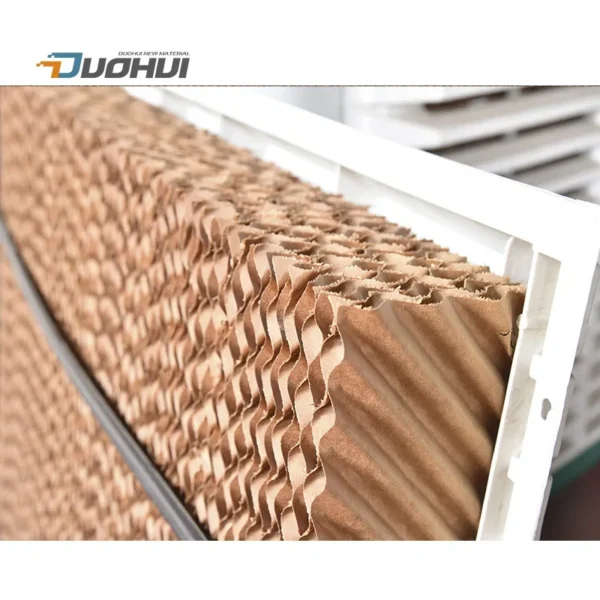

Detailed Images
Use new material and advanced space crossing linking technology, high absorbability, high water-resistant, anti-mildew and long service life.The product contains surface active agent, natural water absorbability, fast pervasion speed, lasting effectiveness. A drop of water can diffuse in 4-5 seconds. Height of absorb :60-70mm/5 minutes, 200mm/1.5 hours , achieving international standard. Strict production as per standard, width of 600mm cooling pad involves 85 sheets; raw material adopts kraft paper(95-105g/㎡, thickness:0.18-0.20mm, tension resistance at 70N, absorbability height as 45mm/10min , moisture at 5-8% ,humidity at 18N). Products don’t contain Phenol or any other chemical substances which easily makes skin allergy.Non-toxic and harmless to human body during installation and using. safety energy saving, environmental protection and economic applicable.

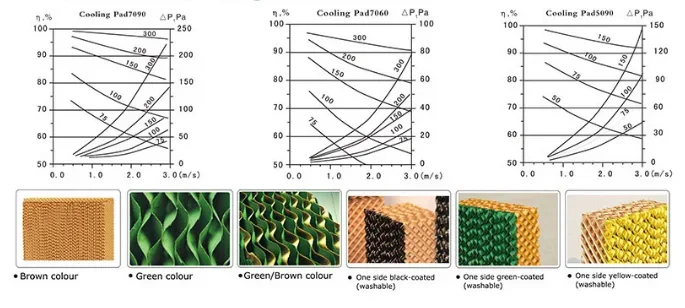

Product Specifications

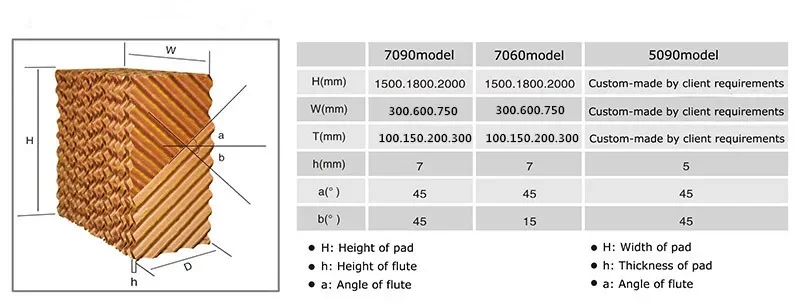

Water Curtain Parameters | ||||||||||
Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle | |||||
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7 mm | 45°/45° | |||||
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7 mm | 45°/45° | |||||
5090 | Customized | Customized | Customized | 5 mm | 45°/45° | |||||
Water Pump Parameters | ||||
Type | Parameter | Pad Length | ||
0.37 KW Pump | 380 V/50 HZ/3 Phase | ＜6 m | ||
0.55 KW Pump | 380 V/50 HZ/3 Phase | 6-10 m | ||
0.75 KW Pump | 380 V/50 HZ/3 Phase | 10-15 m | ||
0.9 KW Pump | 380 V/50 HZ/3 Phase | 15-24 m | ||

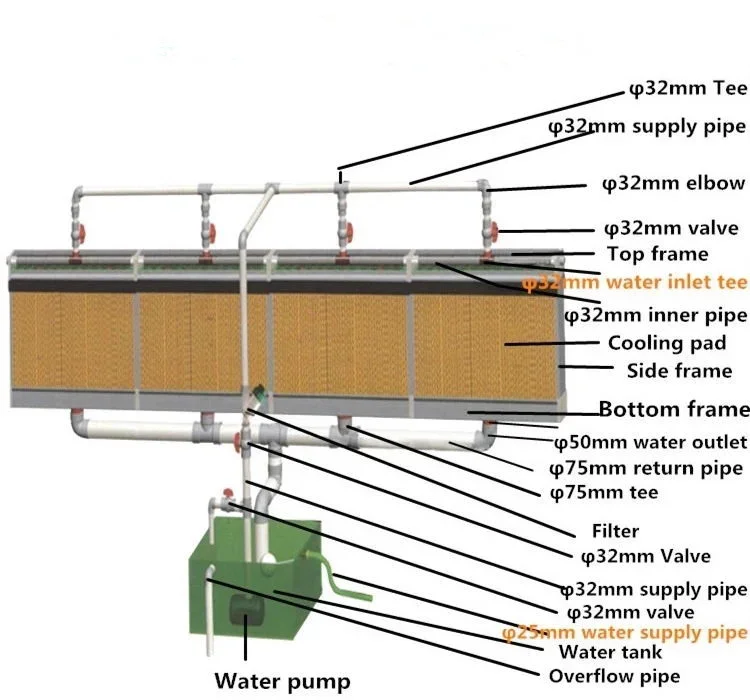

Schematic diagram of wet curtain ventilation and cooling
Horizontal Installation Longitudinal Installation Negative Pressure Ventilation System

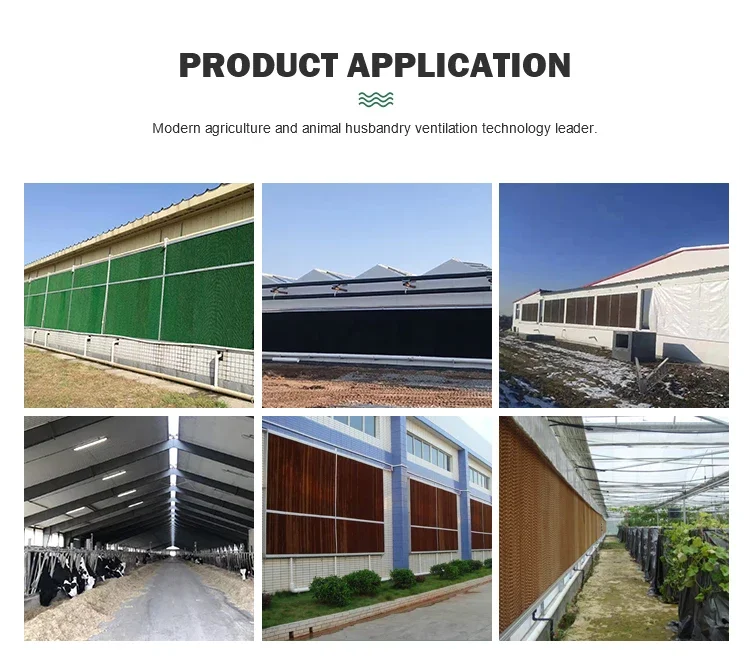

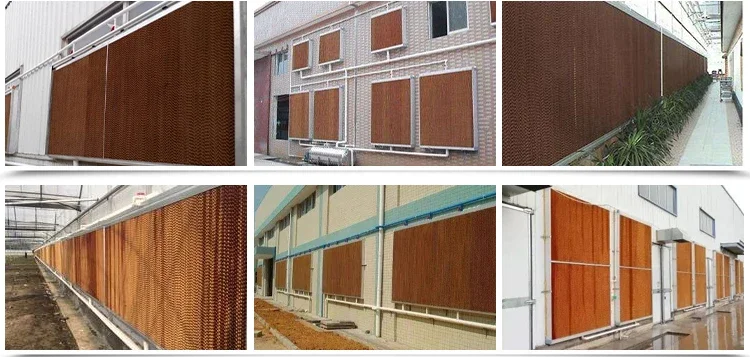

Product Application

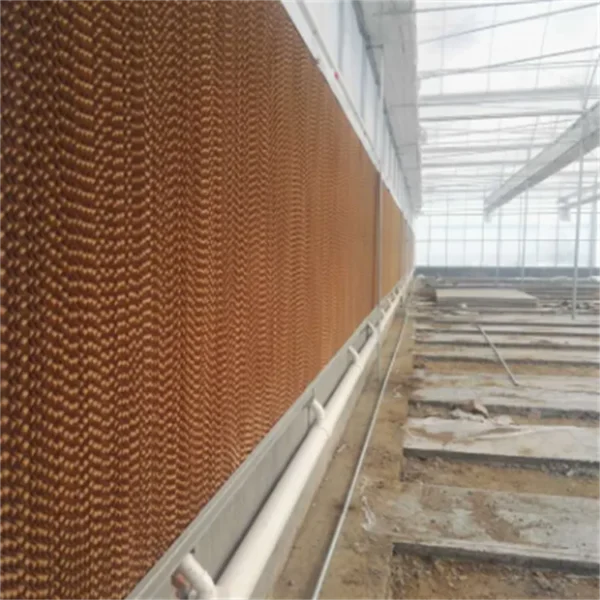

DuoHui cooling pads mainly used for ventilation and cooling in poultry house chicken farms, pig farms, greenhouses, factories, workshops, factory etc.
Product Advantages
–> Made of absorbent kraft paper.
–> High water absorption, corrosion-resistant, anti-mildew, use life together long.
–> Evaporative cooling efficiency up to 85%.
–> Natural water absorption, diffusion speed, performance, and lasting.
–> Not contain any harmful substances such as phenol, green, economical, and easy to install.
Company & Services
Duohui New Material Technology Co., Ltd
Our company was established in 2019 and we are a top professional manufacturer for integrating emulsion, resin research and development, and scientific production and sales in China. Qingzhou Duohui is a high-tech enterprise, and with many domestic institutions of higher learning, scientific research institutions have established a good scientific and technological research and development cooperation relationship, and successively launched a variety of international standards of new emulsion varieties.
Our main products include evaporative cooling pad production line and accessories, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.More importantly, We have our own professional design and development department, providing the best pre-sale service and after-sale service.Sincerely welcome for your visit and technique communication.
Duohui has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D,production, sales and maintenance services.
Our Advantage
1. Reasonable price with good quality and short delivery time 2. Advanced processing equipment and professional operators 3. Relevant authoritative test reports and certificates to ensure quality 4. Patented skills and design team, accept all the OEM and ODM orders.
Before selling: Learn customers' actual conditions, and recommend suitable products according to the client's actual demand.
After sell: 24 Hours*365 Days Online Support. And can send engineer and workers to clients site assembly and debugging.
1. What’s your main product?
Our main products include evaporative cooling pad production line and accessories, water treatment equipment and accessories, kraft paper, phenolic resin, urea-formaldehyde resin, waterproof emulsion, construction emulsion, textile emulsion, and packaging emulsion.
2. Are you a factory or a trading company?
We are a direct factory with guaranteed quality and competitive price.Support customer visits, and video talk to check the factory.
3. How will you guarantee the quality?
For all of our machinery, 1-year guarantee for the core components.We support 24 hrs*365 days online service for technical guidance.
4. How long is the time of production and delivery time?
According to different types and quantities, the production phase is around 7-30 days.The delivery time is around 7-15 days.
Note: we can provide OEM & ODM services，and we can make your brand on the products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $80 / set
- 100+ set: US $50 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air coolers?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air coolers carry?
It is supplied with CE CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
