Air curtain — 12V/24V, airflow 22-46CFM. The complete factory specification follows. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Curtain
- Model Number: MX30090CFM1/MX30190CFM1
- Voltage: 12V/24V
- Airflow: 22-46CFM
- Blade Material: aluminum
- Material: aluminum Blade
- Warranty: 1 Year
Technical Specifications
| Voltage | 12V/24V |
|---|---|
| Electric Current Type | DC |
| Mounting | Other |
| Blade Material | aluminum |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Free Spare Parts |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX30090CFM1/MX30190CFM1 |
| Product Name | Cross Flow Fan |
| Application | air curtain,Over, heater, air purifier, home appliances, floor heating |
| Airflow | 22-46CFM |
| Function | Cooling Heating |
| Keyword | Cooling Air-cooled AHU Ducted |
| Fan Type | Tangential Blower |
| Noise | Low Noise |
| Material | aluminum Blade |
| Fan Diameter | 30mm 40mm 50mm 60mm optional |
| Type | CROSS FLOW FAN |
| Core Components | Motor, Bearing |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
| Selling Units | Single item |
| Single Package Size | 6X6X35 cm |
| Single Gross Weight | 1.000 kg |

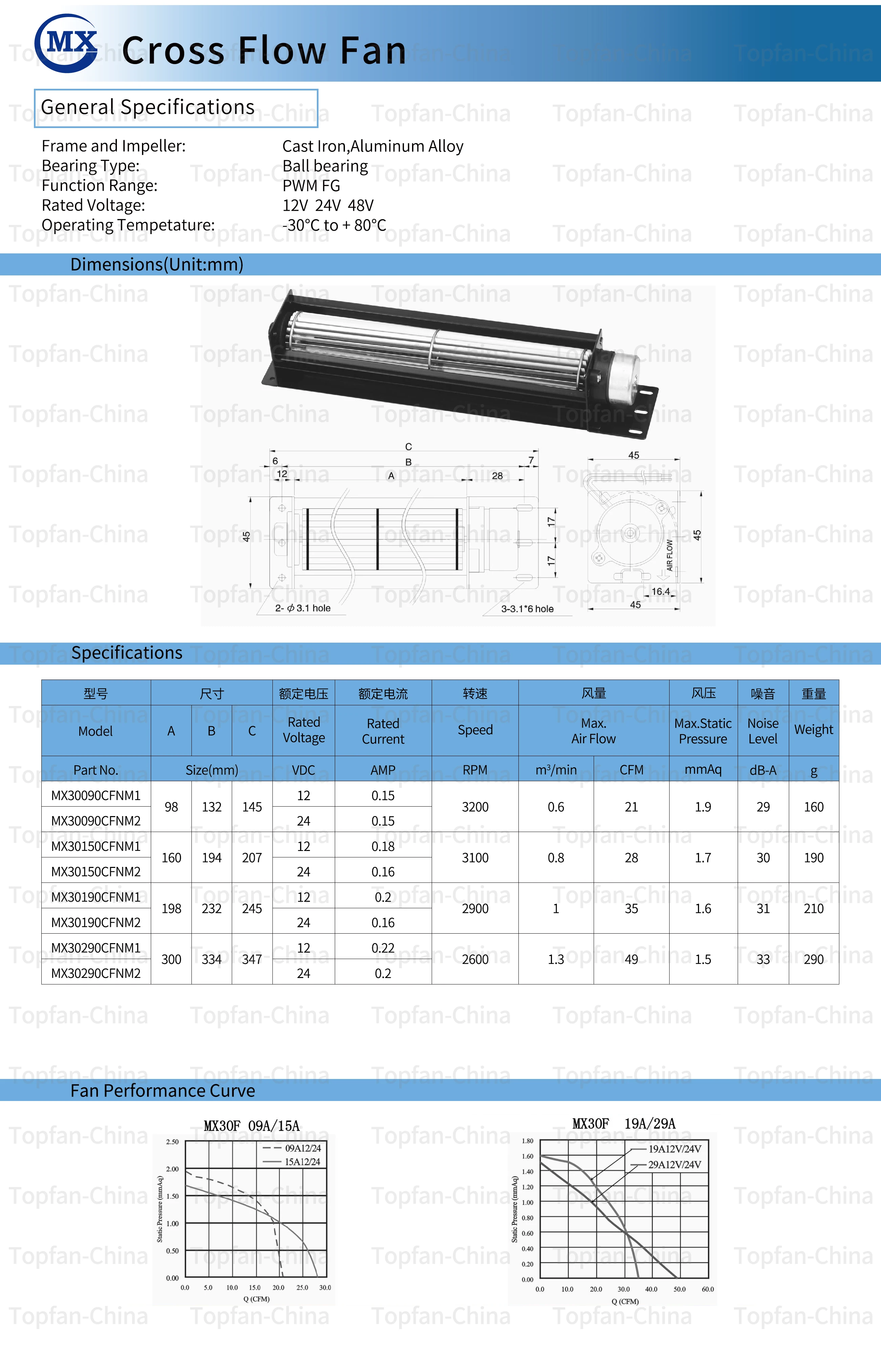

Product Details
Model | Size(mm) | Rated Volt | Rated Current | Speed | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||||
Part No. | A | B | C | VDC | AMP | RPM | CFM | mmAq | dB-A | ||||||||
MX30090CFNM1 | 98 | 132 | 145 | 12 | 0.15 | 3200 | 21 | 1.9 | 29 | ||||||||
MX30090CFNM2 | 24 | 0.15 | |||||||||||||||
MX30150CFNM1 | 160 | 194 | 207 | 12 | 0.18 | 3100 | 28 | 1.7 | 30 | ||||||||
MX30150CFNM2 | 24 | 0.16 | |||||||||||||||
MX30190CFNM1 | 198 | 232 | 245 | 12 | 0.2 | 2900 | 35 | 1.6 | 31 | ||||||||
MX30190CFNM2 | 24 | 0.16 | |||||||||||||||
MX30290CFNM1 | 300 | 334 | 347 | 12 | 0.22 | 2600 | 46 | 1.5 | 33 | ||||||||
MX30290CFNM2 | 24 | 0.2 | |||||||||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
Product Name | DC Cross Flow Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Plastic(94V-0)，PBT |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 5V 12V 24V 48V … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–499 piece: US $17.74 / piece
- 500–4999 piece: US $14.41 / piece
- 5000+ piece: US $9.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air curtain be supplied for my local voltage?
The standard configuration is 12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
