Key specification for this air curtain: voltage 220/380V, airflow 3500CMH 2061CFM. Everything below is reproduced from the factory data sheet. Made by ADEN GROUP CO., LIMITED (3 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Curtain
- Input Power: 1100W
- Voltage: 220/380V
- Airflow: 3500CMH 2061CFM
- Air Speed: 28m/s
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Curtain |
|---|---|
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price, Stable Quality |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 38 |
| Brand Name | AIRTEAM |
| Specification | 900mm |
| Voltage | 220/380V |
| Frequency | 50/60Hz |
| Input Power | 1100W |
| Installation Height | 5.0-7.0m |

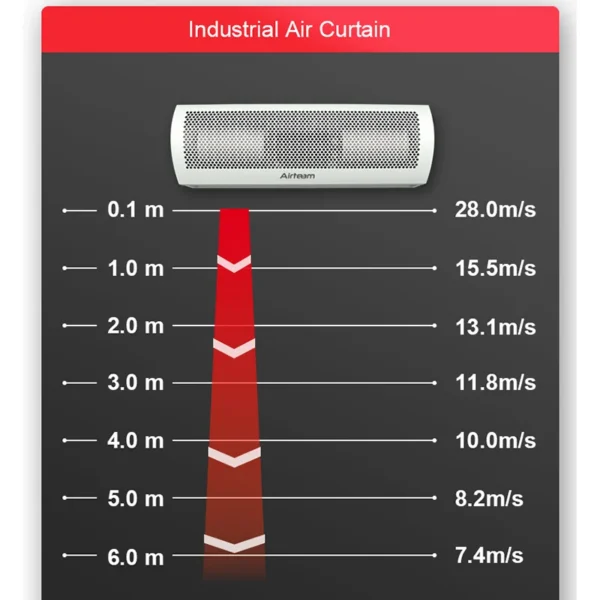

| Air Speed | 28m/s |
| Airflow | 3500CMH 2061CFM |
| Noise | 69 dB |
| Dimension | 900x318x267mm |
| Net Weight | 38KG |
| Selling Units | Single item |
Product Details
Airteam makes your house “breathe”
* All metal spraying with better fire prevention, corrosion resistance performance;
* It is designed as high wind speed, high wind pressure and high air volume. Thus it is applicable to factory, warehouse and other locations requiring high wind speed and air pressure;
* Forerake multi-blade retroverted centrifugal impeller with efficient spiral case design. The air speed and air pressure are
greater and the noise is lower;
* Vemtilation design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;
* Professional air duct design can realize more silent effect and superior performance of the product;
* High quality three-phase asynchronous motor with higher power and efficiency;
* Enclosure class IP44
* Insulation class E
Model | Size (mm) | Voltage (V) | Freq. (Hz) | Input Power (KW) | Installation Height(m) | Air Speed (m/s) | Airflow (m3/h) | Noise (dB) | Dimension (mm) |
LM8009G | 900 | 220/380 | 50 | 1.1 | 5.0-7.0 | 28 | 3500 | 69 | 900x380x267 |
LM8010G | 1000 | 220/380 | 50 | 1.1 | 5.0-7.0 | 28 | 4000 | 69 | 1000x380x267 |
LM8012G | 1200 | 220/380 | 50 | 1.1 | 5.0-7.0 | 28 | 5500 | 70 | 1200x380x267 |
LM8015G | 1500 | 220/380 | 50 | 1.7 | 5.0-7.0 | 28 | 6000 | 71 | 1500x380x267 |
LM8018G | 1800 | 220/380 | 50 | 2.2 | 5.0-7.0 | 28 | 7500 | 72 | 1800x380x267 |
LM8020G | 2000 | 220/380 | 50 | 2.2 | 5.0-7.0 | 28 | 8000 | 72 | 2000x380x267 |
We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in the ventilation and air purification field.
Our main product:
1. AC EC DC Centrifugal Fan
2. Single Inlet Dual Inlet Blower Fan
3. AC EC DC Axial Fan
4. Ventilation Product
5. Household Appliances Motor
6. Customized Service
A : Yes, we offer customization service.
A : Our factory production capacity is 50,000 sets per month.
A : Normally MOQ 100pcs, but we also accept small sample order for quality clients.
A : Of course!
Q : How soon is the lead time?
A : For sample order, 3-5 days if in-stock. For bulk order, 15-25 days.
Q : How can you guarantee the quality?
A : Complete inspection before delivery. And we take responsibility according to our wholesome after-sales support system.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $163 / unit
- 50–299 unit: US $156 / unit
- 300+ unit: US $145 / unit
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air curtain be supplied for my local voltage?
The standard configuration is 220/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ADEN GROUP CO., LIMITED. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ADEN GROUP CO., LIMITED range on HVACR Nexus.
