This air curtain is published with the manufacturer’s full specification — voltage Voltage, airflow 3890CMH 2291CFM. Made by ADEN GROUP CO., LIMITED (3 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Curtain
- Input Power: Input Power
- Voltage: Voltage
- Airflow: 3890CMH 2291CFM
- Air Speed: 12m/s
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Curtain |
|---|---|
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price, Stable Quality |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 13 |
| Brand Name | AIRTEAM |
| Specification | 1500mm |
| Voltage | Voltage |
| Frequency | 50Hz |
| Input Power | Input Power |
| Installation Height | 3.0-3.5m |
| Air Speed | 12m/s |
| Airflow | 3890CMH 2291CFM |
| Noise | 58 dB |
| Dimension | 1500*175*207mm |
| Net Weight | 16.5Kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Airteam makes your house “breathe”
Airteam ventilation system can ventilate a room on a timed, quantitative and efficient basis and improve the indoor air quality effectively relying on its peofessional and sophisticated design. It will provided you and your family with a home being able to“breath fresh air”, and will create a healthy and comforable living space to get rid of “Sick Building Syndrome”.
* All metal spraying with better fire prevention, corrosion resistance performance;
* New guide louver design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;

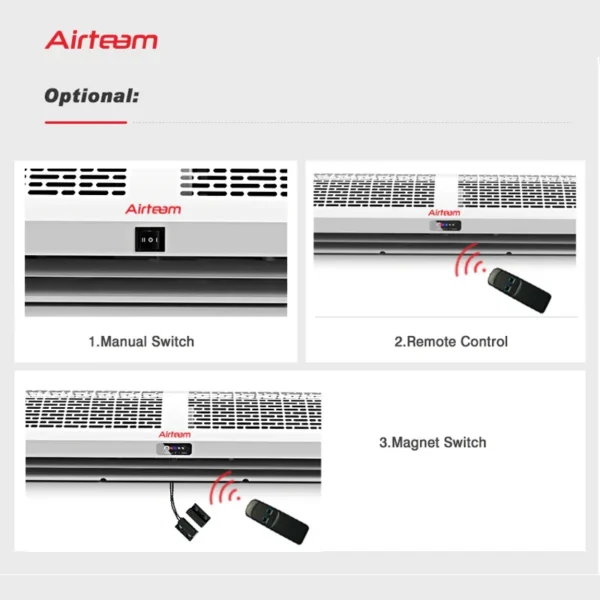

* Multiple control methods, such as manual switch, IR remote, magnet switch and door sensor, multiple control modes are available to satisfy different requirements at different places;

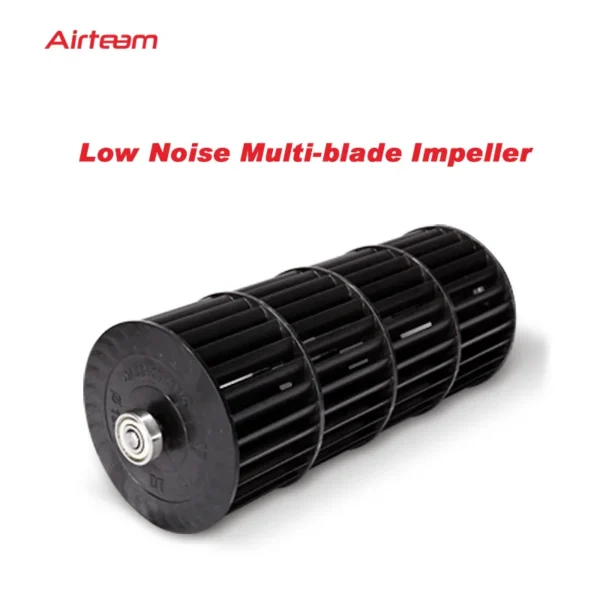

* Turbine impeller injection molded by ABS and glass fiber injection is characterized of high intensity and low noise;
* The unequal pitch and multi-blade rotor design is characterized of lower noise and smaller vibration;

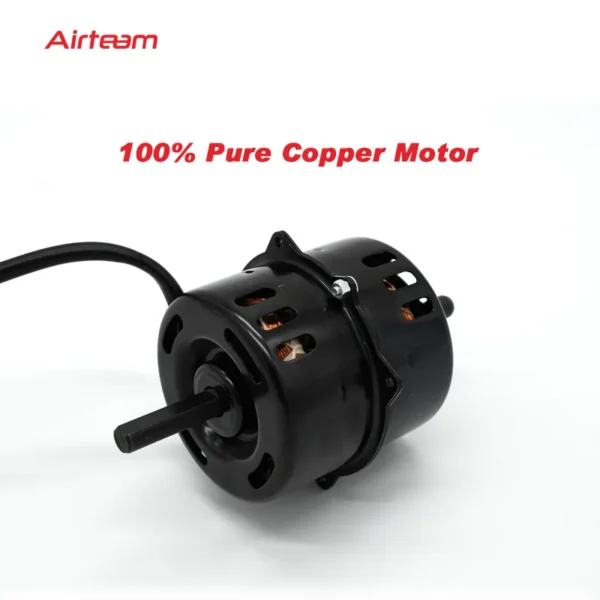

* All pure copper wire motor at low temperature to ensure consistent running without failure;
* Professional air duct design can realize more silent effect and superior performance of the product;

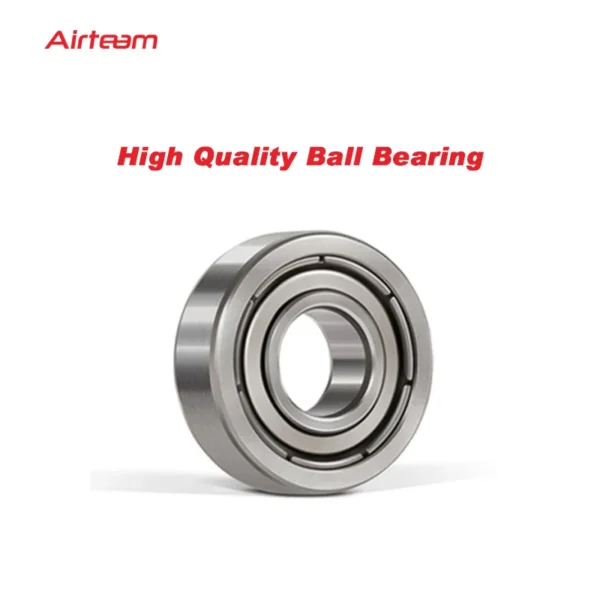

* High-quality ball bearing to ensure motor running more smoothly and silent;
* Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;
* Start up at 100V ultra-low voltage which is more convenient in operation;
* Enclosure class IP44
* Insulation class E
* New guide louver design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;
* Multiple control methods, such as manual switch, IR remote, magnet switch and door sensor, multiple control modes are available to satisfy different requirements at different places;
* Turbine impeller injection molded by ABS and glass fiber injection is characterized of high intensity and low noise;
* The unequal pitch and multi-blade rotor design is characterized of lower noise and smaller vibration;
* All pure copper wire motor at low temperature to ensure consistent running without failure;
* Professional air duct design can realize more silent effect and superior performance of the product;
* High-quality ball bearing to ensure motor running more smoothly and silent;
* Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;
* Start up at 100V ultra-low voltage which is more convenient in operation;
* Enclosure class IP44
* Insulation class E
Model | Spec. (mm) | Voltage (V) | Freq. (Hz) | Input Power (W) | Input Power (W) | Air Speed (m/s) | Airflow CMH CFM | Dimension (mm) | Net Weight (Kg) |
FM3509C | 900 | 120/220 | 50/60 | 132 | 3.0-3.5 | 12 | 2320 1366 | 900*175*207 | 11 |
FM3512C | 1200 | 120/220 | 50/60 | 176 | 3.0-3.5 | 12 | 2720 1601 | 1200*175*207 | 13 |
FM3515C | 1500 | 120/220 | 50/60 | 235 | 3.0-3.5 | 12 | 3030 1784 | 1500*175*207 | 15 |
FM3518C | 1800 | 120/220 | 50/60 | 295 | 3.0-3.5 | 12 | 3890 2291 | 1800*175*207 | 17 |
FM3520C | 2000 | 120/220 | 50/60 | 350 | 3.0-3.5 | 12 | 4700 2768 | 2000*175*207 | 22 |
FM3509C-1Y | 900 | 120/220 | 50/60 | 132 | 3.0-3.5 | 12 | 2320 1366 | 900*175*207 | 11 |
FM3512C-1Y | 1200 | 120/220 | 50/60 | 176 | 3.0-3.5 | 12 | 2720 1601 | 1200*175*207 | 13 |
FM3515C-1Y | 1500 | 120/220 | 50/60 | 235 | 3.0-3.5 | 12 | 3030 1784 | 1500*175*207 | 15 |
FM3518C-1Y | 1800 | 120/220 | 50/60 | 295 | 3.0-3.5 | 12 | 3890 2291 | 1800*175*207 | 17 |
FM3520C-1Y | 2000 | 120/220 | 120/220 | 350 | 3.0-3.5 | 12 | 4700 2768 | 2000*175*207 | 22 |
Certifications
CE, CCC, RoHs, ISO9001
Company Profile
ADEN GROUP CO., LIMITED
is a technology-based firm focusing on ventilation and air purification area integrated with product R&D, manufacturing and sales. We have passed a series of certifications such as ISO9001:2008, 3C, CE, RoHS. Our main products include ventilation exchanger, ERV, HRV, pipeline blower, duct fan, axial fan, centrifugal fan, air curtain, air purifier, fan motor and so on. Our company has modern standard workshops, advanced production equipment, and product research laboratory satisfying the production.
We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in the ventilation and air purification field.
We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in the ventilation and air purification field.
Welcome to contact us for more information！
Our main product:
1. AC EC DC Centrifugal Fan
2. Single Inlet Dual Inlet Blower Fan
3. AC EC DC Axial Fan
4. Ventilation Product
5. Household Appliances Motor
6. Customized Service
Our main product:
1. AC EC DC Centrifugal Fan
2. Single Inlet Dual Inlet Blower Fan
3. AC EC DC Axial Fan
4. Ventilation Product
5. Household Appliances Motor
6. Customized Service
FAQ
Q : Can your products’ label, packaging, design be customized?
A : Yes, we offer customization service.
A : Yes, we offer customization service.
Q : What is your monthly production capacity?
A : Our factory production capacity is 50,000 sets per month.
A : Our factory production capacity is 50,000 sets per month.
Q : What is your minimum order quantity?
A : Normally MOQ 100pcs, but we also accept small sample order for quality clients.
A : Normally MOQ 100pcs, but we also accept small sample order for quality clients.
Q : Can I get a sample for quality check?
A : Of course!
Q : How soon is the lead time?
A : For sample order, 3-5 days if in-stock. For bulk order, 15-25 days.
Q : How can you guarantee the quality?
A : Complete inspection before delivery. And we take responsibility according to our wholesome after-sales support system.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.
A : Of course!
Q : How soon is the lead time?
A : For sample order, 3-5 days if in-stock. For bulk order, 15-25 days.
Q : How can you guarantee the quality?
A : Complete inspection before delivery. And we take responsibility according to our wholesome after-sales support system.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $48.98 / unit
- 50–299 unit: US $46.72 / unit
- 300+ unit: US $44.69 / unit
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air curtain?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air curtain be supplied for my local voltage?
The standard configuration is Voltage. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ADEN GROUP CO., LIMITED. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ADEN GROUP CO., LIMITED range on HVACR Nexus.
