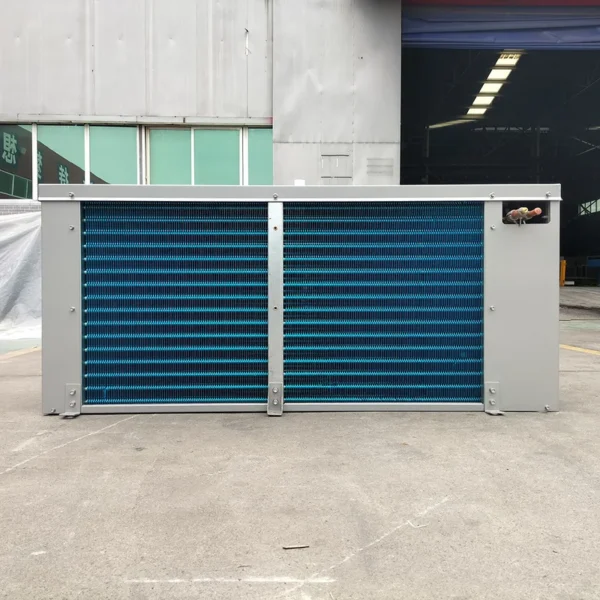

Air duct design evaporator — model no DD-22.3/120, certification CE&ISO9001&ISO14001. The complete factory specification follows. Made by Luohe Tianshun Refrigeration Equipment Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Duct Design Evaporator
- Warranty: 1 Year
- Certification: CE&ISO9001&ISO14001
- Place Of Origin: Henan, China
- Application: Cold Storage Room Freezer Room
- Weight (Kg): 100
- Single Gross Weight: 0.0 kg
Technical Specifications
| Core Components | Engine, Fan |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 100 |
| Place Of Origin | Henan, China |
| Brand Name | Heleng |

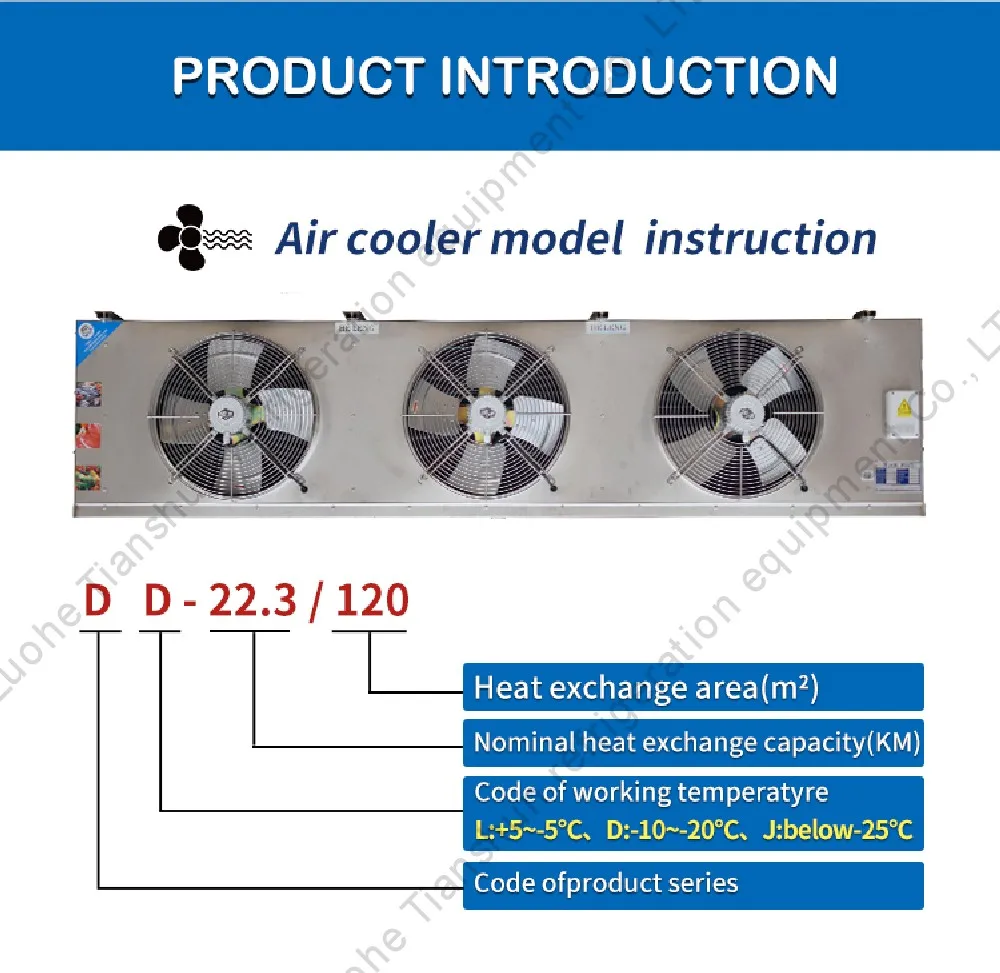

| Model No | DD-22.3/120 |
| Product Name | DD DJ DL Cold Storage Room Refrigerator Air Cooler |
| Fin Space | 4.5mm, 6mm, 9mm or customized |
| Color | White/Blue/Silver/stainless steel color |

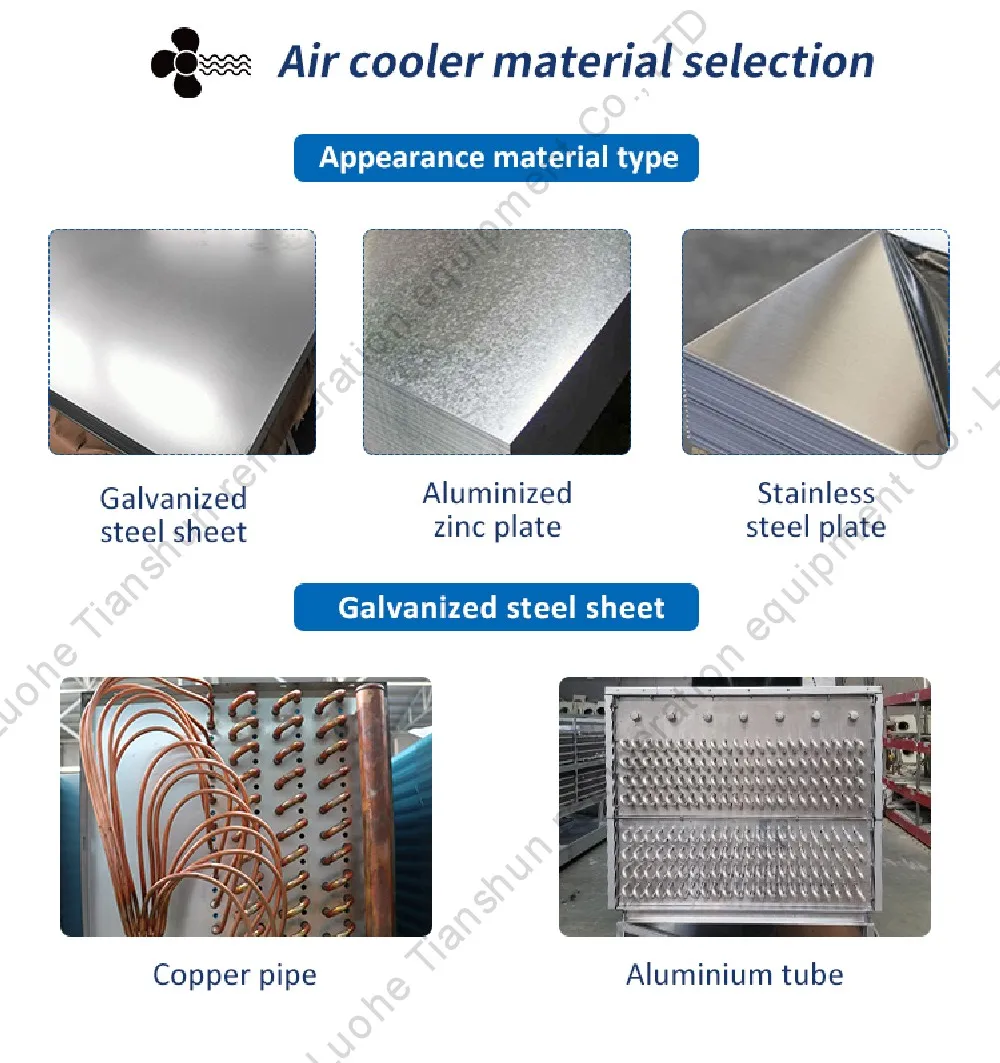

| Tube Plate | Copper pipe |
| Heat Exchanger Air Area | 8㎡ to 500㎡ |
| Certification | CE&ISO9001&ISO14001 |
| Application | Cold Storage Room Freezer Room |
| Air Duct | High air duct design |

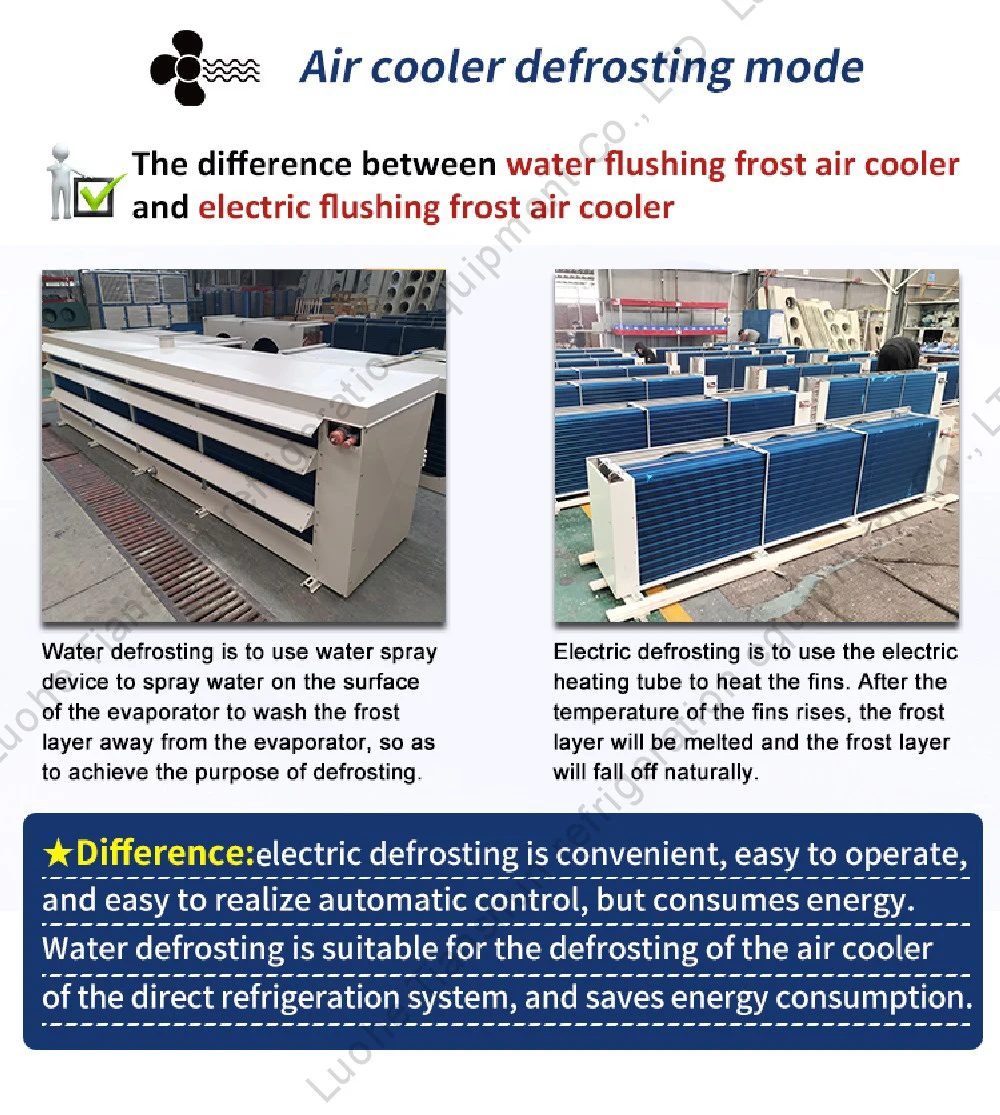

| Defrosting Way | electric defrosting |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

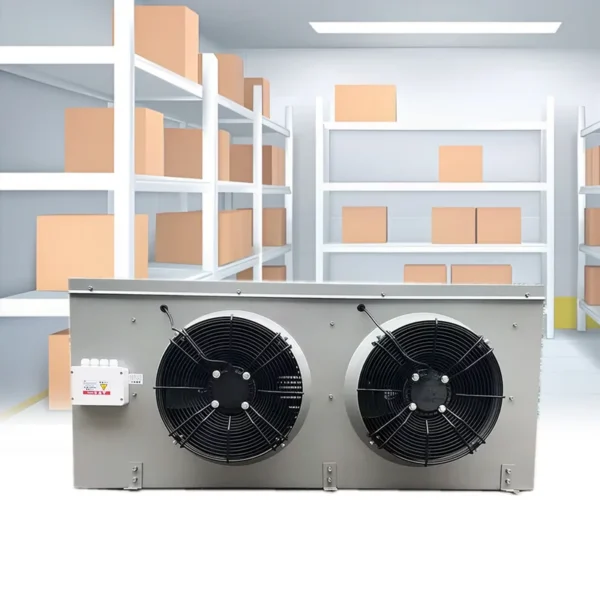

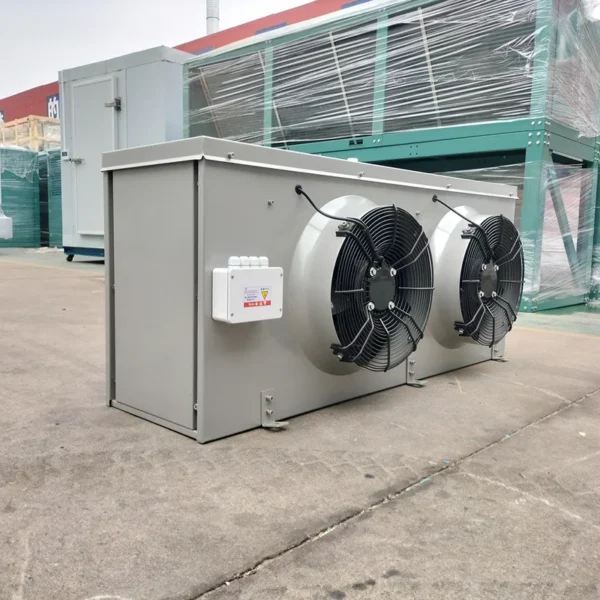

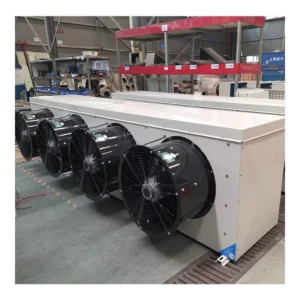

Ceiling Mounted Dual Discharge High air Duct Design Evaporator Industrial air Coolers for Cold Storage Room Freezer Room
| Table of main technical parameters of DD series cooling fan | ||||||||||
| Model | Volume | Parameter of fan | Eletrothemal defrosting | |||||||
| Refrigerating | Nominal | |||||||||
| capacity | area | Quantity | Voltage | Power | Range | |||||
| Diameter | Air | |||||||||
| of fan | Volume | |||||||||
| W | m2 | L | N | mm | V | W | m3/h | m | KW | |
| DD-2.8/15 | 2825 | 15 | 2.7 | 2 | 350 | 380/220 | 2×135 | 2×2670 | 8 | 3 |
| DD-3.7/22 | 3700 | 22 | 3.5 | 2 | 350 | 380/220 | 2×135 | 2×2670 | 8 | 3 |
| DD-5.3/30 | 5300 | 30 | 5.8 | 2 | 400 | 380/220 | 2×190 | 2×3500 | 10 | 3.9 |
| DD-7.0/40 | 7000 | 40 | 7.6 | 2 | 400 | 380/220 | 2×190 | 2×3500 | 10 | 3.9 |
| DD-11.2/60 | 11200 | 60 | 10.1 | 2 | 500 | 380 | 2×420 | 2×6500 | 15 | 7.5 |
| DD-14.9/80 | 14900 | 80 | 13.5 | 2 | 500 | 380 | 2×420 | 2×6500 | 15 | 9 |
| DD-18.7/100 | 18700 | 100 | 17.3 | 3 | 500 | 380 | 3×420 | 3×6500 | 15 | 12 |
| DD-18.7/100 | 18700 | 100 | 17.3 | 3 | 500 | 380 | 3×550 | 3×6570 | 15 | 12 |
| DD-22.3/120 | 22300 | 120 | 19.6 | 3 | 500 | 380 | 3×420 | 3×6500 | 15 | 14.4 |
| DD-22.3/120 | 22300 | 120 | 19.6 | 3 | 500 | 380 | 3×550 | 3×6570 | 15 | 14.4 |
| DD-26.2/140 | 26200 | 140 | 22.7 | 4 | 500 | 380 | 4×420 | 4×6500 | 15 | 16.8 |
| DD-26.2/140 | 26200 | 140 | 22.7 | 4 | 500 | 380 | 4×550 | 4×6570 | 15 | 16.8 |
| DD-29.8/160 | 29800 | 160 | 25.8 | 4 | 500 | 380 | 4×420 | 4×6500 | 15 | 19.2 |
| DD-29.8/160 | 29800 | 160 | 25.8 | 4 | 500 | 380 | 4×550 | 4×6570 | 15 | 19.2 |
| DD-37.2/200 | 37200 | 200 | 32.2 | 2 | 600 | 380 | 2×1500 | 2×10000 | 15 | 18 |
| DD-48.4/250 | 48400 | 250 | 41.9 | 3 | 600 | 380 | 3×1500 | 3×10000 | 15 | 21.6 |
| DD-57.9/310 | 57900 | 300 | 51.6 | 3 | 600 | 380 | 3×1500 | 3×10000 | 15 | 25.2 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $619 / piece
- 5–9 piece: US $609 / piece
- 10+ piece: US $599 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air duct design evaporator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air duct design evaporator carry?
It is supplied with CE&ISO9001&ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
