Key specification for this evaporative air cooler: material Stainless Steel 304/316L, type Evaporator. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Evaporative Air Cooler
- Material: Stainless Steel 304/316L
- Warranty: More Than 5 Years
- Place Of Origin: China
- Type: Evaporator
- Weight (Kg): 50
- Single Gross Weight: 0.0 kg
Technical Specifications
| Type | Evaporator |
|---|---|
| Warranty | More Than 5 Years |
| Weight (Kg) | 50 |
| Place Of Origin | China |
| Brand Name | UAR |

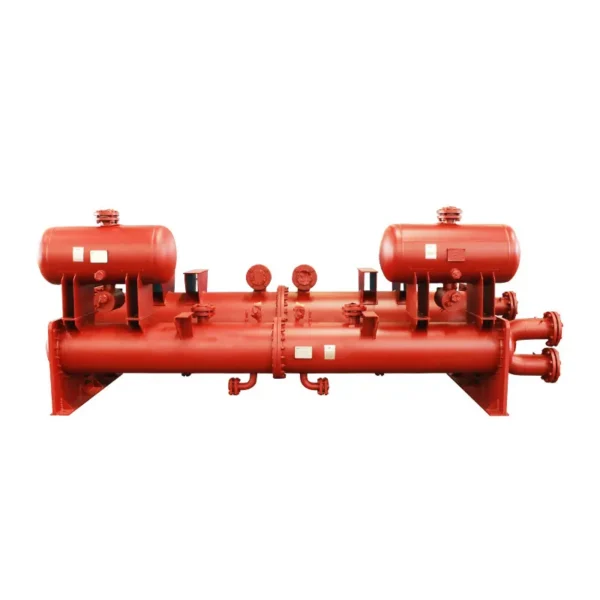

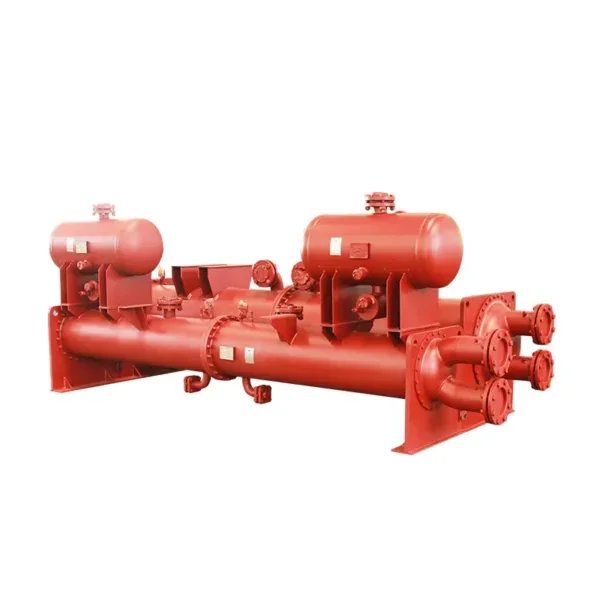

| Product Name | Shell And Tube Heat Exchanger |
| Material | Stainless Steel 304/316L |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

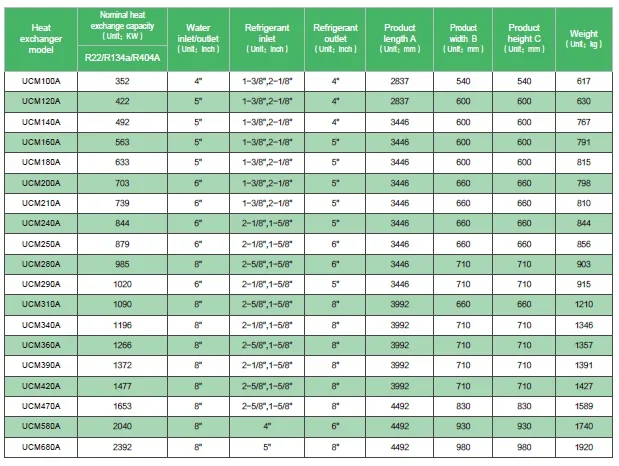

Specifications
Remarks:
1. Parameter of nominal heat exchange: evaporation temperature Te=4.5 ℃ , incoming water temperature Ti=12℃ , outgoing water temperature To=7℃ , degree of
superheat 5℃ .
2. Operating conditions of water source: evaporation temperature Te=5℃ , incoming water temperature Ti=15℃ , outgoing water temperature To=8℃ , degree of
superheat 5℃ ; in which heat exchange Q (water source) = 1.05 Q (nominal).
3. The refrigerant side max. allowable working pressure: 3.0MPa, operating pressure: 2.5MPa; the water side, the max. allowable working pressure: 2.0MPa.
4. Water pressure drop less than 100KPa.
5. Customized materials or sizes are available upon request.
6. Any change of shape or size due to product improvement will not be further notified.
Benefits
Adopted 1.1mm thickness heat exchange tube specially designed for flooded evaporators, and T-shaped spiral heat exchange tube greatly increases the heat exchange area. The internal structure device has got a number of national patents. The water passes through the heat exchange tube and the refrigerant flows in the shell; the gaseous refrigerant produced as the result of heat exchange between the liquid coolant and the liquid refrigerant will go directly into the compressor, which greatly improves the heat exchange efficiency. Suitable for screw, centrifugal, magnetic bearing and other types of compressor. The difference between the outlet water temperature and the evaporation temperature is nearly 0, and the resistance along the way is small.
WHO WE ARE
Guangzhou United A/C & R Co., Ltd. is a large and professional manufacturer specializing in R&D and production of shell and tube heat exchangers, with 30 years of experience and headquartered in Guangzhou, China. UAR has obtained ISO9001, ISO14000, CE, and ASME certifications, with 100 products patent Intellectual Property, which has earned the recognition and support of the majority of users and maintained a good brand reputation and technological leadership in the heat exchanger industry.
WHY CHOOSE US
l 30 years of history at your service
l Cutting-Edge Technology & Exclusive Patents
l Rigorously inspected for lasting reliability
l Tailor our products to meet your specific requirements
PROJECTS
EXHIBITION
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $500 / piece
- 10–19 piece: US $450 / piece
- 20+ piece: US $400 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
