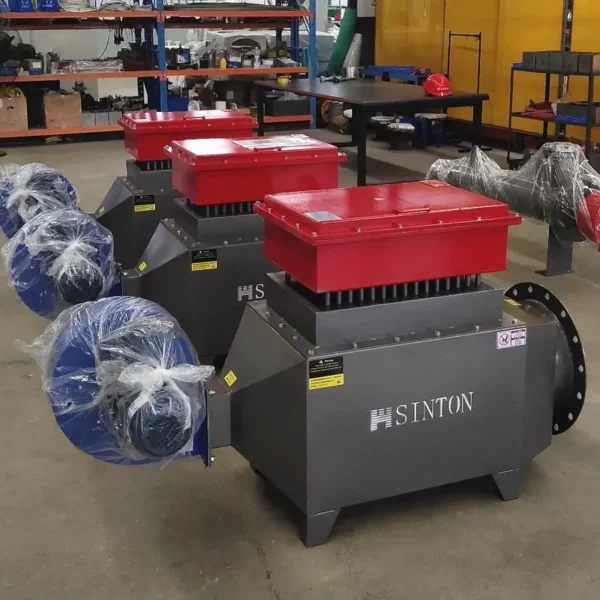

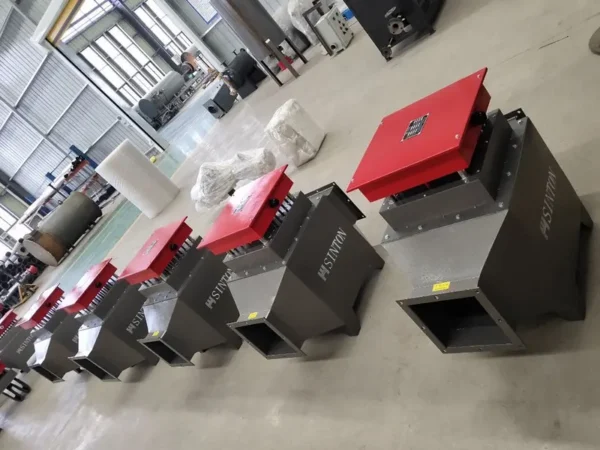

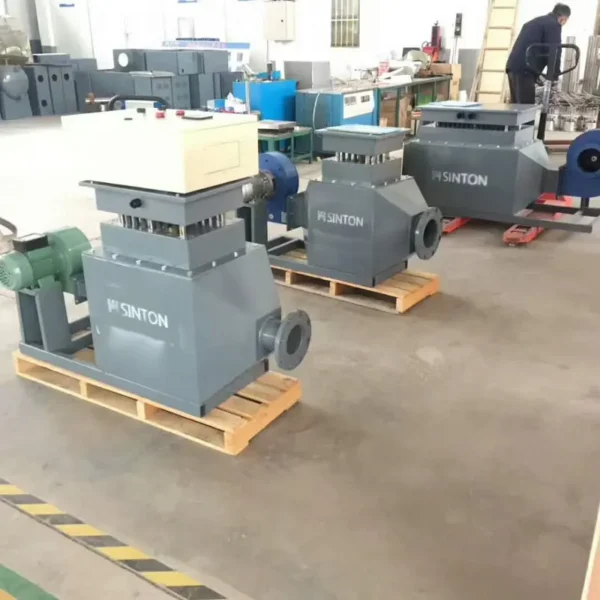

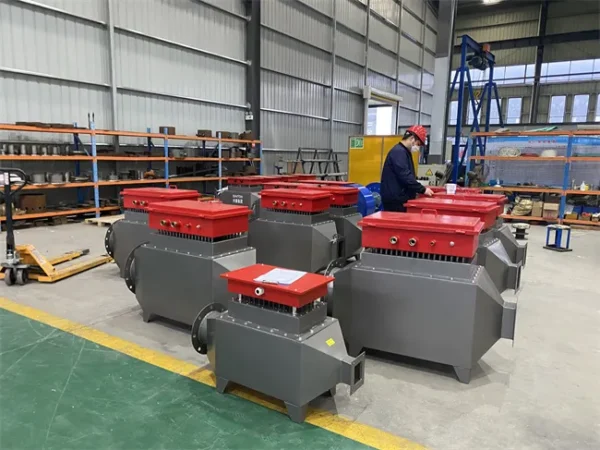

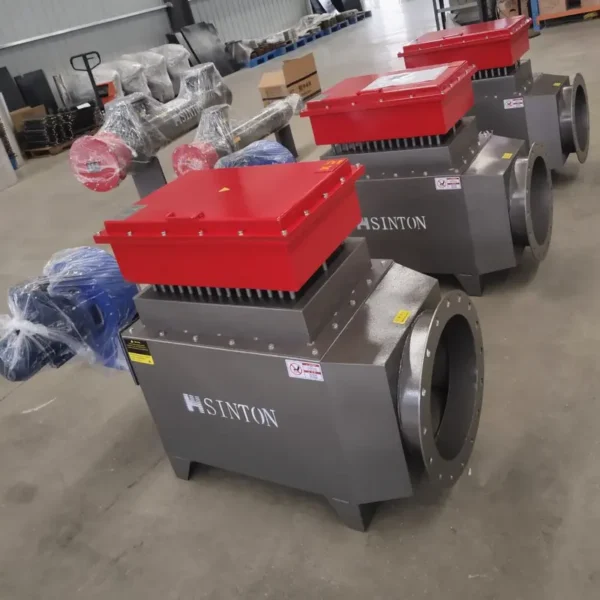

Air Duct Heater, SINTON, 380V, 20kw

Key specification for this air duct heater: 220V~380V, power source Electric. Everything below is reproduced from the factory data sheet. Made by SINTON ELECTRIC CO., LTD. (19 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Duct Heater

• Power Source: Electric
• Voltage: 220V~380V
• Material: Stainless Steel
• Tube Material: SS304
• Warranty: 3 Years
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Product Description

Duct heaters are mainly used for heating air through the duct. There are three types, low temperature, middle temperature and high temperature. The outer stainless steel sheath and construction can reduce the vibrationof heating elements. There is a overheat protector in the terminal box. Air pressure through the duct should not exceed 0.3KG/cm². Or else it is better use recirculation duct heaters. Max temperature of low temperature duct heater is not more than 160 C. Max temperature of middle temperature duct heater is not more than 260 C. Max temperature of high temperature duct heater is not more than 850 C. It has been applied extensively in aerospace industry, weapon industry, chemical industry, and research and manufacturing laboratories in institutions of higher education, etc.

Main Features

1)During heating,air max temperature can reach 850 degree celsius,but the surface temperature of the sheath is just around 50 degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years

6)Clean air,small volume

7)Made as client design,2KW~1000KW

8)After reached the max temperature,the working wattages can reduce to half.

Product details

Model	Power	Inner Chamber size	Diameter of air outlet
		KW	MM	MM
XTFD-10	10	300*300*300	DN100
XTFD-20	20	500*300*300	DN200
XTFD-30	30	400*400*400	DN300
XTFD-40	40	500*400*400	DN300
XTFD-50	50	600*400*400	DN350
XTFD-60	60	700*400*400	DN350
XTFD-80	80	700*400*500	DN350
XTFD-100	100	900*400*500	DN350
XTFD-120	120	1000*400*500	DN350
XTFD-150	150	700*750*500	DN400
XTFD-180	180	800*750*500	DN400
XTFD-240	240	1000*750*600	DN500
XTFD-300	300	1200*750*600	DN500
XTFD-360	360	1000*800*900	DN500
XTFD-420	420	1200*800*900	DN500
XTFD-480	480	1400*800*900	DN500
XTFD-600	600	1600*1000*1000	DN600
XTFD-800	800	1800*1000*1000	DN600
XTFD-1000	1000	2000*1000*1000	DN600

Application

Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating,environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.

Explosion-proof duct heater for mining heating.

Air duct heaters are used to heat up the drying room.

Air Duct heater for cotton drying.

Packing & Delivery

Packaging
Size	175*65*90cm
Weight	150KG
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Company Profile

Sinton Electric Co.,Ltd.was founded in 2001. At present,the group's total assets are RMB300 million with an area of 112 mu factory and 55,000 square meters office area . We mainly produces kinds of electric heating elements and temperature sensor, for example cartridge heater, water immersion heating element, fin air heating element,explosion-proof heater,band heaters, plate type heaters, hot runner coil heaters, thermocouple and other fittings. and our new design heater nano infrared heating element,electric nano water heaters also was popular in many countries. The management mode integrates R&D, production and sales. The products are exported to 125 countries in the world, including European and American countries. We have strong product independent research and development capabilities and technological innovation capabilities, with product explosion-proof certification, 3C mandatory certification, various patent certification, quality management system certification, safety management system certification, environmental management system certification etc.

Market share & Partners

Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2001, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.

Certifications

FAQ

Q:What is our competitive advantage?
A:You are ordering directly from the factory.We provide one-stop service, from order taking, customized research and development, to product follow-up, after-sales, etc. If you buy our products, we are responsible for you to the end.

Q: What is the lead time for Heater products?
A: Samples – within 3 working days with materials in stock Mass production – usually 7-14 working days (depends on quantity and raw material situation, please further discuss with our team. )

Q: What is the MOQ for Heater products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.

Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.

Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $650 / set
  • 5+ set: US $600 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air duct heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air duct heater be supplied for my local voltage?

The standard configuration is 220V~380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
