The air flow axial fan listed here carries 12V/24V/48V, power joint Lead Wire, documented exactly as the manufacturer publishes it. Made by Shenzhen Haixinghe Electroincs Co., Ltd. (17 years on the platform, typical reply ≤9h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Flow Axial Fan
- Model Number: HDB0812VF
- Power Joint: Lead Wire
- Voltage: 12V/24V/48V
- Blade Material: Plastic
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 12V/24V/48V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 3 Years |
| After-Sales Service Provided | Field installation, commissioning and training |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | HXH |
| Model Number | HDB0812VF |
| Bearing | Sleeve/Ball |
| Noise | 39.0dBA-70.4dBA |
| Power Joint | Lead Wire |
| Application | Computer, etc |
| Color | Black |
| Static Pressure | 5.43mmH2O-86.37mmH2O |
| Shape | Square |
| Size | 80*80*38mm |
| Packaging Details | no wooden package |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 20X15X15 cm |
| Single Gross Weight | 3.0 kg |
| Supply Ability | 50000 pieces per Day |
Product Details

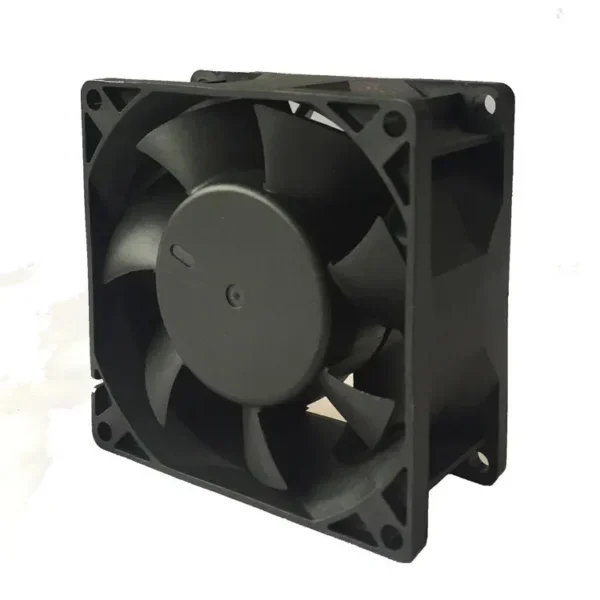

High air flow axial fan 15000rpm 8038 80mm x 80mm x 38mm car energy vehicles dc cooling fan HDB0812VF
Specifications:
1.Size(mm):80*80*38
2.Bearing Type:Sleeve/Ball Bearing
3.Rated Voltage:12V/24V/48V
4. Speed: 3400~15000rpm
| 80×80×38MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDS0812HF | -A | Sleeve | 12 | 6.0 | 0.58 | 6.96 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 |
| HDS0812MF | -A | 6.0 | 0.38 | 4.56 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDS0812LF | -A | 6.0 | 0.20 | 2.40 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| HDB0812VF | -A | Ball | 6.0 | 1.50 | 18.00 | 7500 | 2.62 | 92.43 | 23.83 | 0.94 | 62.1 | |
| HDB0812EF | -A | 6.0 | 1.15 | 13.80 | 6600 | 2.13 | 75.25 | 16.00 | 0.63 | 55.3 | ||
| HDB0812UF | -A | 6.0 | 0.90 | 10.80 | 5700 | 1.93 | 68.24 | 13.22 | 0.52 | 53.0 | ||
| HDB0812HF | -A | 6.0 | 0.58 | 6.96 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 | ||
| HDB0812MF | -A | 6.0 | 0.38 | 4.56 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDB0812LF | -A | 6.0 | 0.20 | 2.40 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| HDS0824HF | -A | Sleeve | 24 | 12.0 | 0.34 | 8.16 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 |
| HDS0824MF | -A | 12.0 | 0.24 | 5.76 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDS0824LF | -A | 12.0 | 0.15 | 3.60 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| HDB0824EF | -A | Ball | 12.0 | 0.60 | 14.40 | 6600 | 2.13 | 75.25 | 16.00 | 0.63 | 55.3 | |
| HDB0824UF | -A | 12.0 | 0.50 | 12.00 | 5700 | 1.93 | 68.24 | 13.22 | 0.52 | 53.0 | ||
| HDB0824HF | -A | 12.0 | 0.34 | 8.16 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 | ||
| HDB0824MF | -A | 12.0 | 0.24 | 5.76 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDB0824LF | -A | 12.0 | 0.15 | 3.60 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| HDS0848HF | -A | Sleeve | 48 | 36.0 | 0.16 | 7.68 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 |
| HDS0848MF | -A | 36.0 | 0.11 | 5.28 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDS0848LF | -A | 36.0 | 0.08 | 3.84 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| HDB0848EF | -A | Ball | 36.0 | 0.32 | 15.36 | 6600 | 2.13 | 75.25 | 16.00 | 0.63 | 55.3 | |
| HDB0848UF | -A | 36.0 | 0.26 | 12.48 | 5700 | 1.93 | 68.24 | 13.22 | 0.52 | 53.0 | ||
| HDB0848HF | -A | 36.0 | 0.16 | 7.68 | 4900 | 1.81 | 63.95 | 11.90 | 0.47 | 47.9 | ||
| HDB0848MF | -A | 36.0 | 0.11 | 5.28 | 4200 | 1.55 | 54.87 | 8.40 | 0.33 | 45.4 | ||
| HDB0848LF | -A | 36.0 | 0.08 | 3.84 | 3400 | 1.24 | 43.96 | 5.43 | 0.21 | 39.0 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
Applications:
Thank you for clicking our product. And if this product couldn't meet your requirements, please contact us.
The fans adopt the most advanced design, with large air volume, low noise, long life, corrosion resistance, etc.
- 1.We have strong engineering design capabilities. We have cooperated with many well-known domestic and foreign factories. We can design specialized products according to customers requirements.
- 2.We understand the specific needs of various industries for fan, so we offer a variety of standard products for your choice.
- 3.Our fans are made of high quality bearing, silicon steel sheet, enameled wire.
If you want to learn more and get latest price, you can add my trademanager or send inquiry to me. I will be glad to serve you.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air flow axial fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air flow axial fan be supplied for my local voltage?
The standard configuration is 12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Haixinghe Electroincs Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Haixinghe Electroincs Co., Ltd. range on HVACR Nexus.
