This cross flow fan is published with the manufacturer’s full specification — 12V/24V, 2.4W~9.6W. Send your target quantity and destination for a firm quotation with current lead times.
This cross flow fan is listed with the manufacturer’s full published specification — voltage 12V/24V, power 2.4W~9.6W, blade material aluminium. It is produced by Shenzhen Haixinghe Electroincs Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: 40F
- Power: 2.4W~9.6W
- Voltage: 12V/24V
- Blade Material: aluminium
- Speed: 2200RPM~3000RPM
- Place Of Origin: Guangdong, China
Technical Specifications
| Blade Material | aluminium |
|---|---|
| Mounting | Free Standing |
| Speed | 2200RPM~3000RPM |
| Electric Current Type | DC |
| Place Of Origin | Guangdong, China |
| Power | 2.4W~9.6W |
| Voltage | 12V/24V |
| Air Volume | 25CFM~105CFM |
| Brand Name | HXH |
| Model Number | 40F |
| Bearing Type | Ball bearing |
| Fan Dimension(Mm) | Customize |
| Packaging Details | 18pcs/carton, no wooden package |
| Port Of Dispatch | HongKong |
| Selling Units | Single item |
| Supply Ability | 20000 pieces per Day |
Product descriptions from the supplier

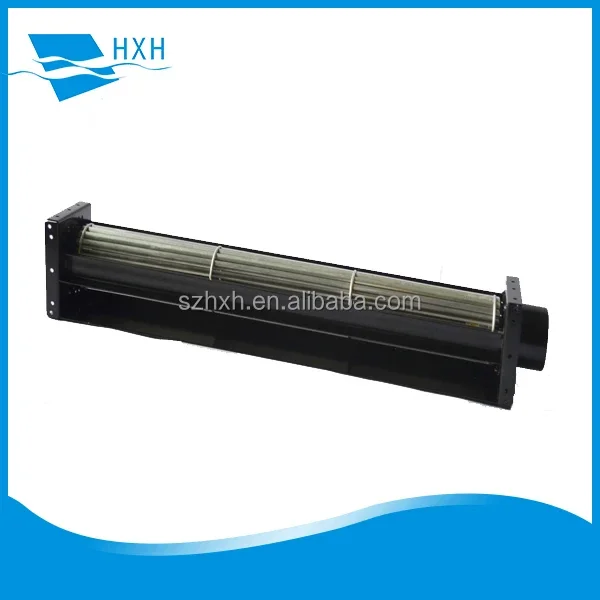

12v 24v dc cross flow fan tangential fan
- 1. bearing system type: Ball bearing
- 2. rated voltage: 12V,24V
- 3. rated speed: 2200~3000RPM
- 4. maxima air flow: 25~105CFM
- 5. maxima pressure : 1.9~3.12mmH2O
- 6. maxima noise(dBA): 35.4~44.2dBA
- 7. function: by impedance,by IC, by IC with FG
- 8. safety approvals: CE,ROHS

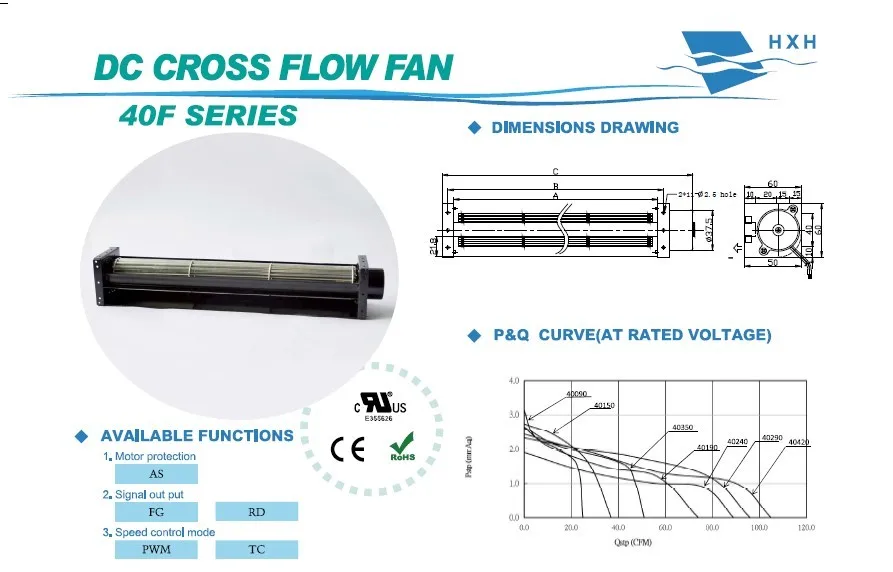

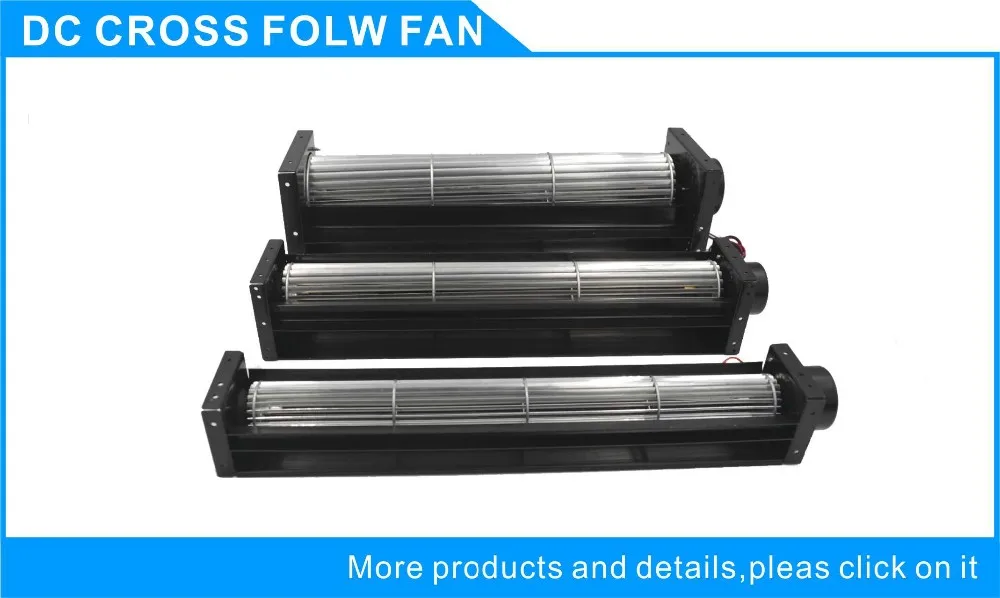

40F SERIES DC FAN with different specifications for your choice:
| HC-040 SERIES | |||||||||||||
| Model | Bearing | Size(mm) | Rated Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||||
| Part NO. | System | A | B | C | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HCB4012H090 | Ball | 98 | 108 | 134 | 12 | 0.20 | 2.40 | 3000 | 0.71 | 25 | 3.12 | 0.12 | 35.4 |
| HCB4024H090 | 24 | 0.15 | 3.60 | ||||||||||
| HCB4012H150 | 160 | 170 | 196 | 12 | 0.25 | 3.00 | 2600 | 1.05 | 37 | 2.74 | 0.11 | 35.4 | |
| HCB4024H150 | 24 | 0.20 | 4.80 | ||||||||||
| HCB4012H190 | 198 | 208 | 234 | 12 | 0.30 | 3.60 | 2500 | 1.44 | 51 | 2.65 | 0.10 | 36.2 | |
| HCB4024H190 | 24 | 0.15 | 3.60 | ||||||||||
| HCB4012H240 | 250 | 260 | 286 | 12 | 0.35 | 4.20 | 2500 | 2.09 | 74 | 2.63 | 0.10 | 40.3 | |
| HCB4024H240 | 24 | 0.25 | 6.00 | ||||||||||
| HCB4012H290 | 300 | 310 | 356 | 12 | 0.55 | 6.60 | 2700 | 2.72 | 96 | 2.44 | 0.10 | 43.4 | |
| HCB4024H290 | 24 | 0.35 | 8.40 | ||||||||||
| HCB4012H350 | 360 | 370 | 416 | 12 | 0.60 | 7.20 | 2600 | 2.97 | 105 | 2.33 | 0.09 | 44.2 | |
| HCB4024H350 | 24 | 0.40 | 9.60 | ||||||||||
| HCB4012H420 | 420 | 430 | 460 | 12 | 0.45 | 5.40 | 2200 | 2.52 | 89 | 1.9 | 0.07 | 40.1 | |
| HCB4024H420 | 24 | 0.23 | 5.52 | ||||||||||

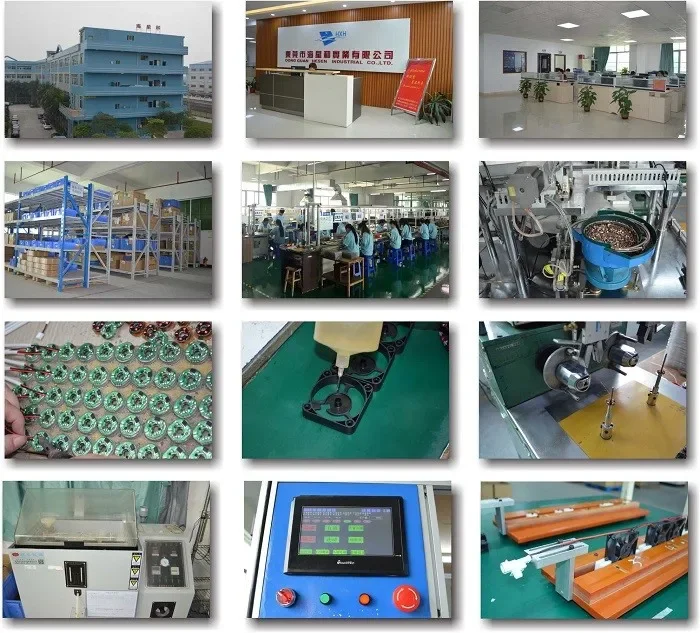

2012,7:Factory expansion again, Set up the radiator module division, passed UL certification.
2011.5:Factory expanded, moved to Dongguan and found Dongguan Hesen Industrial Co.,Ltd.
2007.4:Factory passed ISO9001 quality system certificate. CE certificate passed, manufacture all series of AC and DC FAN.
2004.5:Build Shenzhen Haixinghe Electronic Co., Ltd, creat our own brand “HXH”.
2001.8:processing plant was given priority to with OEM, manufacture part of the model fan for part of the customers.
Fan adopts the most advanced design, with large air volume, low noise, long life, corrosion resistance, etc.
1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!!
1. cooler master case fan 5v-800pcs/carton, no wooden package.
2. 12-15 days after confirm your order and receive your payment.
3. We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
4. Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We HXH do not responsible for any custom duty or import tax.
5. All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
If you want to learn more and get latest price pls add my trademanager or send inquiry to me i will be happy to service with you !
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Can it be built for my local voltage?
The standard specification is 12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
