This air handling equipment unit is published with the manufacturer’s full specification — airflow 2000m³/h, refrigerant R-410A. Made by Zero Technologies Co., Ltd. (4 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Equipment Unit
- Operating Voltage: 230 VAC
- Cooling Capacity: 24000-60000 Btu/h
- Airflow: 2000m³/h
- Refrigerant: R-410A
- Warranty: 1 Year
- Certification: CE/AHRI/ETL/RTCA
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 2000m³/h |
| Operating Voltage | 230 VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Easy To Operate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox, Other |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 85 KG |
| Brand Name | ZERO |
| Dimension(L*W*H) | 500*1162*560 MM |
| Product Name | Top Discharge Light Commercial Air Conditioner Air Handling Unit |
| Application | Room/Hotel/House/Household Use |
| Function | Cooling/Heating |
| Cooling Capacity | 24000-60000 Btu/h |
| Refrigerant | R-410A |
| Certification | CE/AHRI/ETL/RTCA |
| Keyword | Floor standing light commercial air conditioning air handling unit |
| Sound Level | 50-60 dB(A) |
| Color | Gold/Blue |
| SEER | 18SEER/16SEER2(Gold);15SEER/14.3SEER2(blue) |
| Selling Units | Single item |
Product Details

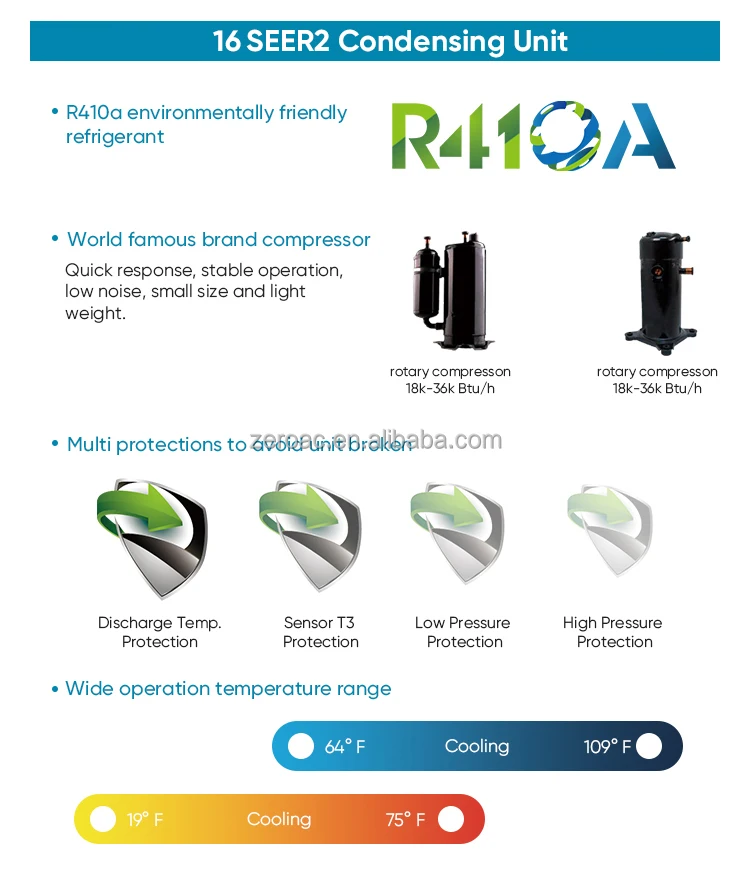

1.R410a environmentally friendly refrigerant.
2.Painted galvanized steel cabinet.

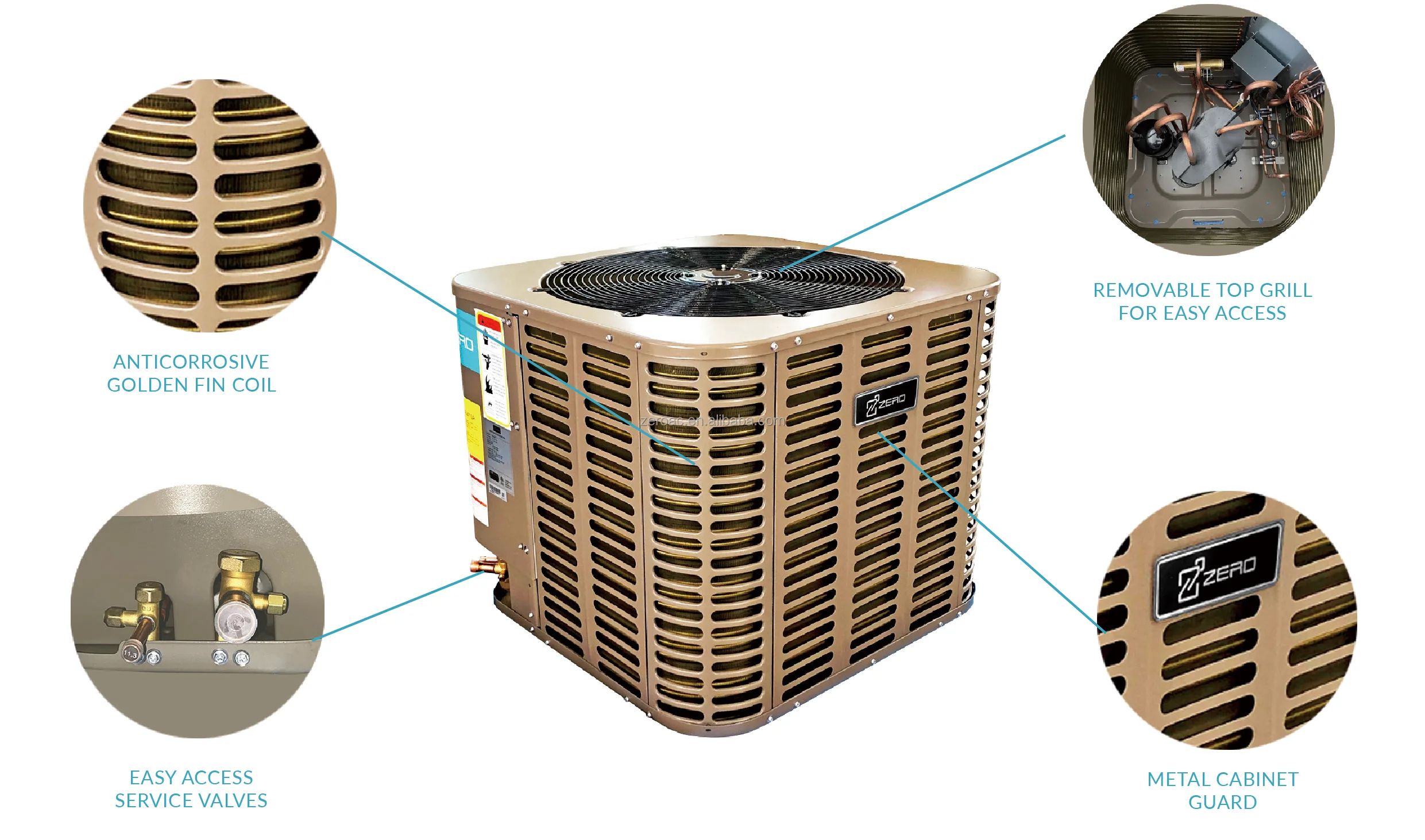

4.Two condenser guard grilles available.
5.World famous brand compressor.
6.Intelligent defrosting program.
7.DC Fan motor.
8.High efficiency condenser.
9.Anticorrosion choice.
10.AHRI & ETL.
Model | / | 24CDG | 36CDG | 48CDG | 60CDG | |||
Power Supply | / | 208/230V-1Ph-60Hz | ||||||
Capacity | Btu/h | 23400 | 34000Btu/h | 46000Btu/h | 53000Btu/h | |||
SEER | / | 18 | ||||||
Refrigerant | / | R410A | ||||||
ESP | Pa | 25 | 37.5 | 50 | 50 | |||
Noise Level | dB | 46 | 48 | 55 | 57 | |||
Dimension (W×H×D) | MM | 500×1162×560MM | 560×1350×620MM | |||||
SEER2 | / | 16 | ||||||
Certificate | / | CE/ETL/AHRI/UL/RTCA ect. | ||||||
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–49 piece: US $1129 / piece
- 50–99 piece: US $1074 / piece
- 100–499 piece: US $1026 / piece
- 500+ piece: US $977 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling equipment unit?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air handling equipment unit carry?
It is supplied with CE/AHRI/ETL/RTCA documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the air handling equipment unit be supplied for my local voltage?
The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zero Technologies Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zero Technologies Co., Ltd. range on HVACR Nexus.
