Key specification for this air handling unit: voltage 3PH-50Hz-380V, 433KW. Everything below is reproduced from the factory data sheet. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Power: 433KW
- Power Consumption: 204.8 KW
- Voltage: 3PH-50Hz-380V
- Refrigerant Oil: HBR-A01
- Refrigerant: R-22(R407c/R134a)
- Warranty: 1 Year
Technical Specifications
| Voltage | 3PH-50Hz-380V |
|---|---|
| Power | 433KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Safety Level |

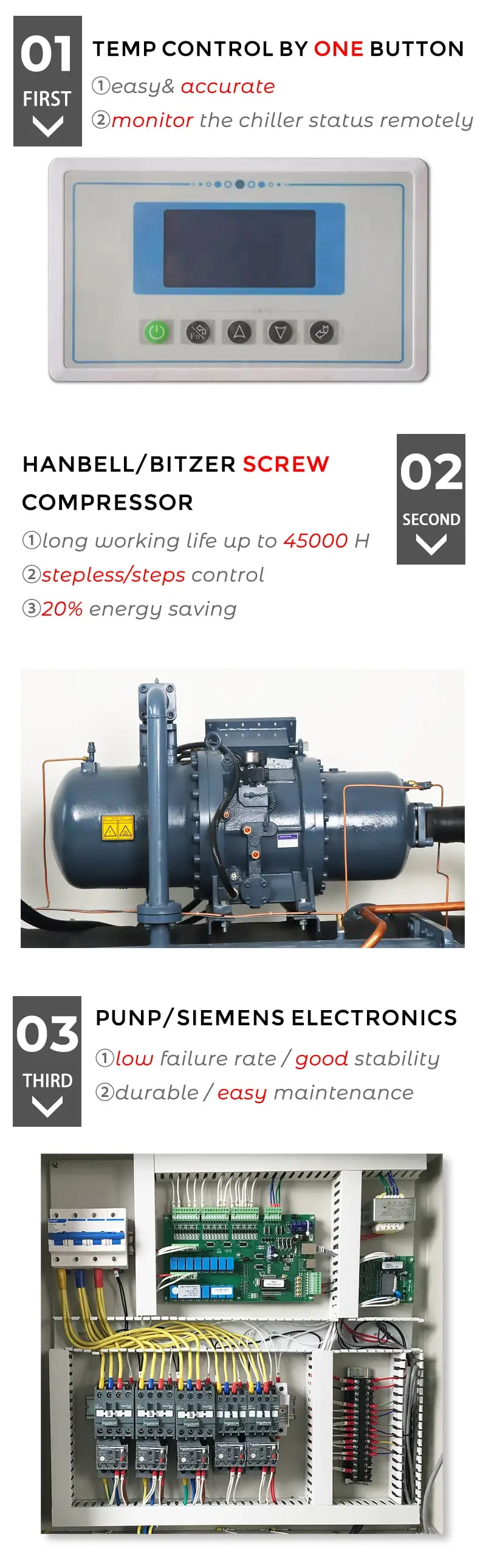

| Core Components | Compressor, Condenser |
| Place Of Origin | Guangdong, China |
| Brand Name | SCYZL |
| Dimension(L*W*H) | 3500*2100*2120MM |
| Working Temperature Range | 5-30 |
| Power Consumption | 204.8 KW |
| Running Current | 120.5A |
| Chilled Water Flow | 79 m³/h |
| Compressor Type | Screw Semi-hermetic |
| Compressor Volume Control | 0%-33%-66%-100% or 0%-25%-50%-75%-100% or Stepless |
| Refrigerant Oil | HBR-A01 |
| Refrigerant | R-22(R407c/R134a) |
| Evaporator Type | High Efficiency Copper Tubeshell |
| Condenser Type | Effective Finned Copper Tube+Low Noise Axial Fans |
| Pipe Diameter | DN150 |
| Selling Units | Single item |
| Single Package Size | 425X210X225 cm |
| Single Gross Weight | 3980.0 kg |
Product Details
Model | SCY-120AS | |||
Power supply | 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase | |||
Cooling capacity | kw | 329 | ||
TONS | 93.55 | |||
Kcal/h | 282940 | |||
Power consumption | kw | 149 | ||
Running current | A | 88.6 | ||
Freeze water flow | m³/h | 59 | ||
Compressor | Type | Semi-hermetic screw type | ||
Start method | Y-△ start | |||
Volume control | 0,33,66,100 OR 0,25,50,100 OR Stepless | |||
Input power(kw) | 79.6 | |||
Refrigerating oil | Type | HBR-A01 | ||
Filling volume(L) | 18 | |||
Refrigerant | Type | R22, R134a, R407c | ||
Control method | External balanced thermostatic expansion valve | |||
Filling volume(kg) | 62 | |||

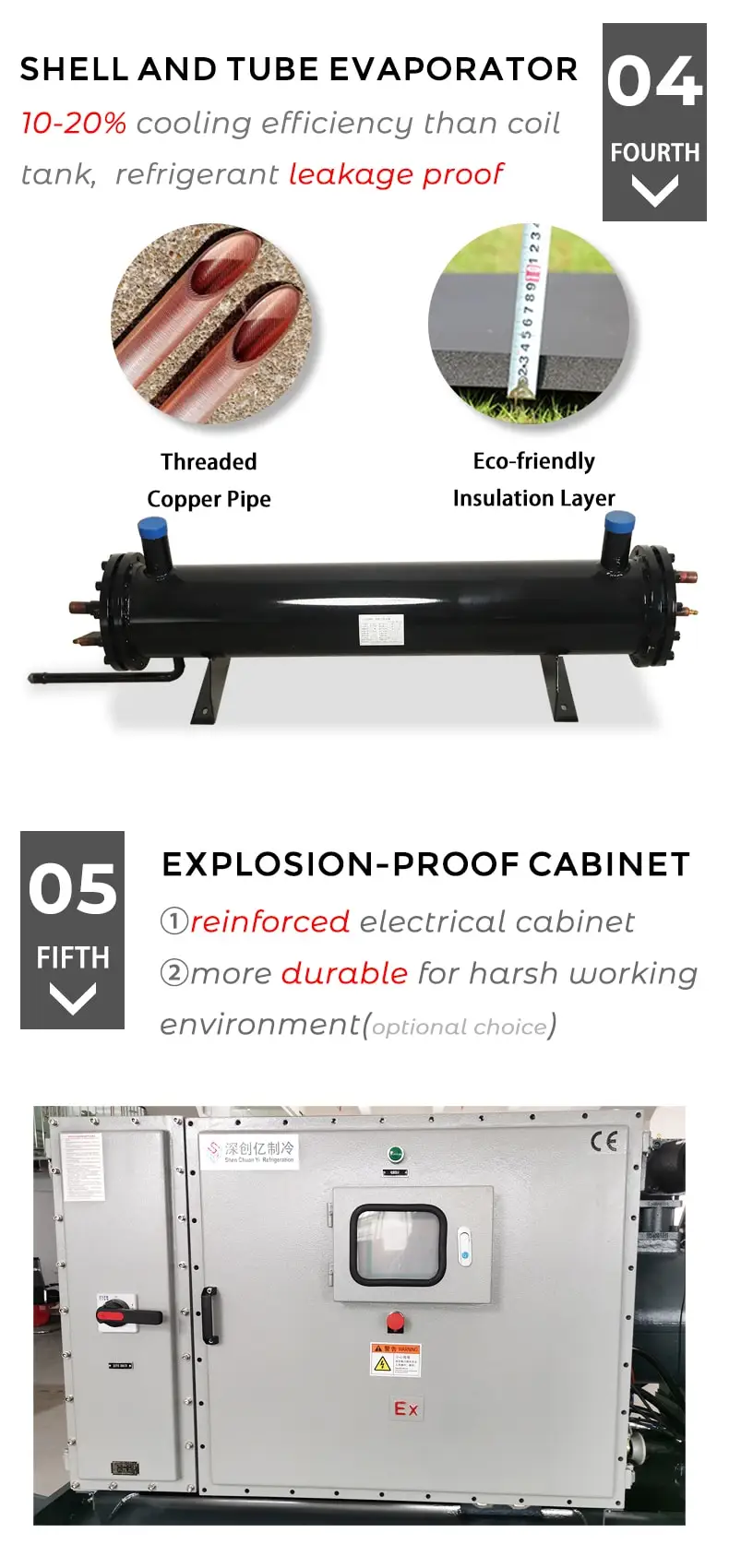

Evaporator | Type | Shell and tube | ||
Pipe diameter(mm) | DN125 | |||
Condenser | Type | Effective Finned Copper Tube+Low Noise Axial Fans | ||
Air cooling volume(m³/h) | 112000 | |||
Safty protector | Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch. | |||
Dimension | Length(mm) | 3500 | ||
Width(mm) | 2100 | |||
Height(mm) | 2130 | |||
Weight(kg) | 3050 | |||
1. Testing results under above conditions: Inlet/outlet chilled water temperature 12℃/7℃, condensing temperature 45℃. | ||||
2. The above parameters will be updated continuously. If you need a custom service, please send your technical requirements before placing an order. | ||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $35200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 3PH-50Hz-380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ShenChuangYi Refrigeration Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ShenChuangYi Refrigeration Co., Ltd. range on HVACR Nexus.
See more in Chilling Equipment on HVACR Nexus.
