Chiller, 80L, 8kw

Key specification for this chiller: voltage 3-phase 380V 50Hz (zero, ground), 8kw. Everything below is reproduced from the factory data sheet. Made by Shanghai Lirun Electromechanical Equipment Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Chiller

• Power: 2.2 kW
• Voltage: 3-phase 380V 50Hz (zero, ground)
• Cooling Capacity: 8kw
• Refrigerant: R407C
• Warranty: 1 Year
• After Warranty Service: Support

Technical Specifications

Product Details

Product Description

Overview

Essential Details

Product Paramenters			Product Paramenters
Model			LRZL-8X
Nominal Refrigerating Capacity			8KW
Input Power			3.5KW
Input Voltage			3-Phase 380V 50Hz (zero, ground)
Refrigerant			R407C
Compressor	Power	2.25KW
		Brand	GULUN(Made in China),USA
Condenser	Type	Aluminum Finned Copper Tube+rotor fan
		Air Volume	3000 M3 /h
Evaporator	Type	Stainless steel coil of water tank
		Temperature Range	10℃～35℃(adjustable)+4℃
		Tank Capacity	80L（304 stainless steel)
Pump	Flow/Pressure	10 ～ 80L/min; 0.1～0.4 Mpa
Internal Dimension(H*W*D)mm:			760*520*900 mm
External Dimensions(L*W*H)mm:			1000*400*850mm
Weight kg			Internal 80kg;External 80kg
Protection			overshoot current;overshoot water;compressor overheating

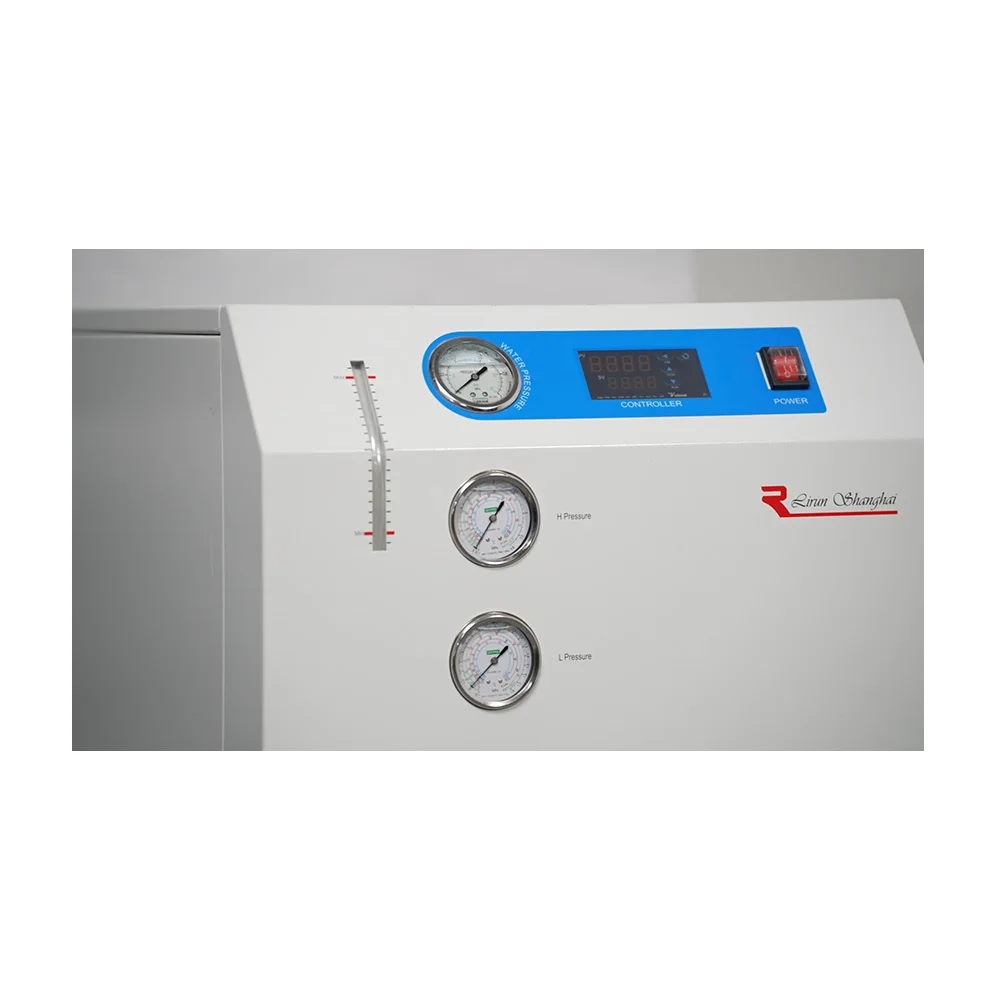

Operation Panel			Intelligent digital display screen
Recommended matching machines			AAS，ICP，XRF，XRD,CT ,Electron Microscope etc.

Product Details

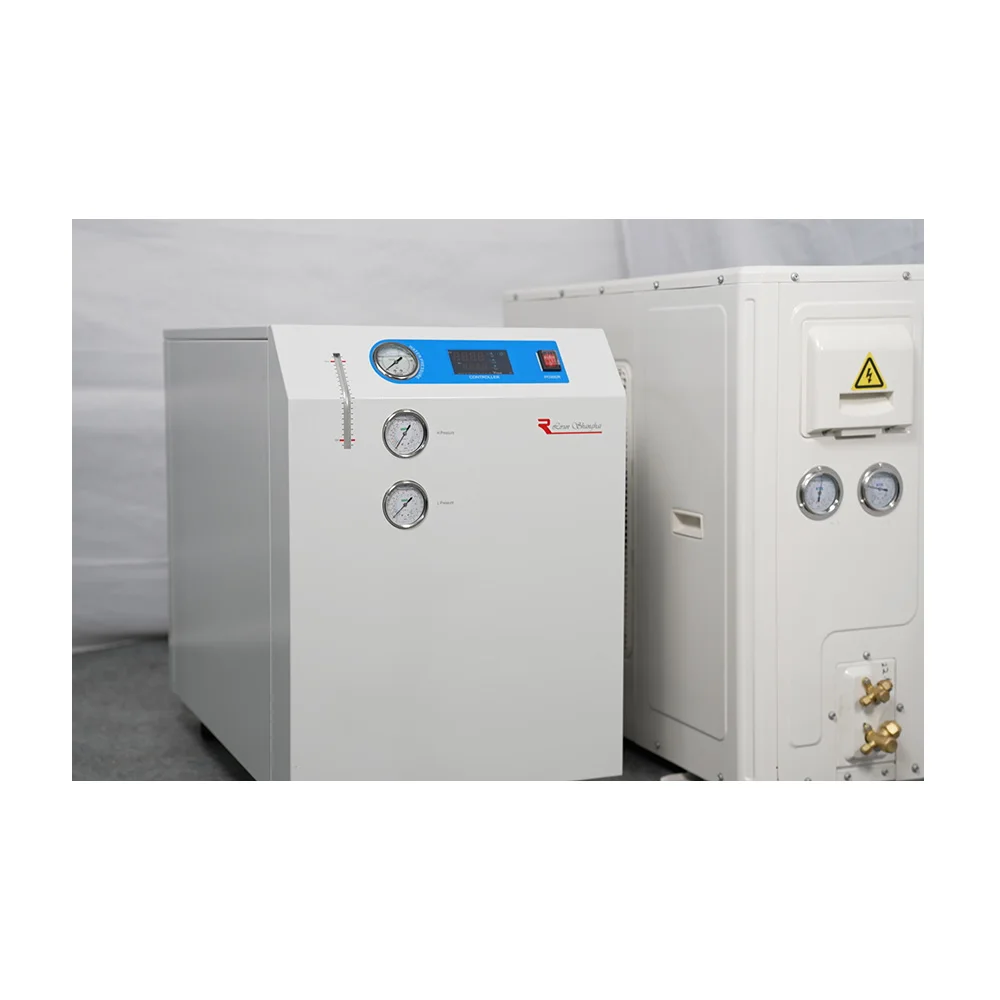

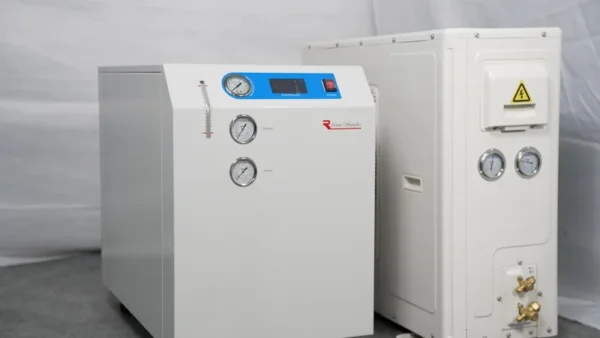

The split type equipment has small indoor unit and outdoor unit.

This is the indoor unit.

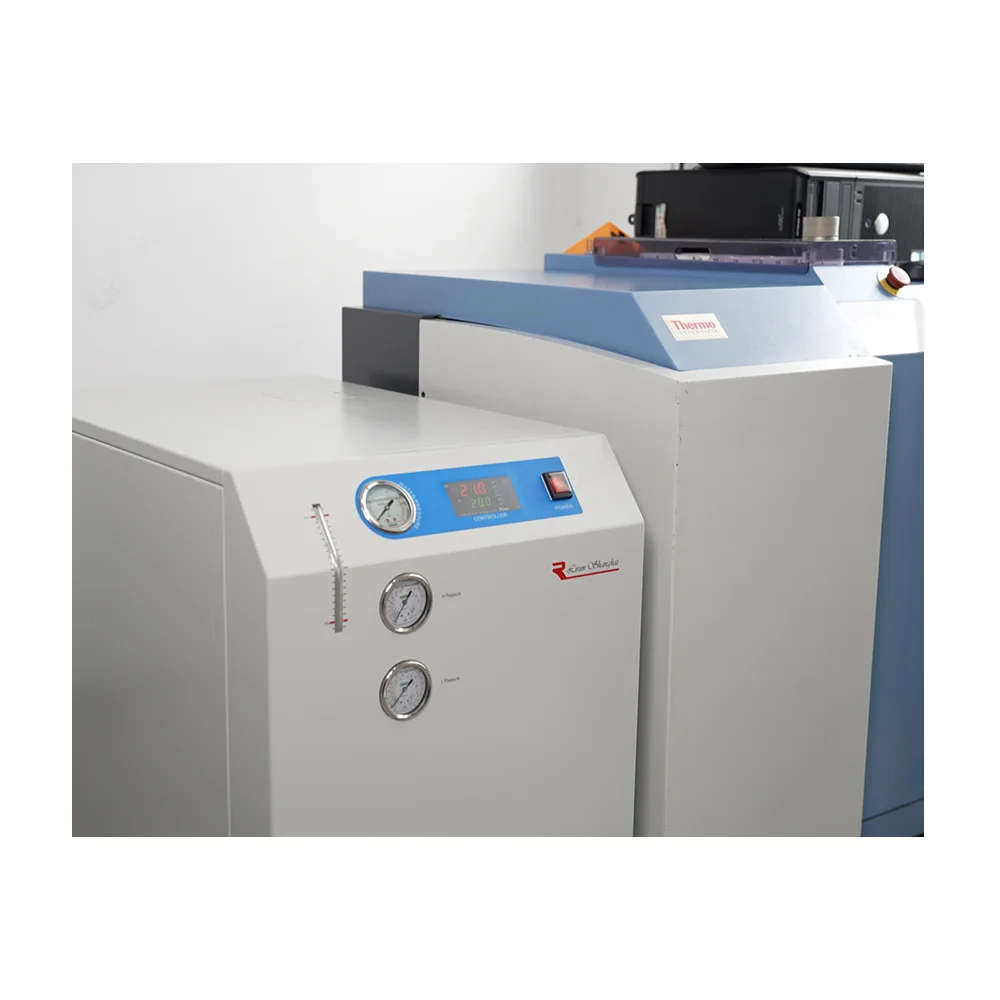

It is connected with analytical instrument XRF.

Company Profile

VR

1.The split type equipment with small indoor unit. It is compact, saving laboratory space, low noise, and high temperature control accuracy.

2.As an auxiliary equipment，It is usually connected with analytical instrument XRF, XRD, and scanning electron microscope

3.The closed circulation system can effectively prevent the volatilization and pollution of the heat conduction medium.

The Price Remarks:

1.The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.

2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.

3.Free providing with training and guidance on remote video installation, commissioning and operation .

4.Payment method:T/T .

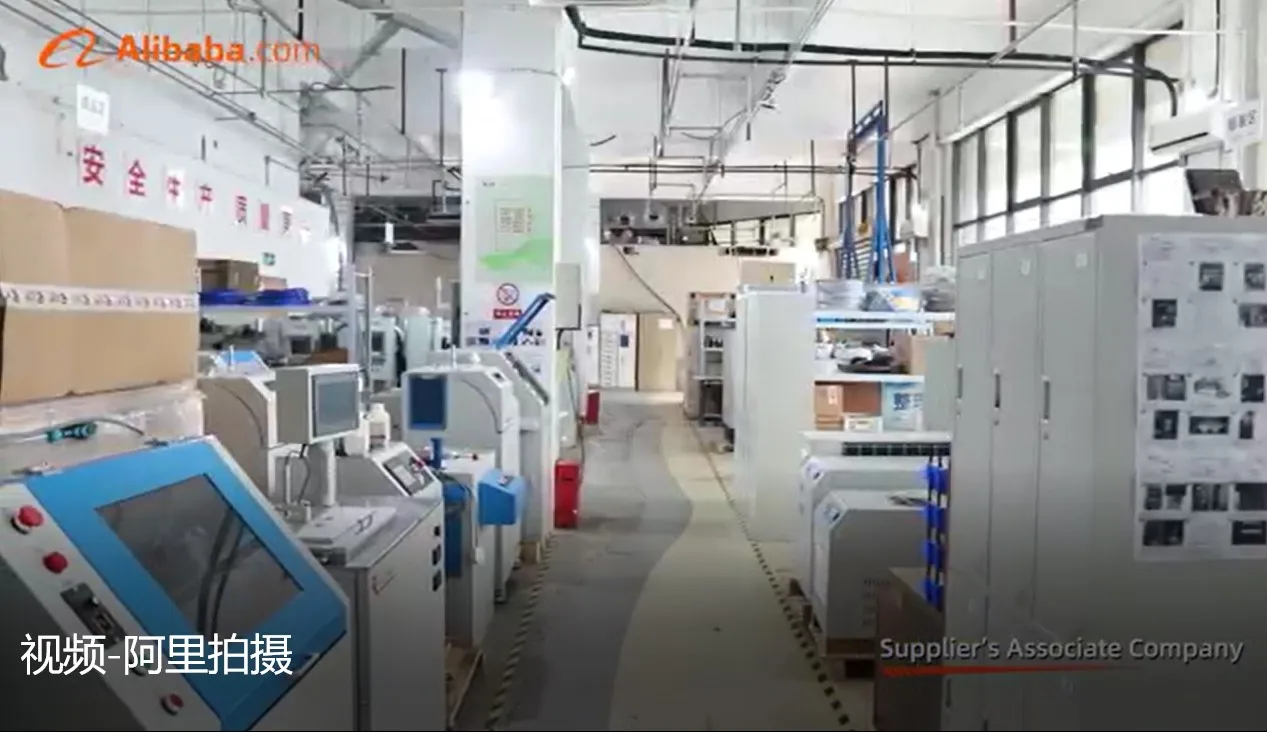

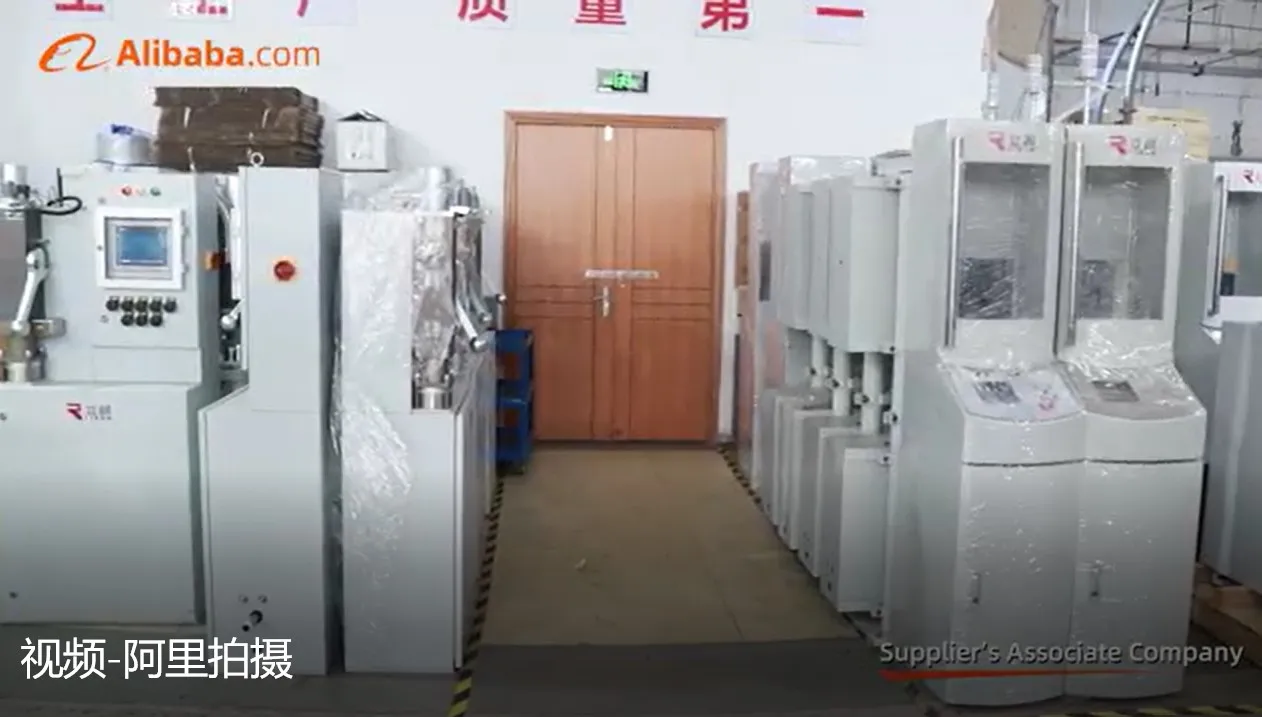

Our Factory

Certifications

Packing & Delivery

FAQ

Q:Are you manufacture?

A:Yes,we are the original manufacturer of Circulating water cooler. As an auxiliary equipment, It is usually connected with analytical instrument XRF, XRD, scanning electron microscope ,and Melting furnace.

Q:How long does your machine warranty last?

A:One year warranty.

Q:How is your machine quality?

A:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.

Q:Where are your factory located?

A:We are located in Shanghai China.

Q:What can we do if we have problem with your machine while using?

A:customers usually can use for more than 8 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may be to provide us a video to describe what the problem is so that our engineer can judge and give you a solution. Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty, we'll provide you the parts at a reasonable costs. Everlasting  technical support is offered freely.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $4285 / piece
  • 10+ piece: US $3588 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the chiller be supplied for my local voltage?

The standard configuration is 3-phase 380V 50Hz (zero, ground). Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
