Key specification for this air handling unit: airflow 15000, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Handling Unit
- Operating Voltage: 380-415V
- Rated Cooling Capacity: 11.2-107KW
- Rated Cheating Capacity: 18.6-169kw
- Airflow: 15000
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Airflow | 15000 |
| Operating Voltage | 380-415V |
| Mounting Type | Floor Standing |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 380 KG |
| Brand Name | Midea |
| Dimension(L*W*H) | 2436*1164*1052 |
| Rated Cooling Capacity | 11.2-107KW |
| Rated Cheating Capacity | 18.6-169kw |
| Selling Units | Single item |
| Single Package Size | 2436X1164X1052 cm |
| Single Gross Weight | 380.0 kg |
Product Details
Midea Project Show

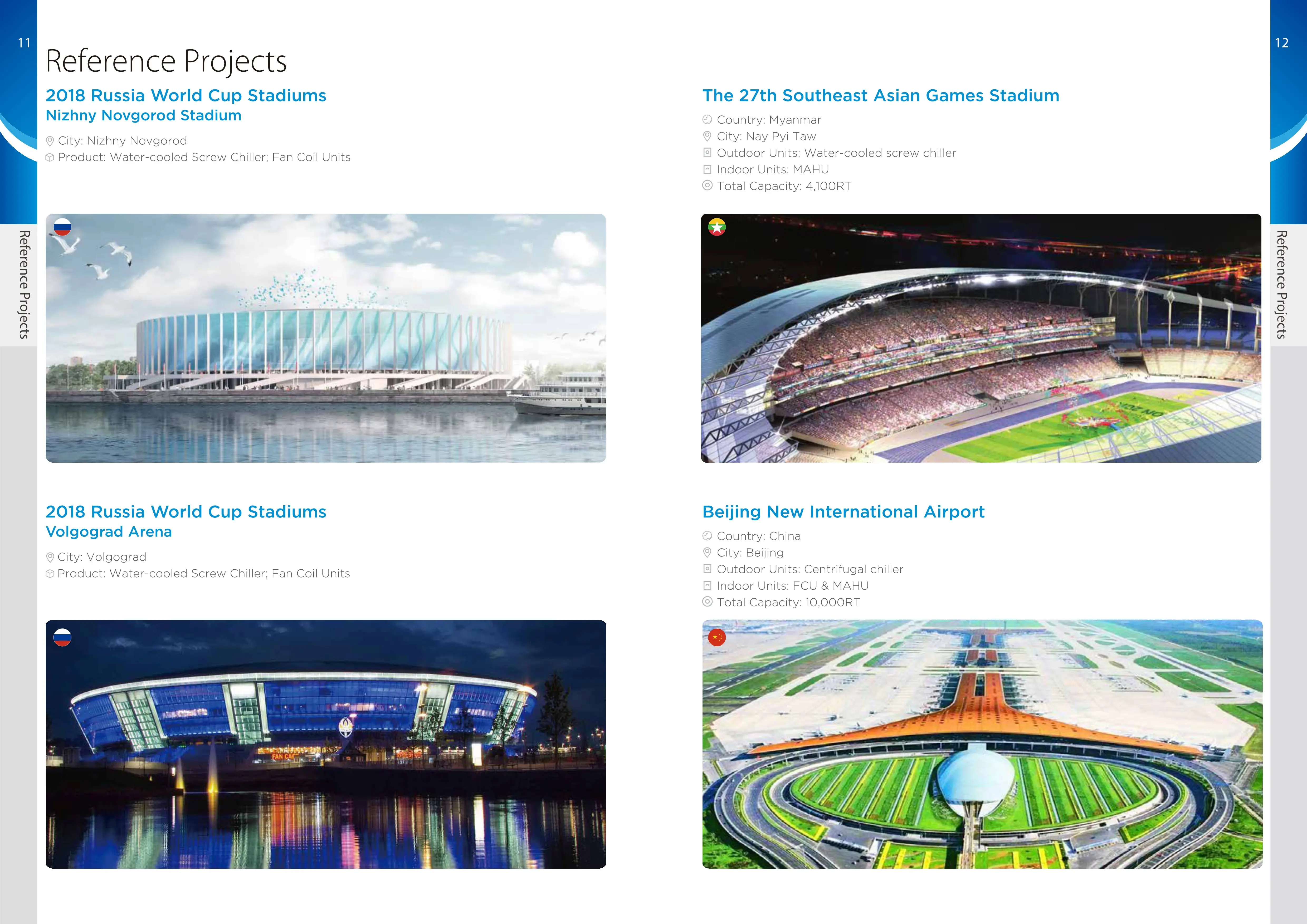

2018 Russia World Cup Stadiums
Nizhny Novgorod Stadium
City: Nizhny Novgorod
Product: Water-cooled Screw Chiller; Fan Coil Units
The 27th Southeast Asian Games Stadium
Country: Myanmar
City: Nay Pyi Taw
Outdoor Units: Water-cooled screw chiller
Indoor Units: MAHU
Total Capacity: 4,100RT
Outdoor Units: Water-cooled screw chiller
Indoor Units: MAHU
Total Capacity: 4,100RT
2018 Russia World Cup Stadiums
Volgograd Arena
City: Volgograd
Product: Water-cooled Screw Chiller; Fan Coil Units
Beijing New International Airport
Country: China
City: Beijing
Outdoor Units: Centrifugal chiller
Indoor Units: FCU & MAHU
Total Capacity: 10,000RT
City: Beijing
Outdoor Units: Centrifugal chiller
Indoor Units: FCU & MAHU
Total Capacity: 10,000RT

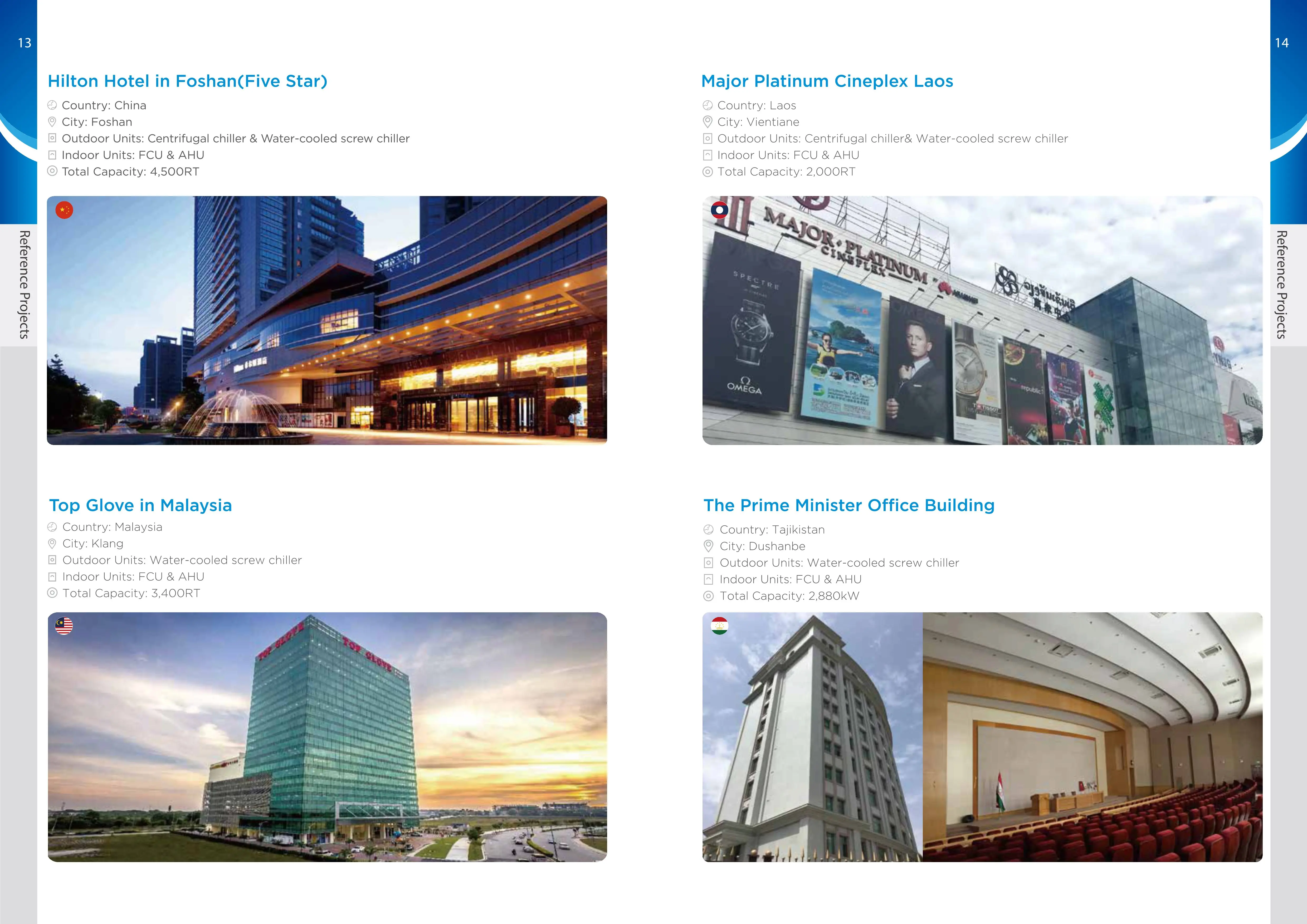

Hilton Hotel in Foshan(Five Star)
Country: China
City: Foshan
Outdoor Units: Centrifugal chiller & Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 4,500RT
City: Foshan
Outdoor Units: Centrifugal chiller & Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 4,500RT
Major Platinum Cineplex Laos
Country: Laos
City: Vientiane
Outdoor Units: Centrifugal chiller& Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 2,000RT
City: Vientiane
Outdoor Units: Centrifugal chiller& Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 2,000RT
Top Glove in Malaysia
Country: Malaysia
City: Klang
Outdoor Units: Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 3,400RT
City: Klang
Outdoor Units: Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 3,400RT
The Prime Minister Oce Building
Country: Tajikistan
City: Dushanbe
Outdoor Units: Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 2,880kW
City: Dushanbe
Outdoor Units: Water-cooled screw chiller
Indoor Units: FCU & AHU
Total Capacity: 2,880kW
Why Choose Us

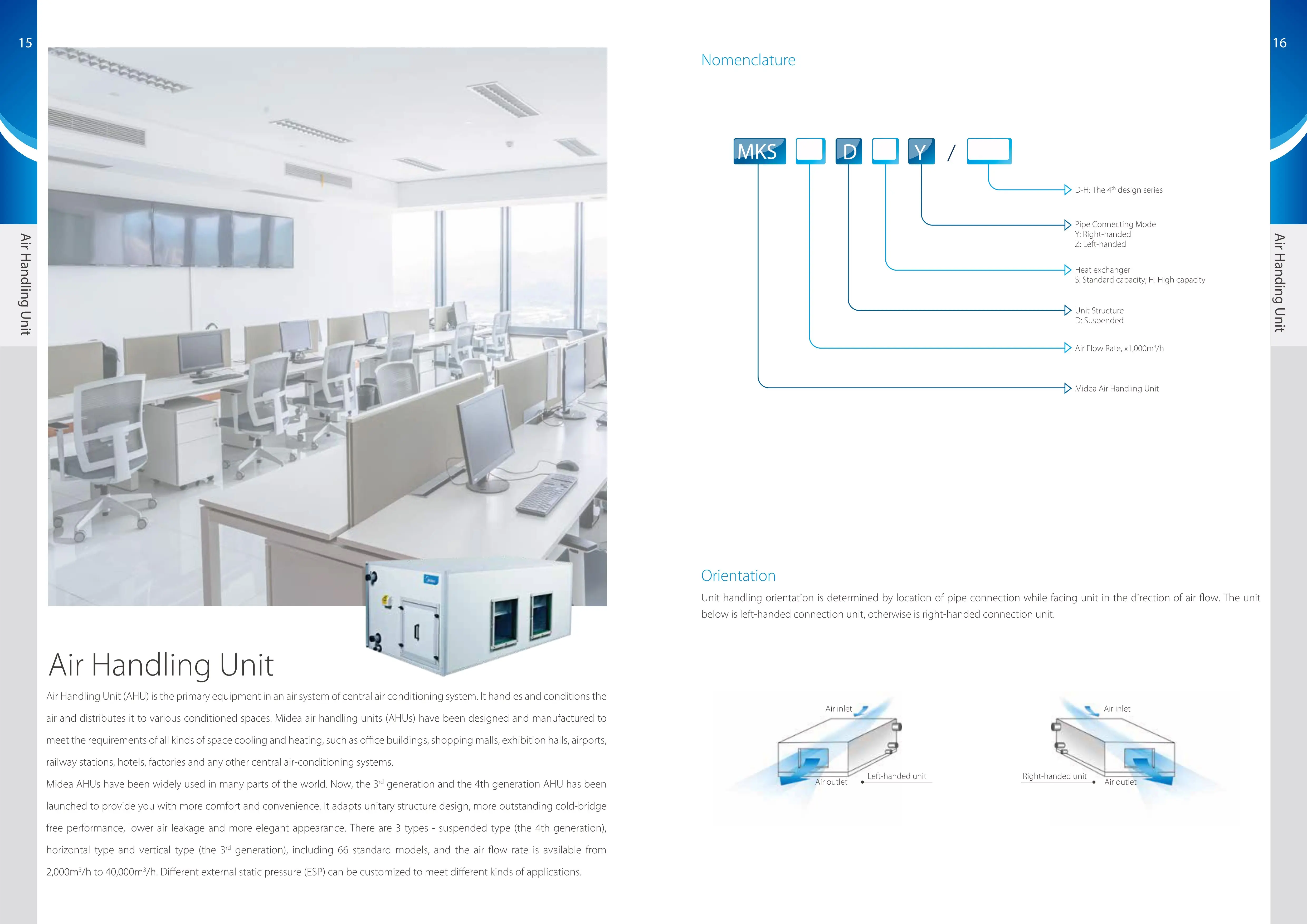

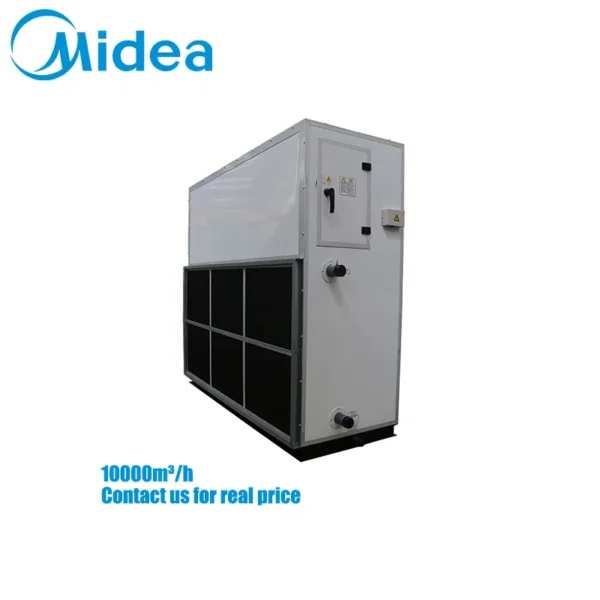

Air Handling Unit
Air Handling Unit (AHU) is the primary equipment in an air system of central air conditioning system. It handles and conditions the air and distributes it to various conditioned spaces. Midea air handling units (AHUs) have been designed and manufactured to meet the requirements of all kinds of space cooling and heating, such as office buildings, shopping malls, exhibition halls,airports, railway stations, hotels, factories and any other central air-conditioning systems.
Midea AHUs have been widely used in many parts of the world. Now, the 3rd generation and the 4th generation AHU has been launched to provide you with more comfort and convenience. It adapts unitary structure design, more outstanding cold-bridge free performance, lower air leakage and more elegant appearance. There are 3 types suspended type (the 4th generation), horizontal type and vertical type (the 3rd generation), including 66 standard models, and the air flow rate is available from 2,000m3 /h to 40,000m3 /h. Different external static pressure (ESP) can be customized to meet different kinds of application.
Midea AHUs have been widely used in many parts of the world. Now, the 3rd generation and the 4th generation AHU has been launched to provide you with more comfort and convenience. It adapts unitary structure design, more outstanding cold-bridge free performance, lower air leakage and more elegant appearance. There are 3 types suspended type (the 4th generation), horizontal type and vertical type (the 3rd generation), including 66 standard models, and the air flow rate is available from 2,000m3 /h to 40,000m3 /h. Different external static pressure (ESP) can be customized to meet different kinds of application.

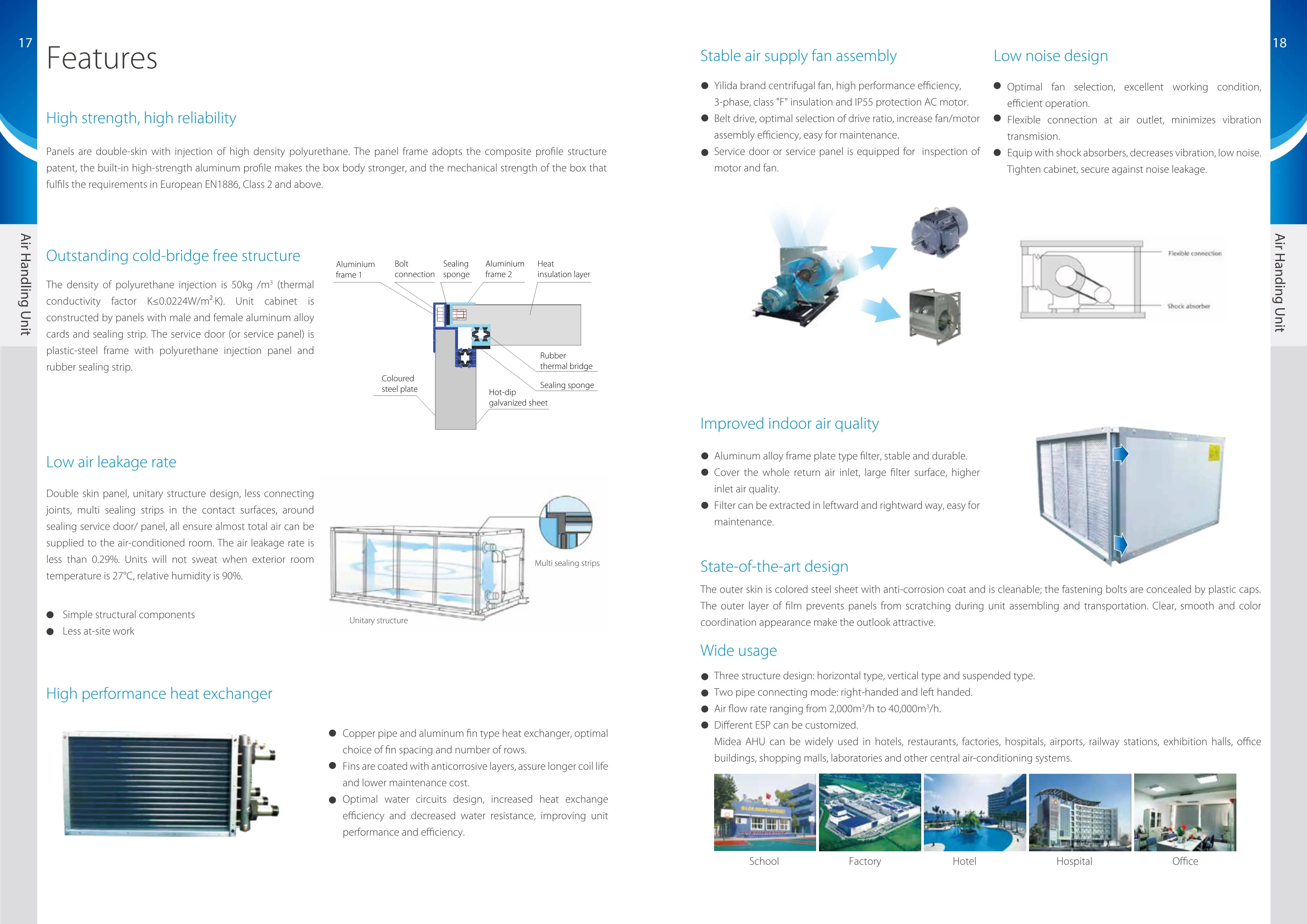

FeaturesHigh strength, high reliability
Panels are double-skin with injection of high density polyurethane. The panel frame adopts the composite profile structure
patent, the built-in high-strength aluminum profile makes the box body stronger, and the mechanical strength of the box that fulfils the requirements in European EN1886, Class 2 and above.
patent, the built-in high-strength aluminum profile makes the box body stronger, and the mechanical strength of the box that fulfils the requirements in European EN1886, Class 2 and above.
Outstanding cold-bridge free structure
The density of polyurethane injection is 50kg /m3 (thermal conductivity factor K≤0.0224W /m²·K). Unit cabinet is constructed by panels with male and female aluminum alloy cards and sealing strip. The service door (or service panel) is plastic-steel frame with polyurethane injection panel and rubber sealing strip.
Low air leakage rate
Double skin panel, unitary structure design, less connecting joints, multi sealing strips in the contact surfaces, around sealing service door/ panel, all ensure almost total air can be
supplied to the air-conditioned room. The air leakage rate is less than 0.29%. Units will not sweat when exterior room temperature is 27°C, relative humidity is 90%.
supplied to the air-conditioned room. The air leakage rate is less than 0.29%. Units will not sweat when exterior room temperature is 27°C, relative humidity is 90%.
* Simple structural components
* Less at-site work
* Less at-site work
Orientation
Unit handling orientation is determined by location of pipe connection while facing unit in the direction of air flow. The unit below is left-handed connection unit, otherwise is right-handed connection unit.
High performance heat exchanger
Copper pipe and aluminum fin type heat exchanger, optimal choice of fin spacing and number of rows. Fins are coated with anti-corrosive layers, assure longer coil life and lower maintenance cost. Optimal water circuits design, increased heat exchange efficiency and decreased water resistance, improving unit performance and efficiency.
Stable air supply fan assembly
Yilida brand centrifugal fan, high performance efficiency,
3-phase, class "F" insulation and IP55 protection AC motor.
Belt drive, optimal selection of drive ratio, increase fan/ motor assembly efficiency, easy for maintenance.
Service door or service panel is equipped for inspection of
motor and fan.
3-phase, class "F" insulation and IP55 protection AC motor.
Belt drive, optimal selection of drive ratio, increase fan/ motor assembly efficiency, easy for maintenance.
Service door or service panel is equipped for inspection of
motor and fan.
Low noise design
Optimal fan selection, excellent working condition,
efficient operation.
Flexible connection at air outlet, minimizes vibration
transmision.
Equip with shock absorbers, decreases vibration, low noise.
Tighten cabinet, secure against noise leakage.
efficient operation.
Flexible connection at air outlet, minimizes vibration
transmision.
Equip with shock absorbers, decreases vibration, low noise.
Tighten cabinet, secure against noise leakage.
Title goes here.
Aluminum alloy frame plate type filter, stable and durable.
Cover the whole return air inlet, large filter surface, higher inlet air quality.
Filter can be extracted in leftward and rightward way, easy for maintenance.
Cover the whole return air inlet, large filter surface, higher inlet air quality.
Filter can be extracted in leftward and rightward way, easy for maintenance.
State-of-the-art design
The outer skin is colored steel sheet with anti-corrosion coat and is cleanable; the fastening bolts are concealed by plastic
caps.
The outer layer of film prevents panels from scratching during unit assembling and transportation. Clear, smooth and color
coordination appearance make the outlook attractive.
caps.
The outer layer of film prevents panels from scratching during unit assembling and transportation. Clear, smooth and color
coordination appearance make the outlook attractive.
Wide usage
* Three structure design: horizontal type, vertical type and suspended type.
* Two pipe connecting mode: right-handed and left handed.
* Air flow rate ranging from 2,000m3 /h to 40,000m3 /h.
* Different ESP can be customized.
Midea AHU can be widely used in hotels, restaurants, factories, hospitals, airports, railway stations, exhibition halls, office
buildings, shopping malls, laboratories and other central air-conditioning systems.
* Two pipe connecting mode: right-handed and left handed.
* Air flow rate ranging from 2,000m3 /h to 40,000m3 /h.
* Different ESP can be customized.
Midea AHU can be widely used in hotels, restaurants, factories, hospitals, airports, railway stations, exhibition halls, office
buildings, shopping malls, laboratories and other central air-conditioning systems.

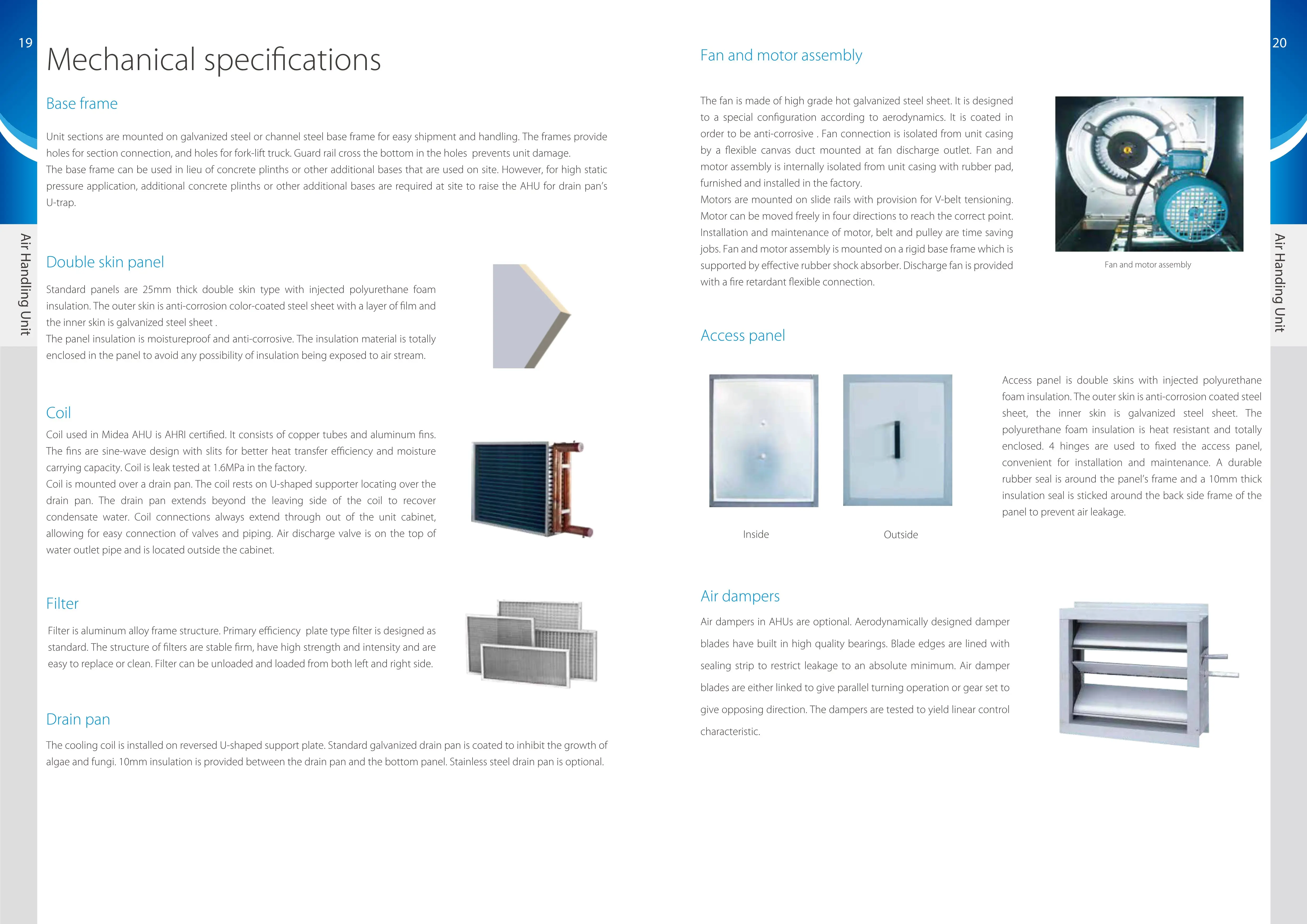

Mechanical specifications
Base frame
Unit sections are mounted on galvanized steel or channel steel base frame for easy shipment and handling. The frames provide holes for section connection, and holes for fork-lift truck. Guard rail cross the bottom in the holes prevents unit damage.
The base frame can be used in lieu of concrete plinths or other additional bases that are used on site. However, for high static pressure application, additional concrete plinths or other additional bases are required at site to raise the AHU for drain pan’s U-trap.
The base frame can be used in lieu of concrete plinths or other additional bases that are used on site. However, for high static pressure application, additional concrete plinths or other additional bases are required at site to raise the AHU for drain pan’s U-trap.
Title goes here.
Standard panels are 25mm thick double skin type with injected polyurethane foam
insulation. The outer skin is anti-corrosion color-coated steel sheet with a layer of film and the inner skin is galvanized steel sheet .
The panel insulation is moistureproof and anti-corrosive. The insulation material is totally
enclosed in the panel to avoid any possibility of insulation being exposed to air stream.
insulation. The outer skin is anti-corrosion color-coated steel sheet with a layer of film and the inner skin is galvanized steel sheet .
The panel insulation is moistureproof and anti-corrosive. The insulation material is totally
enclosed in the panel to avoid any possibility of insulation being exposed to air stream.
Coil
Coil used in Midea AHU is AHRI certified. It consists of copper tubes and aluminum fins.
The fins are sine-wave design with slits for better heat transfer efficiency and moisture carrying capacity. Coil is leak tested at 1.6MPa in the factory.
Coil is mounted over a drain pan. The coil rests on U-shaped supporter locating over the drain pan. The drain pan extends beyond the leaving side of the coil to recover condensate water. Coil connections always extend through out of the unit cabinet, allowing for easy connection of valves and piping. Air discharge valve is on the top of water outlet pipe and is located outside the cabinet.
The fins are sine-wave design with slits for better heat transfer efficiency and moisture carrying capacity. Coil is leak tested at 1.6MPa in the factory.
Coil is mounted over a drain pan. The coil rests on U-shaped supporter locating over the drain pan. The drain pan extends beyond the leaving side of the coil to recover condensate water. Coil connections always extend through out of the unit cabinet, allowing for easy connection of valves and piping. Air discharge valve is on the top of water outlet pipe and is located outside the cabinet.
Filter
Filter is aluminum alloy frame structure. Primary efficiency plate type filter is designed as standard. The structure of filters are stable firm, have high strength and intensity and are easy to replace or clean. Filter can be unloaded and loaded from both left and right side.
Drain pan
The cooling coil is installed on reversed U-shaped support plate. Standard galvanized drain pan is coated to inhibit the growth of algae and fungi. 10mm insulation is provided between the drain pan and the bottom panel. Stainless steel drain pan is optional.
Access panel
Access panel is double skins with injected polyure thane foam insulation. The outer skin is anti-corrosion coated steel sheet, the inner skin is galvanized steel sheet. The polyurethane foam insulation is heat resistant and totally enclosed. 4 hinges are used to fixed the access panel, conven- ient for installation and maintenance. A durable rubber seal is around the panel’s frame and a 10mm thick insulation seal is stickedaround the back side frame of the panel to prevent airleakage
Fan and motor assembly
The fan is made of high grade hot galvanized steel sheet. It is designed to a special configuration according to aerodynamics. It is coated in order to be anti-corrosive . Fan connection is isolated from unit casing by a flexible canvas duct mounted at fan discharge outlet. Fan and motor assembly is internally isolated from unit casing with rubber pad, furnished and installed in the factory.
Motors are mounted on slide rails with provision for V-belt tensioning. Motor can be moved freely in four directions to reach the correct point. Installation and maintenance of motor, belt and pulley are time saving jobs. Fan and motor assembly is mounted on a rigid base frame which is supported by effective rubber shock absorber. Discharge fan is provided with a fire retardant flexible connection.
Motors are mounted on slide rails with provision for V-belt tensioning. Motor can be moved freely in four directions to reach the correct point. Installation and maintenance of motor, belt and pulley are time saving jobs. Fan and motor assembly is mounted on a rigid base frame which is supported by effective rubber shock absorber. Discharge fan is provided with a fire retardant flexible connection.
Air dampers
Air dampers in AHUs are optional. Aerodynamically designed damper blades have built in high quality bearings. Blade edges are lined with sealing strip to restrict leakage to an absolute minimum. Air damper blades are either linked to give parallel turning operation or gear set to give opposing direction. The dampers are tested to yield linear control characteristic.
Product Line
Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ. solar powered air conditioner
2.Project name: building name or building type, such as xxx office project, residential house project etc. 3.Expected shipping date of this project. metal air conditioner cover 4.Project type: tender or self-owned. air conditioner parts
Company Profile
Product Package
Packing Details:
1.VRF Air Conditioning Outdoor Unit: Midea standard pallet package with film covered. 2.Fan Coil Unit / VRF Indoor Unit:Midea standard carton package. 3.For Big Air Conditioning Equpiment such as Air Cooled Chiller,Water Cooled Chiller : pallet. Leading time: Generally 25-60 days( peak-time and off-time).
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $80000 / set
- 3–4 set: US $60000 / set
- 5+ set: US $40000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 380-415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Midea Overseas Engineering&technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Beijing Midea Overseas Engineering&technology Co., Ltd. range on HVACR Nexus.
See more in Air Handling Units on HVACR Nexus.
