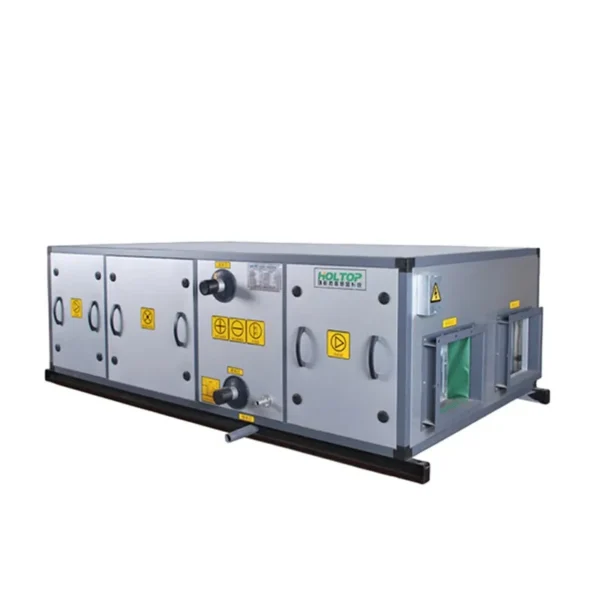

The air handling unit listed here carries material aluminum, model number HJK-010RQC~HJK-100RQC, documented exactly as the manufacturer publishes it. Made by Beijing Holtop Les Air Conditioning Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Model Number: HJK-010RQC~HJK-100RQC
- Material: aluminum
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Application: Villa, Hotel, Apartment, School, Mall, Supermarket, Workshop, Hall
- Features: fresh air
Technical Specifications
| Application | Villa, Hotel, Apartment, School, Mall, Supermarket, Workshop, Hall |
|---|---|
| Design Style | Modern |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | total solution for projects |
| Model Number | HJK-010RQC~HJK-100RQC |
| Place Of Origin | Beijing, China |
| Brand Name | Holtop |
| Material | aluminum |
| Color | white |
| Shape | cuboid |
| Features | fresh air |
| Packaging Details | pallet and carton |
| Port Of Dispatch | Tianjin |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 500 units per Week |
Product Details
model | HJK-010RQC~HJK-015RQC HJK-020RQC~HJK-025RQC HJK-030RQC~HJK-040RQC HJK-050RQC~HJK-060RQC HJK-080RQC~HJK-100RQC |
material | aluminum |
color | white |
shape | cuboid |
size | 1000m3/h~1500m3/h 2000m3/h~2500m3/h 3000m3/h~4000m3/h 5000m3/h~6000m3/h 8000m3/h~10000m3/h |
features | fresh air |
1: What’s energy recovery ventilator?
Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity. In a word, Energy Recovery Ventilator (ERV) allows fresh air into a building, while retaining pre-conditioned heating or cooling.
The Heat & Energy Recovery Ventilator is composed of two fans for air supply and exhaust, air filters, an energy recovery exchanger, and an intelligent control system. Even though you close the window, the ventilator can supply fresh air indoor after multiple filtration and exhaust polluted air from indoor. The two fans can make the indoor airflow circulate and balanced ventilation. At the same time, the standard heat exchanger can recover the energy of exhaust air and return to the incoming fresh air. Thus, it’s able to make the outdoor air cool in summer and the outdoor air warm in winter with a slight power consumption.
3: What’s difference between heat recovery and energy recovery?
Heat recovery heat exchangers transfer heat from one air stream to the other, without allowing moisture transfer. This means they are well suited to climates where summer humidity levels are reasonably low.
Energy recovery exchangers provide both heat and moisture recovery, allowing moisture to be transferred from the incoming air stream to the outgoing exhaust stream during humid summer conditions, thereby providing dehumidification, which can increase occupant comfort and reduce the risk of mould. They are well suited to higher humidity locations.
Holtop AHU are designed and selected according to professional software, providing users with reasonable, economic, and practical air conditioning solutions. The features of Holtop AHU selection software also include:
Sound project and AHU query management
Precise airflow and unit section divisions
Multiple heat recovery options and functional section combinations
The air state point calculation of main sections
Various optional parts
l Flexible unit combinations
l Professional and detailed selection reports output
5： Does the Heat & Energy Recovery Ventilator consumes a lot of power?
The Heat & Energy Recovery Ventilator is energy efficient compared with the air conditioner. It is very eco-friendly even if it works 24 hours a day to pursue the air freshness. For example, a HOLTOP 350m³/h energy recovery ventilator is suitable for a 150㎡house. This product equips with DC motors. The input power for this model is from 16w to 120w at the low and high speed, while the power consumption is from 0.38KW/day to 2.88KW/day. If the electric price is 0.1USD/kw.h, it only costs 0.38USD to 0.288USD
per day. In summary, the energy recovery ventilator is energy-saving.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $5000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Holtop Les Air Conditioning Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Holtop Les Air Conditioning Co., Ltd. range on HVACR Nexus.
