Air Handling Unit, AHU, G4

Name: Air Handling Unit, AHU, G4
Brand: SANHE TOP Air Conditioning (Guangdong) Co., Ltd.
SKU: 163354
Price: 1000.00 USD
Availability: InStock

$1,000.00

Air Handling Unit. Key specification: type Air Handling Unit. Ships factory-direct with the manufacturer’s data sheet.

Category: Air Handling Units Brand: SANHE TOP Air Conditioning (Guangdong) Co., Ltd.

Type: Air Handling Unit
Warranty: 1 Year
Place Of Origin: Guangdong, China

Request a Quote Ask a Technical Question

Reply within one working day
Factory-direct pricing, OEM & ODM accepted
Full specification and test reports supplied

Get Factory Pricing

Free quotation direct from the manufacturer — price, MOQ and lead time, usually within one working day. No account needed.

Enquiring about Air Handling Unit, AHU, G4

Your name

Work email

WhatsApp / Phone

Estimated order quantity

Sample 1-5 units — evaluation Small batch 6-99 units — pilot run Volume 100-499 units — series purchase 500+ units per year — annual programme

What do you need?

Description
Additional information

Air handling unit — type Air Handling Unit. The complete factory specification follows. Made by SANHE TOP Air Conditioning (Guangdong) Co., Ltd. (5 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Handling Unit

Warranty: 1 Year
Place Of Origin: Guangdong, China
Application: Hotel, School, Mall
Type: Air Handling Unit
Mounting Type: Ceiling Mount
Fan Motors Type: AC/EC

Technical Specifications

Type	Air Handling Unit
Mounting Type	Ceiling Mount
Compressor Brand	Hitachi, Daikin
Fan Motors Type	AC/EC
Application	Hotel, School, Mall
Key Selling Points	Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Remote Control, R410A
Warranty	1 Year
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Core Components	Motor
Place Of Origin	Guangdong, China
Weight (Kg)	100
Brand Name	SANHE TOP
Selling Units	Single item
Single Volume	0 cm³
Single Gross Weight	0.0 kg

Product Details

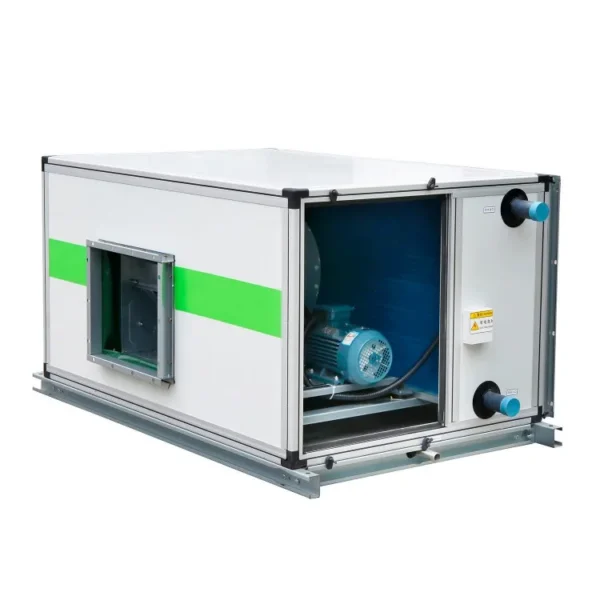

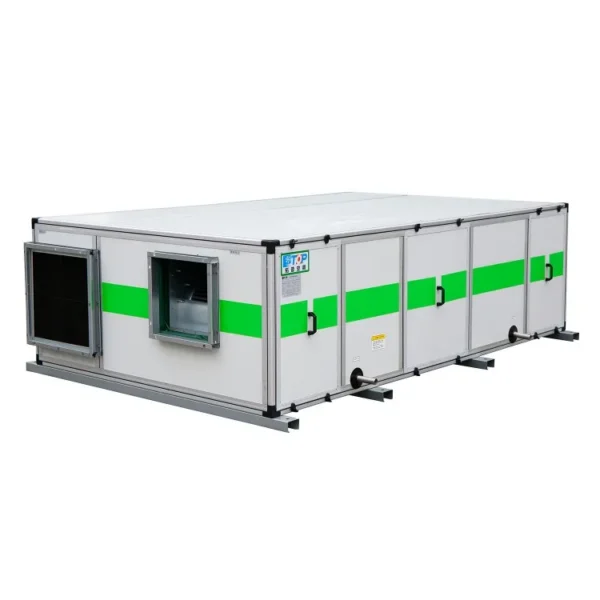

Commercial Industrial AHU air Handling Unit with G4 Filter Heat Recovery Ventilation System

Product Description

1.High external total pressure,large cooling capacity,compact size,simple structure,and easy installation and maintenance.

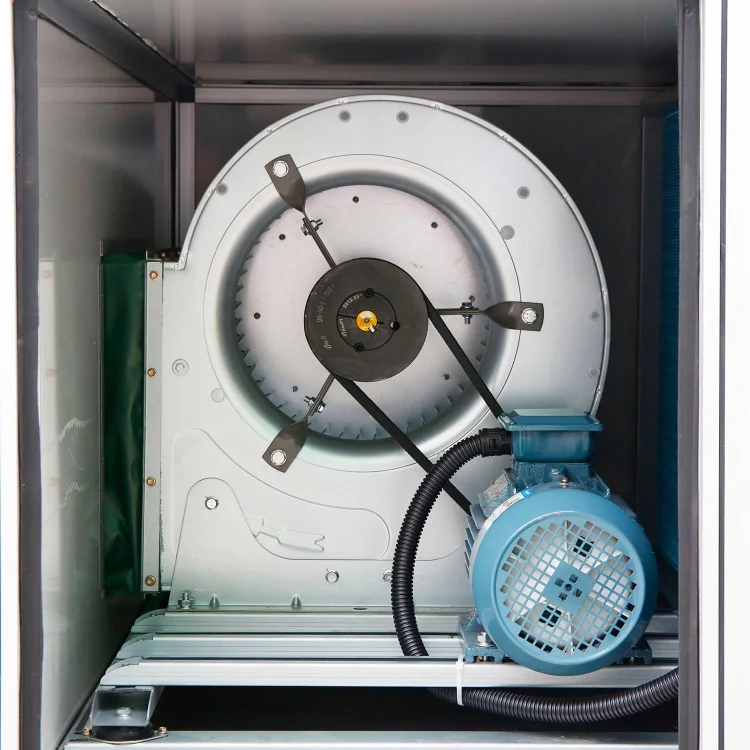

2.The fan motor bearings require no lubrication,simplifying maintenance. Using high-quality,low-noise motors,and low-speed,high-volume fan operates quietly withminimal noise.

3.Equipped with a pre-filter(nylon mesh)at the air inlet,plate-type or bag-type filters can also be added,and various filtration and sterilization devices(aluminum mesh filter,electronic purification,photocatalysis)are available as options.

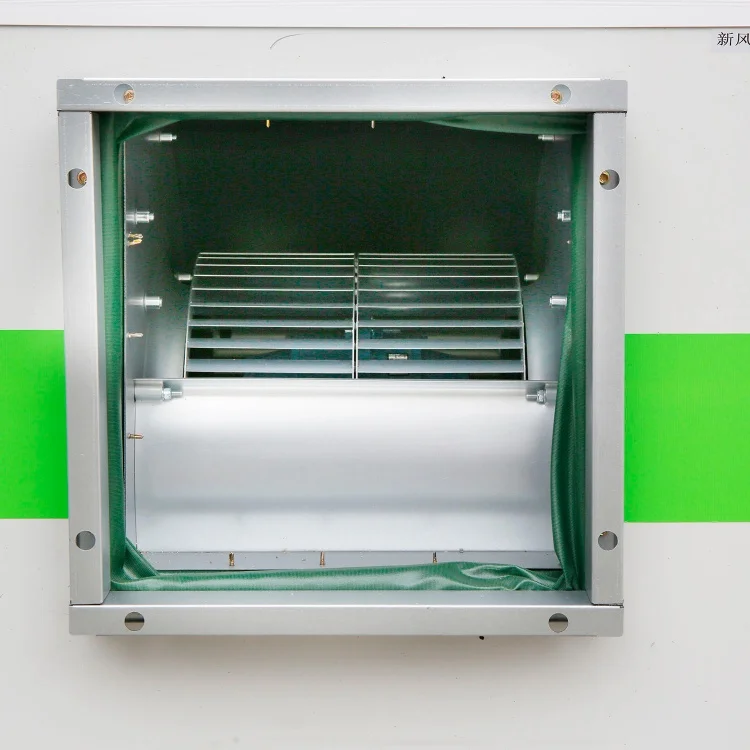

4.Adopting high-efficiency forward-curved multi-wing fans,offering large air volume,low noise and reliable performance.

5.Using high-quality copper tubes mechanically expanded with hydrophilic aluminum fins,the tight fit between the copper tubes and fins ensures reliable high-efficiency operation.

6.Forultra-large and high spaces,and applications where ductwork is unavailable ornot permitted,SANHE TOP offers professional jet air solutions applicable to lobbies,entrances,and atriums ofairports,train stations,exhibition centers,factory workshops,supermarkets,hotels,and othersimilar situations.

7.The jet type unit adopts spherical nozzle as the air outlet,with a maximum effective range of up to 40 meters,enabling direct air delivery over long distances without duct.

8.The air supply of the jet type unit can be manually adjusted freely at 360°,to simulate natural wind,avoiding direct blowing and ensuring that cool or hot air is delivered to the designated location.

Technical Parameters

Model TPK-H-~-AH			2.5	3	4	4.5	5	6	7	8	9	10	12
Nominal air volume		m³/h	2500	3000	4000	4500	5000	6000	7000	8000	9000	10000	12000
External static pressure		Pa	200	200	200	250	250	250	250	250	250	300	300
Return air condition	Cooling capacity (kW)	4R	14	16	24	26	29	32	42	48	53	58	70
		6R	20	23	34	39	42	48	55	63	72	86	102
		8R	25	29	42	47	52	61	70	83	93	107	130
	Heating capacity(kW)	4R	23	29	40	45	50	61	71	83	90	100	120
		6R	33	39	58	65	72	82	95	110	133	147	172
		8R	42	48	72	80	86	105	116	139	158	182	208
Fresh ar condition	Cooling capacity (kW)	4R	32	38	55	62	69	83	94	113	124	140	166
		6R	44	53	77	87	96	110	125	143	179	199	239
		8R	51	60	88	101	113	136	149	185	209	234	285
	Heating capacity(kW)	4R	41	49	66	74	82	99	115	132	148	161	197
		6R	47	57	77	86	95	114	132	150	169	188	225
		8R	55	63	82	94	110	129	149	168	187	216	253
Power supply		380V/3N~/50Hz
Water pipe connection diameter		DN	32	32	40	40	40	40	40	50	50	50	50
Horizontal	Motor power	kW	0.37	0.45	0.55	0.75	1.1	1.1	1.5	2.2	2.2	2.2	2.2
	Dimensions(mm)	L	870	870	870	920	920	970	1020	1020	1070	1070	1070
		W	900	950	1000	1150	1250	1290	1450	1600	1600	1700	1750
		H	570	570	600	700	700	700	765	765	850	850	910
	Weight(kg)	4R	105	112	120	143	149	157	180	192	205		237
		6R	110	120	130	156	162	170	190	200	225	25	250
		8R	115	128	139	165	172	180	190	210	235	245	265
Vertical	Motor power	kW	0.37	0.45	0.55	0.75	1.1	1.1	1.5	2.2	2.2	2.2	2.2
	Dimensions(mm)	L	650	650	650	720	720	770	770	820	820	820	870
		W	900	900	950	950	1000	1050	1290	1290	1290	1400	1500
		H	1150	1250	1360	1500	1500	1550	1650	1650	1800	1800	1850
	Weight(kg)	4R	115	122	130	153	159	167	190	207	225	245	267
		6R	125	135	145	171	177	185	205	230	255	265	295
		8R	130	143	154	180	187	210	220	240	265	275	315

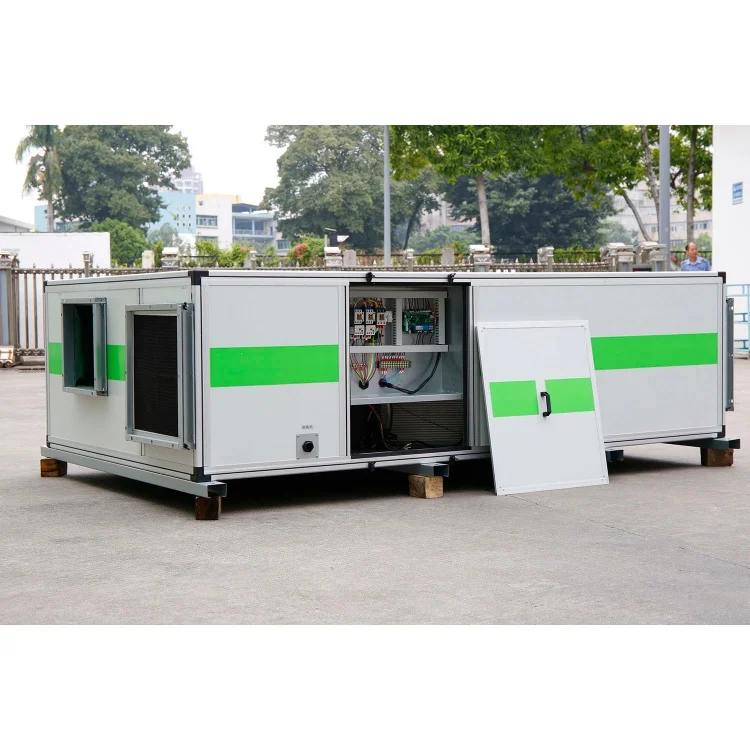

Air Handling Unit, AHU, G4 - detail 2

Ordering and Pricing

Minimum order quantity: 1 set
Volume pricing:
- 1–1 set: US $1200 / set
- 2+ set: US $1000 / set
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by SANHE TOP Air Conditioning (Guangdong) Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full SANHE TOP Air Conditioning (Guangdong) Co., Ltd. range on HVACR Nexus.

See more in Air Handling Units on HVACR Nexus.

Type	Air Handling Unit
Mounting Type	Ceiling Mount
Compressor Brand	Hitachi, Daikin
Fan Motors Type	AC/EC
Application	Hotel, School, Mall
Key Selling Points	Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Remote Control, R410A
Warranty	1 Year
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Core Components	Motor
Place Of Origin	Guangdong, China
Weight (Kg)	100
Brand Name	SANHE TOP
Selling Units	Single item
Single Volume	0 cm³
Single Gross Weight	0.0 kg
