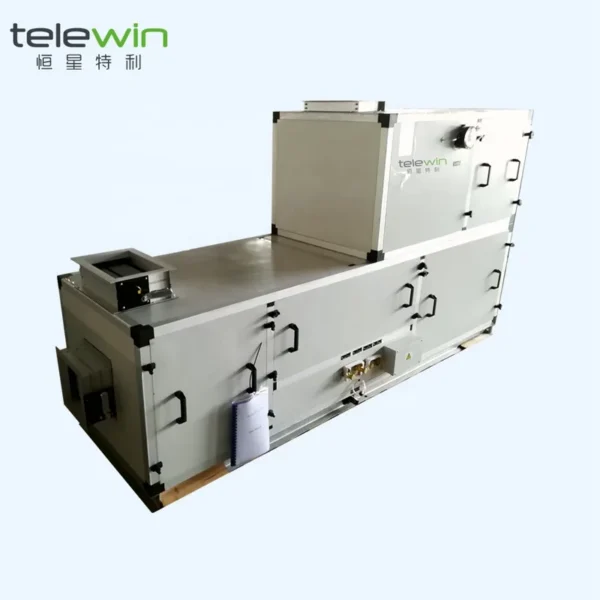

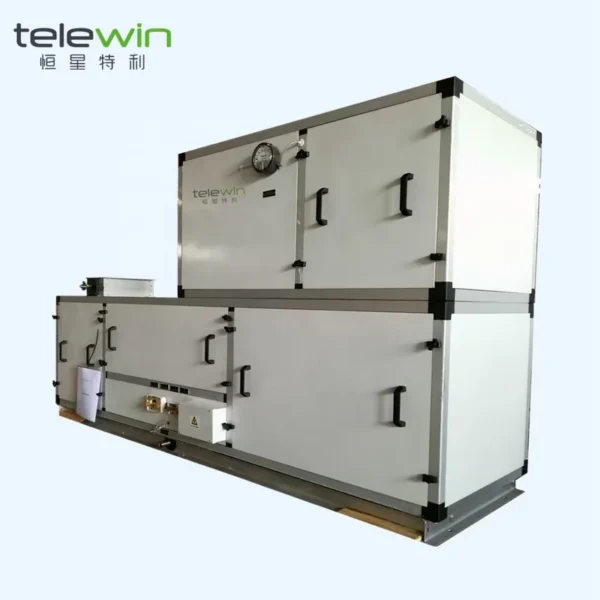

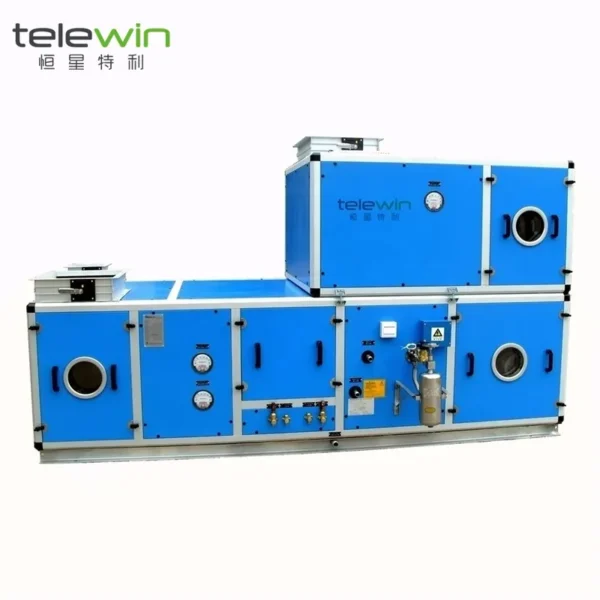

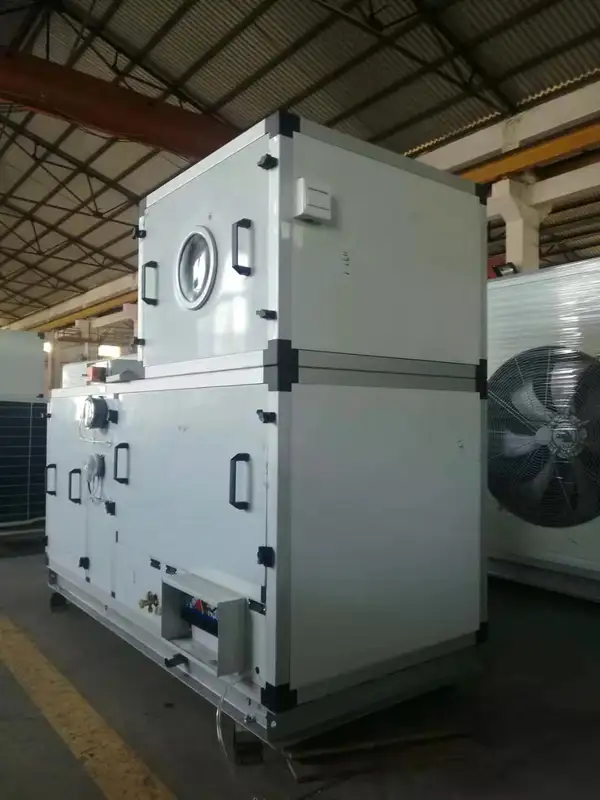

This air handling unit is published with the manufacturer’s full specification — airflow 1800CMH, type Air Handling Unit. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Cooling Capacity: 24kW (Customized Cap.)
- Heating Capacity: 9kW (Customized Cap.)
- Humidifying Capacity: 8kg/h (Customized Cap.)
- Airflow: 1800CMH
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | Sanyo |
| Fan Motors Type | EC |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 450 |
| Brand Name | Telewin |
| Dimension(L*W*H) | 2500*1000*1800 |
| Application | Commercial and industrial application |
| Function | Cooling, heating, humidifying, purification |
| Feature | Energy Saving, sufficient cooling, low noise |
| Airflow | 1800CMH |
| Cooling Capacity | 24kW (Customized Cap.) |
| Heating Capacity | 9kW (Customized Cap.) |
| Humidifying Capacity | 8kg/h (Customized Cap.) |
| External Static | 600Pa (Customized Cap.) |
| Refrigerating | Direct expansion refrigerating system |
| Fan Type | Centrifugal fan |
| Selling Units | Single item |
| Single Package Size | 2500X1000X1800 cm |
| Single Gross Weight | 450.0 kg |
Product Details

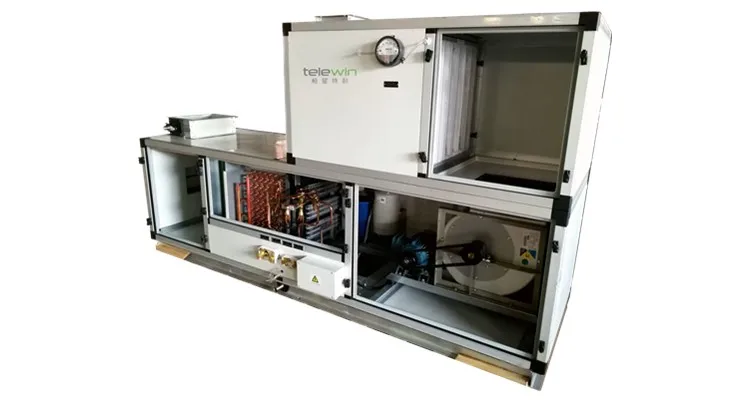

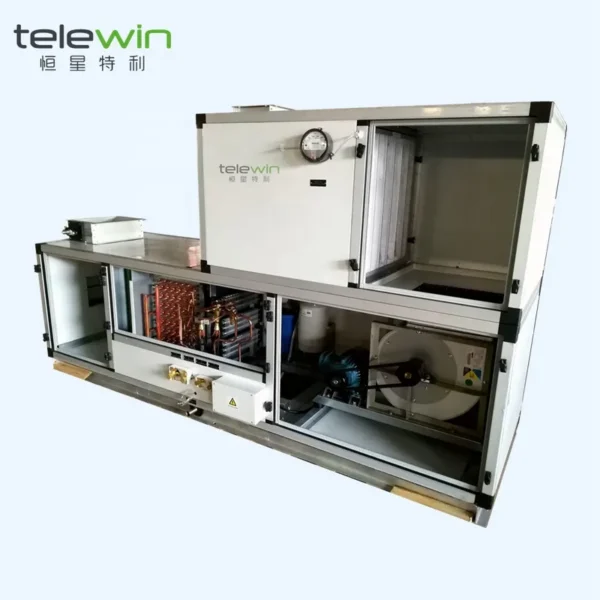

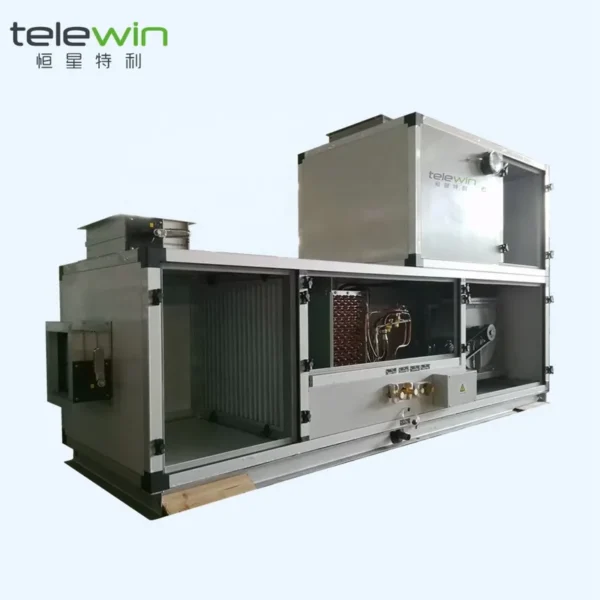

Modular clean room Air Handling Unit pre-filter medium filter constant air supply Central Air Conditioning Equipments
Main Features
• Supply Precious Temp and RH% Clean Air
• Large air volume, sufficient cooling & heating capacity (customized capacity)
• Multi-sections serviceable filter type (G4, F8) for air purification
• Built-in / separated Microprocessor Control Console with all operation data display (compatible with wireless control)
• Operation efficiency and energy saving
• Outstanding reliability and performance
• Configured flexibly, numerous options for customization
• HVACR and Industrial Clean Air application
Model No. | Air Flow (CMH) | ESP (Pa) | Cooling Cap. (4-roll) | Cooling Cap. (6-roll) |
TZK030-4 / TZK030-6 | 3000 | 500 | 18.6KW | 24.2KW |
TZK040-4 / TZK040-6 | 4000 | 500 | 25.9KW | 31.5KW |
TZK050-4 / TZK050-6 | 5000 | 500 | 32.2KW | 39.2KW |
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• Superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance
Famous Brand Blower and Motor
• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option
Vibration Eliminator
• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation
High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Electrode Humidifier
• Cylinder monitor system ensures more efficiency, better energy saving and stable result
• Drainage pump ensures the humidifying process accurate and stable
• Clog protection system ensures to avoid water overflow
• Water temperature control system makes sure the drainage pipe won't be damaged by hot water
• Anti-electric leakage system makes operation and maintenance safe and secure
Safety Electric Heater
• The heating components are integrated together, consist of average heating effect
• No smell, no radiation and will not oxidize or cause oxygen shortage when used for a long time
• Stable electric heating capacity
• Three stages intelligent control, energy saving and safety
• Anti-corrosion
Stainless Steel Drain Pan
•Slop type design, no drain water carryover
•Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
•SteriTouch technology Dust Free Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7
Telewin supplies Air Conditioning products to oversea and domestic markets
▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. range on HVACR Nexus.
