Air Handling Unit, LWHA, 3000-30000m3h, AHU

The air handling unit listed here carries air flow 3000-30000 cmh, material Galvanized Steel, documented exactly as the manufacturer publishes it. Made by Henan Abot Trading Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Model Number: LWHA CLCA CLCQ
• Cooling Capacity(W): 1635-200000
• Air Flow: 3000-30000 cmh
• Material: Galvanized Steel
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

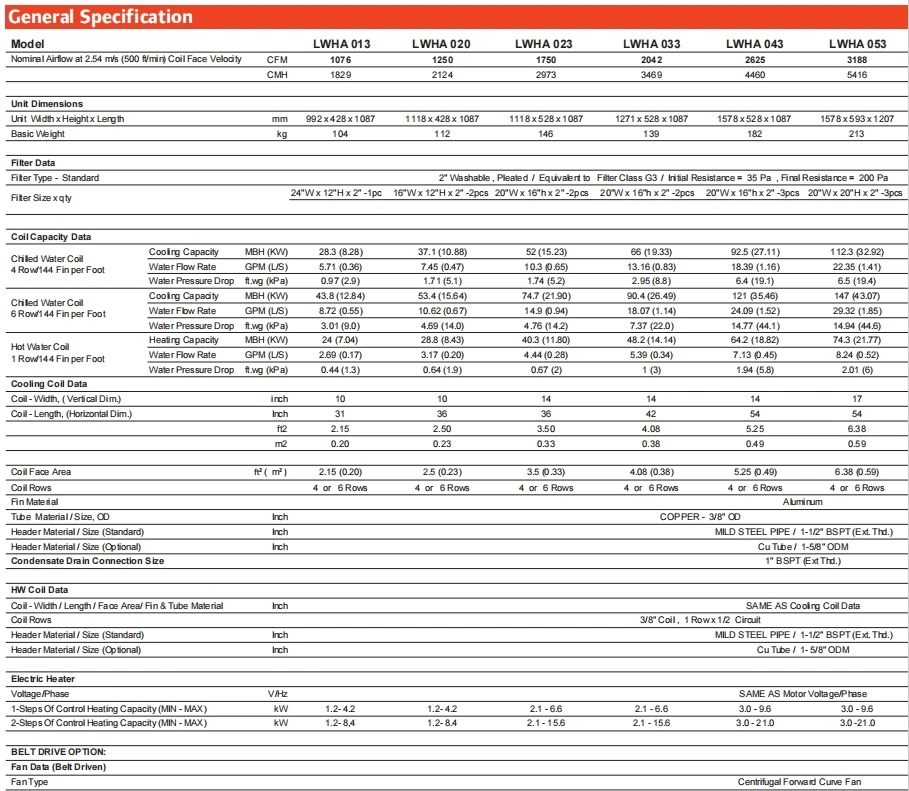

Technical Specifications

Product Details

Product Description

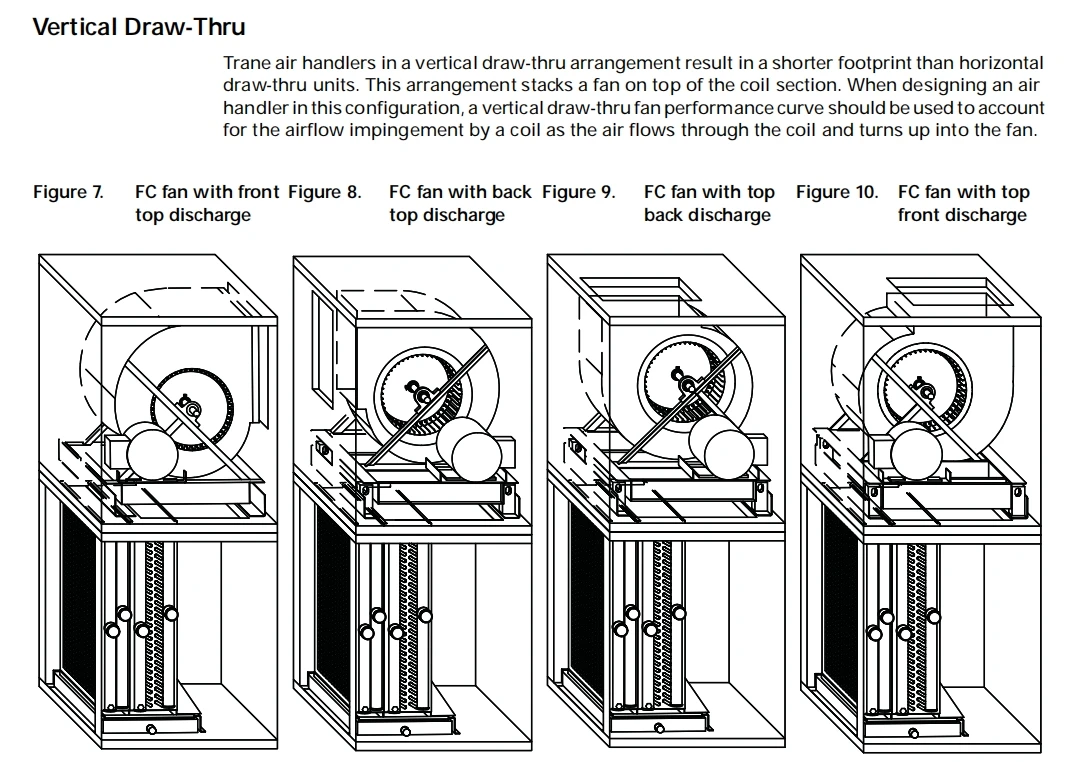

3000-30000m3h vertical air handling unit AHU

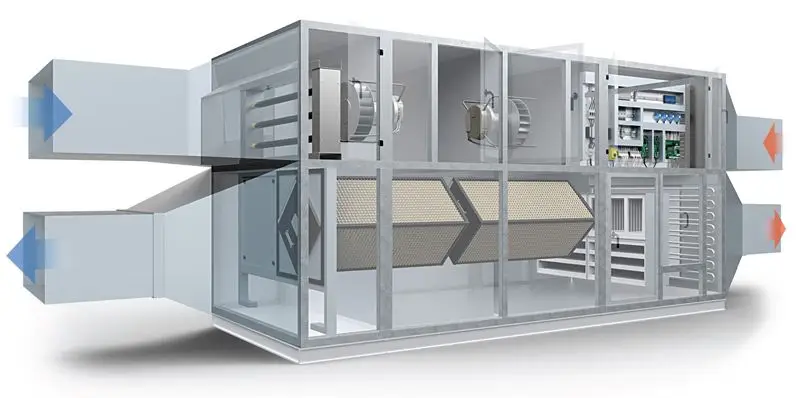

Air Handling Unit (AHU) is the primary equipment in an air system of a central hydronic system. It handles and conditions the air and distributes it to various conditioned spaces. Midea air handling units (AHUs) have been designed and manufactured to meet the requirements of all kinds of space cooling and heating, such as once buildings, shopping malls, exhibition halls, airports,railway stations, hotels, factories and any other central air-conditioning systems. Midea AHUs have been widely used in most part of the world for a couple of years. Now, the 3rd generation AHU has been launched to provide you with more omfortable and convenient environment. It uses unitary structure design, more outstanding cold-bridge free performance, lower air leakage and more elegant appearance. There are 3 types – suspended type, horizontal type and vertical type, including 60 standard models, and the air now rate is available from 2,000m3/h to 35,000m3/h. Different external static pressure (ESP) can be customized to meet dierent kinds of applications.

Type	Air flow CMH	Air flow CFM
Suspended AHU	2000-15000	1200-8800
Horizontal AHU	5000-35000	3000-21000
Vertical AHU	3000-30000	1800-18000

Details Images

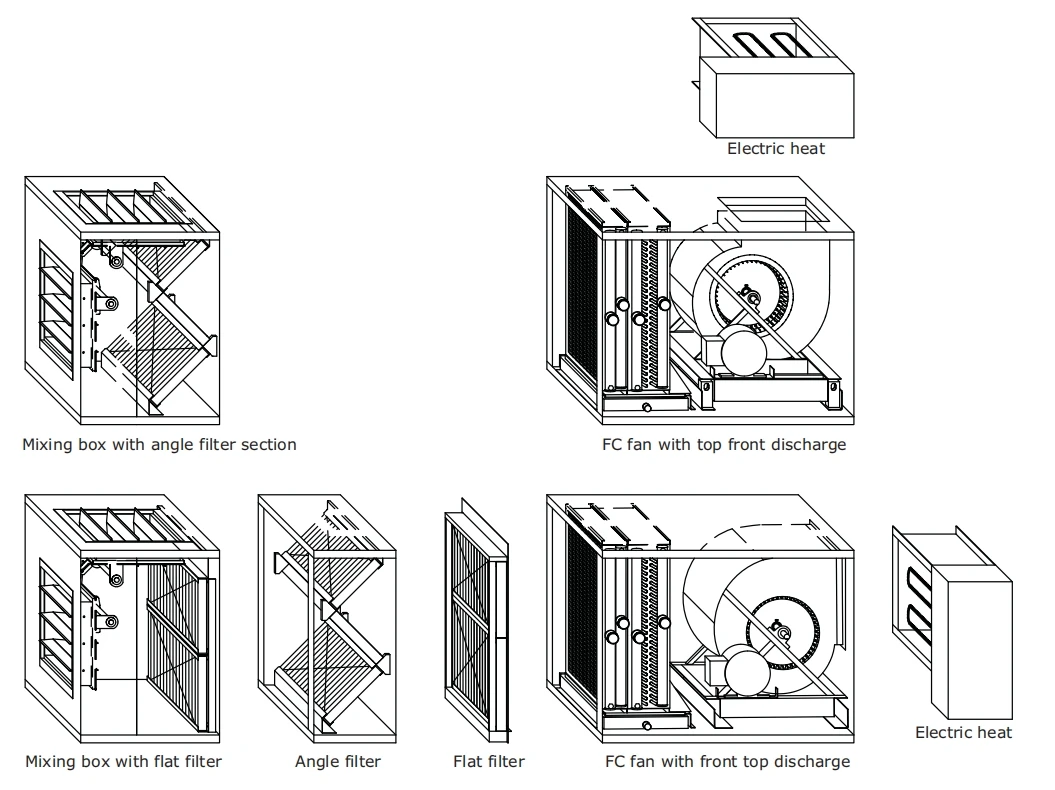

3000-30000m3h vertical air handling unit AHU

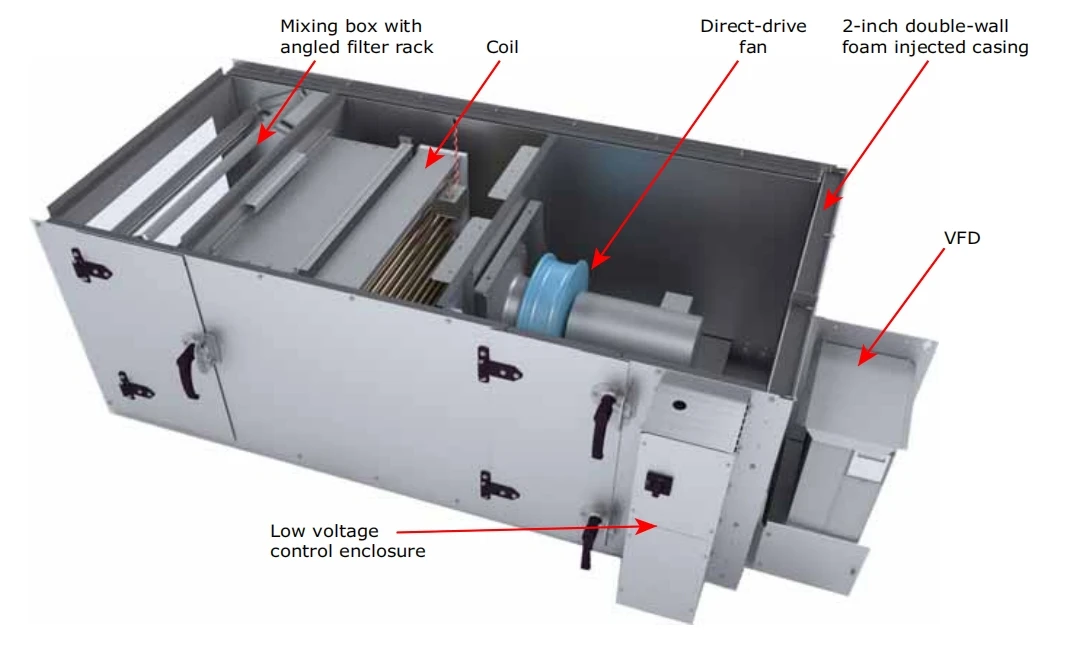

High strength, high reliability Low air leakage rate Copper pipe and aluminum fin type heat exchanger, optimal choice of fin spacing and number of rows. Optimal water circuits design, increased heat exchange efficiency and decreased water resistance, improving unit performance efficiency. Anti-corrosive layers of the  can be customized which assures longer coil life and lower maintenance cost. High performance heat exchanger Outstanding cold-bridge-free structure Features Simple structural components Less at-site work Patented “Labyrinth” panel is integrated male and female aluminum prole. Different panel of the unit casing are mounted and locked by the labyrinth prole, then fastened with bolts and nuts by embedded sheet metal inside the aluminum prole, interior steel frames are used on the panel connection to enhance the strength. Square steels would be mounted inside the units to enhance strength for large airflow casing. The air leakage rate is less than 0.14%.

3000-30000m3h vertical air handling unit AHU

The unit has a built-in condensate pan, which is completely drained and has no hidden dangers;

■Base frame

Unit sections are mounted on galvanized steel or angle steel base frame for easy shipment and handling. The galvanized steel frames provide holes for section connection, and holes for fork-lift truck. And the angle steel base frame is mounted on four wooden pallets of the four corners of base frame. However, for high static pressure application, because of drain pan’s U-trap,additional concrete plinths or other additional bases are required at site to raise the AHU.

■Double skin panel

Standard panels are 25mm thickness double skin type with polyurethane foam insulation foamed under highly pressure. The external panel is anti-corrosion color-coated steel sheet with a layer of fifilm and the internal liner is galvanized steel sheet. The panel insulation is moisture proof and anti-corrosive. The insulation material is totally enclosed in the panel to avoid any possibility of insulation being exposed to air stream.

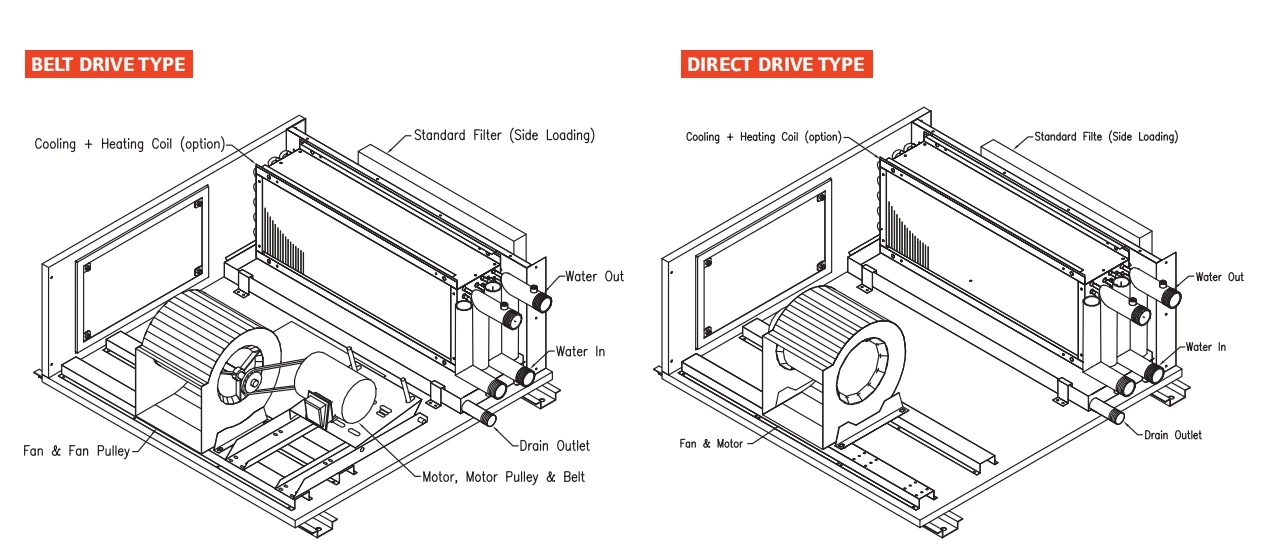

■Coil

Coil is consisted of copper tubes and aluminums. The fins are sine-wave esign with slits for better heat transfer efficiency and moisture carry-over limit performance.

Coil is mounted over a drain pan. The coil resets on U-shape supporter locating over the drain pan. The drain pan extends beyond the leaving side of the coil to recover the condensate water. Coil connections always extend through out of the unit cabinet,allowing for easy connection of valves and piping. Air discharge valve is on the top of water outlet pipe and is located outside the cabinet.

Contact Us

Certifications

Our Factory

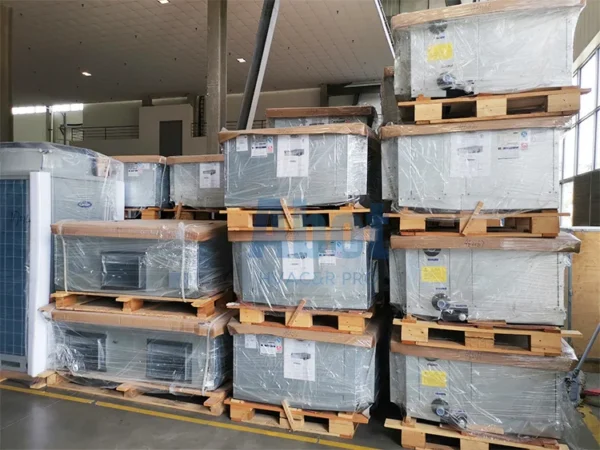

Product packaging

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $1500 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this air handling unit carry?

It is supplied with EN1886 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Abot Trading Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Henan Abot Trading Co., Ltd. range on HVACR Nexus.
