Air handling unit — voltage 3~230/400, power source type AC. The complete factory specification follows. Made by ASIA PACIFIC SHENGRUI LIMITED (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Handling Unit
- Model Number: RH50E-4DK.6K.1R 129560
- Power Source Type: AC
- Power: 1.50KW
- Voltage: 3~230/400
- Material: Stainless Steel
- Blade Material: Metal

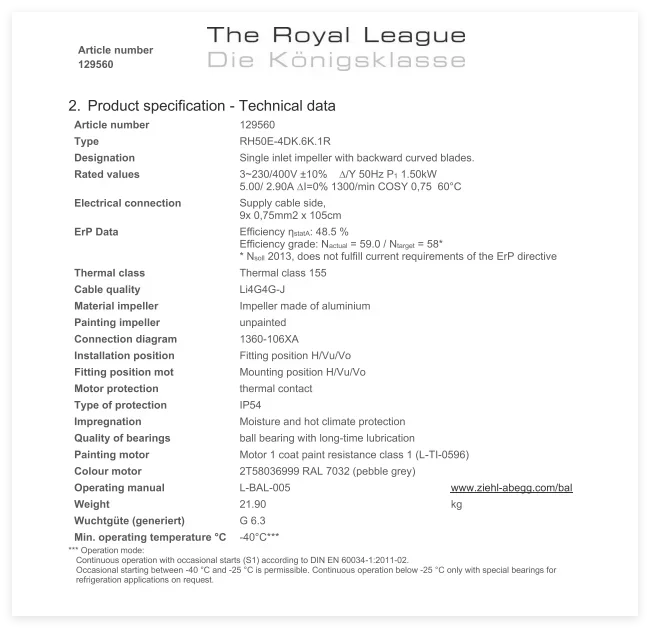

Technical Specifications
| Duct Diameter | 500mm(19.69in) |
|---|---|
| Mounting | Free Standing |
| Voltage | 3~230/400 |
| Motor Type | AC Motor |
| Speed | 1300 |
| Material | Stainless Steel |
| Blade Material | Metal |
| Power Source Type | AC |
| Warranty | One-Year Warranty |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Germany |
| Brand Name | Ziehl-abegg |
| Model Number | RH50E-4DK.6K.1R 129560 |
| Color | Silver |
| Brand | Ziehl-abegg |
| Model | RH50E-4DK.6K.1R 129560 |
| Power | 1.50KW |
| IP Rating | IP54 |
| Type | Centrifugal Fan |
| Frequency | 50Hz |
| Weight | 21.9kg |
| Current | 5/2.9A |
| Selling Units | Single item |
| Single Package Size | 70X70X52 cm |
| Single Gross Weight | 54.0 kg |
Product Details

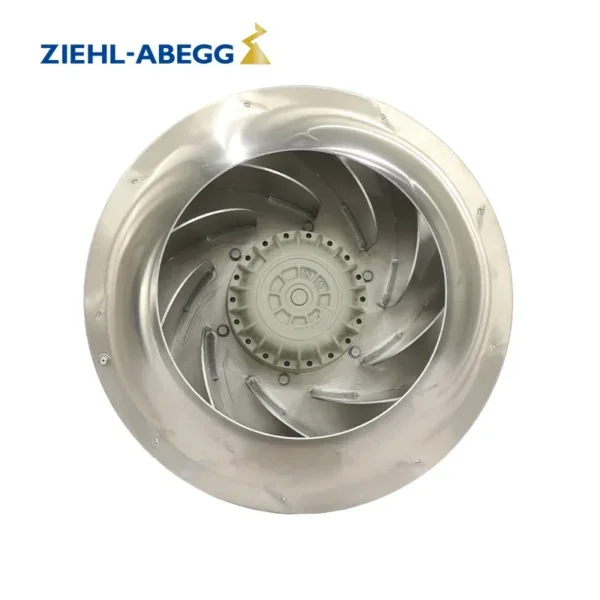

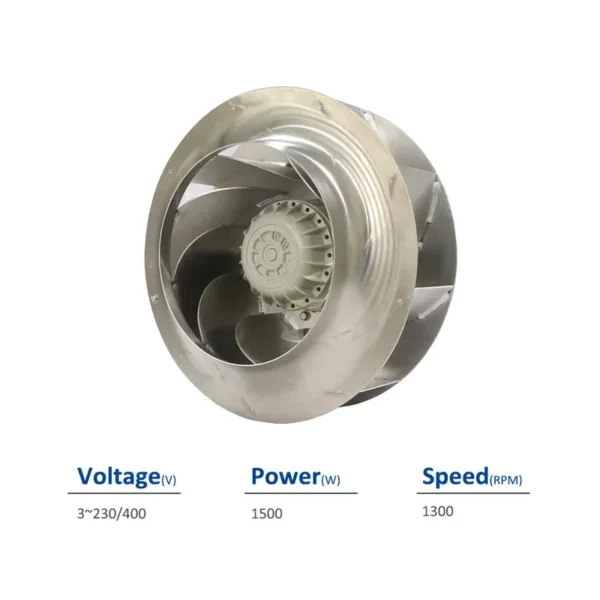

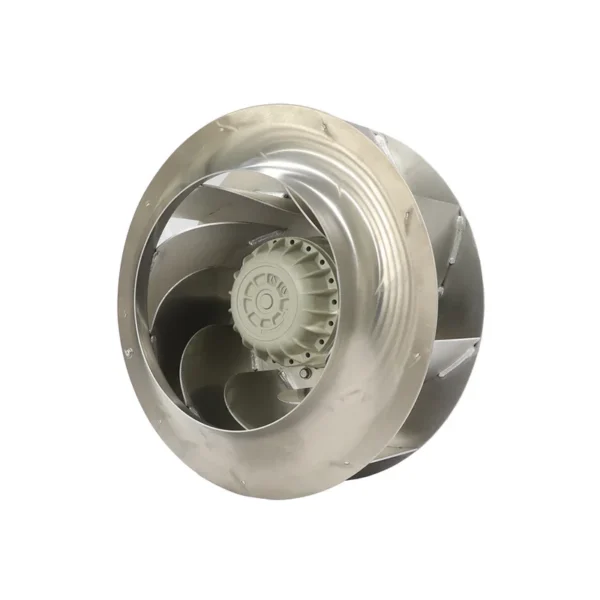

Ziehl-abegg RH50E-4DK.6K.1R 129560 Air Handling Unit Backward Curved Centrifugal Fan High Efficiency EC Plug Fan for AHU
ZIEHL-ABEGG
Your Partner For SustainableIntelligent Ventilation and Drive Technology
ZIEHL-ABEGG
Wherever air needs to be moved–that's where we feel at home. “The Royal League” stands for ventilation technology of the highest standard. Through the continuous development of new technologies, composite materials and innovative product designs inspired by nature, ZIEHL-ABEGG fans represent maximum efficiency with minimum operating costs and noise emissions. Available in various sizes, axial and centrifugal fans combined with highly efficient motor technology and control technology from ZIEHL-ABEGG offer optimum system solutions for every area of application.
ZIEHL-ABEGG Fans
ZIEHL-ABEGG Axial Fans Advantages
· Low operating costs due to optimum efficiency with minimum noise emissions
· High flexibility thanks to fully speed-controlled air flow
· Very smooth running operations and durability
· Compact dimensions for every installation situation
· Meets the requirements of the ErP Directive 2015
· Numerous certifications (incl. VDE, UL, CCC, CE)
· High flexibility thanks to fully speed-controlled air flow
· Very smooth running operations and durability
· Compact dimensions for every installation situation
· Meets the requirements of the ErP Directive 2015
· Numerous certifications (incl. VDE, UL, CCC, CE)
ZIEHL-ABEGG Centrifugal Fans Advantages
· Powerful and offer highly efficient performance with reduced acoustics
· Developed to meet a wide range of requirements.
· Particularly low-noise and are not disturbing even in close proximity.
· Perfectly fitting solution for cooling, temperature control, dehumidification or ventilation of industrial plants, vehicle or
medical technology
· Developed to meet a wide range of requirements.
· Particularly low-noise and are not disturbing even in close proximity.
· Perfectly fitting solution for cooling, temperature control, dehumidification or ventilation of industrial plants, vehicle or
medical technology
ZIEHL-ABEGG Motor Advantages
· Manufacturers of machines from various industries all over the world rely on the high quality of ZIEHL-ABEGG motors.
· The highly efficient ECblue motor, even in the partial load range.
· The tried-and-tested, wear-free AC technology even for high-temperature applications
· The synchronous internal rotor motors guarantee the highest potential for energy savings.
· Optimised for use in refrigerated counters, the ECQ energy-saving motor impresses with the best acoustics and low energy consumption.
· The highly efficient ECblue motor, even in the partial load range.
· The tried-and-tested, wear-free AC technology even for high-temperature applications
· The synchronous internal rotor motors guarantee the highest potential for energy savings.
· Optimised for use in refrigerated counters, the ECQ energy-saving motor impresses with the best acoustics and low energy consumption.
ZIEHL-ABEGG Crossflow Fan Advantages
· Crossflow fans are characterised by high air flows at low
pressures
· The high number of blades results in very good sound
· The high number of blades results in very good sound
characteristics with very little tonal noise of blades
· Medium temperature from -20°C to 70°C
· Motor ambient temperature from -20°C to 40°C
· Motor attachment as standard on the right; available on
· Medium temperature from -20°C to 70°C
· Motor ambient temperature from -20°C to 40°C
· Motor attachment as standard on the right; available on
the left on request
· Balance quality G6.3
· Balance quality G6.3
Applications
Refrigeration
Energy & Environment
Buildings
Machines & Industrial Processes
Clean Room & Medical Technology
IT & Telecommunication
Mobile Applications & Vehicles
Food Chain
About APAC FAN
ASIA PACIFIC SHENGRUI LIMITED is located in Hong Kong, the global trade center, specializing in providing ventilation and air-conditioning related products and solutions. Attached to advantages of import and export price in Hong Kong, we represent and sell various world famous brands of fans, blowers and ventilation related products. Quality is our life, customers are our market, the pursuit of excellence is our belief. We sincerely welcome cooperation with friends from all walks of life, and endeavor to develop and create a better future with our integrity and professional.
Sold To World Market
The company has set up a number of distribution points in Germany, Wuxi, Singapore and other key regional markets, distributing ebmpapst, ZIEHL-ABEGG, Wistro, Rosenberg, DELTA, SANYO, FULLTECH, SANMU and other brands of fans. Products are exported to Europe, North America, Central and South America, Southeast Asia, the Middle East, Africa, Oceania, Russia and other more than 150 countries and regions.
Order Instructions
> About Express Delivery Receipt
· When receiving the express delivery, please be sure to unpack and inspect the goods in the presence of the courier! · If the goods are damaged, the courier is responsible for compensation and handling. · If you sign for it directly without inspection, and later find that the product is deformed or damaged due to
transportation, it cannot be returned or exchanged! We will not be responsible at all!
> About After-sales Instructions
We guarantee the quality under normal working conditions, with a one-year warranty period.In cases such as electroplating factories, humid environments, strong acids and alkalis, oil fumes, high temperatures, heavy dust, 24-hour continuous use, unstable voltage, or three-phase power phase loss, which lead to motor burnout. Or if the motor is disassembled, modified, or damaged manually. We cannot provide warranty for these unsuitable motor environments and conditions.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $393 / piece
- 50–99 piece: US $373 / piece
- 100+ piece: US $343 / piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a One-Year Warranty warranty. Spare parts and technical support remain available after the warranty period.
Can the air handling unit be supplied for my local voltage?
The standard configuration is 3~230/400. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
