Air handling units — capacity 20L, certification ISO9001 CE. The complete factory specification follows. Made by Xinxiang Chengde Energy Technology Equipment Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Air Handling Units
- Capacity: 20L
- Warranty: 1 Year
- Certification: ISO9001 CE
- Place Of Origin: Henan, China
- Empty Weight(Kg): 8.6
- Dimension(L*W*H): 410mm*410mm*710mm
Technical Specifications
| Machinery Test Report | Provided |
|---|---|
| Core Components | Pressure Vessel, empty tank |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Max Working Pressure(MPa) | 0 MPa |
| Capacity | 20L |
| Place Of Origin | Henan, China |
| Brand Name | CNCD |
| Dimension(L*W*H) | 410mm*410mm*710mm |
| Name | Storage Semen Container Aluminum Cans Liquid Nitrogen Dewar Sizes |
| Volume(L) | 20 |
| Neck(Mm) | 50 |
| Diameter(Mm) | 360 |
| Height(Mm) | 607 |
| Empty Weight(Kg) | 8.6 |
| Accessories | 6 Canisters |
| Usage | Liquid Nitrogen Therapy Treatment |
| Certification | ISO9001 CE |
| Product Keywords | Storage Semen Container |
| Selling Units | Single item |
Product Details

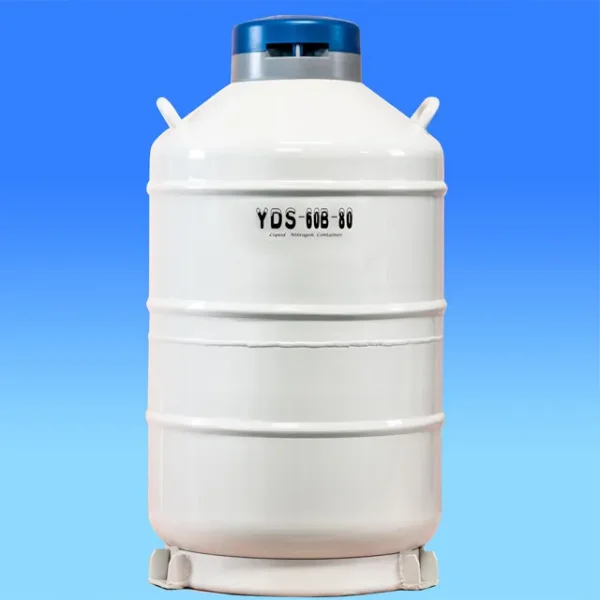

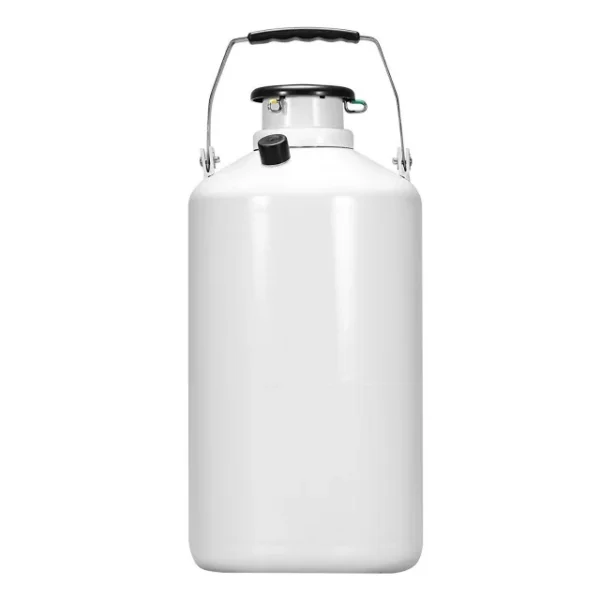

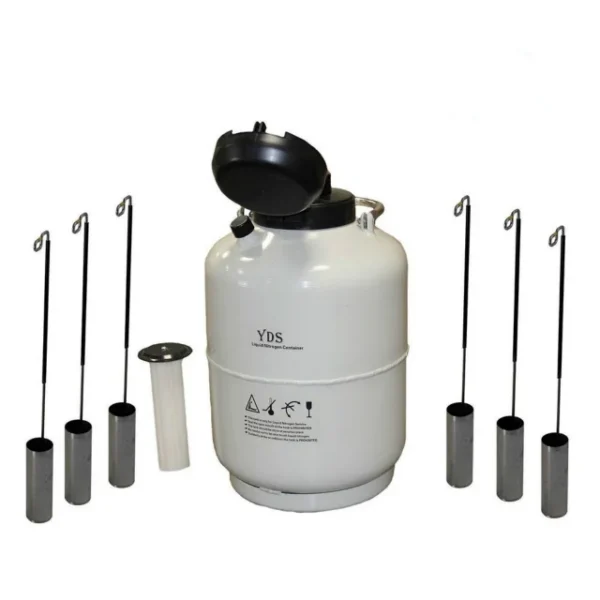

20l Cylinder Storage Semen Container Aluminum Cans Liquid Nitrogen Dewar Sizes
Product Description
Model | Volume (L) | caliber (mm) | diameter (mm) | height (mm) | Empty weight (kg) | Package size（mm） |
YDS-2 | 2 | 35 | 220 | 430 | 2.8 | 270*270*535 |
YDS-3 | 3 | 50 | 220 | 430 | 3.2 | 270*270*535 |
YDS-6 | 6 | 50 | 300 | 510 | 5 | 345*345*600 |
YDS-10 | 10 | 50 | 300 | 550 | 5.4 | 350*350*660 |
YDS-15 | 15 | 50 | 360 | 603 | 8.1 | 410*410*690 |
YDS-20 | 20 | 50 | 360 | 607 | 8.6 | 410*410*710 |
YDS-30 | 30 | 50 | 435 | 680 | 14 | 485*485*765 |
YDS-30B | 30 | 50 | 435 | 680 | 14.5 | 485*485*765 |
YDS-35 | 35 | 50 | 435 | 690 | 15.3 | 490*490*770 |
YDS-35B | 35 | 50 | 435 | 690 | 15.8 | 490*490*770 |
YDS-50B | 50 | 50 | 495 | 855 | 19.5 | 550*550*940 |
YDS-10B | 10 | 50 | 300 | 550 | 5.8 | 350*350*660 |
YDS-10-80 | 10 | 80 | 300 | 542 | 5.6 | 350*350*660 |
YDS-10-125 | 10 | 125 | 300 | 538 | 5.7 | 350*350*660 |
YDS-10-210 | 10 | 210 | 300 | 533 | 5.7 | 350*350*660 |
YDS-15-80 | 15 | 80 | 360 | 586 | 8.2 | 410*410*690 |
YDS-15-125 | 15 | 125 | 360 | 570 | 8.6 | 350*350*660 |
YDS-20-80 | 20 | 80 | 360 | 595 | 8.8 | 410*410*710 |
YDS-20-125 | 20 | 125 | 360 | 588 | 8.8 | 410*410*710 |
YDS-30-80 | 30 | 80 | 435 | 665 | 14 | 485*485*765 |
YDS-30-125 | 30 | 125 | 435 | 660 | 14 | 485*485*765 |
YDS-30-210 | 30 | 210 | 435 | 658 | 14.7 | 485*485*765 |
YDS-35-80 | 35 | 80 | 435 | 690 | 15.3 | 485*485*765 |
YDS-35-125 | 35 | 125 | 435 | 690 | 15.3 | 485*485*765 |
YDS-50B-80 | 50 | 80 | 495 | 850 | 19.6 | 550*550*940 |
YDS-50B-125 | 50 | 125 | 495 | 842 | 20 | 550*550*940 |
YDS-50B-210 | 50 | 210 | 495 | 840 | 20.5 | 550*550*940 |

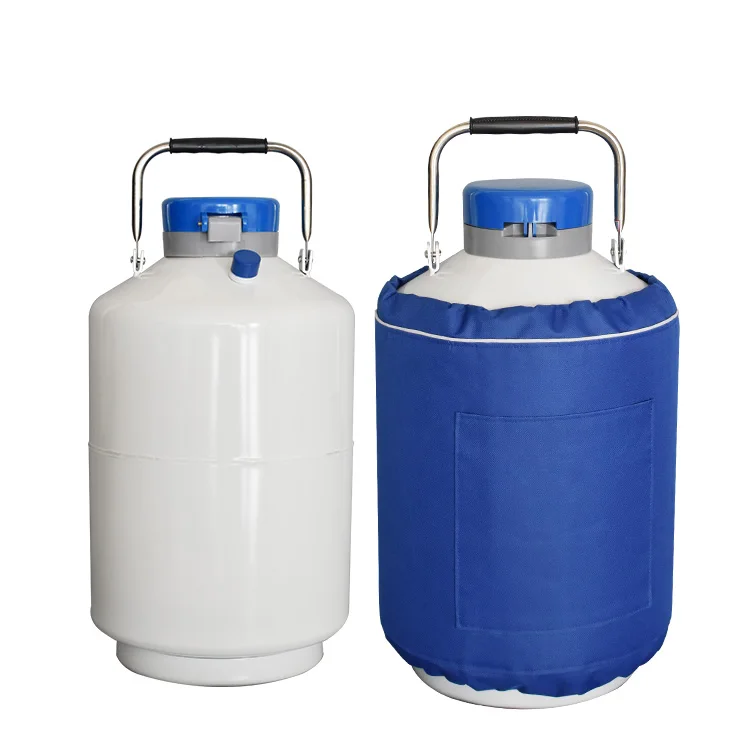

Main features of liquid nitrogen tank
1. Made of high strength aluminum alloy, the liquid nitrogen tank is light 2. High vacuum multilayer insulation design 3. Flexible handle, easy to carry 4. Lock cover is optional to protect the sample stored in liquid nitrogen tank 5. It is equipped with a protective cover to facilitate the carrying of liquid nitrogen tank and to prevent the tank from bumping in the process of use
Our liquid nitrogen tanks can be used in the following industries:
1. Liquid nitrogen molecular delicacies: production of liquid nitrogen ice cream, drinks, etc., preservation of cold plate food materials, etc. (commonly used 10L / 20L / 30L liquid nitrogen tank) 2. Medical and health system: it is used in the biomedical field for the active preservation of frozen semen, stem cells, embryos, vaccines, etc 3. Specimen preservation: preservation of biological specimens in agriculture, forestry and other industries 4. Cryogenic treatment: cryogenic treatment and mechanical assembly of metal materials and precision parts 5. Beauty industry: removing spots and moles (commonly used 10L / 3L / 6L liquid nitrogen tank) 6. Performance industry: for the production of stage smoke effect (commonly used 10L liquid nitrogen tank)
Request A Quote
Click to Contact Us Now!!!
Specification
More Details

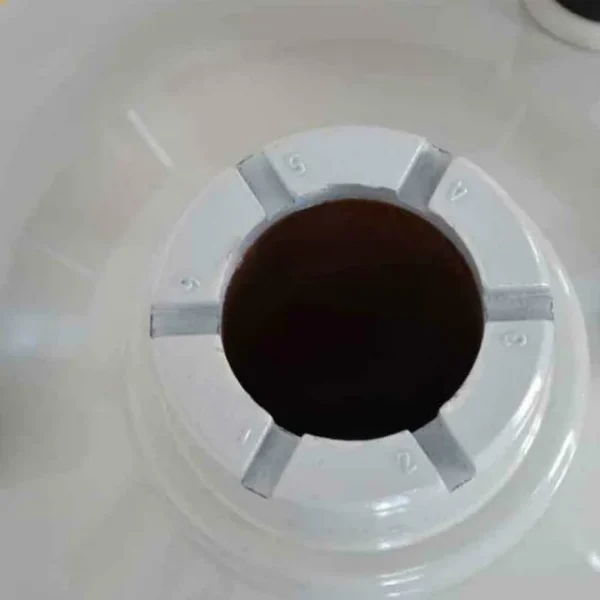

Diameter mouth
With groove, easy to fix the canisters

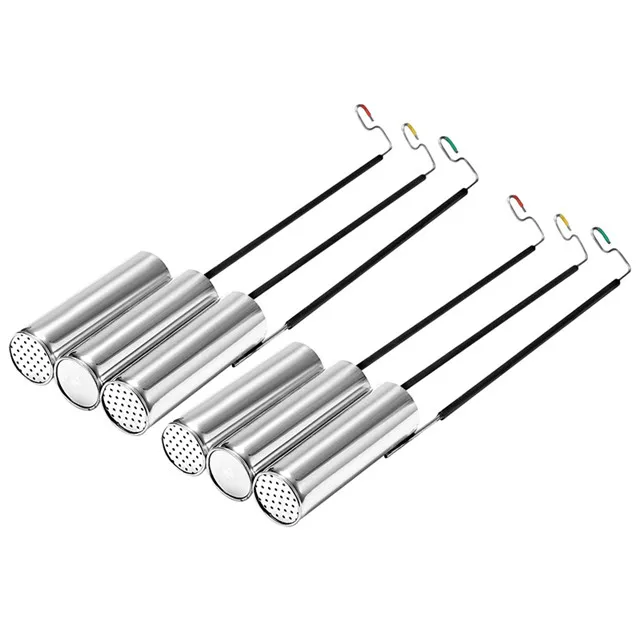

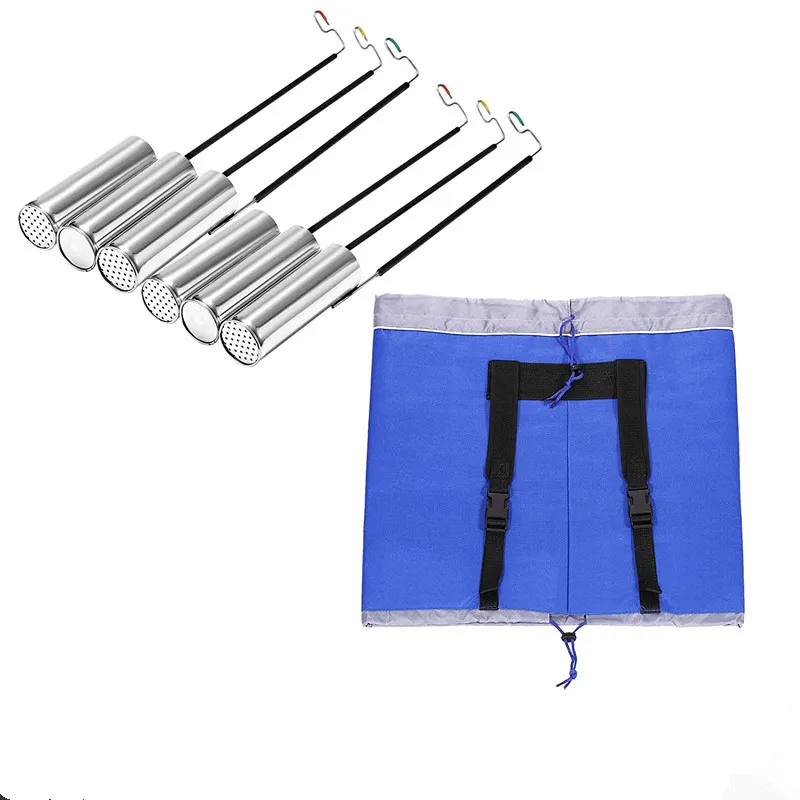

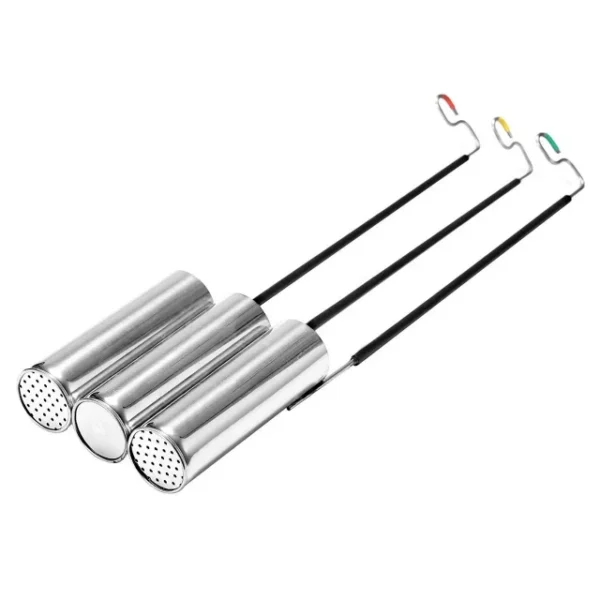

canisters
With or without holes

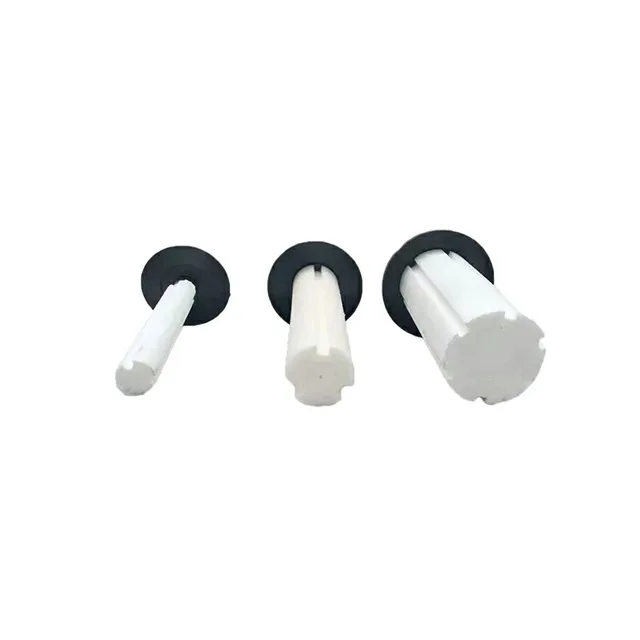

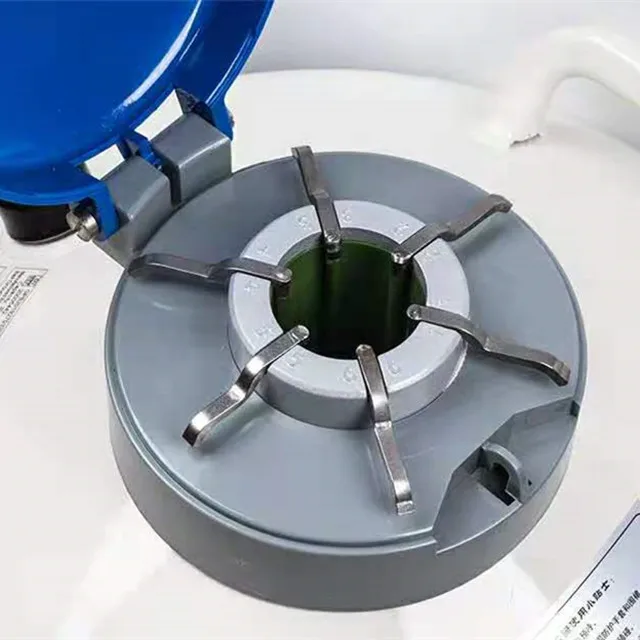

Neck plug
Special material, super light, low temperature resistance

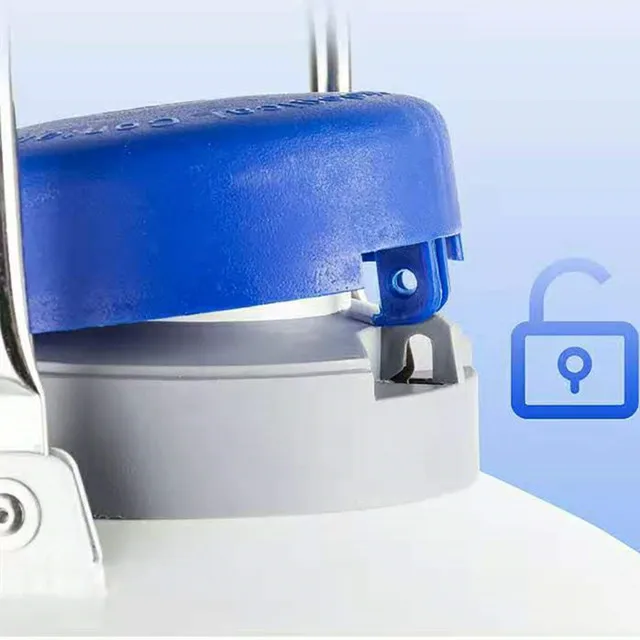

Lock cover
safe

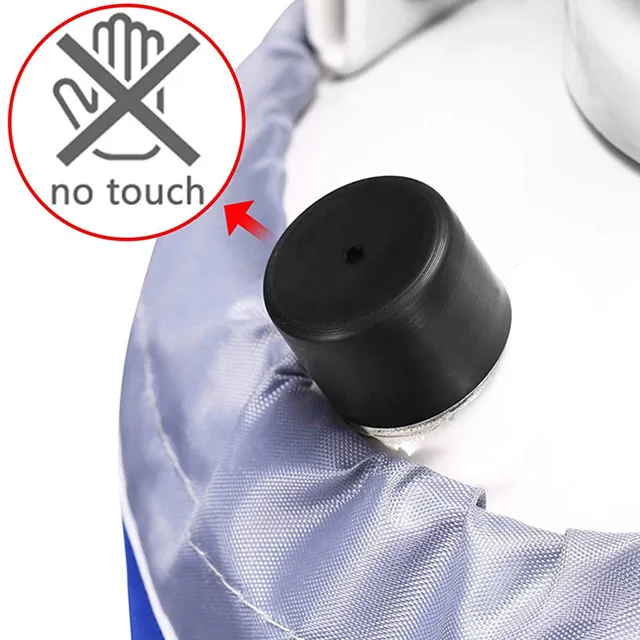

Vacuum nozzle
Silicone cap protection, remember not to move

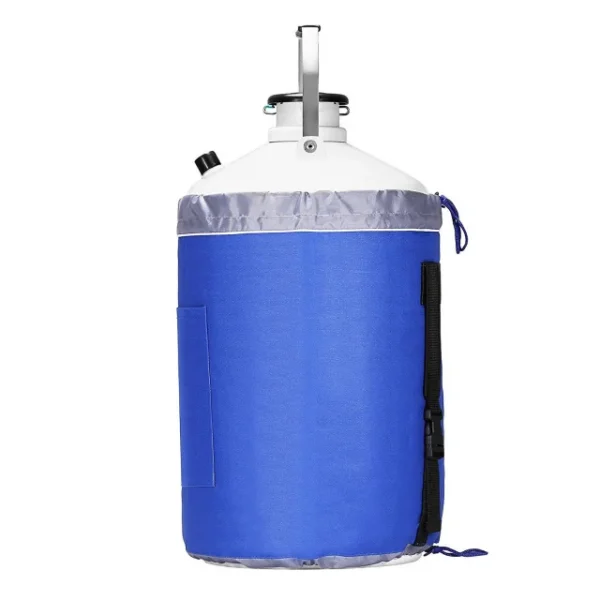

Protective sleeve
Waterproof and durable
Packing & Delivery

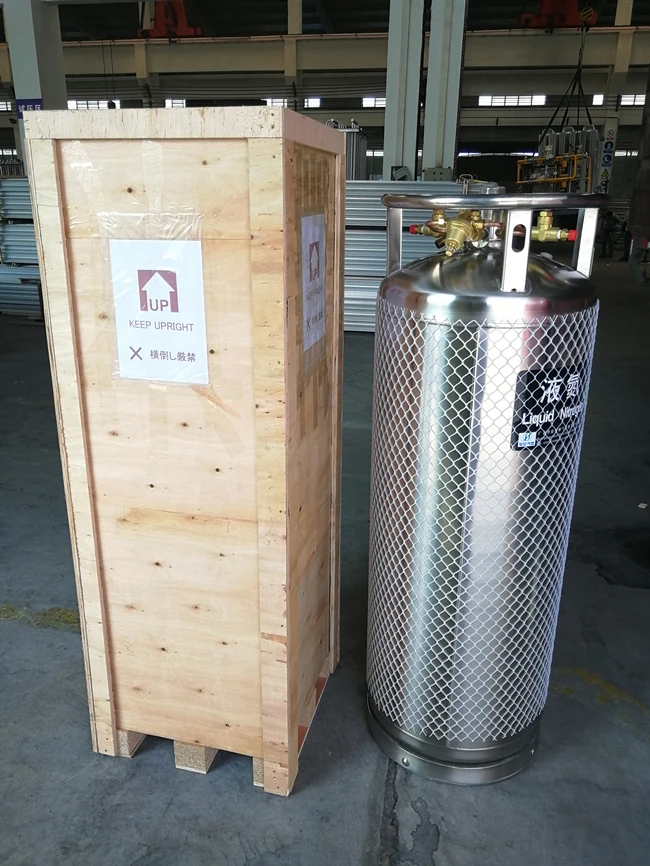

Packaging of liquid nitrogen tank:
1. Export standard packing is usually used. 2. One to one carton 3. Wooden cases or pallets can be provided if necessary. 4. Or according to customer needs
Delivery of liquid nitrogen tank:
1. Express (DHL, FedEx, UPS, etc.) 2. Shipping 3. Or according to customer needs
Send Inquiry>>
Click to Contact Us Now!!!
Recommend Products
Microbulk tank
liquid dewar cylinder
cryogenic liquid pump
Click to View All Categories !!!
Company Profile

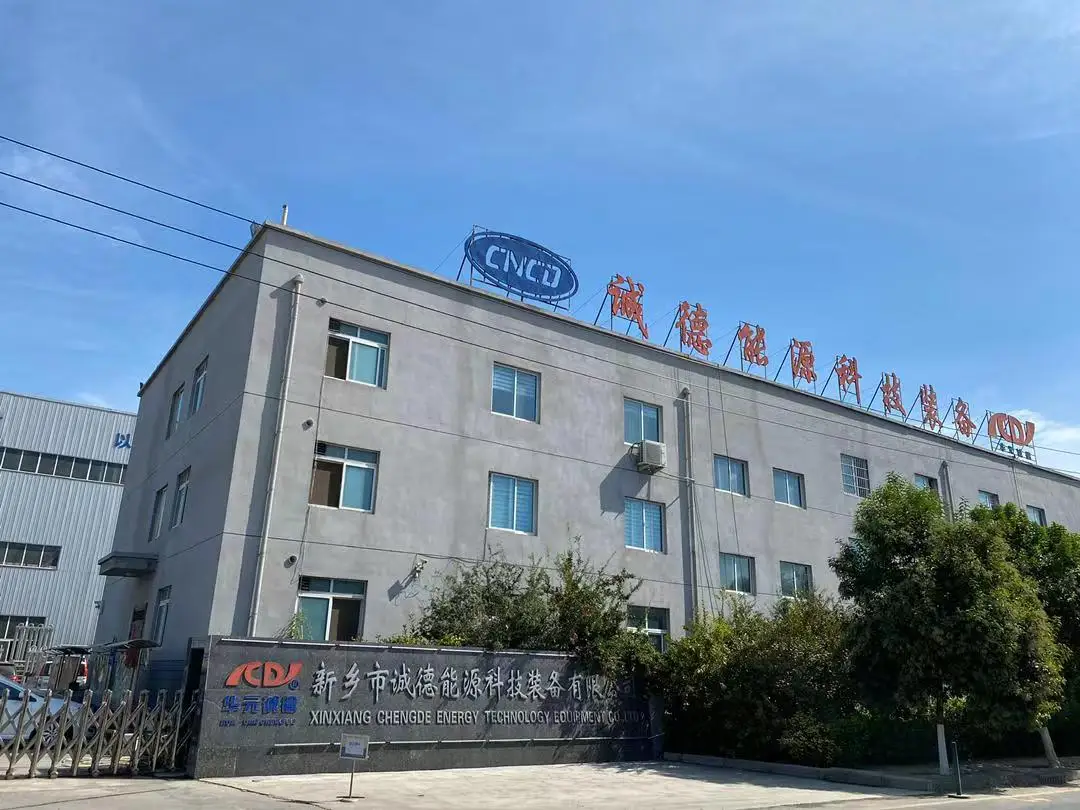

Xinxiang Chengde Energy Technology Equipment Co., Ltd. (CNCD Company) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas)storage tank, cryogenic liquid pump, ambient vaporizer liquid dewar cylinder, lpg tank, iso tank container,microbulk tank,small liquid nitrogen tank and related products in the field of research and development, design, manufacture and installation.

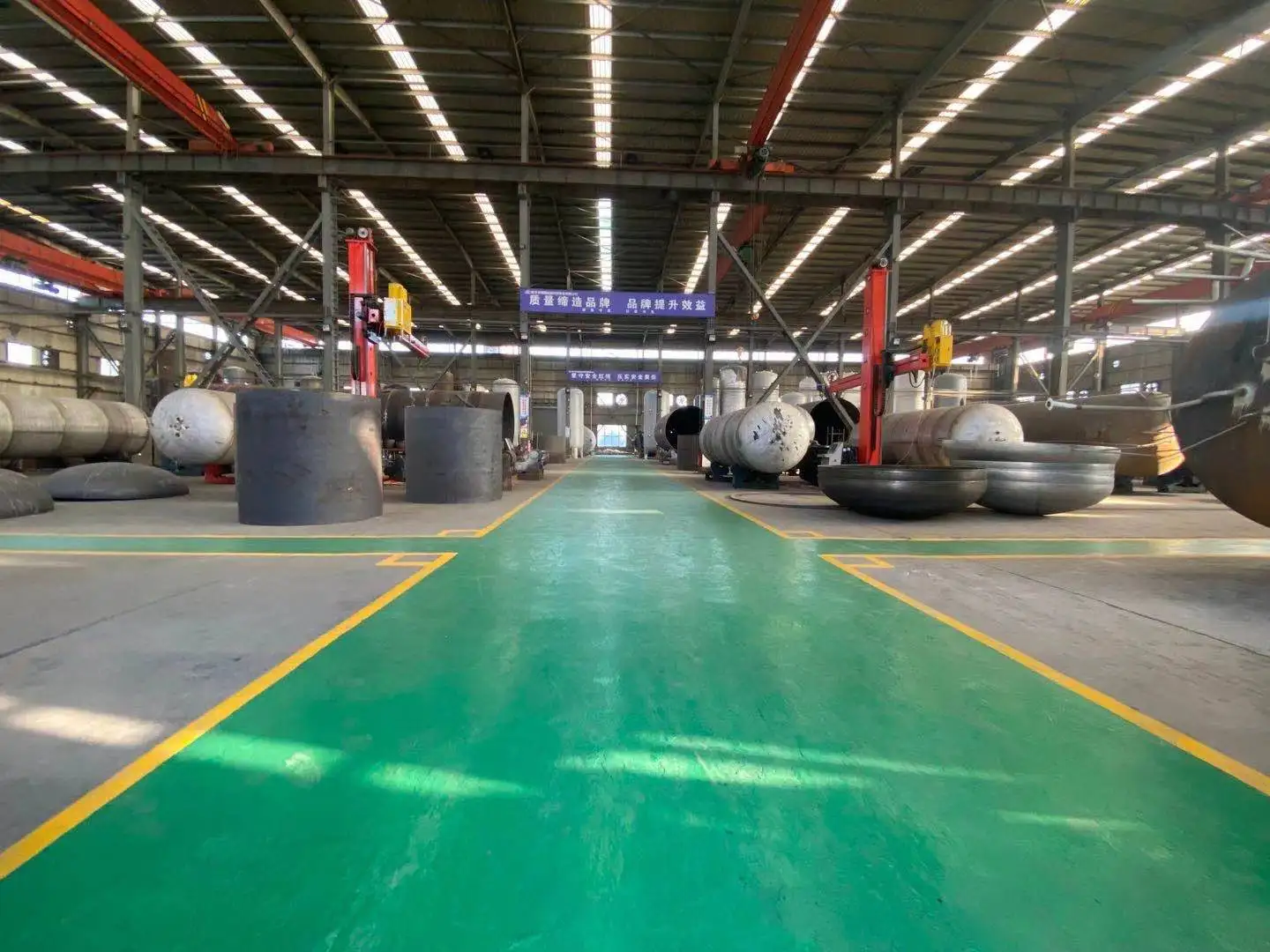

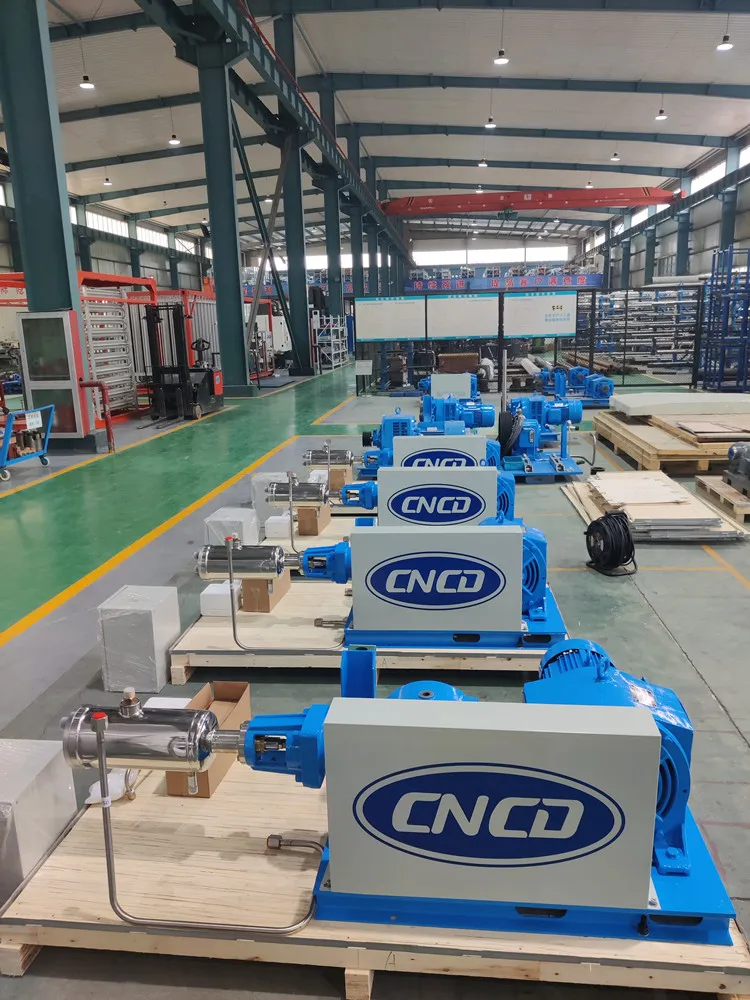

Click to View Our Factory !!!

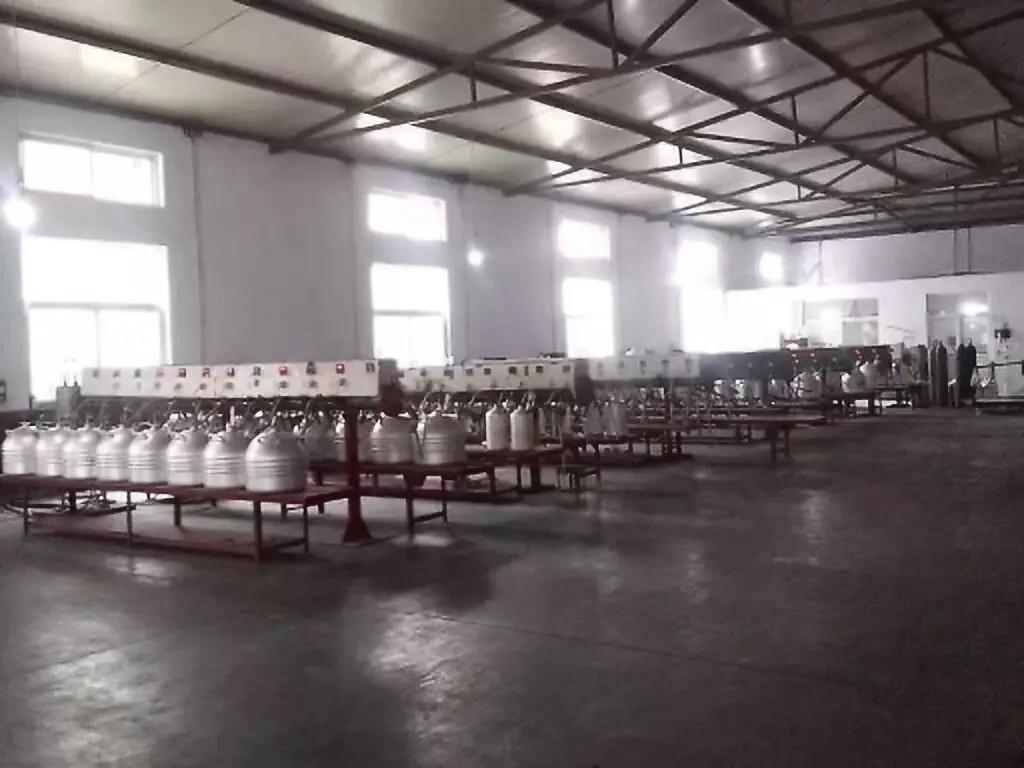

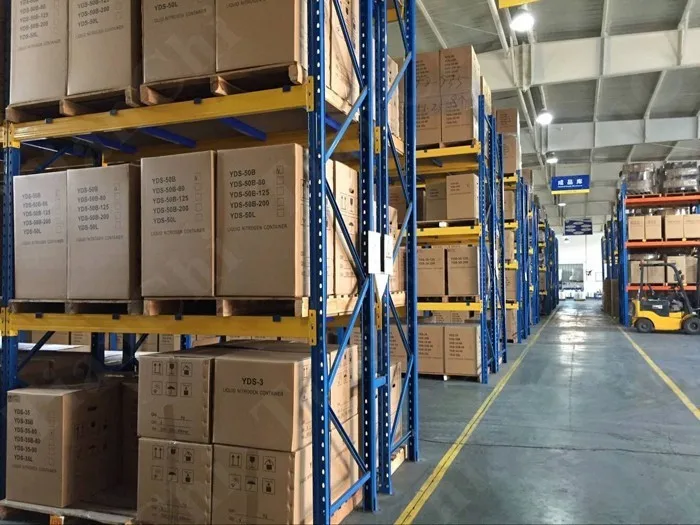

The company more than 30,000 square meter for workshop.Our company have exported products to foreign countries more than 20 years,have rich experience in production and exported ,products have exported to more than 35 countries ,also have branch office in the Vietnam.Exhibition
Our company often participates in domestic ,foreign exhibitions .if possible, we hope you can come to visited exchange.

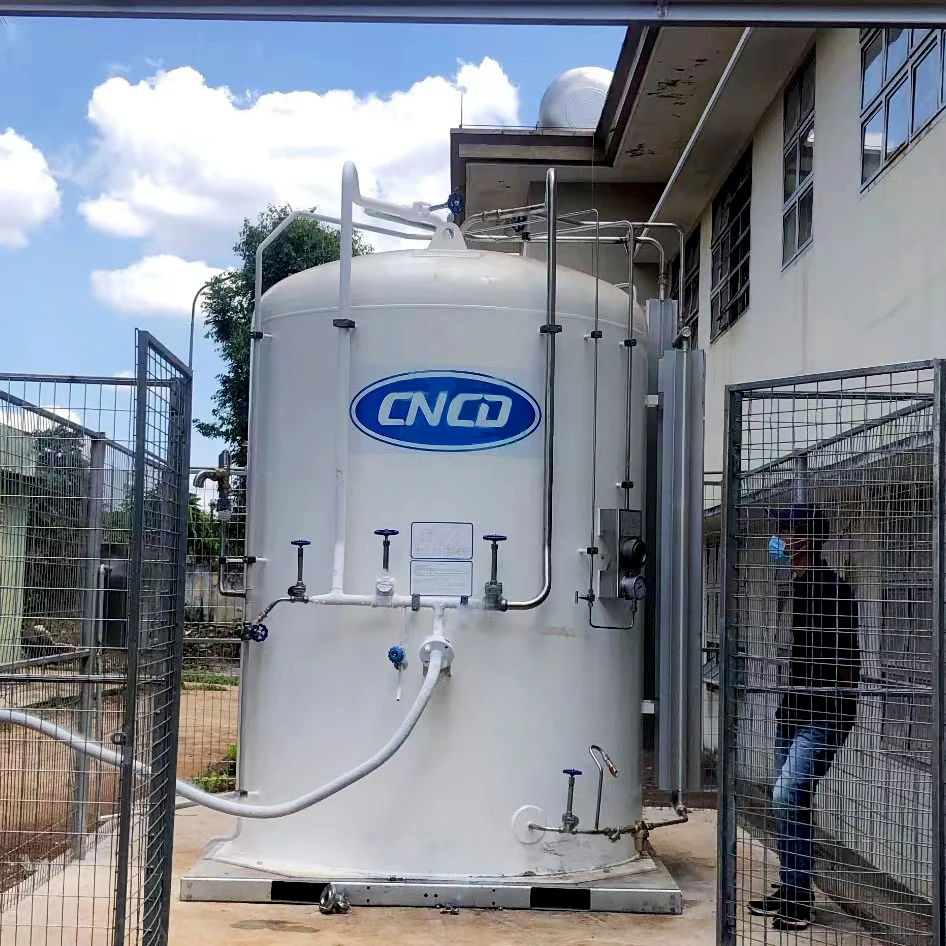

Customer Photos
Many customers come to visit our company, they are very satisfied with our products and trust more.
Send Inquiry>>
Right Choice, Right Now
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $220 / set
- 20–49 set: US $215 / set
- 50+ set: US $210 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this air handling units carry?
It is supplied with ISO9001 CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xinxiang Chengde Energy Technology Equipment Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xinxiang Chengde Energy Technology Equipment Co., Ltd. range on HVACR Nexus.
See more in Air Handling Units on HVACR Nexus.
