Blast Freezer, 400-500kg/h, 380v, 50HZ

Key specification for this blast freezer: 380v/50hz, 50HZ. Everything below is reproduced from the factory data sheet. Made by Xinxiang Chengde Energy Technology Equipment Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Blast Freezer

• Power(W): 50HZ
• Voltage: 380v/50hz
• Production Capacity: 400-500kg/h
• Material: Stainless Steel 304
• Refrigerant: Liquid Helium
• Warranty: 1 Year

Technical Specifications

Product Details

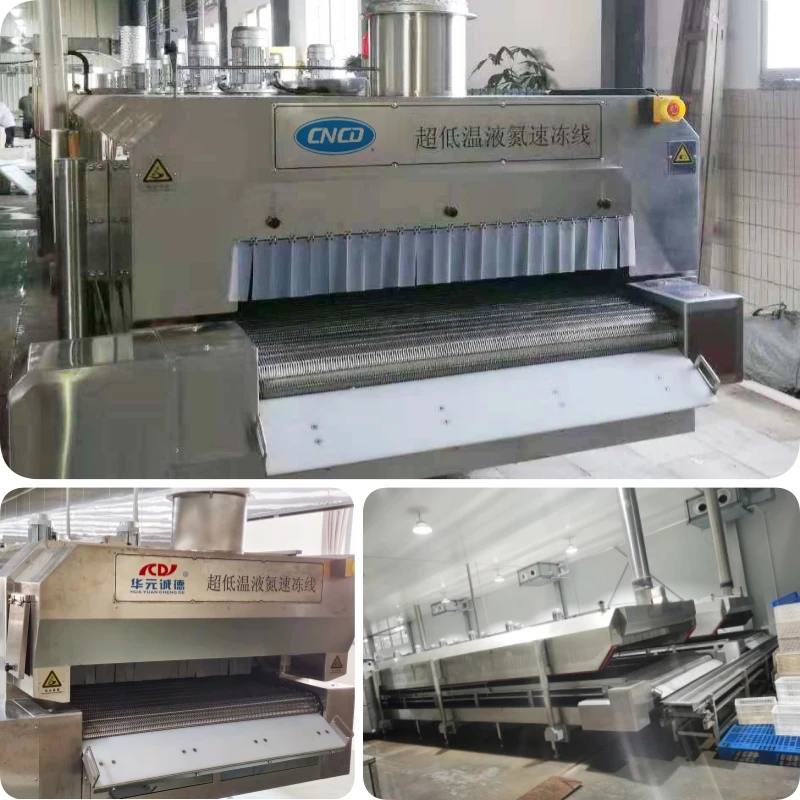

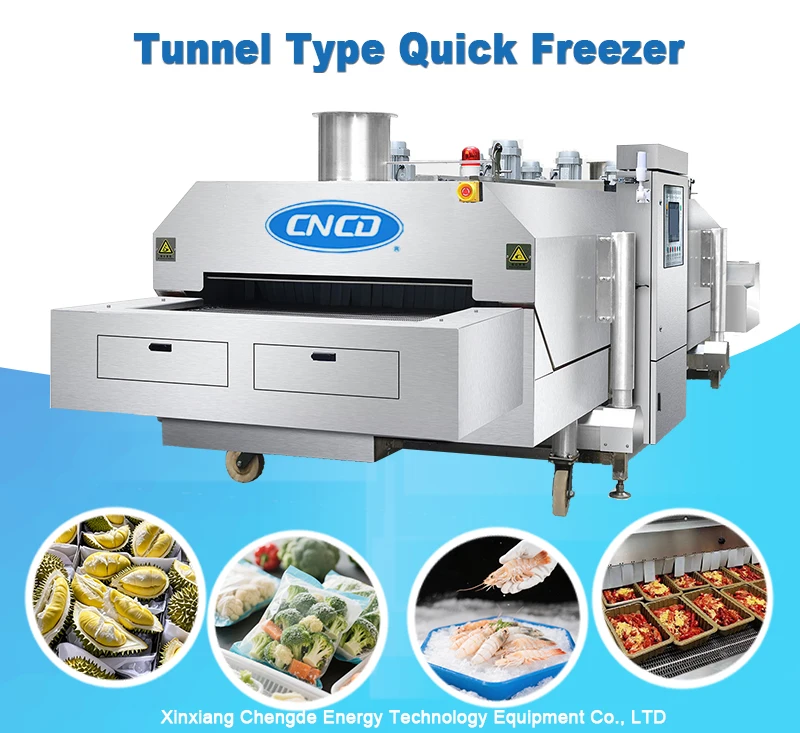

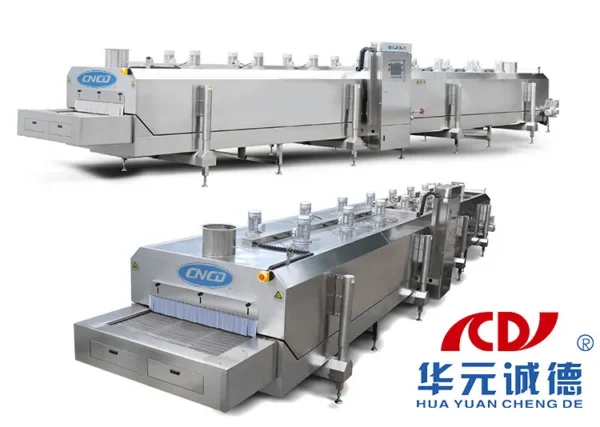

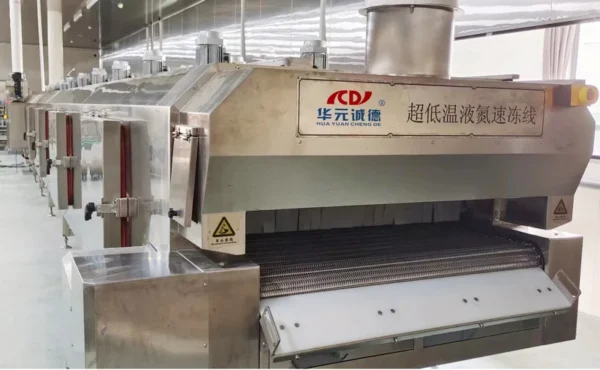

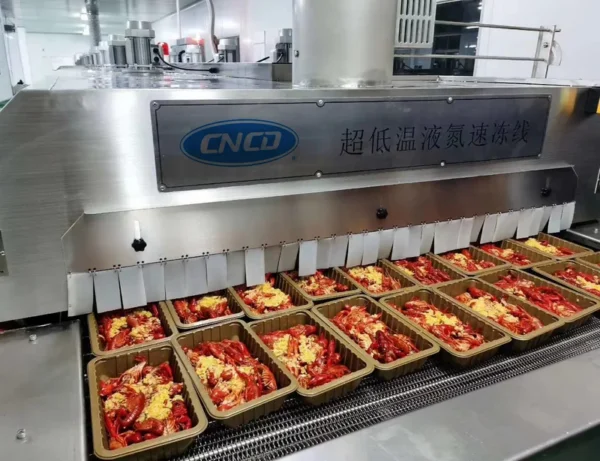

400-500kg/h Quick Freezer Tunnel Freezer Tunnel Blast Freezer for Shrimp/meat

Product Description

CNCD cabinet quick freezing equipment adopts advanced European quick freezing technology and is jointly developed with top domestic universities. The whole machine is equipped with an imported quick freezing system and an imported PLC+touch screen intelligent control system. The equipment has the characteristics of high efficiency, energy saving, stable operation, and supports personalized customization, which can meet the differentiated production needs of various customers.

Performance indicators	Parameters
Quick freezing temperature	Normal temperature ~ -196°C
Quick freezing time	1 ~ 30 minutes, can be set as needed
Material	304 stainless steel
Refrigerant/supply pressure	Liquid nitrogen / 3-5 bar (g)
Electricity specifications	380V / 50Hz
Control method	PLC + touch screen intelligent program control
Circulation system	Variable frequency speed control fan circulation system

Our product Advantages

♦Freshness lock in seconds: With liquid nitrogen as the cooling medium, when the pre-frozen product contacts the ultra-low temperature quick freezing equipment, it will quickly vaporize and instantly take away the heat on the surface of the frozen product for heat exchange, thereby maintaining the original color, flavor, quality and shape of the food. ♦High efficiency and energy saving: Patented design of efficient cold transmission system and wind field design, using 150mm thick ultra-low temperature special insulation material, compact cold capacity, can save 30% energy consumption compared with similar products. ♦Safety and hygiene: Efficient and stable CIP cleaning system, using human-machine interface image display, automatic switching of process parameters, automatic adjustment of cleaning time, temperature and other parameters, all operations can be recorded, convenient for users to do GMP certification. ♦Intelligent and stable: The equipment is equipped with an editable logic controller PLC, a friendly human-machine intelligent control interface, convenient and stable operation/different production process modes can be preset, different product production processes can be switched at will, and ensure the consistency of each batch of production processes. ♦Durable: SUS304 food-specific conveyor belt, equipped with variable frequency speed regulation motor, the conveying speed can be flexibly adjusted according to different products. The equipment is also equipped with an automatic device for tensioning the mesh belt. This ensures that the food conveyor belt runs smoothly and for a long time. ♦Easy maintenance: The equipment adopts a modular vertical lifting design, which is highly flexible, easy to splice and change according to production capacity needs, and easy to maintain.

More Details

Specific parameters

Model	Tunnel length(mm)	Width of wire Belt(mm)	Power (kw)	Freezing output (kg/hour)
CD-QFL-400	6000	1200	8	400-500
CD-QFL-600	9000	1200	12	600-800
CD-QFL-800	12000	1200	16	800-1000
CD-QFL-1000	9000	1600	16	800-1000
CD-QFL-1200	12000	1600	18	1000-1200
CD-QFL-1400	15000	1600	20	1400-1600
CD-QFL-2000	16000	1800	24	2000-2500
CD-QFL-2250	18000	1800	24	2250-2750
CD-QFL-2500	18000	2400	32	2500-3000
CD-QFL-5000	36000	2400	64	5000-6000

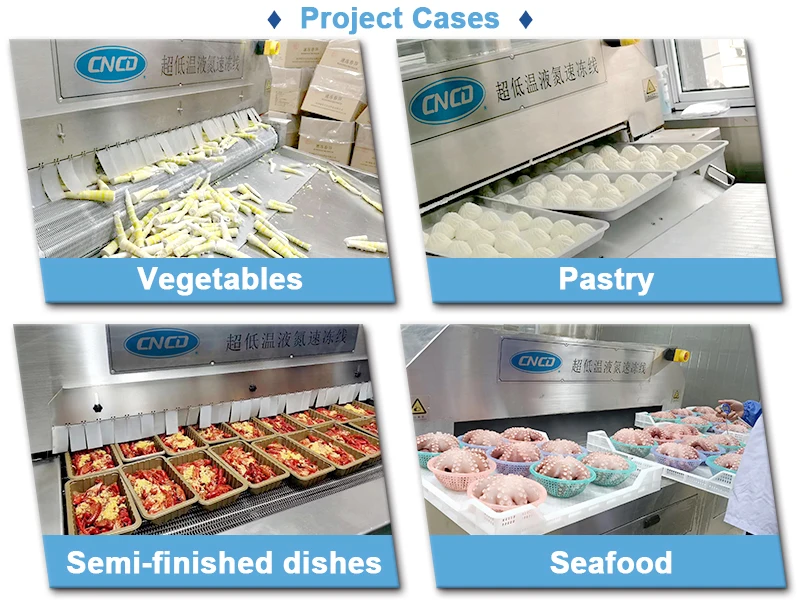

Customer Cases

Remarks:

1.In the actual production process, due to the differences in food raw material characteristics and processing technology, the actual production capacity may deviate from the above data. 2.This equipment supports customized design according to customer on-site needs, and can provide a variety of structural solutions such as overall lifting type or side-opening door type to meet different production requirements.

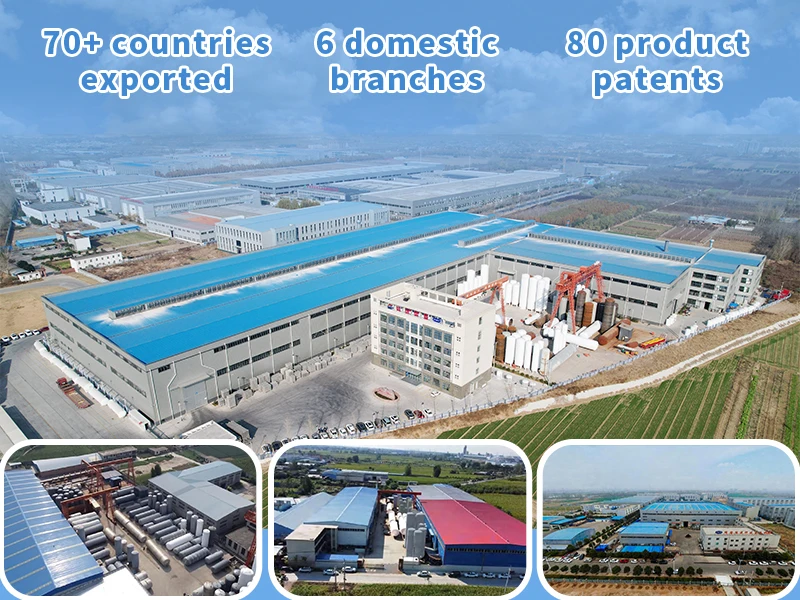

Company Profile

Xinxiang Chengde Energy Technology Equipment Co.Ltd(original Chengde Gas Equipment Co. Ltd.) was founded in 2002,company is located in Industrial Park,Fengquan district,Xinxiang city, Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.The company has been committed to the pressure vessels.Low-temperature cryogenic equipment and gas equipment in the field of research and development design manufacture and installation.

Our main products have cryogenic liquid storage tank,LNG storage tank,cryogenic liquid pump,ambient vaporizer, water bath vaporizer, LPG electric vaporizer,cryogenic liquid cylinders(VGL),cryogenic nitrogen dewar container,cryogenic liquid micro tank,ISO tank container,LPG storage tank,semi-trailer tank,air separation plant etc.Liquid oxygen,nitrogen,argon,carbon dioxide and other industrial gases complete equipment engineering;LNG refueling station,LNG vaporizing station,Storage station, peak regulating station complete sets of equipment engineering.

The company more than 69000 square meter for workshop.Our company have exported products to foreign countries more than 23 years have rich experience in production and exported,products have exported to more than 68 countries also have branch office in the Vietnam.

Customer Photos

Many customers come to visit our company, they are very satisfied with our products and trust more.

FAQ

Q1: What's your company after- sales service ? A1: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation: 1. improper operation problem, we will solve all the usage problems by video call. 2. machine parts problem, we will send you accessories to ensure the normal use of the machine. 3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company. Q2: Do you provide any warranty about your equipment ? A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minorproblems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos,To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time. Q3: How to transport without customs clearance experience ? A3: We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service. Q4: Does your company provide training ? A4: Yes, we provide a series of instructional videos and after-sales service videos,supporting Chinese, English, French, Spanish, and Arabic. Q5: Differences from other brands in China ? A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $5200 / set
  • 5+ set: US $5150 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 380v/50hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Xinxiang Chengde Energy Technology Equipment Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xinxiang Chengde Energy Technology Equipment Co., Ltd. range on HVACR Nexus.
