Air handling units — model number CD-X. The complete factory specification follows. Made by Qingdao Dandb Steel Structure Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Air Handling Units
- Model Number: CD-X
- Material: Steel, Galvanized Steel, Structural Steel, Q235B Galvanized Steel, Q355B Galvanized Steel
- Warranty: More Than 5 Years
- Place Of Origin: Shandong, China
- Application: Warehouse, steel warehouse, Cold Storage, Food Processing, Logistics Center, Pharmaceutical Storage
- Product Type: Steel Structure Cold Storage
Technical Specifications
| Use | Cold Storage & Freezing |
|---|---|
| Material | Steel, Galvanized Steel, Structural Steel, Q235B Galvanized Steel, Q355B Galvanized Steel |
| Maximum Wind Resistance (Mph) | Max 150mph / 240km/h (Customizable) |
| Maximum Roof Load (Lb./Sq.Ft) | Max 3.0 kN/m2 (Customizable) |
| Application | Warehouse, steel warehouse, Cold Storage, Food Processing, Logistics Center, Pharmaceutical Storage |
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection |
| Product Type | Steel Structure Cold Storage |
| Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
| Design Style | Industrial |
| Place Of Origin | Shandong, China |
| Brand Name | DB |
| Model Number | CD-X |

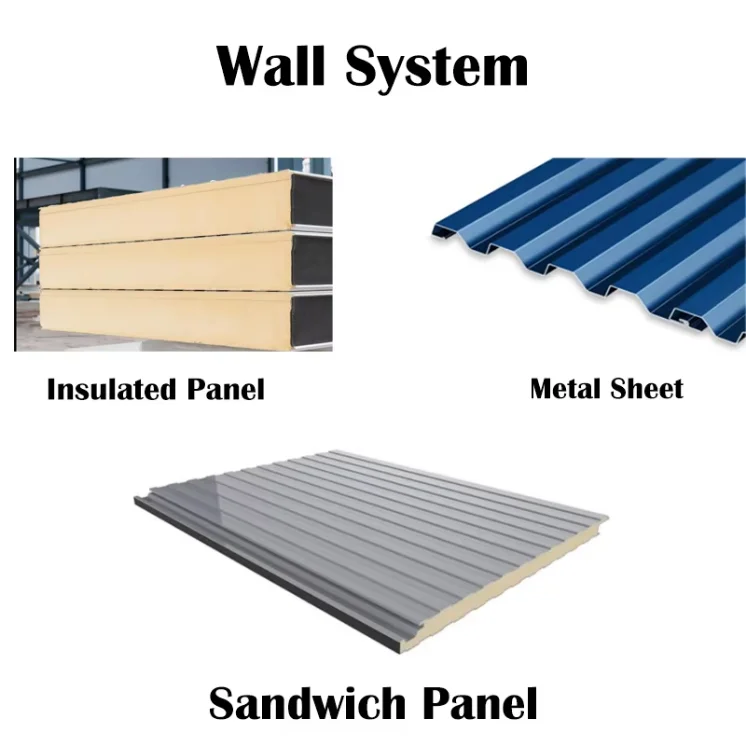

| Wall/Roof Panel | PU/PIR Sandwich Panel (Cam-lock / Tongue & Groove) |
| Connection Method | 100% High-Strength Bolted (No Welding) |
| Temperature Range | -40°C to +15°C (Blast Freezer to Chiller) |
| Panel Density | 40kg/m³ – 42kg/m³ |
| Surface Treatment | Hot-dip Galvanized / Epoxy Painted |
| Clear Span | 10m to 60m+ (No interior columns) |

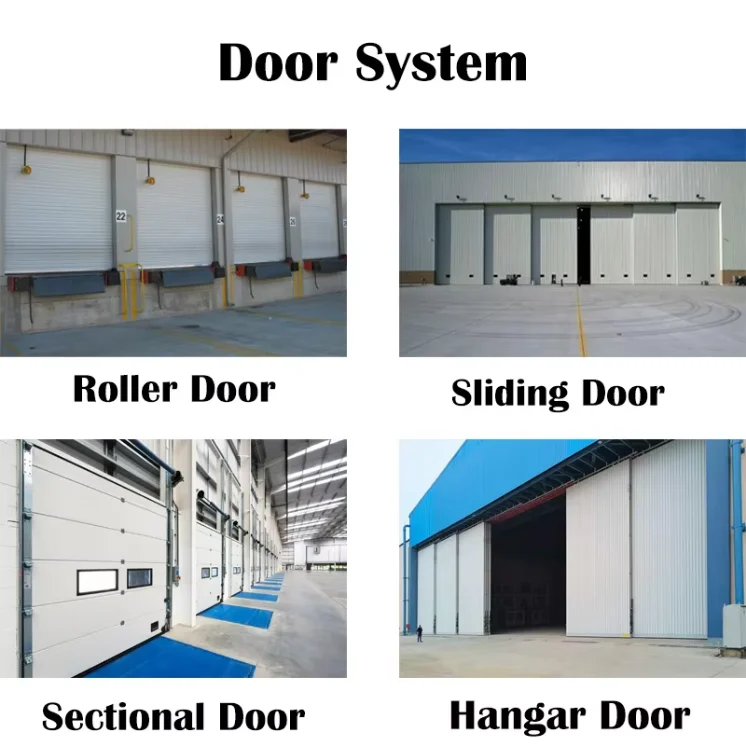

| Cold Room Door | Heavy-duty Sliding Door / Hinged Door |
| Refrigeration System | Bitzer / Copeland / Danfoss Compressor Unit |
| Fire Retardant Grade | B1 / B2 Fireproof (Self-extinguishing) |
| Selling Units | Single item |
| Single Package Size | 80X80X80 cm |
| Single Gross Weight | 80.0 kg |
Product Details
Extreme Climate Design CE ISO Certified 60m Clear Span One-Stop EPC Service 50-Year Lifespan
- Clear Span Steel Warehouse Up To 80m Column-Free Storage Space
- Logistics & Storage Ready Optimized For Warehousing And Distribution Operations
- Fast Prefabricated Installation Factory-Made Components Reduce Construction Time
- Expandable Warehouse Design Flexible Layout For Future Capacity Expansion
- Climate Load Engineering Designed For Wind, Snow And Seismic Conditions
Item | Specification |
Main Steel Frame | Q355B / ASTM A572 Grade 50 |
Surface Treatment | Hot-dip Galvanized / Anti-rust Painting |
Wind Load | 120–300 km/h |
Snow Load | 0.5–2.0 KN/m² |
Earthquake Resistance | Grade 8–9 |
Design Standard | ASTM / AISC / EN1090 |

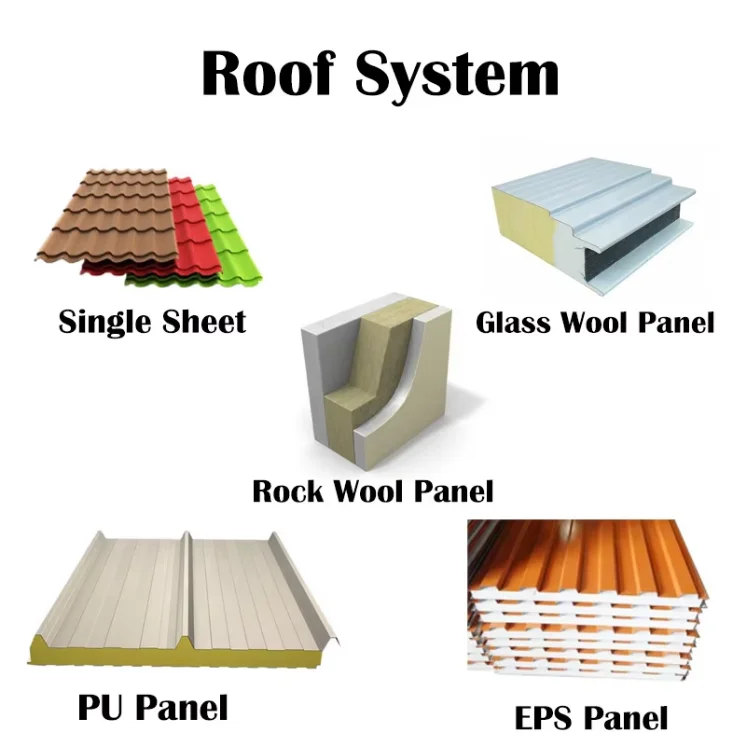

Roof & Wall | EPS / Rock Wool / PU Sandwich Panel |
Service Life | 30–50 Years |

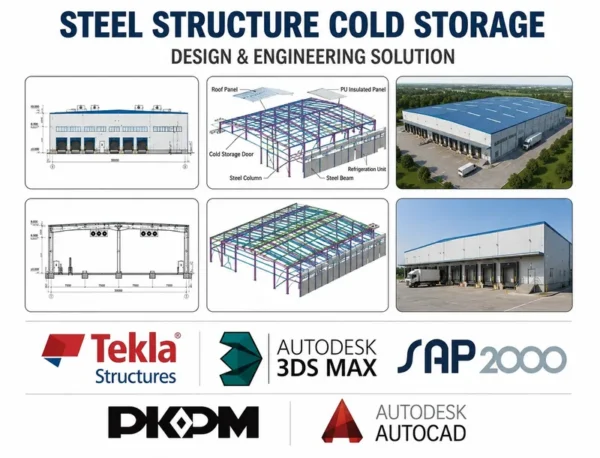

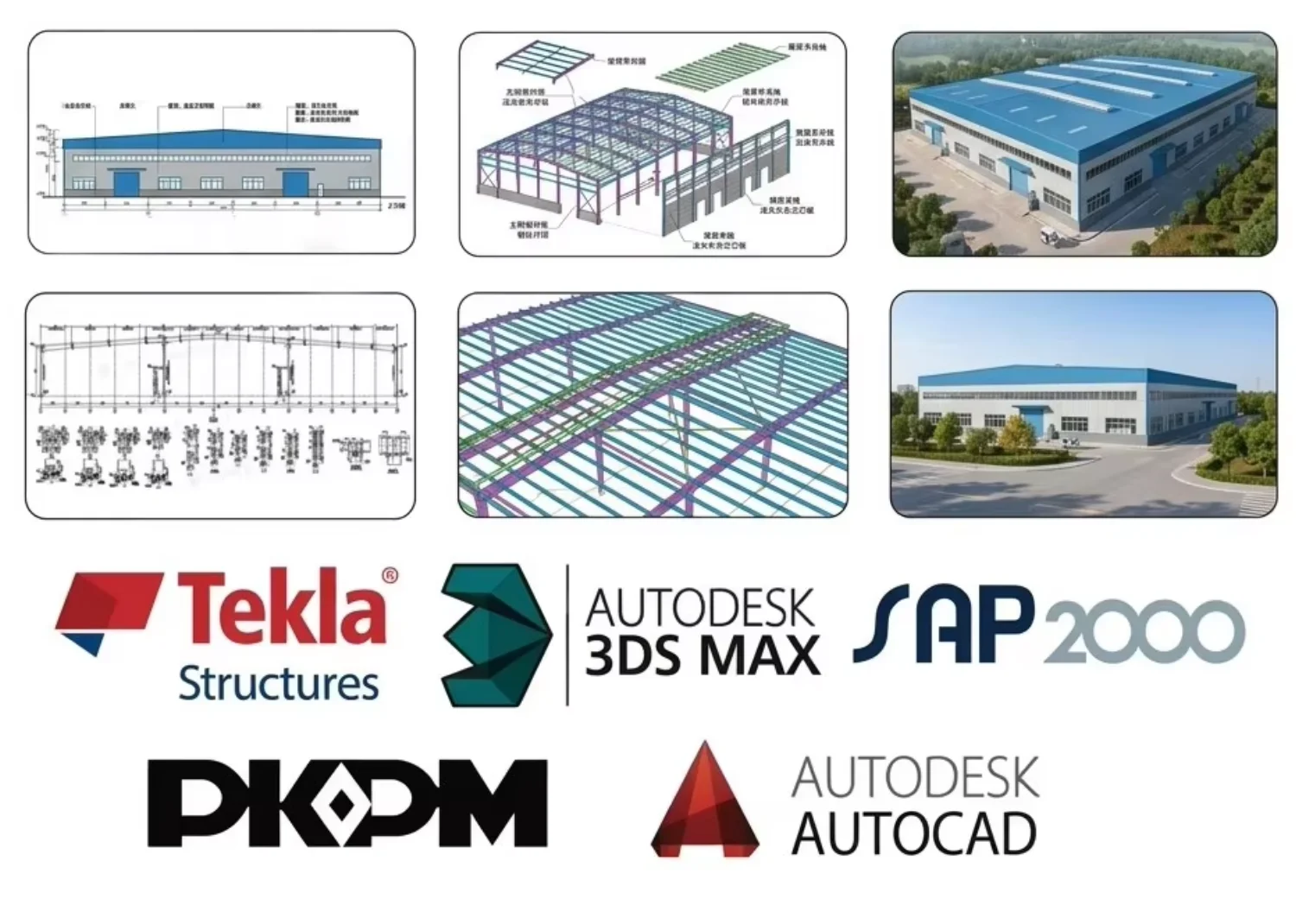

Drawing Software | Tekla / AutoCAD / SAP2000 |
Installation | Engineer Guidance + Installation Drawing |

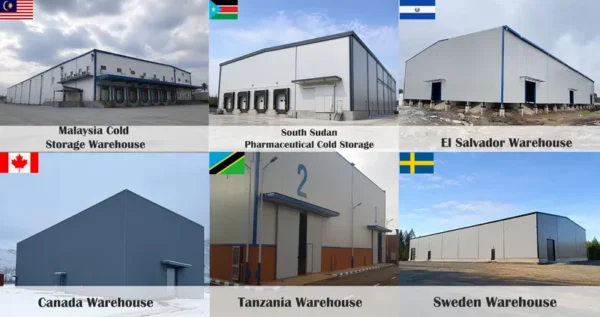

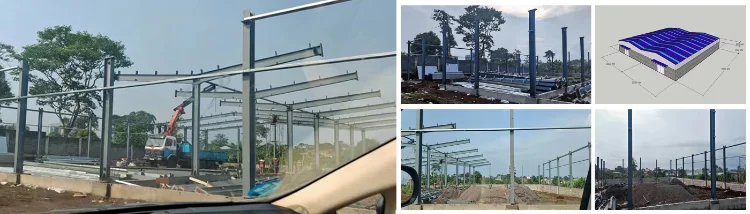

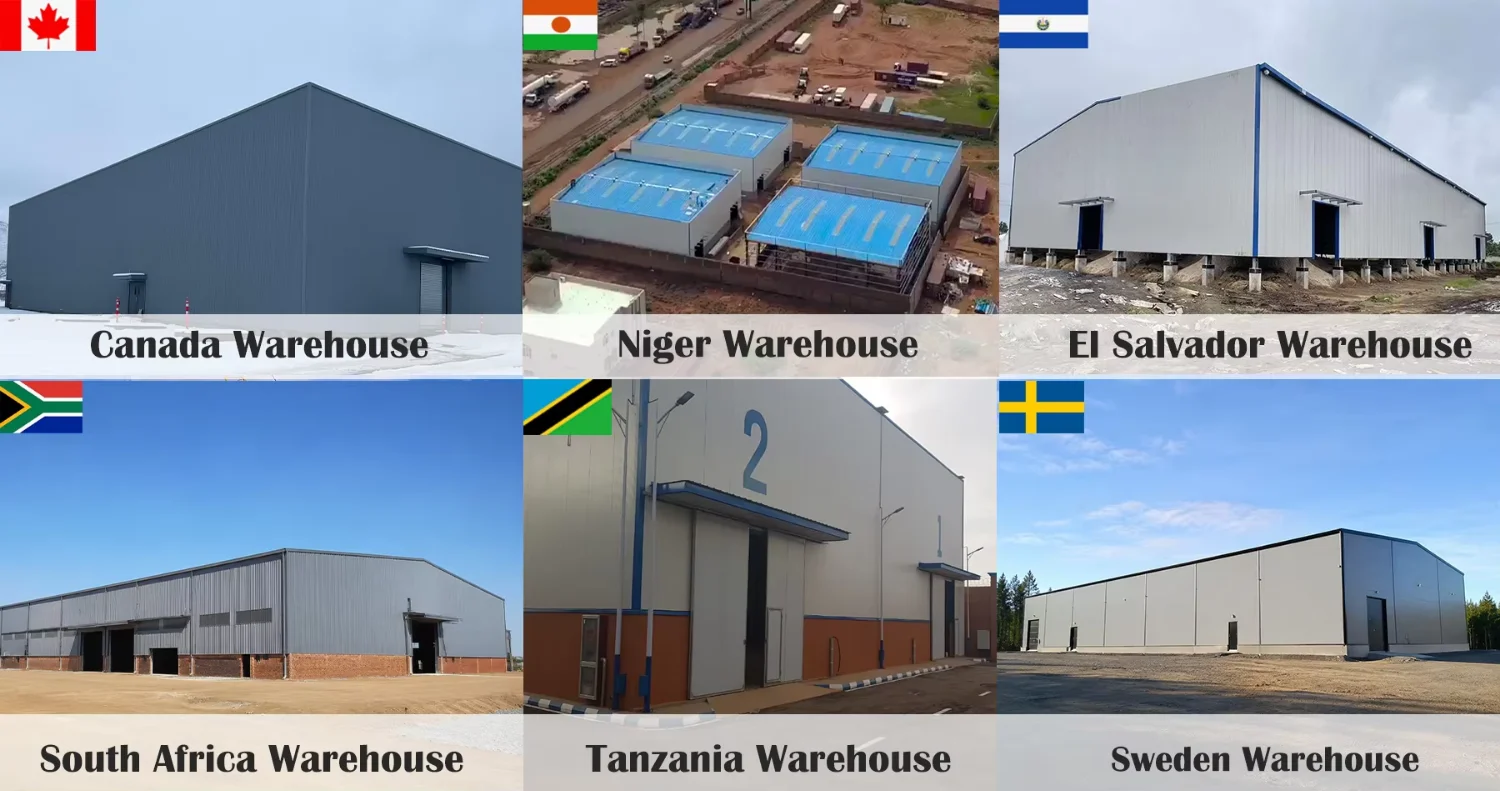

Equatorial Guinea Steel Structure Warehouse（under construction）
Location: Equatorial Guinea
Building type: Steel Structure Warehouse
Size:40x40x4.5MSteel Weight：37 tons
Roof and wall cladding：0.5mm thickness PPGI steel sheet
Building type: Steel Structure Warehouse
Size:40x40x4.5MSteel Weight：37 tons
Roof and wall cladding：0.5mm thickness PPGI steel sheet
High-Wind & Seismic Zone (Coastal corrosion-prone areas)

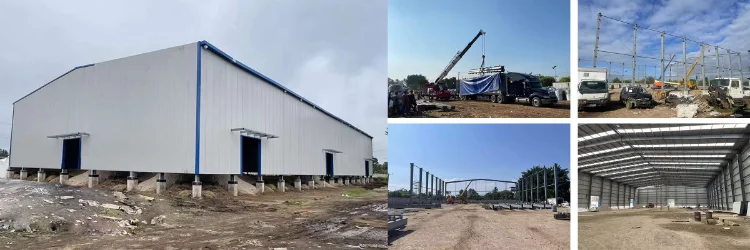

Country: El Salvador
Building type: Steel warehouse
Size:2450㎡
Challenge: Fast construction and practical site execution
Solution: Prefabricated steel structure with efficient installation support
Result: Successfully delivered for high-wind and seismic zones with efficient on-site erection and reliable structural safety. Outcome:Enabled fast project execution and reliable long-term performance in challenging seismic and high-wind regions.
Building type: Steel warehouse
Size:2450㎡
Challenge: Fast construction and practical site execution
Solution: Prefabricated steel structure with efficient installation support
Result: Successfully delivered for high-wind and seismic zones with efficient on-site erection and reliable structural safety. Outcome:Enabled fast project execution and reliable long-term performance in challenging seismic and high-wind regions.

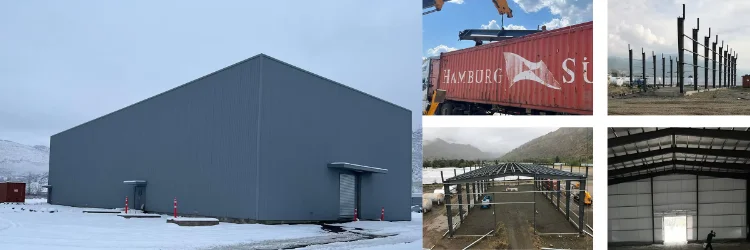

Heavy Snow Load Solution (Canada heavy snow regions)
Country: Canada
Building type: Steel warehouse
Size: 800㎡
Challenge: Cold climate and snow load
Solution: Customized structural design and reinforced roof system
Result: Successfully designed for heavy snow load conditions with reinforced roof structure, improving long-term durability and operational safety. Outcome: Improved operational reliability for heavy snow regions with durable structural performance and long service life.
Building type: Steel warehouse
Size: 800㎡
Challenge: Cold climate and snow load
Solution: Customized structural design and reinforced roof system
Result: Successfully designed for heavy snow load conditions with reinforced roof structure, improving long-term durability and operational safety. Outcome: Improved operational reliability for heavy snow regions with durable structural performance and long service life.
Corrosion-Resistant Storage (Africa remote construction sites)

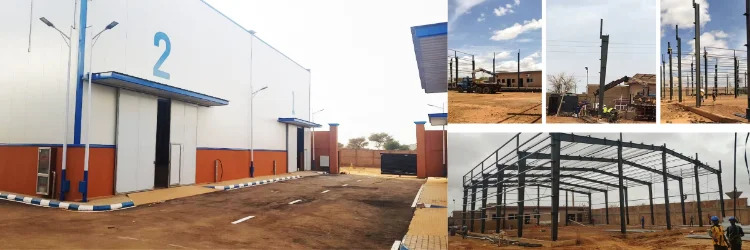

Country: Tanzania
Building type: Steel warehouse
Size:725 ㎡×4 sets(2900 ㎡)
Challenge: Hot, dry climate and remote site conditions
Solution: Customized steel building system and simplified erection process
Result: Customized for hot-climate environments with corrosion-resistant steel components and efficient field installation. Outcome: Enabled efficient on-site installation and reliable long-term use in hot and dry environmental conditions.
Building type: Steel warehouse
Size:725 ㎡×4 sets(2900 ㎡)
Challenge: Hot, dry climate and remote site conditions
Solution: Customized steel building system and simplified erection process
Result: Customized for hot-climate environments with corrosion-resistant steel components and efficient field installation. Outcome: Enabled efficient on-site installation and reliable long-term use in hot and dry environmental conditions.
Main structure | Welded H steel, material grade: Q355B (equivalent to S355JR, ASTM A572 Gr. 50) | |
Anti-rust protection | Hot dip galvanized or anti-rust painting | |
Roof and wall | Single layer steel sheet or sandwich panel | |
ASTM / EN1090 project experience Exported to 80+ countries | ||

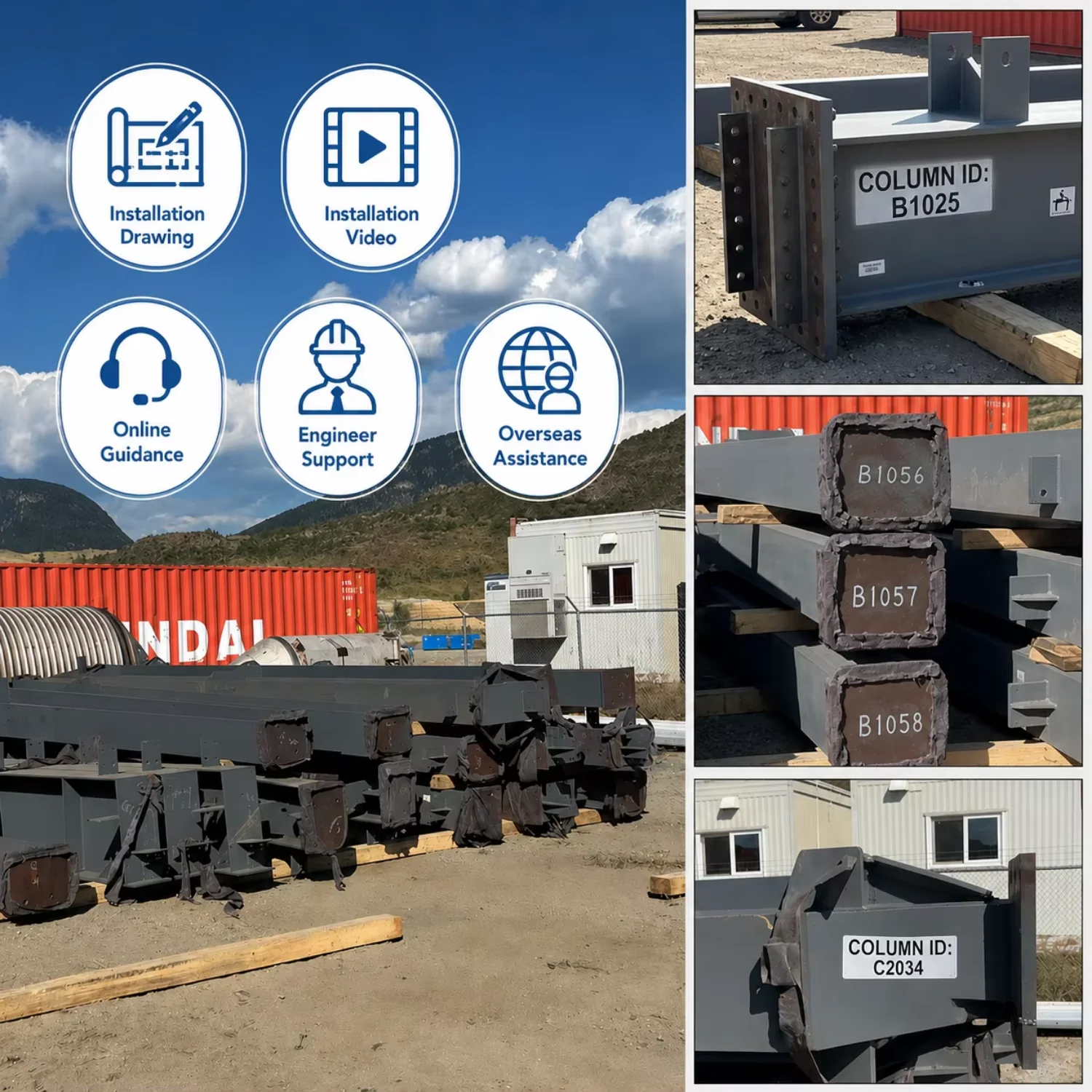

Customization Service（Installation video guidance included）
We have a professional design team of 30 experts with 10 years of experience, offering free one-on-one customized designs, multiple design options, and a wide range of steel components, roof and wall panels, doors, and windows to meet your needs.
Need a Steel Building Proposal?
Our Engineering Team Can Help You With: Wind / Snow Load Suggestion Preliminary Tekla 3D Layout Steel Consumption Estimate Installation Guidance Foundation Recommendation Budgetary Quotation Within 48 Hours

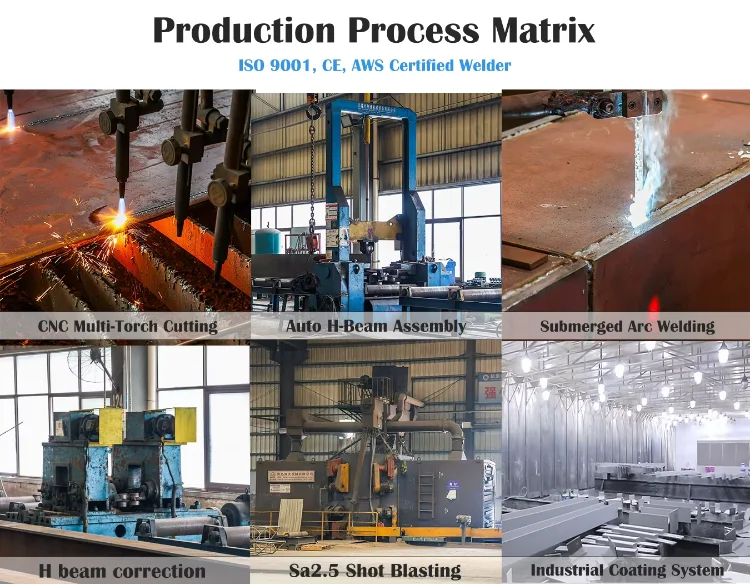

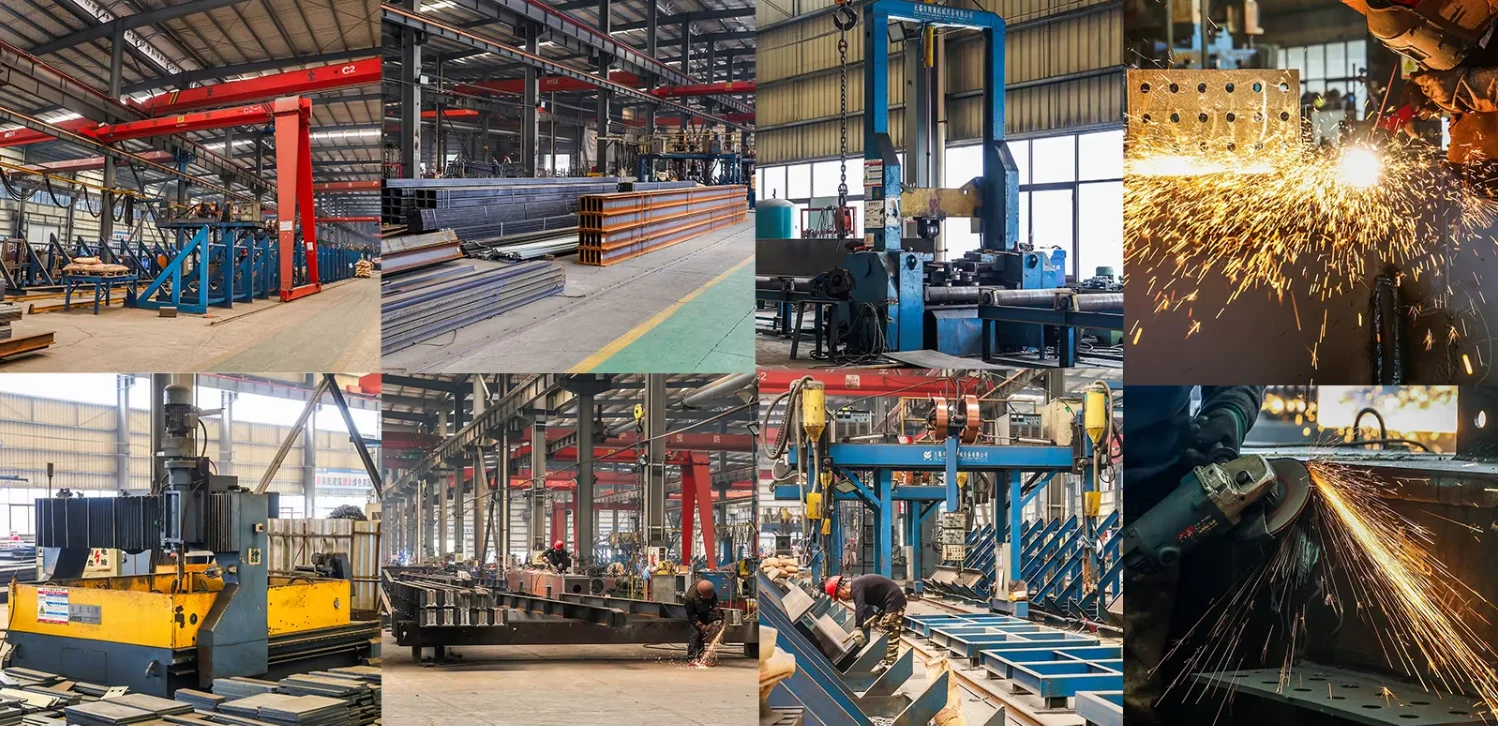

30,000T/Month Capacity with EN 1090/AWS Certified Welding
Equipped with CNC plasma cutters and robotic welding stations, we strictly follow ISO 9001 and ISO 3834 standards. Every steel batch comes with an EN 10204 3.1 material certificate, ensuring 100% traceability and structural safety.

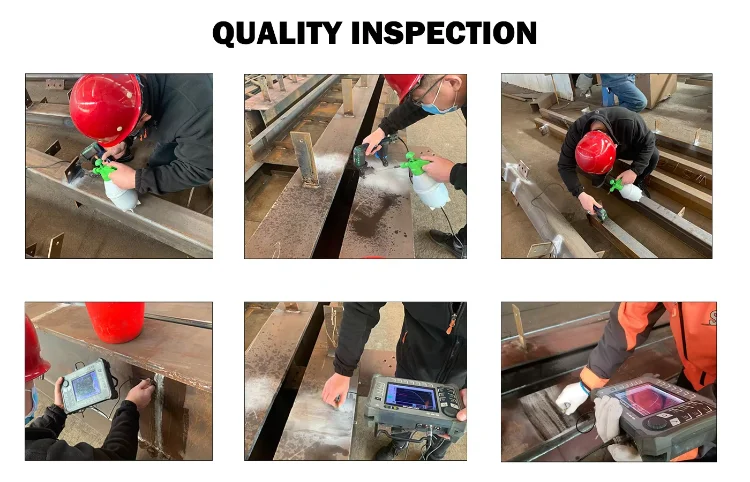

Quality control that reduces rework and shipment risk
* Raw material check before production * Dimensional inspection during fabrication
* Pre-shipment verification for every shipment
* Reduce installation errors and missing parts We guarantee 100% compliance with EN/ASTM standards, NO negative tolerance cheating
Support third-party factory inspection (SGS/TUV/BV) before order placement.
* Pre-shipment verification for every shipment
* Reduce installation errors and missing parts We guarantee 100% compliance with EN/ASTM standards, NO negative tolerance cheating
Support third-party factory inspection (SGS/TUV/BV) before order placement.
Customer Visits & Factory Inspections
Our clients frequently visit our production facility to inspect steel structures and review project progress. We welcome overseas engineers and project managers to experience our factory operations firsthand. Trusted by clients from 50+ countries, our factory visits provide confidence in our delivery, installation guidance, and after-sales support.

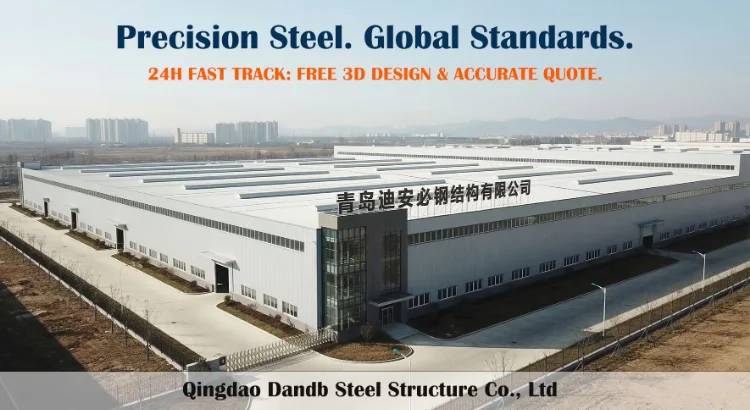

Qingdao Dandb Steel Structure Co., Ltd. is a CE/ISO-certified leading manufacturer and global EPC (Engineering, Procurement, and Construction) provider of prefabricated steel building solutions. We don't just supply steel components; we deliver complete, turnkey structural solutions—from 3D BIM detailing and zero-error fabrication to global logistics and on-site installation guidance.

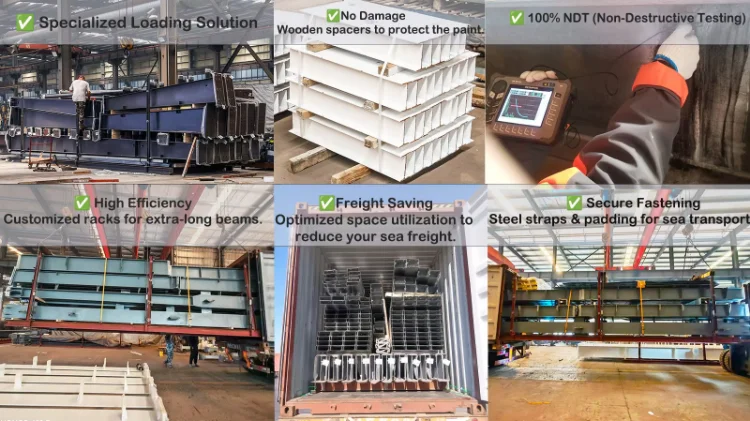

Space-Optimized Loading: Save Up to 20% on Sea Freight
We utilize customized steel racks for heavy H-beams and soft padding for painted panels to prevent any transport damage. Our logistics team utilizes 3D software to calculate the optimal loading plan for 40HQ/40OT containers, maximizing space and slashing your shipping costs
FAQs
Are you manufacture or trading company?
We are a manufacturer in Shandong, we focus on delivering customized steel structureengineering solutions to clients worldwide, we operate two fully equipped factories, one of which is dedicated to serving international trade.
What is delivery time?
Less than 15 workdays in general. It also depends on the order quantity and design.
What is the term of payment?
30% deposit before production, balance to be paid before shipment.
How can I get a quick quotation on my racking project?
For a quick quotation, please let us know the follow information.
1). The size of building: length*width*height.
2). Project location in which country.
3). Usage and amount of building.
4). Door & window quantity and size.
5). If the building has mezzanine/crane/multiple floors/irregular-shaped areas.
Do you offer guiding installation on site overseas for the building?
Yes, we can provide the service of installation, supervision and training by extra.
How does your factory do regarding quality control?
We provide clients in various markets with the certification documents required for building audits,such as CE certification, ISO9001 certificate, CPR certification, BCI certification, product qualitycertification, and fire inspection reports certified by CNAS, MA, and ilac-MRA, and more.
What shipping options are available?
We support three standard ocean shipping trade terms: EXW, FOB and CIF. For certain countries andregions, we also provide DDP(door-to-door delivery with customs countries and regions, we also provide DDP (door-to-door delivery with customs.
Ordering and Pricing
- Minimum order quantity: 200 square meter
- Volume pricing:
- 200–999 square meter: US $48 / square meter
- 1000–9999 square meter: US $38 / square meter
- 10000+ square meter: US $18.9 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling units?
The standard minimum order quantity is 200 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Dandb Steel Structure Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Qingdao Dandb Steel Structure Co., Ltd. range on HVACR Nexus.
